    1. White block at bottom left of head-switching noise

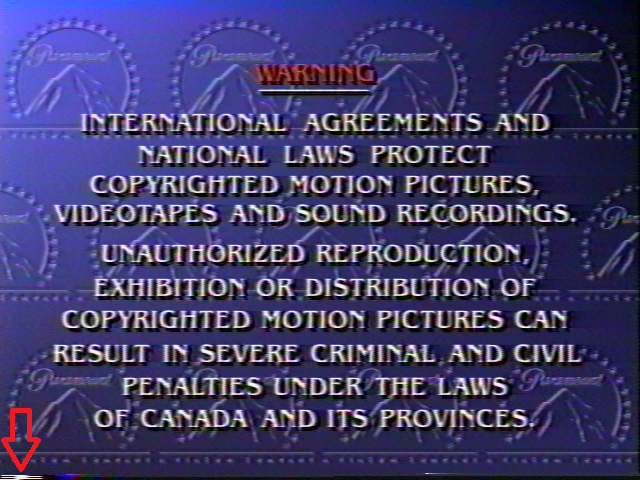

    My example:Image
    [Attachment 50648 - Click to enlarge]

    Someone else's example:

    These pulses are actually placed at the bottom of the frame, during the horizontal blanking interval. They would normally be hidden outside the active video area, but the video decoder skews the image below the switching point, pushing them right, into the visible area.

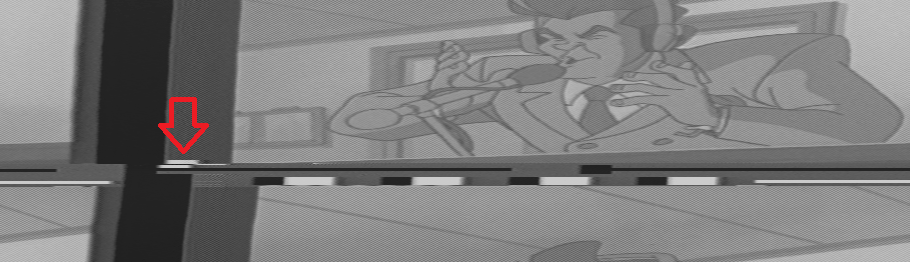

    This is where they're really placed in the signal:
    [Attachment 50642 - Click to enlarge]

    But not all MV tapes have these little white bars in the horizontal area! (Example: Home Alone does not.)

    [Attachment 50643 - Click to enlarge]

    • Has white block? Tape has Macrovision.
    • No white block? Unknown status.
    At the signal level, I don't know a good, clear reference regarding the purpose of these pulses. I believe they're what these two links are talking about:

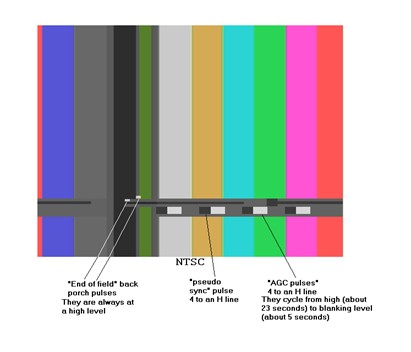

    In Figure 1 of the attached AMD M690T/M690E Macrovision FAQ Technical Bulletin PDF, this white block is visible, but there's no explanation given like there is for the other features. This document seems to call them "end-of-field back-porch pulses" elsewhere.

    I've also attached a datasheet for TMC2491A Digital Video Encoder with Macrovision™ Copy Protection that includes a paragraph and at least one diagram related to this.

    2. Garbling input to your capture device to see VBI

    The idea here is to briefly confuse the video decoder of your device into displaying the Vertical Blanking Interval within the active video area, instead of its normal position out of view.
    • Start a capture
    • Hit Play on the VCR then flick the on-screen menu On and Off multiple times
    • Rewind, play. Fast forward, play. Hopefully you will see a vertical jump at some point.
    • Stop the capture and inspect with SeparateFields or Bob in Avisynth, or a Double frame rate deinterlacer in VirtualDub. These in-between moments will probably only show up as single fields, so viewing it without deinterlacing or with a regular deinterlacer that drops one of the fields will miss things.
    The exact effects will vary depending on the VCR and the capture device. Here are the best example fields I got, feeding the Titanic VHS into the Diamond VC500 with two different VCRs.

    Panasonic AG-1980

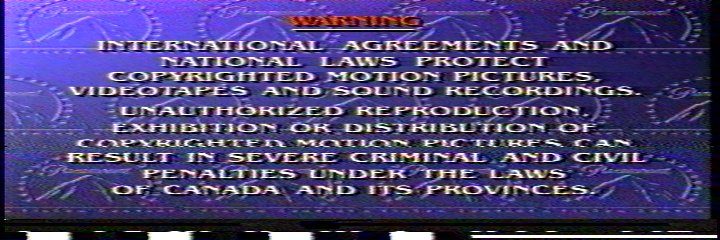

    Changing from Rewind to Play.
    [Attachment 50644 - Click to enlarge]

    During a Rewind.
    [Attachment 50645 - Click to enlarge]

    Mitsubishi HS-HD2000U

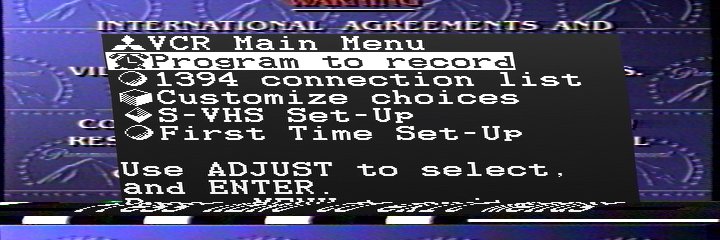

    Turning off the Menu after it was displaying.
    [Attachment 50646 - Click to enlarge]

    Changing from Play to Fast Forward.
    [Attachment 50647 - Click to enlarge]

    While FFing the HS-HD2000U, a tiny bit of the Macrovision pulses were actually visible at the top of the frame, brightening and darkening. But that would be best shown with a video, not screenshots. Didn't get to see the same thing using the AG-1980's FF function: its FF isn't decodable by the VC500. It just drops all frames during FF.
    Image Attached Thumbnails M690E-M690T-3.pdf


    Last edited by vaporeon800; 25th Oct 2019 at 23:45.
    Quote Quote
  2. Dinosaur Supervisor KarMa's Avatar
    Join Date
    Jul 2015
    Search Comp PM

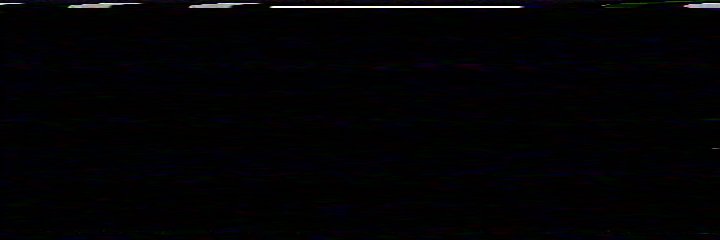

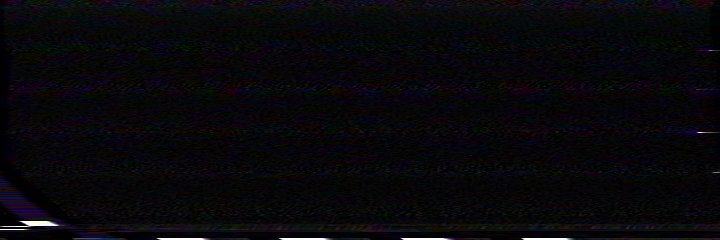

    I'm normally able to find it simply by fast forwarding as fast as possible with the video still playing. Pulsing white bars at the very top. You might have trouble seeing it on a normal TV, but a cheap capture card is usually able to see it.
    Quote Quote
  3. Some capture cards let you move the capture window into the normally hidden part of the frame. Some older PCI Cards with broktree bt848, bt878 and conexant cx878 fusion can use the bt8x8 tweaker function in virtualdub. Philips/NXP SAA7134-based cards can do something similar if using DScaler as far as I know, I believe the screens here were captured using the latter.

    With a conexant cx2388x PCI card you can capture raw 8-bit data in linux using the hacky cxadc driver, and look at it with e.g gimp. This will be a bit skewed though as the sample rate doesn't divide evenly with 720.

    I think it should also be possible to move the capture window with many capture devices on linux by changing A/D chip settings directly over i2c via the command line, though that's a bit more tricky.

    And yeah as noted, doing FFWD/RWD may shift the image down a bit with some VCR/capture card/TBC/DVD-recorder combinations. I've seen it with my TBC-3000 and some DVD-Recorders on passthrough.
