  1. Hi, but I'm a conCat

    please consider the 2 attached input (clipA.MP4 and clipB.mp4)

    Code:
    ffmpeg64bit332.exe -y -f concat -i clipA.mp4 -i clipB.mp4 -vcodec copy -an output.mp4
    but happen this

    Code:
    ffmpeg version 3.3.2 Copyright (c) 2000-2017 the FFmpeg developers
      built with gcc 7.1.0 (GCC)
      configuration: --enable-gpl --enable-version3 --enable-cuda --enable-cuvid --enable-d3d11va --enable-dxva2 --enable-libmfx --enable-nvenc --enable-avisynth --enable-bzlib --enable-fontconfig --enable-frei0r --enable-gnutls --enable-iconv --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfreetype --enable-libgme --enable-libgsm --enable-libilbc --enable-libmodplug --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenh264 --enable-libopenjpeg --enable-libopus --enable-librtmp --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvo-amrwbenc --enable-libvorbis --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxavs --enable-libxvid --enable-libzimg --enable-lzma --enable-zlib
      libavutil      55. 58.100 / 55. 58.100
      libavcodec     57. 89.100 / 57. 89.100
      libavformat    57. 71.100 / 57. 71.100
      libavdevice    57.  6.100 / 57.  6.100
      libavfilter     6. 82.100 /  6. 82.100
      libswscale      4.  6.100 /  4.  6.100
      libswresample   2.  7.100 /  2.  7.100
      libpostproc    54.  5.100 / 54.  5.100
    clipA.mp4: Invalid data found when processing input
    but both files have the same resolution, codec and framerate. So where is the problem? please help a ***
    Image Attached Files
    Quote Quote
  2. "-f concat" tells ffmpeg the input will be a text file of the following pattern:
    Code:
    # this is a comment
    file '/path/to/file1'
    file '/path/to/file2'
    file '/path/to/file3'
    Instead of such a text file you specified an mp4 file. That cannot work.

    https://trac.ffmpeg.org/wiki/Concatenate
    Quote Quote
  3. Code:
    v:\automazioneclip\core\ffmpeg64bit332.exe -y -f concat -safe 0 -i concatlist.txt -vcodec copy -an output.mp4
    where concatlist.txt is:

    Code:
    file 'v:\s3\clipA.MP4'
    file 'v:\s3\clipB.MP4'
    so that

    Code:
    ffmpeg version 3.3.2 Copyright (c) 2000-2017 the FFmpeg developers
      built with gcc 7.1.0 (GCC)
      configuration: --enable-gpl --enable-version3 --enable-cuda --enable-cuvid --enable-d3d11va --enable-dxva2 --enable-libmfx --enable-nvenc --enable-avisynth --enable-bzlib --enable-fontconfig --enable-frei0r --enable-gnutls --enable-iconv --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfreetype --enable-libgme --enable-libgsm --enable-libilbc --enable-libmodplug --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenh264 --enable-libopenjpeg --enable-libopus --enable-librtmp --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvo-amrwbenc --enable-libvorbis --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxavs --enable-libxvid --enable-libzimg --enable-lzma --enable-zlib
      libavutil      55. 58.100 / 55. 58.100
      libavcodec     57. 89.100 / 57. 89.100
      libavformat    57. 71.100 / 57. 71.100
      libavdevice    57.  6.100 / 57.  6.100
      libavfilter     6. 82.100 /  6. 82.100
      libswscale      4.  6.100 /  4.  6.100
      libswresample   2.  7.100 /  2.  7.100
      libpostproc    54.  5.100 / 54.  5.100
    [mov,mp4,m4a,3gp,3g2,mj2 @ 000000000228c340] Auto-inserting h264_mp4toannexb bitstream filter
    Input #0, concat, from 'concatlist.txt':
      Duration: N/A, start: -0.005333, bitrate: 32191 kb/s
        Stream #0:0(und): Audio: ac3 (ac-3 / 0x332D6361), 48000 Hz, stereo, fltp, 320 kb/s
        Metadata:
          handler_name    : SoundHandler
        Stream #0:1(und): Video: h264 (High) (avc1 / 0x31637661), yuv420p, 1920x1080 [SAR 1:1 DAR 16:9], 31871 kb/s, 25 fps, 25 tbr, 12800 tbn, 50 tbc
        Metadata:
          handler_name    : VideoHandler
    Output #0, mp4, to 'output.mp4':
      Metadata:
        encoder         : Lavf57.71.100
        Stream #0:0(und): Video: h264 (High) ([33][0][0][0] / 0x0021), yuv420p, 1920x1080 [SAR 1:1 DAR 16:9], q=2-31, 31871 kb/s, 25 fps, 25 tbr, 12800 tbn, 12800 tbc
        Metadata:
          handler_name    : VideoHandler
    Stream mapping:
      Stream #0:1 -> #0:0 (copy)
    Press [q] to stop, [?] for help
    [mov,mp4,m4a,3gp,3g2,mj2 @ 000000000228c340] Auto-inserting h264_mp4toannexb bitstream filter
    frame=  198 fps=0.0 q=-1.0 Lsize=   12600kB time=00:00:26.02 bitrate=3966.2kbits/s speed= 520x
    video:12597kB audio:0kB subtitle:0kB other streams:0kB global headers:0kB muxing overhead: 0.022225%
    but strangely the output don't have clipB.MP4 and image of output.mp4 is "freezed" of 26 seconds
    Quote Quote
  4. The concat option with the list of files on the command line looks like:

    Code:
    ffmpeg.exe -i "concat:file1.ts|file2.ts" -c copy output.ts
    But it only works for container types that can be simply concatenated. It is essentially the same as the CLI copy command:

    Code:
    copy /b file1.ts+file2.ts output.ts
    You cannot concatenate MP4 files this way. Use the list "list file" format sneaker pointed out.
    Last edited by jagabo; 25th Jul 2017 at 10:16.
    Quote Quote
  5. The "file list" (aka "concat demuxer") doesn't seem to work in this case for some reason. That's why I suggested he reports it to ffmpeg team and linked to the documentation which shows a simple workaround: convert mp4 to ts first. Then you can use the "concat protocol" because - like you said - it works for ts input.
    Quote Quote
  6. Image
    [Attachment 42421 - Click to enlarge]


    but I'm a cat, not a conCat (a conplicated cat)

    How I can do ?
    Quote Quote
  7. Originally Posted by marcorocchini View Post
    How I can do ?
    By simply following the example given in the documentation I linked.
    Quote Quote
  8. Member Budman1's Avatar
    Join Date
    Jul 2012
    Location
    NORTHWEST ILLINOIS, USA
    Search Comp PM
    I was able to join the 2 segments using a trick that often works for me. Just copy the video with copy codec and then join them with concatenate.

    Code:
    ffmpeg -i clipA.mp4 -c copy c:\newfolder\clipAA.mp4
    ffmpeg -i clipB.mp4 -c copy c:\newfolder\clipBB.mp4
    create the mylist.txt from the folder with the videos:
    On Windows Command-line:
    Code:
    (for %i in (*.mp4) do @echo file '%i') > mylist.txt
    Or for Windows bat-file:
    Code:
    (for %%i in (*.mp4) do @echo file '%%i') > mylist.txt
    Then concatenate:
    Code:
    ffmpeg -f concat -safe 0 -i mylist.txt -c copy output.mp4
    Click image for larger version

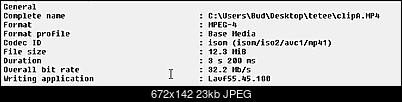

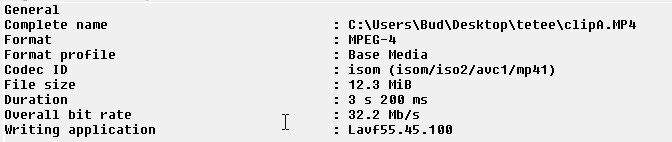

Name:	clipA.jpg
Views:	50
Size:	23.3 KB
ID:	42425Click image for larger version

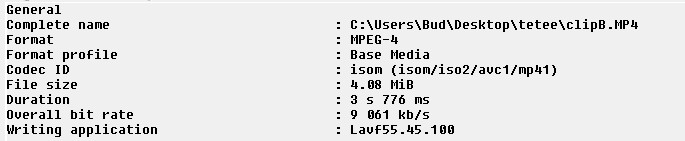

Name:	ClipB.jpg
Views:	58
Size:	22.3 KB
ID:	42423Click image for larger version

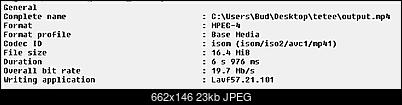

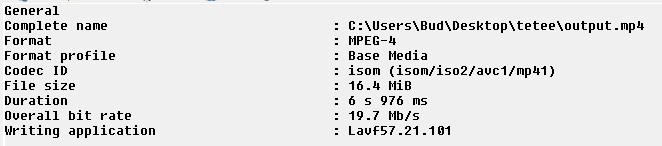

Name:	ouptut.jpg
Views:	47
Size:	23.2 KB
ID:	42424

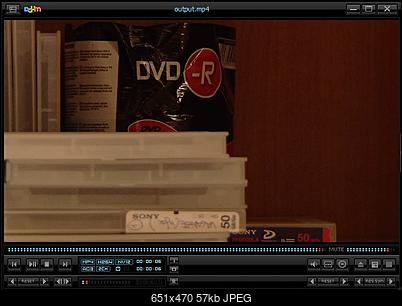

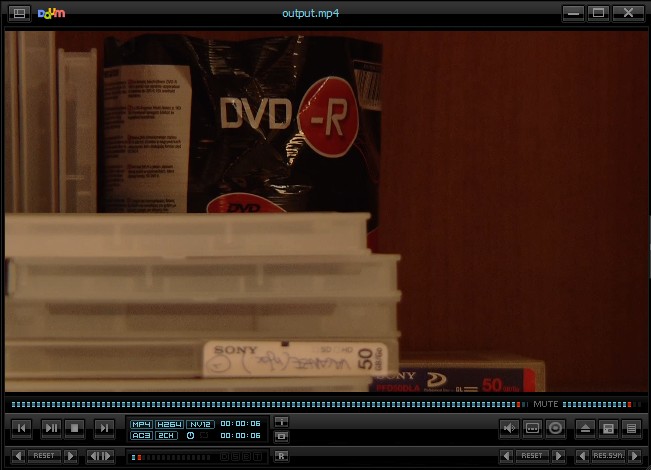

    Click image for larger version

Name:	ScreenHunter_.jpg
Views:	64
Size:	56.6 KB
ID:	42426
    Quote Quote
  9. The problem with the two files was that the video in clipA.mp4 was stream 2 and the audio was stream 1, whereas the video in clipB.mp4 was stream 1 and the audio was stream 2. When Budman1 remuxed the files the number of the streams in ClipAA.mp4 was reversed, making it possible for concatenate them without specifying the individual streams.
    Quote Quote
  10. Member Budman1's Avatar
    Join Date
    Jul 2012
    Location
    NORTHWEST ILLINOIS, USA
    Search Comp PM
    Jagabo... Very good information! Thank you for the explanation.
    Quote Quote
  11. Originally Posted by jagabo View Post
    The problem with the two files was that the video in clipA.mp4 was stream 2 and the audio was stream 1, whereas the video in clipB.mp4 was stream 1 and the audio was stream 2. When Budman1 remuxed the files the number of the streams in ClipAA.mp4 was reversed, making it possible for concatenate them without specifying the individual streams.


    oh, jagabo please consider the MXF source clipA.MXF and clipB.MXF

    https://www.dropbox.com/s/hjd72fs0ce68i5y/clipA.MXF?dl=0

    https://www.dropbox.com/s/h223mnxt93dgrcr/clipB.MXF?dl=0

    where clipA.MXF is a 1920x1080 xdcamhd 422 video file

    meanwhile clipB.MXF is a 1440x1080 xdcam hd 35 video file

    What is the correct commandline for both that generate rispectively an h264 output file so that the streams are suitable to concatenate both output? thanks
    Last edited by marcorocchini; 1st Aug 2017 at 18:14.
    Quote Quote
  12. is there a way to start by encoding the original?
    Quote Quote
  13. You need to convert so you have the same dimensions, framerate, chroma sampling . The audio specifics have to match too (channels, sampling etc...) if you're using audio in container

    It's probably better to join before encoding (e.g. avisynth , as uncompressed frameserved streams before encoding); it reduces your risk of errors

    If you want to join after, you should add --stitchable if using x264, it reduces the chance of malunion . I can't recall if libx264 supports it, but it would be called with either -x264opts or -x264params
    Quote Quote
  14. extremely compliCat
    Image Attached Thumbnails Click image for larger version

Name:	complicat.png
Views:	65
Size:	398.1 KB
ID:	42472

    Quote Quote
  15. Code:
    Set "AudioVolume=1.0"
    Set "ffEXT=ts"

    @rem unless otherwise specified for debugging reasons turn echo off
    @if "%EMode%"=="" Set EMode=ON
    @ECHO %EMode%
    @ECHO off

    SetLocal DisableDelayedExpansion

    Set "EXTLIST=*.*"
    Set "DoPop=0"
    Set "ARGLVL=0"
    Set "FileName-DQ="

    set "DestFolder=."
    Set "WorkFolder=%DestFolder%"

    rem process the arguments one by one
    :ARGS
    color

    	rem if there are no further arguments then exit the batch.
    	if [%1]==[] (
    		if "%ARGLVL%"=="0" (
    			CALL :GetTargetName
    			EndLocal
    			pause
    		)
    		goto :eof
    	)

    	rem wildcard processing
    	Set "FileName=%~1"
    	if "%FileName%"=="" (
    		SHIFT
    		goto :ARGS
    	)

    	rem if the argument doesn't exist in the file system in any form skip it.
    	if NOT EXIST %1 (
    		SHIFT
    		goto :ARGS
    	)

    	if NOT [%1]==[] if NOT "%FileName:^*=%%FileName:^?=%"=="%FileName%%FileName%" (
    		for %%w in (%1) DO (
    			Set /a ARGLVL+=1
    			CALL :ARGS "%%~fw"
    			Set /a ARGLVL-=1
    		)
    		SHIFT
    		goto :ARGS
    	)
    	Set "FileName="

    	rem Set search/recursion variables
    	Set "Pattern=%EXTLIST%"
    	Set "STARTLVL=0"
    	Set "FOUNDLVL=1024"

    	rem if the argument is the current directory then process everything in it.
    	if "%~f1"=="%CD%" (
    		rem echo Processing Directory "%CD%"
    		CALL :START %1
    		SHIFT
    		goto :ARGS
    	)
    	rem Test if the argument is a directory, if it is move to it then process everything in it, if not then move to the file's parent directory and process the file.  Then return to starting directory.
    	Type NUL
    	pushd "%~f1" 2> nul
    	if NOT "%errorlevel%"=="0" (
    		if NOT "%CD%\"=="%~dp1" (
    			pushd "%~dp1"
    			Set "DoPop=1"
    		)
    		Set Pattern="%~nx1"
    	) else (
    		rem echo Processing Directory "%~f1"
    		Set "DoPop=1"
    	)
    	CALL :START %1
    	if "%DoPop%"=="1" (
    		popd
    		Set "DoPop=0"
    	)
    	SHIFT

    goto :ARGS

    :START <CURRENT_ARG>
    color

    	rem Count is superseded by FOUNDLVL but may still be useful for renaming purposes
    	Set "Count=0"
    	rem Process all files in the current directory fitting the arguments search pattern.
    	for /f "delims=" %%y in ('dir %Pattern% /b /od /a-d') do (
    		if /I NOT "%%~y"=="File Not Found" CALL :Process_File "%%~fy"
    	)
    	rem if it didn't find anything search all directories instead
    goto :eof
    	if "%Count%"=="0" if %STARTLVL% LSS %FOUNDLVL% (
    		for /d %%b in (*) do (
    			pushd "%%~fb"
    			rem echo Processing Directory "%%~fb"
    			Set /a STARTLVL+=1
    			CALL :START "%%~fb"
    			Set /a STARTLVL-=1
    			popd
    		)
    	)

    goto :eof

    :Process_File <FILENAME>
    color

    IF EXIST "%cd%\tempFFMPEG\%~n1.%ffEXT%" goto :eof
    timeout /t 1

            if NOT EXIST "v:\automazioneclip\system\empty.wav" (
    		echo  v:\automazioneclip\system\empty.wav not Found!
    		pause

    	)

            Set "TokenS=0"
            Set "lnkError=0"
            IF "%~x1"==".LNK" Set "TokenS=1"
            IF "%~x1"==".lnk" Set "TokenS=1"
    	if "%Tokens%"=="1" (
    		echo  ERRORE! non inserire collegamenti .lnk come input!
                    timeout /5
    		goto :eof
                   	)

            Set "TokenS=0"
            Set "Filter=0"
            IF "%~x1"==".MXF" Set "TokenS=1"
            IF "%~x1"==".mxf" Set "TokenS=1"
            IF "%~x1"==".AVI" Set "TokenS=1"
            IF "%~x1"==".avi" Set "TokenS=1"
            IF "%~x1"==".MP4" Set "TokenS=1"
            IF "%~x1"==".mp4" Set "TokenS=1"
            IF "%~x1"==".MOV" Set "TokenS=1"
            IF "%~x1"==".mov" Set "TokenS=1"
            IF "%~x1"==".MKV" Set "TokenS=1"
            IF "%~x1"==".mkv" Set "TokenS=1"
            IF "%~x1"==".MPEG" Set "TokenS=1"
            IF "%~x1"==".mpeg" Set "TokenS=1"
            IF "%~x1"==".VOB" Set "TokenS=1"
            IF "%~x1"==".vob" Set "TokenS=1"
            IF "%~x1"==".MPG" Set "TokenS=1"
            IF "%~x1"==".mpg" Set "TokenS=1"
            IF "%~x1"==".MPE" Set "TokenS=1"
            IF "%~x1"==".mpe" Set "TokenS=1"
            IF "%~x1"==".FLV" Set "TokenS=1"
            IF "%~x1"==".flv" Set "TokenS=1"
            IF "%~x1"==".FLC" Set "TokenS=1"
            IF "%~x1"==".flc" Set "TokenS=1"
            IF "%~x1"==".FLI" Set "TokenS=1"
            IF "%~x1"==".fli" Set "TokenS=1"
            IF "%~x1"==".SWF" Set "TokenS=1"
            IF "%~x1"==".swf" Set "TokenS=1"
            IF "%~x1"==".WMV" Set "TokenS=1"
            IF "%~x1"==".wmv" Set "TokenS=1"
            IF "%~x1"==".3GP" Set "TokenS=1"
            IF "%~x1"==".3gp" Set "TokenS=1"
            IF "%~x1"==".3gpp" Set "TokenS=1"
            IF "%~x1"==".3GPP" Set "TokenS=1"
            IF "%~x1"==".DV" Set "TokenS=1"
            IF "%~x1"==".dv" Set "TokenS=1"
            IF "%~x1"==".TS" Set "TokenS=1"
            IF "%~x1"==".ts" Set "TokenS=1"
            IF "%~x1"==".QT" Set "TokenS=1"
            IF "%~x1"==".qt" Set "TokenS=1"
            IF "%~x1"==".ASF" Set "TokenS=1"
            IF "%~x1"==".asf" Set "TokenS=1"
            IF "%~x1"==".AMV" Set "TokenS=1"
            IF "%~x1"==".amv" Set "TokenS=1"
            IF "%~x1"==".OGM" Set "TokenS=1"
            IF "%~x1"==".ogm" Set "TokenS=1"

            If "%TokenS%"=="1" Set "Filter=1"

            Set "TokenS=0"
            Set "isMXF=0"
            IF "%~x1"==".MXF" Set "TokenS=1"
            IF "%~x1"==".mxf" Set "TokenS=1"
            If "%TokenS%"=="1" Set "isMXF=1"


            If NOT "%Filter%"=="1" (
    		echo  *** input file non MXF o non MP4 o non nei formati .MOV .AVI .MKV .MPEG .VOB .MPG .MPE .FLV .FLI .FLC .SWF .WMV .3GP .DV .TS .QT .ASF .AMV .OGM .3gpp  ***
            goto :eof
    	)

            Set "SetMemoryMaxValue=16"

            echo volume audio uguale a %audiovolume%

    	Set /a Count+=1
    	Set "FOUNDLVL=%STARTLVL%"
    	SetLocal DisableDelayedExpansion
            if exist "%~dpn1.wav" (
            set "Audio=%~dpn1.wav"
            ) else (
            set "Audio=v:\automazioneclip\system\empty.wav")
            rem Find TimeCode Info
         	Set AUCount=0;

    	for /f "tokens=1,2 delims=^=" %%g in ('v:\automazioneclip\virtualdub\FFProbe -hide_banner -loglevel fatal -pretty -select_streams v:0 -show_streams -show_entries stream^=codec_type^,r_frame_rate^,width^,height^,sample_aspect_ratio:stream_disposition^=:format_tags^=timecode^,company_name^,product_name^,product_version "%~1" 2^>^&1') DO (
    		 if "%%~g"=="TAG:company_name" set "T_Company_Name=%%~h"
    		 if "%%~g"=="TAG:product_name" set "T_Product_Name=%%~h"
    		 if "%%~g"=="TAG:product_version" set "T_Product_Version=%%~h"
    		 if "%%~g"=="TAG:timecode" set "TIMECODE=%%~h"
                     if "%%~g"=="r_frame_rate" set "Frame_Rate=%%~h"
    		 if "%%~g"=="width" set "V_Width=%%~h"
    		 if "%%~g"=="height" set "V_Height=%%~h"
                     if "%%~g"=="sample_aspect_ratio" set "V_PAR=%%~h"
    		 if "%%~g"=="codec_type" if "%%~h"=="audio" set /a AUCount+=1
    	)

            for /f "tokens=1,2 delims=^=" %%g in ('v:\automazioneclip\virtualdub\FFProbe -hide_banner -loglevel fatal -pretty -select_streams v:0 -show_streams "%~1"') DO (
    		 if "%%~g"=="duration_ts" set "NumberOfFrame=%%~h")

            echo the variabile T_Company_Name assume this value "%T_Company_Name%"
            echo the variabile T_Product_Name assume this value "%T_Product_Name%"
            echo the variabile T_Product_Version assume this value "%T_Product_Version%"
            echo the variabile TIMECODE assume this value "%TIMECODE%"
            echo the variabile Frame_Rate assume this value "%Frame_Rate%"
            echo the variabile V_Width assume this value "%V_Width%"
            echo the variabile V_Height assume this value "%V_Height%"
            echo the variabile V_PAR assume this value "%V_PAR%"

            set /a "forVirtualDubAddRangeWhenDoubleFrameRate"=%NumberOfFrame%/2
            echo the variabile NumberOfFrame assume this value "%NumberOfFrame%" so half is echo "%forVirtualDubAddRangeWhenDoubleFrameRate%"

            rem #### SEARCH for durations: advanced ####
    	Set AUCount=0;
    	Set VDCount=0;
    	Set STCount=0;
    	Set "V_Number_Of_Frames="
    	for /f "tokens=1,2 delims=^=" %%g in ('v:\automazioneclip\virtualdub\FFProbe -hide_banner -loglevel fatal -pretty -show_format -show_streams "%~1" 2^>^&1') DO (
    		CALL :Process_Item "%%~g" "%%~h"
    	)

            if "%V_Time_Base%"=="" (
    		echo  ERROR: V_Time_Base not found, impossibile rilevare il FrameRate
    		)

    	if NOT "%V_Time_Base%"=="" (
    		for /F "tokens=1,2 delims=/" %%g in ("%V_Time_Base%") do (
    			set "V_Time_Base_Denom=%%~g"
    			set /a "V_Time_Base_Num=%%~h*10000"
    		)
    	)

            if "%V_Frame_Rate%"==""  (
    		echo  ERROR: V_Frame_Rate, impossibile rilevare il FrameRate
    		)

    	if NOT "%V_Frame_Rate%"=="" (
    		for /F "tokens=1,2 delims=/" %%g in ("%V_Frame_Rate%") do (
                            set /a "V_Frame_Rate_Pure=%%~g"
                            set "V_Frame_Rate_Denom_cat=%%~h*100"

    			set /a "V_Frame_Rate_Num=%%~g*10000"
    			set "V_Frame_Rate_Denom=%%~h"
    		)
    	)

    	if "%V_Number_Of_Frames%"=="" Set /a "V_Number_Of_Frames=V_Duration/((V_Time_Base_Num/V_Time_Base_Denom)/(V_Frame_Rate_Num/V_Frame_Rate_Denom))"

            set /a "FPSforVirtualdubX2=%V_Number_Of_Frames%"
            set /a "FPSforVirtualdubdiv2=%V_Number_Of_Frames%/2"
            set "FPSforVirtualdub=%V_Number_Of_Frames%"

    echo numero frame con procedura advanced is %V_Number_Of_Frames%

            rem #### calculate realFPS with 2 fps calculators
            echo WScript.Echo Eval^(WScript.Arguments^(0^)^)>"%~dp1FPScalculator1.vbs"
            echo Result=Replace^(Result,",","."^)>>"%~dp1FPScalculator1.vbs"
            echo WScript.Echo Result>>"%~dp1FPScalculator1.vbs"

            IF NOT "%V_Frame_Rate_Pure%"=="" IF NOT "%V_Frame_Rate_Denom%"=="" for /f %%n in ('cscript //nologo "%~dp1FPScalculator1.vbs" "%V_Frame_Rate_Pure%/%V_Frame_Rate_Denom%"') do (set RealFPS2temp=%%n)

            echo %RealFPS2temp%>"%~dp1RealFPS2temp.txt"
            v:\automazioneclip\system\fart.exe "%~dp1RealFPS2temp.txt" , "."
            set /p RealFPS2=<"%~dp1RealFPS2temp.txt"

            echo Numerator = WScript.Arguments^(0^)>"%~dp1FPScalculator2.vbs"
            echo Denom = WScript.Arguments^(1^)>>"%~dp1FPScalculator2.vbs"
            echo Result=Numerator/Denom>>"%~dp1FPScalculator2.vbs"
            echo WScript.Echo Result>>"%~dp1FPScalculator2.vbs"
            echo Result=Replace^(Result,",","."^)>>"%~dp1FPScalculator2.vbs"
            echo WScript.Echo Result>>"%~dp1FPScalculator2.vbs"
            echo Result=Round^(Numerator/Denom,2^)>>"%~dp1FPScalculator2.vbs"
            echo Result=Replace^(Result,",","."^)>>"%~dp1FPScalculator2.vbs"
            echo WScript.Echo Result>>"%~dp1FPScalculator2.vbs"

    setlocal ENABLEDELAYEDEXPANSION
            set fcount=1
            IF NOT "%V_Frame_Rate_Pure%"=="" IF NOT "%V_Frame_Rate_Denom%"=="" FOR /F "tokens=* USEBACKQ" %%F IN (`cscript /nologo "%~dp1FPScalculator2.vbs" %V_Frame_Rate_Pure% %V_Frame_Rate_Denom%`) DO (set var!fcount!=%%F
            set /a fcount=!fcount!+1
            )
            rem echo %var1%
            rem echo %var2%
            rem echo %var3%

           echo %var2%>"%~dp1RealFPStemp.txt"
    endlocal

           set /p RealFPS=<"%~dp1RealFPStemp.txt"

    echo RealFPS is %RealFPS%
    echo RealFPS2 is %RealFPS2%

          if exist "%~dp1FPScalculator1.vbs" del "%~dp1FPScalculator1.vbs"
          if exist "%~dp1FPScalculator2.vbs" del "%~dp1FPScalculator2.vbs"
          if exist "%~dp1RealFPStemp.txt" del "%~dp1RealFPStemp.txt"
          if exist "%~dp1RealFPS2temp.txt" del "%~dp1RealFPS2temp.txt"

            if "%V_Width%"=="" (
    		echo  ERROR: Video Width NOT FOUND!
    		timeout /t 3
    		goto :eof
    	)
    	if "%V_Height%"=="" (
    		echo  ERROR: Video Height NOT FOUND!
    		pause
    		goto :eof
    	)
            if "%Frame_Rate%"=="" (
    		echo  ERROR: Frame_Rate NOT FOUND!
    		)
    	if "%V_PAR%"=="" (
    		echo  ERROR: Video PAR NOT FOUND!
    		pause			)

    	if %V_Width% GTR 801 if %V_Height% GTR 609 set "V_Q=HD"
    	if %V_Width% LEQ 800 if %V_Height% LEQ 601 Set "V_Q=SD"
            if "%V_Width%"=="720" if "%V_Height%"=="608" Set "V_Q=XDCAM_IMX"
           	echo  Using %V_Q% Mode
    	echo  PAR = %V_PAR%

            set "ALPHA=0"
            rem *** check if file is MXF

            Set "TokenS=0"
            Set "isMXF=0"
            IF "%~x1"==".MXF" Set "TokenS=1"
            IF "%~x1"==".mxf" Set "TokenS=1"
            If "%TokenS%"=="1" Set "isMXF=1"

            IF exist "%DestFolder%\unicodefile.txt" DEL "%DestFolder%\unicodefile.txt"
            IF exist  "%DestFolder%\mediainfo.txt" DEL "%DestFolder%\mediainfo.txt"

            v:\automazioneclip\virtualdub\mediainfo.exe "%~dpnx1" dumpinfo:unicodefile.txt
            TYPE unicodefile.txt>mediainfo.txt

            findstr /c:"Codec ID                                 : 0D01030102020201-0401020202010200" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "dvcam=1")

            set "PROGRESSIVE=0"
            findstr /c:"Scan type                                : Progressive" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "PROGRESSIVE=1")

            set "doubleframrate=0"
            findstr /c:"Frame rate                               : 50.000 fps" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "doubleframrate=1")
            findstr /c:"Codec ID                                 : YUY2" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "UNCOMPRESSED=1")

            set "fullHDinterlace=0"
            set "xdcamhd422=unknown"
            set "fps=unknown"
            set "ch_sub=unknown"
            set "scanInterlace=unknown"
            findstr /c:"Format profile                           : 4:2:2@High" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "xdcamhd422=yes")
            findstr /c:"Frame rate                               : 25.000 fps" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "fps25=yes")
            findstr /c:"Chroma subsampling                       : 4:2:2" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "ch_sub=yes")
            findstr /c:"Scan type                                : Interlaced" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "scanInterlace=yes")
            findstr /c:"Scan type                                : Progressive" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "scanProgressive=yes")
            findstr /c:"Scan type                                : MBAFF" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "scanMBAFF=1")
            findstr /c:"Height                                   : 1 088" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "height1088=1")
            findstr /c:"Original height                          : 1 088 pixels" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "Morgan1088=1")

            if "%xdcamhd422%"=="yes" if  "%fps25%"=="yes" if "%ch_sub%"=="yes" if "%scanInterlace%"=="yes" set "fullHDinterlace=1"
            if "%xdcamhd422%"=="yes" if  "%fps25%"=="yes" if "%ch_sub%"=="yes" if "%scanProgressive%"=="yes" set "fullHDprogressive=1"

            set "IMX=0"
            findstr /c:"Commercial name                          : IMX" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "IMX=1")

            set "MXFXDCAMHQorSP25fpsinterlaced=0"
            set "MXFXDCAMHQorSP25fpsProgressive=0"
            set "fps25=unknown"
            set "ch_sub420=unknown"
            set "IMXorDVCAM=no"
            findstr /c:"Commercial name                          : XDCAM HD 35" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "xdcamhd35=yes")
            findstr /c:"Commercial name                          : XDCAM HD 25" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "xdcamhd25=yes")
            findstr /c:"Format                                   : MPEG Video" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "mpegvideoF335=yes")
            findstr /c:"Commercial name                          : HDV 1080i" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "HDV1080i=yes")
            findstr /c:"Commercial name                          : HDV 1080p" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "HDV1080p=yes")
            findstr /c:"Frame rate                               : 25.000 fps" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "fps25=yes")
            findstr /c:"Frame rate                               : 50.000 fps" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "fps50=yes")
            findstr /c:"Frame rate                               : 25.000 fps" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "fps25tag=1")
            findstr /c:"Chroma subsampling                       : 4:2:0" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "ch_sub420=yes")
            findstr /c:"Scan type                                : Interlaced" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "scanInterlace=yes")
            findstr /c:"Scan type                                : Progressive" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "scanProgressive420=yes")
            findstr /c:"Width                                    : 720" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "IMXorDVCAM=yes")
            findstr /c:"Width                                    : 1 920" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "H1920=yes")
            findstr /c:"Height                                   : 1 080" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "V1080=yes")
            findstr /c:"Scan order                               : Bottom Field First" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "ScanBottom=1")
            findstr /c:"Rotation                                 : 90ø" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "rotation=1")
            findstr /c:"Color space                              : RGBA" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "ALPHACHANNEL=1")

            rem *** check FOR MP4 ***
            Set "isMP4=0"
            Set "TokenS=0"
            IF "%~x1"==".MP4" Set "TokenS=1"
            IF "%~x1"==".mp4" Set "TokenS=1"
            If "%TokenS%"=="1" Set "isMP4=1"
            rem *** check FOR MP4 ***

            if "%xdcamhd35%"=="yes" if  "%fps25%"=="yes" if "%ch_sub420%"=="yes" if "%scanInterlace%"=="yes" set "MXFXDCAM3525fpsinterlaced=1"
            if "%HDV1080i%"=="yes" if  "%fps25%"=="yes" if "%ch_sub420%"=="yes" if "%scanInterlace%"=="yes" set "MXFXDCAMHDV1080i25fpsinterlaced=1"
            if "%mpegvideoF335%"=="yes" if  "%fps25%"=="yes" if "%ch_sub420%"=="yes" if "%scanInterlace%"=="yes" set "MXFXDCAMF335interlaced=1"
            set "MXFXDCAMHQorSP25fpsinterlaced=0"
            if "%MXFXDCAM3525fpsinterlaced%"=="1" set "MXFXDCAMHQorSP25fpsinterlaced=1"
            if "%MXFXDCAMHDV1080i25fpsinterlaced%"=="1" set "MXFXDCAMHQorSP25fpsinterlaced=1"
            if "%MXFXDCAMF335interlaced%"=="1" set "MXFXDCAMHQorSP25fpsinterlaced=1"
            if "%xdcamhd35%"=="yes" if  "%fps25%"=="yes" if "%ch_sub420%"=="yes" if "%scanProgressive420%"=="yes" set "MXFXDCAM3525fpsProgressive=1"
            if "%xdcamhd35%"=="yes" if "%ch_sub420%"=="yes" if "%scanProgressive420%"=="yes" if "%doubleframrate%"=="1" set "MXFXDCAM35_50fps_Progressive=1"
            if "%xdcamhd25%"=="yes" if "%ch_sub420%"=="yes" if "%scanProgressive420%"=="yes" if "%doubleframrate%"=="1" set "MXFXDCAM25_50fps_Progressive=1"
            if "%MXFXDCAM35_50fps_Progressive%"=="1" set "MXFXDCAM35or25_50fps_Progressive=1"
            if "%MXFXDCAM25_50fps_Progressive%"=="1" set "MXFXDCAM35or25_50fps_Progressive=1"

            if "%HDV1080p%"=="yes" if  "%fps25%"=="yes" if "%ch_sub420%"=="yes" if "%scanProgressive420%"=="yes" set "MXFXDCAMHDV1080p25fpsProgressive=1"
            set "MXFXDCAMHQorSP25fpsProgressive=0"
            if "%MXFXDCAM3525fpsProgressive%"=="1" set "MXFXDCAMHQorSP25fpsProgressive=1"
            if "%MXFXDCAMHDV1080p25fpsProgressive%"=="1" set "MXFXDCAMHQorSP25fpsProgressive=1"

            set "dvcamPal=0"
            if "%dvcam%"=="1" if "%fps25tag%"=="1" Set "dvcamPal=1"

            set "fullHD=0"
            if "%H1920%"=="yes" if "%V1080%"=="yes" Set "fullHD=1"

    rem ***debugecho xdcamhd35interlacciato uguale a "%MXFXDCAM3525fpsinterlaced%"
    rem ***debug  echo HDV1080iinterlacciato uguale a "%MXFXDCAMHDV1080i25fpsinterlaced%"
    rem ***debug  echo MXFXDCAMHQorSP25fpsinterlaced "%MXFXDCAMHQorSP25fpsinterlaced%"
    rem ***debug  echo MXFXDCAM3525fpsProgressive "%MXFXDCAM3525fpsProgressive%"
    rem ***debug echo MXFXDCAMHDV1080p25fpsProgressive "%MXFXDCAMHDV1080p25fpsProgressive%"
    rem ***debug echo MXFXDCAMHQorSP25fpsProgressive "%MXFXDCAMHQorSP25fpsProgressive%"

            Set "TokenS=0"
            Set "ScanProgressive25fps=0"
            if "%fps25%"=="yes" if "%scanProgressive%"=="yes" Set "ScanProgressive25fps=1"
    echo fps25 is %fps25%
    echo scanProgressive %scanProgressive%
    echo ScanProgressive25fps is %ScanProgressive25fps%



            Set "TokenS=0"
            Set "H1088=0"
            if "%H1920%"=="yes" if "%height1088%"=="1" Set "H1088=1"
            if "%H1920%"=="yes" if "%Morgan1088%"=="1" Set "H1088=1"

            Set "TokenS=0"
            Set "ScanBottomORdvcam=0"
            if "%ScanBottom%"=="1" Set "TokenS=1"
            if "%dvcam%"=="1" Set "TokenS=1"
            IF "%TokenS%"=="1" Set "ScanBottomORdvcam=1"

           rem *** check if file is MXF non-PAL***
           Set "TokenS=0"
           Set "fps25OR50=0"
           Set "MXFnonPAL=0"
           if "%fps25%"=="yes" Set "TokenS=1"
           if "%fps50%"=="yes" Set "TokenS=1"
           if "%TokenS%"=="1" Set "fps25OR50=1"
            Set "TokenS=0"
            Set "isMXF=0"
            IF "%~x1"==".MXF" Set "TokenS=1"
            IF "%~x1"==".mxf" Set "TokenS=1"
            If "%TokenS%"=="1" Set "isMXF=1"

            If "%isMXF%"=="1" if NOT "%fps25OR50%"=="1" Set "MXFnonPAL=1"

            rem *** check if file is MXF and - at the same time - any HD ***
            Set "TokenS=0"
            Set "isMXF=0"
            set "HDformat=0"
            set "mxfHD422=0"
            set "mxfHD420=0"
            set "Ch_Sub422=unknown"
            set "Ch_Sub420=unknown"
    	if %V_Height% GEQ 720 (Set "HDformat=1")
            IF "%~x1"==".MXF" Set "TokenS=1"
            IF "%~x1"==".mxf" Set "TokenS=1"
            If "%TokenS%"=="1" Set "isMXF=1"
            findstr /c:"Chroma subsampling                       : 4:2:2" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "Ch_Sub422=yes")
            findstr /c:"Chroma subsampling                       : 4:2:0" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "Ch_Sub420=yes")

            Set "ScanTypeProgressive=0"
            Set "ScanTypeInterlaced=0"

            findstr /c:"Scan type                                : Progressive" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "ScanTypeProgressive=1")
            findstr /c:"Scan type                                : Interlaced" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "ScanTypeInterlaced=1")

            rem *** check if is an .avi mjpeg input file
            Set "TokenS=0"
            Set "isAVI=0"
            IF "%~x1"==".AVI" Set "TokenS=1"
            IF "%~x1"==".avi" Set "TokenS=1"
            If "%TokenS%"=="1" Set "isAVI=1"
            Set "TokenS=0"
            IF "%isAVI%"=="1" (v:\automazioneclip\virtualdub\mediainfo.exe "%~dp1%~n1.avi" dumpinfo:unicodefile.txt
            TYPE unicodefile.txt>mediainfo.txt)
            findstr /c:"Codec ID                                 : MJPG" "mediainfo.txt"
            IF NOT ERRORLEVEL 1 (set "AVImjpeg=1")

            Set "TokenS=0"
            Set "AVIMJPEG_OR_AVIUNCOMPRESSED"=0"
            IF "%isAVI%"=="1" if "%AVImjpeg%"=="1" Set "TokenS=1"
            IF "%isAVI%"=="1" if "%UNCOMPRESSED%"=="1" Set "TokenS=1"
            If "%TokenS%"=="1" Set "AVIMJPEG_OR_AVIUNCOMPRESSED=1"

            rem if "%AVImjpeg%"=="1" (CALL :Make_File_AVImjpeg "%WorkFolder%\%~n1.vcf" "%WorkFolder%\%~n1.avs" "%WorkFolder%\%~n1.avi" "%~f1")
            rem if "%UNCOMPRESSED%"=="1" (CALL :Make_File_AVImjpeg "%WorkFolder%\%~n1.vcf" "%WorkFolder%\%~n1.avs" "%WorkFolder%\%~n1.avi" "%~f1")

            IF NOT "%ScanTypeProgressive%"=="1" IF NOT "%ScanTypeInterlaced%"=="1" Set "ScanTypeProgressive=1"
            IF "%scanMBAFF%"=="1" set "ScanTypeInterlaced=1"
            IF "%scanMBAFF%"=="1" Set "ScanTypeProgressive=0"


            if exist "unicodefile.txt" del "unicodefile.txt"
            if exist "ascii.txt" del "ascii.txt"
            if exist "mediainfo.txt" del "mediainfo.txt"
            if exist "%DestFolder%\tempFFMPEG\tempVideoAudioFile.MP4" del "%DestFolder%\tempFFMPEG\tempVideoAudioFile.MP4"

            rem *** redirect to generic CONFI or MAIN procedure

            If "%Filter%"=="1" if "%fullHDinterlace%"=="1" (CALL :Make_File_CONFI "%WorkFolder%\%~n1.vcf" "%WorkFolder%\%~n1.avs" "%WorkFolder%\%~n1.avi" "%~f1")
            If "%Filter%"=="1" IF NOT "%fullHDinterlace%"=="1" (CALL :Make_File_MAIN "%WorkFolder%\%~n1.vcf" "%WorkFolder%\%~n1.avs" "%WorkFolder%\%~n1.avi" "%~f1")




    	echo  FATTO
    	echo.
    	echo ---------------------------------------------
    	echo.
    	EndLocal

    goto :eof


    :Process_Item <item_field> <item_data>
    color

    	if "%~2"=="N/A" goto :eof
    	if "%~1"=="[/STREAM]" (
    		set "CType="
    		goto :eof
    	)
    	if "%~1"=="[/FORMAT]" (
    		set "CType="
    		goto :eof
    	)
    	if "%~1"=="[FORMAT]" (
    		set "CType=FORMAT"
    		goto :eof
    	)
    	if "%~1"=="index" Set "cur_index=%~2"
    	if "%~1"=="codec_name" Set "cur_codec=%~2"
    	if "%~1"=="codec_type" (
    		if "%~2"=="audio" (
    			set /a AUCount+=1
    			set "CType=audio"
    		)
    		if "%~2"=="video" if NOT "%cur_codec%"=="mjpeg" (
    			Set /a VDCount+=1
    			set "CType=video"
    		)
    		if "%~2"=="subtitle" (
    			Set /a STCount+=1
    			set "CType=subtitle"
    		)
    		goto :eof
    	)
    	if "%CType%"=="FORMAT" (
    		if "%~1"=="TAG:company_name" set "T_Company_Name=%~2"
    		if "%~1"=="TAG:product_name" set "T_Product_Name=%~2"
    		if "%~1"=="TAG:product_version" set "T_Product_Version=%~2"
    		if "%~1"=="TAG:timecode" set "TIMECODE=%~2"
    		goto :eof
    	)
    	if "%CType%"=="video" (
    		if %VDCount% GTR 1 (
    			echo Multiple Video Streams!!!!
    			pause
    		)
    		if "%~1"=="time_base" set "V_Time_Base=%~2"
    		if "%~1"=="r_frame_rate" set "V_Frame_Rate=%~2"
    		if "%~1"=="duration_ts" set "V_Duration=%~2"
    		if "%~1"=="width" set "V_Width=%~2"
    		if "%~1"=="height" set "V_Height=%~2"
    		if "%~1"=="sample_aspect_ratio" set "V_PAR=%~2"
    		if "%~1"=="nb_frames" set "V_Number_Of_Frames=%~2"
    		goto :eof
    	)

    goto :eof

    :Make_File_CONFI <VCF_FILENAME> <AVS_FILENAME> <FILENAME> <ORG_FILENAME>

               IF EXIST "%cd%\tempFFMPEG\%~n1.%ffEXT%" goto :eof

               color a

               REM ************************************************************************************************** FFMPEG CONFI SESSION **************************************************************************************************
               if not exist "%cd%\tempFFMPEG" MD "%cd%\tempFFMPEG"

               if exist "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%" del "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%"

               v:\automazioneclip\core\ffmpeg64bit332.exe -y -threads 12 -i %4 -filter_complex "[0:1] [0:2] amerge" -s 1920x1080 -r 25 -f mp4 -vf scale=interl=1,format=pix_fmts=yuv420p -pix_fmt yuv420p -c:v libx264 -profile:v main -level:v 4.1 -x264-params me_range=4:subme=1:rc_lookahead=1:chroma_qp_offset=0:8x8dct=1 -g 100 -bf 2 -crf 22.8 -flags +ildct+ilme -top 1 -c:a ac3 -b:a 320k -ar 48000 -aspect 16:9 "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%"
               ren "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%" "%~n1.%ffEXT%"
               REM **************************************************************************************************************************************************************************************************************************

    if exist "unicodefile.txt" del "unicodefile.txt"
    if exist "ascii.txt" del "ascii.txt"
    if exist "mediainfo.txt" del "mediainfo.txt"
    IF exist "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%" del "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%"
    if exist "%cd%\tempFFMPEGAudio\%~n1.wav" del "%cd%\tempFFMPEGAudio\%~n1.wav"

    color f

    goto :eof

    :Make_File_MAIN <VCF_FILENAME> <AVS_FILENAME> <FILENAME> <ORG_FILENAME>

            IF EXIST "%cd%\tempFFMPEG\%~n1.%ffEXT%" goto :eof

    color e

    IF "%AudioVolume%"==""  (
    			echo  ERRORE !!! per qualche motivo non è stata definita la variabile AudioVolume !!!
    			pause
    		)
    	)

            echo ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ¿
            echo ³                                      ³
            echo ³              MAIN                    ³
            echo ³                                      ³
            echo ÀÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙ
            echo.

           Set "TokenS=0"
           Set "fps25OR50=0"
           if "%fps25%"=="yes" Set "TokenS=1"
           if "%fps50%"=="yes" Set "TokenS=1"
           if "%TokenS%"=="1" Set "fps25OR50=1"
           if NOT "%fps25OR50%"=="1" color c

            rem ********** TRY to extract audio from input source **********
            if exist "%~dp1TESTonly.wav"  del "%~dp1TESTonly.wav"

            rem *** procedura 1 sembra per ALTRI TIPI di files ***

            if not "%isMXF%"=="1" v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %4 -ss 00:00:00 -t 00:00:10 -af "pan=stereo:c0=c0:c1=c1,volume=1.0" -c:a pcm_s16le -ar 48000 "%~dp1TESTonly.wav"
            for %%v in ("TESTonly.wav") do (
    		if %%~zv LSS 128 (
                    del "%WorkFolder%\TESTonly.wav"
    		)
    	)

            rem *** procedura 2 per MXF IMX ***
            if "%isMXF%"=="1" if "%IMX%"=="1" v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %4 -ss 00:00:00 -t 00:00:10 -map_channel 0.1.0 -map_channel 0.1.1  -c:a pcm_s16le -ar 48000 "%~dp1TESTonly.wav"
            for %%v in ("TESTonly.wav") do (
    		if %%~zv LSS 128 (
                    del "%WorkFolder%\TESTonly.wav"
    		)
    	)

            rem *** procedura 3 per MXF HD e DVCAM ***
            if "%isMXF%"=="1" if NOT "%IMX%"=="1" v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %4 -ss 00:00:00 -t 00:00:10 -filter_complex "[0:1] [0:2] amerge,volume=1.0" -c:a pcm_s16le -ar 48000 "%~dp1TESTonly.wav"
            for %%v in ("TESTonly.wav") do (
    		if %%~zv LSS 128 (
                    del "%WorkFolder%\TESTonly.wav"
    		)
    	)

            Set "NoAudioInsideInputFile=0"
            rem if NOT exist "%~dp1TESTonly.wav" xcopy /y v:\automazioneclip\system\empty.wav "%~dp1"
            if NOT exist "%~dp1TESTonly.wav" Set "AudioSource=v:\automazioneclip\system\empty.wav"
            if NOT exist "%~dp1TESTonly.wav" Set "NoAudioInsideInputFile=1"
            if exist "%~dp1TESTonly.wav" Set "AudioSource=%4"
            echo audioSource assume %AudioSource%

            rem ren "%~dp1empty.wav" "%~n1_HD.wav"
            if exist "%~dp1empty.wav" del "%~dp1empty.wav"
            if exist "%~dp1TESTonly.wav" del "%~dp1TESTonly.wav"
            cls

            echo PROCESSING %4


    echo isMP4 assume %isMP4%
    echo Ch_Sub422 assume %Ch_Sub422%
    echo progressive assume %PROGRESSIVE%
    echo fullHD assume %fullHD%
    echo IMXorDVCAM assume %IMXorDVCAM%


            rem ***Make The .avs Script File ***

            if exist "%~n1_HD.avs" del "%~n1_HD.avs"
            echo SetMemoryMax^(%SetMemoryMaxValue%^)>"%~n1_HD.avs"
            echo Import^("v:\automazioneclip\avisynth\plugins\IResize.avsi"^)>>"%~n1_HD.avs"
            echo LoadPlugin^("v:\automazioneclip\avisynth\plugins\LSMASHSource.dll"^)>>"%~n1_HD.avs"
            echo LoadCPlugin("v:\automazioneclip\avisynth\plugins\yadif.dll")>>"%~n1_HD.avs"
            IF "%isMP4%"=="1" echo LSMASHVideoSource^(%4^)>>"%~n1_HD.avs"
            IF NOT "%isMP4%"=="1" echo LWLibavVideoSource^(%4^)>>"%~n1_HD.avs"
            if "%PROGRESSIVE%"=="1" echo ConvertToYUY2^(interlaced=false^)>>"%~n1_HD.avs"
            IF NOT "%PROGRESSIVE%"=="1" echo ConvertToYUY2^(interlaced=true^)>>"%~n1_HD.avs"
            if "%IMXorDVCAM%"=="yes" echo colorMatrix^(mode="Rec.601->Rec.709"^)>>"%~n1_HD.avs"
            IF "%IMX%"=="1" echo crop^(0,32,0,0^)>>"%~n1_HD.avs"
            if NOT "%fullHD%"=="1" if NOT "%PROGRESSIVE%"=="1" if not "%H1088%"=="1" echo IResize^(1920,1080^)>>"%~n1_HD.avs"
            if NOT "%fullHD%"=="1" if "%PROGRESSIVE%"=="1" if not "%H1088%"=="1" echo LanczosResize^(1920,1080^)>>"%~n1_HD.avs"
            if "%ScanBottomORdvcam%"=="1" echo ReverseFieldDominance^(^)>>"%~n1_HD.avs"
            IF "%H1088%"=="1" echo crop^(0,0,1920,1080^)>>"%~n1_HD.avs"
            echo ### ATTENZIONE l'uso dei filtri ColorYUV rende difficile il playback in realtime ###>>"%~n1_HD.avs"
            echo #ColorYUV^(levels="PC->TV"^)>>"%~n1_HD.avs"
            echo #ColorYUV^(gamma_y=-7, gamma_u=-7, gamma_v=-7^)>>"%~n1_HD.avs"
            echo #TurnLeft^(^)>>"%~n1_HD.avs"
            echo #TurnRight^(^)>>"%~n1_HD.avs"
            IF "%rotation%"=="1" echo Turn180^(^)>>"%~n1_HD.avs"
            if NOT "%fps25OR50%"=="1" if NOT "%PROGRESSIVE%"=="1" echo yadif^(1,1^)>>"%~n1_HD.avs"
            if NOT "%fps25OR50%"=="1" echo SmoothFPS2^(50000,1000^)>>"%~n1_HD.avs"
            if NOT "%fps25OR50%"=="1" echo AssumeTFF().SeparateFields().SelectEvery(4, 0, 3).Weave()>>"%~n1_HD.avs"
            if "%fps50%"=="yes" echo AssumeTFF().SeparateFields().SelectEvery(4, 0, 3).Weave()>>"%~n1_HD.avs"
            echo AssumeFPS^(25^)>>"%~n1_HD.avs"

            Set "TokenS=0"
            if "%MXFnonPAL%"=="1" set "TokenS=1"
            if "%fps25OR50%"=="1" set "TokenS=1"
            if NOT "%fps25OR50%"=="1" set "TokenS=1"
            if "%TokenS%"=="1" set "MXFnonPAL_OR_fps25OR50_OR_NOT25or50=1"

            echo MXFnonPAL_OR_fps25OR50_OR_NOT25or50 assume %MXFnonPAL_OR_fps25OR50_OR_NOT25or50%


            rem *** audio processing for MXF IMX 25 or 50 FPS***
            if not exist "%cd%\tempFFMPEGAudio" MD "%cd%\tempFFMPEGAudio"
            IF NOT EXIST "%cd%\tempFFMPEGAudio\%~n1.wav" if "%isMXF%"=="1" if "%fps25OR50%"=="1" IF "%IMX%"=="1" v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %AudioSource% -af "pan=stereo:c0=c0:c1=c1,volume=%AudioVolume%" -c:a pcm_s16le -ar 48000 "%cd%\tempFFMPEGAudio\%~n1.wav"

            rem *** audio processing for MXF HD & DVCAM files 25 or 50 FPS ***
            IF NOT EXIST "%cd%\tempFFMPEGAudio\%~n1.wav" if "%isMXF%"=="1" if "%fps25OR50%"=="1" IF NOT "%IMX%"=="1" v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %AudioSource% -filter_complex "[0:1] [0:2] amerge,volume=%AudioVolume%" -c:a pcm_s16le -ar 48000 "%cd%\tempFFMPEGAudio\%~n1.wav"


            rem #### check duration of .avi gen file ####

            if exist aviGenDuration.txt del aviGenDuration.txt
            if NOT "%fps25OR50%"=="1" v:\automazioneclip\core\FFProbe2016 -show_entries format=duration -v quiet -of csv="p=0" -sexagesimal "%~n1_HD.avs" >aviGenDuration.txt
            if NOT "%fps25OR50%"=="1" set /p aviGenDuration=<aviGenDuration.txt


            rem ************************************** AUDIO PARTICULAR processing **********************************************************************************************************************************************************
            IF NOT EXIST "%cd%\tempFFMPEGAudio\%~n1.wav" if "%isMXF%"=="1" IF NOT "%IMX%"=="1" if NOT "%fps25OR50%"=="1" v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %AudioSource% -filter_complex "[0:1] [0:2] amerge,volume=1.0,apad" -shortest -t %aviGenDuration% -c:a pcm_s16le -ar 48000 "%cd%\tempFFMPEGAudio\%~n1.wav"
            IF NOT EXIST "%cd%\tempFFMPEGAudio\%~n1.wav" if "%isMXF%"=="1" IF "%IMX%"=="1" if NOT "%fps25OR50%"=="1" v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %AudioSource% -af "pan=stereo:c0=c0:c1=c1,volume=1.0,apad" -shortest -t %aviGenDuration% -c:a pcm_s16le -ar 48000 "%cd%\tempFFMPEGAudio\%~n1.wav"
            IF NOT EXIST "%cd%\tempFFMPEGAudio\%~n1.wav" if not "%isMXF%"=="1" if NOT "%fps25OR50%"=="1" v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %AudioSource% -af "pan=stereo:c0=c0:c1=c1,volume=1.0,apad" -shortest -t %aviGenDuration% -c:a pcm_s16le -ar 48000 "%cd%\tempFFMPEGAudio\%~n1.wav"
            IF NOT EXIST "%cd%\tempFFMPEGAudio\%~n1.wav" if "%NoAudioInsideInputFile%"=="1" IF NOT EXIST "%~n1.wav" v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %AudioSource% -af "pan=stereo:c0=c0:c1=c1,volume=1.0,apad" -shortest -t %aviGenDuration% -c:a pcm_s16le -ar 48000 "%cd%\tempFFMPEGAudio\%~n1.wav"
            rem ************************************** AUDIO PARTICULAR processing  *********************************************************************************************************************************************************

            rem *** audio processing for NON-MXF FILES 25 or 50 fps ***

            for /f "tokens=1,2 delims=^=" %%g in ('v:\automazioneclip\virtualdub\FFProbe -hide_banner -loglevel fatal -pretty -select_streams v:0 -show_streams -show_entries stream^=codec_type^,duration^,r_frame_rate^,width^,height^,sample_aspect_ratio:stream_disposition^=:format_tags^=timecode^,company_name^,product_name^,product_version "%~n1_HD.avs"     2^>^&1') DO (
            if "%%~g"=="duration" set "aviDuration=%%~h"
    	)

            IF NOT EXIST "%cd%\tempFFMPEGAudio\%~n1.wav" if NOT "%isMXF%"=="1" if "%fps25OR50%"=="1" v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %AudioSource% -af "pan=stereo:c0=c0:c1=c1,volume=1.0,apad" -shortest -t %aviDuration% -c:a pcm_s16le -ar 48000 "%cd%\tempFFMPEGAudio\%~n1.wav"

            IF NOT EXIST "%cd%\tempFFMPEGAudio\%~n1.wav" if "%NoAudioInsideInputFile%"=="1"  v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %AudioSource% -af "pan=stereo:c0=c0:c1=c1,volume=1.0,apad" -shortest -t %aviDuration% -c:a pcm_s16le -ar 48000 "%cd%\tempFFMPEGAudio\%~n1.wav"

            IF NOT EXIST "%cd%\tempFFMPEGAudio\%~n1.wav" if NOT "%NoAudioInsideInputFile%"=="1"  v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i "%~n1.avi" -af "pan=stereo:c0=c0:c1=c1,volume=1.0" -c:a pcm_s16le -ar 48000 "%cd%\tempFFMPEGAudio\%~n1.wav"
            IF NOT EXIST "%cd%\tempFFMPEGAudio\%~n1.wav" if "%NoAudioInsideInputFile%"=="1" IF EXIST "%~n1.wav"   v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i "%~n1.wav" -af "pan=stereo:c0=c0:c1=c1,volume=1.0" -c:a pcm_s16le -ar 48000 "%cd%\tempFFMPEGAudio\%~n1.wav"
            IF NOT EXIST "%cd%\tempFFMPEGAudio\%~n1.wav" if "%NoAudioInsideInputFile%"=="1" IF NOT EXIST "%~n1.wav" v:\automazioneclip\core\ffmpeg.exe -y -loglevel fatal -i %AudioSource% -af "pan=stereo:c0=c0:c1=c1,volume=1.0,apad" -shortest -t %aviDuration% -c:a pcm_s16le -ar 48000 "%cd%\tempFFMPEGAudio\%~n1.wav"


               REM ************************************************************************************************** FFMPEG MAIN SESSION **************************************************************************************************
               if not exist "%cd%\tempFFMPEG" MD "%cd%\tempFFMPEG"

               if exist "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%" del "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%"

               v:\automazioneclip\core\ffmpeg.exe -y -i "%~n1_HD.avs" -i "%cd%\tempFFMPEGAudio\%~n1.wav" -s 1920x1080 -r 25 -f mp4  -vf scale=interl=1,format=pix_fmts=yuv420p -pix_fmt yuv420p -c:v libx264 -profile:v main -level:v 4.1 -x264-params me_range=4:subme=1:rc_lookahead=1:chroma_qp_offset=0:8x8dct=1 -g 100 -bf 2 -crf 22.8 -flags +ildct+ilme -top 1 -c:a ac3 -b:a 320k -ar 48000 -aspect 16:9 "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%"

               ren "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%" "%~n1.%ffEXT%"
               REM *************************************************************************************************************************************************************************************************************************

    if exist "unicodefile.txt" del "unicodefile.txt"
    if exist "ascii.txt" del "ascii.txt"
    if exist "mediainfo.txt" del "mediainfo.txt"
    IF exist "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%" del "%cd%\tempFFMPEG\tempVideoAudioFile.%ffEXT%"
    if exist "%~n1_HD.avs" del "%~n1_HD.avs"
    del *.lwi
    if exist "%cd%\tempFFMPEGAudio\%~n1.wav" del "%cd%\tempFFMPEGAudio\%~n1.wav"

           goto :eof

    :GetTargetName
    color

    	Set "FileName="
    	rem Set /p FileName=InputFileName

    	rem Add or remove double-quotes if necessary

    	if NOT DEFINED FileName (
    		Set "FileName-DQ="
    		goto :DQSkip
    	)

    	Set "FileName-DQ=%FileName:"=%"
    	if NOT DEFINED FileName-DQ (
    		Set "FileName="
    		Set "FileName-DQ="
    		goto :DQSkip
    	)

    	if EXIST "%FileName-DQ%" (
    		if "%FileName-DQ%"=="%FileName-DQ: =%" (
    			Set "FileName=%FileName-DQ%"
    		) else (
    			Set FileName="%FileName-DQ%"
    		)
    	)

    :DQSkip
    color

    	if /I "%FileName-DQ%"=="" Set FileName="%CD%"
    	if /I "%FileName-DQ%"=="CD" Set FileName="%CD%"
    	if /I "%FileName-DQ%"=="EXIT" goto :eof
    	if /I "%FileName-DQ%"=="NOEXIT" goto :GetTargetName
    	if DEFINED FileName (
    		Set /a ARGLVL+=1
    		CALL :ARGS %FileName%
    		Set /a ARGLVL-=1
    	)

    goto :GetTargetName
    but not, it don't work
    Quote Quote
  16. Hi , below my tries :

    Supposing a directory e:\temp in witch are
    _ Batch.bat
    _ clipA.MP4
    _ clipB.MP4
    +
    _clip.txt
    +
    _ ClipA1.mp4
    _ClipB1.mp4
    + result
    2_Clip.mp4

    ===
    clip.txt
    Code:
    file 'e:\temp\ClipA1.mp4'
    file 'e:\temp\ClipB1.mp4'
    ===
    ===
    Batch.bat
    Code:
    @echo on
    "...\ffmpeg.exe" -i clipA.MP4 -map 0:1 -map 0:0 -vcodec libx264 -acodec libmp3lame -aq 5 -ac 2 -qmax 25 -b:v 9060 ClipA1.mp4
    pause
    "...\ffmpeg.exe" -i clipB.MP4 -vcodec libx264 -acodec libmp3lame -aq 5 -ac 2 -qmax 25 -b:v 9060 ClipB1.mp4
    pause
    "...\ffmpeg.exe" -f concat -i clip.txt -c copy "2_Clip.mp4"
    pause
    :fin
    ===
    NOTE : only shorts sound !?!?!?

    Cheers .
    JE SUIS CHARLIE !!!
    Quote Quote
  17. Originally Posted by marcorocchini View Post
    is there a way to start by encoding the original?
    Something like this?

    Code:
    ffmpeg.exe -y -i clipB.MXF -pix_fmt yuv422p -vf scale=w=1920:h=1080 -vcodec mpeg2video -an clipB2.MXF
    ffmpeg.exe -y -i "concat:clipA.mxf|clipB2.mxf" -acodec copy -an concat.MXF
    del clipB2.MXF
    Quote Quote
  18. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    Man, you really do a ridiculous amount of right turns trying to avoid doing a left turn. Rube Goldberg, much?

    I know you won't listen to me this time either, since you haven't the multitude of times before, but if you just bit the bullet and upgraded to an NLE from this CENTURY, you would be able to smoothly and almost automatically do half of the things you come here asking help for. Saving you lots of precious time.

    Not averse to helping, but until you wake up and upgrade, and until you get over your fixation with felines, this is the only kind of comment you'll get from me.

    Scott
    Quote Quote
  19. Originally Posted by Cornucopia View Post
    Man, you really do a ridiculous amount of right turns trying to avoid doing a left turn. Rube Goldberg, much?

    I know you won't listen to me this time either, since you haven't the multitude of times before, but if you just bit the bullet and upgraded to an NLE from this CENTURY, you would be able to smoothly and almost automatically do half of the things you come here asking help for. Saving you lots of precious time.

    Not averse to helping, but until you wake up and upgrade, and until you get over your fixation with felines, this is the only kind of comment you'll get from me.

    Scott
    but how I have to do? I'm not a "Man" I'm a ***
    Quote Quote
  20. Originally Posted by aazerty View Post
    Hi , below my tries :

    Supposing a directory e:\temp in witch are
    _ Batch.bat
    _ clipA.MP4
    _ clipB.MP4
    +
    _clip.txt
    +
    _ ClipA1.mp4
    _ClipB1.mp4
    + result
    2_Clip.mp4

    ===
    clip.txt
    Code:
    file 'e:\temp\ClipA1.mp4'
    file 'e:\temp\ClipB1.mp4'
    ===
    ===
    Batch.bat
    Code:
    @echo on
    "...\ffmpeg.exe" -i clipA.MP4 -map 0:1 -map 0:0 -vcodec libx264 -acodec libmp3lame -aq 5 -ac 2 -qmax 25 -b:v 9060 ClipA1.mp4
    pause
    "...\ffmpeg.exe" -i clipB.MP4 -vcodec libx264 -acodec libmp3lame -aq 5 -ac 2 -qmax 25 -b:v 9060 ClipB1.mp4
    pause
    "...\ffmpeg.exe" -f concat -i clip.txt -c copy "2_Clip.mp4"
    pause
    :fin
    ===
    NOTE : only shorts sound !?!?!?

    Cheers .
    thank you but in this way you re-code, if possible I don't want recode: consider that the .mp4 are encoded starting from the "original" .MXF file and I try to understand if there is a way to do a batch that for all .mxf files that are in a directory, generate a correspondant .mp4 files that are, finally, concatenable using ffmpeg
    Quote Quote
  21. Originally Posted by Cornucopia View Post
    to an NLE from this CENTURY, you would be able to smoothly and almost automatically do half of the things you come here asking help for. Saving you lots of precious time.
    Scott
    and sorry I'm ignorant. I can not do anything if I'm a *a*
    Quote Quote
  22. Originally Posted by jagabo View Post
    Originally Posted by marcorocchini View Post
    is there a way to start by encoding the original?
    Something like this?

    Code:
    ffmpeg.exe -y -i clipB.MXF -pix_fmt yuv422p -vf scale=w=1920:h=1080 -vcodec mpeg2video -an clipB2.MXF
    ffmpeg.exe -y -i "concat:clipA.mxf|clipB2.mxf" -acodec copy -an concat.MXF
    del clipB2.MXF
    mmm maybe but, if possible, I try to do a way that for all "universal" formats [ideed the format included in the "filter" section that the format managed by the LSMASHsource] in a watched directory --> take an output .mp4 (with a target output parameters, in my case an Interlaced HD 4:2:0 ) that are alwais conCATenable.

    Maybe it's an experiment
    Last edited by marcorocchini; 31st Jul 2017 at 11:31.
    Quote Quote
  23. Originally Posted by jagabo View Post
    The problem with the two files was that the video in clipA.mp4 was stream 2 and the audio was stream 1, whereas the video in clipB.mp4 was stream 1 and the audio was stream 2. When Budman1 remuxed the files the number of the streams in ClipAA.mp4 was reversed, making it possible for concatenate them without specifying the individual streams.
    please jagabo in what way you see the streams? ffprobe?
    Last edited by marcorocchini; 31st Jul 2017 at 12:09.
    Quote Quote
  24. Originally Posted by marcorocchini View Post
    Originally Posted by jagabo View Post
    The problem with the two files was that the video in clipA.mp4 was stream 2 and the audio was stream 1, whereas the video in clipB.mp4 was stream 1 and the audio was stream 2. When Budman1 remuxed the files the number of the streams in ClipAA.mp4 was reversed, making it possible for concatenate them without specifying the individual streams.
    please jagabo in what way you see the streams? ffprobe?
    MediaInfo
    Quote Quote
  25. jagabo please using ffprobe can you tell me in wich way ffprobe recognize the stream ID?
    Quote Quote
  26. Just type
    Code:
    ffprobe "filename.ext"
    Quote Quote
  27. Hi ,
    ====
    In your post https://forum.videohelp.com/threads/384431-FFMPEG-why-I-cannot-f-concat-this-2-video-f...es#post2492154
    you can read :
    ---
    Input #0, concat, from 'concatlist.txt':
    Duration: N/A, start: -0.005333, bitrate: 32191 kb/s
    Stream #0:0(und): Audio: ac3 (ac-3 / 0x332D6361), 48000 Hz, stereo, fltp, 320 kb/s
    Metadata:
    handler_name : SoundHandler
    Stream #0:1(und): Video: h264 (High) (avc1 / 0x31637661), yuv420p, 1920x1080 [SAR 1:1 DAR 16:9], 31871 kb/s, 25 fps, 25 tbr, 12800 tbn, 50 tbc
    Metadata:
    handler_name : VideoHandler
    ---
    => Stream #0:0(und): Audio
    => Stream #0:1(und): Video
    ====
    ====
    You can find , with : ffmpeg -i your-vid
    ====
    ====
    For changing ffmpeg -i your-vid -map 0:1 -map 0:0 .....
    => Stream #0:0(und): Video
    => Stream #0:1(und): Audio
    ====

    !!! NOTE : you must recode the quality of streams are not equal . !!!

    Cheers.
    JE SUIS CHARLIE !!!
    Quote Quote
  28. please consider my MXF source clipA.MXF

    https://www.dropbox.com/s/hjd72fs0ce68i5y/clipA.MXF?dl=0

    that have 8 mono track audio channel.

    Usually I use something like this:

    Code:
    ffmpeg.exe -y -i clipA.mxf -filter_complex "[0:1] [0:2] amerge" -c:v libx264 -profile:v main -level:v 4.1 [...]  -c:a ac3 -b:a 320k -ar 48000 -aspect 16:9 output.mp4
    to get an output file with one stereo audio track L+R that get track1 and track2 from the original MXF.

    The results become something like this:
    Code:
    General
    Complete name                            : V:\S\clipA_cat.mp4
    Format                                   : MPEG-4
    Format profile                           : Base Media
    Codec ID                                 : isom
    File size                                : 10.6 MiB
    Duration                                 : 3s 200ms
    Overall bit rate                         : 27.7 Mbps
    Writing application                      : Lavf57.71.100

    Video
    ID                                       : 2
    Format                                   : AVC
    Format/Info                              : Advanced Video Codec
    Format profile                           : High@L4.1
    Format settings, CABAC                   : Yes
    Format settings, ReFrames                : 4 frames
    Codec ID                                 : avc1
    Codec ID/Info                            : Advanced Video Coding
    Duration                                 : 3s 200ms
    Bit rate                                 : 27.3 Mbps
    Width                                    : 1 920 pixels
    Height                                   : 1 080 pixels
    Display aspect ratio                     : 16:9
    Frame rate mode                          : Constant
    Frame rate                               : 25.000 fps
    Color space                              : YUV
    Chroma subsampling                       : 4:2:0
    Bit depth                                : 8 bits
    Scan type                                : MBAFF
    Bits/(Pixel*Frame)                       : 0.527
    Stream size                              : 10.4 MiB (99%)
    Writing library                          : x264 core 152 r2851 ba24899
    Encoding settings                        : cabac=1 / ref=3 / deblock=1:0:0 / analyse=0x3:0x113 / me=hex / subme=1 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=4 / chroma_me=1 / trellis=1 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=0 / threads=12 / lookahead_threads=2 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=tff / bluray_compat=0 / constrained_intra=0 / bframes=2 / b_pyramid=2 / b_adapt=1 / b_bias=0 / direct=1 / weightb=1 / open_gop=0 / weightp=0 / keyint=100 / keyint_min=10 / scenecut=40 / intra_refresh=0 / rc_lookahead=1 / rc=crf / mbtree=1 / crf=22.8 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / ip_ratio=1.40 / aq=1:1.00

    Audio
    ID                                       : 1
    Format                                   : AC-3
    Format/Info                              : Audio Coding 3
    Mode extension                           : CM (complete main)
    Format settings, Endianness              : Big
    Codec ID                                 : ac-3
    Duration                                 : 3s 200ms
    Bit rate mode                            : Constant
    Bit rate                                 : 320 Kbps
    Channel(s)                               : 2 channels
    Channel positions                        : Front: L R
    Sampling rate                            : 48.0 KHz
    Bit depth                                : 16 bits
    Compression mode                         : Lossy
    Delay relative to video                  : 80ms
    Stream size                              : 125 KiB (1%)
    But the problem is exactly this: video part should have ID 1 and audio part ID 2

    Please is there a way to have this?
    Quote Quote
  29. Hi ,

    OPEN your eyes !!!
    Previously answered .

    Cheers .
    JE SUIS CHARLIE !!!
    Quote Quote



Similar Threads
