Info: IOData GV-USB2 capturable range

[Akuma786]

Interesting information, Thanks.

Is there a way to get Histogram running Live whilst using AmarecTv to capture with IOData GV-USB2 or the USB-Live 2. I dont like using VirtualDub for capturing as I feel the captures are better on AmarecTv but I dont have Histogram with it to make adjustments whilst capturing and keeping within the safe range. I tried using Graphedit as suggested here from older post but cant get it to work.

[Alwyn]

I spent a lot of time trying to get this to work but concluded that that it's a driver/digitiser issue; I couldn't get the GV and Live2 to produce a histogram in MPC but the Startech USB3HDCAP was fine.

[Sharc]

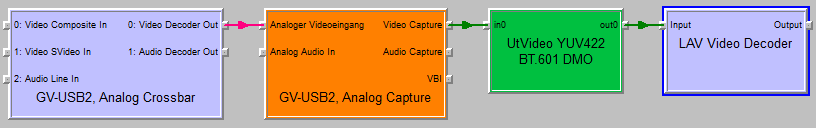

Here's my 32bit filtergraph. Needs LAV filters installed for it to work.


[Attachment 92006 - Click to enlarge]


[Attachment 92007 - Click to enlarge]

P.S. We shouldn't derail this thread any farther IMO.
