Any tips/obvious improvements to my MadVR settings for DVD Upscaling

[annieislost]

I'll keep this short as madVR setup questions get asked a lot, but seemingly answers are pretty hard to come by for specific cases.

I'm wondering if there are any ways I can improve my current madVR settings, in particular so that the handling of motion is optimal. I have quite a few DVDs of full baseball games, they are official releases so are nice quality for SD, but I have a 4k OLED monitor and I tend to watch them at either 3x or 4x (2880x1920). My current settings are based on reading a decent amount of madVR setup guides over the last couple of years but not really having much knowledge of how I would optimise for a particular type of content. Are there any ways I can modify my settings to improve rendering this video at ideally 4x resolution, with an emphasis on how motion is handled (due to the content). I prefer a slightly softer image over an oversharpened image .which is aliased/has other artifacts.

Mediainfo for the content in question (Ripped the disc with MakeMKV, then just grabbed the files from the .iso and -> .mkv using MKVToolnix), removed irrelevant lines to condense

Format : Matroska
Format version : Version 4 / Version 2
File size : 7.08 GiB
Duration : 3 h 15 min
Overall bit rate mode : Variable
Overall bit rate : 5 198 kb/s
Frame rate : 29.970 FPS
Movie name : 2002 World Series Game 5 ARI Diamondbacks v NYY Yankees 1 Nov 2001
Writing application : mkvmerge v93.0 ('Goblu') 64-bit
Writing library : libebml v1.4.5 + libmatroska v1.7.1

Video
ID : 1
Format : MPEG Video
Format version : Version 2
Format profile : Main@Main
Format settings : CustomMatrix / BVOP
Format settings, BVOP : Yes
Format settings, Matrix : Custom
Format settings, GOP : M=3, N=15
Format settings, picture structure : Frame
Codec ID : V_MPEG2
Codec ID/Info : MPEG 1 or 2 Video
Duration : 3 h 15 min
Bit rate mode : Variable
Bit rate : 5 004 kb/s
Maximum bit rate : 9 800 kb/s
Width : 720 pixels
Height : 480 pixels
Display aspect ratio : 4:3
Frame rate mode : Constant
Frame rate : 29.970 (30000/1001) FPS
Standard : NTSC
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Interlaced
Scan order : Bottom Field First
Compression mode : Lossy
Bits/(Pixel*Frame) : 0.483
Time code of first frame : 00:59:58;20
Time code source : Group of pictures header
GOP, Open/Closed : Open
GOP, Open/Closed of first frame : Closed
Stream size : 6.82 GiB (96%)


My current madVR settings are:
processing: nothing active apart from auto deinterlacing

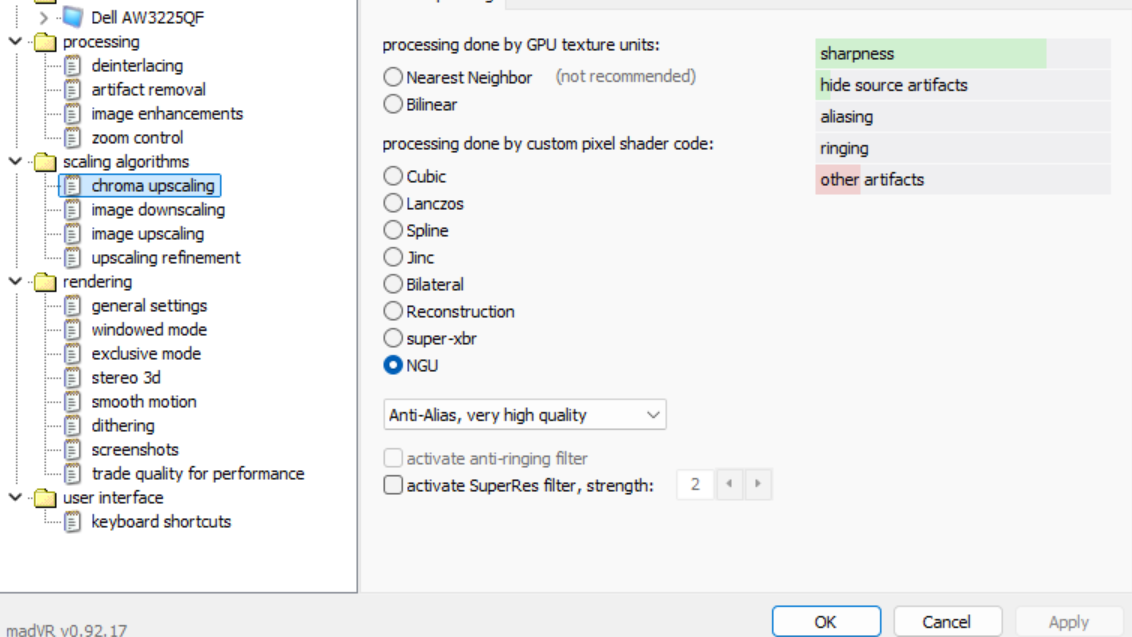

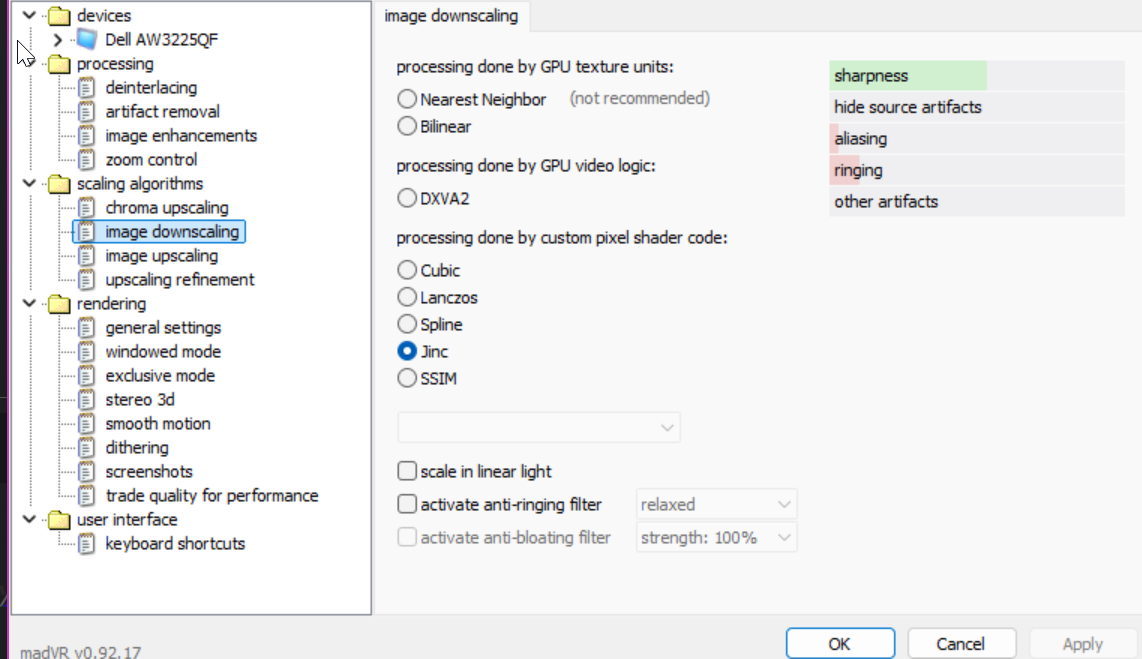

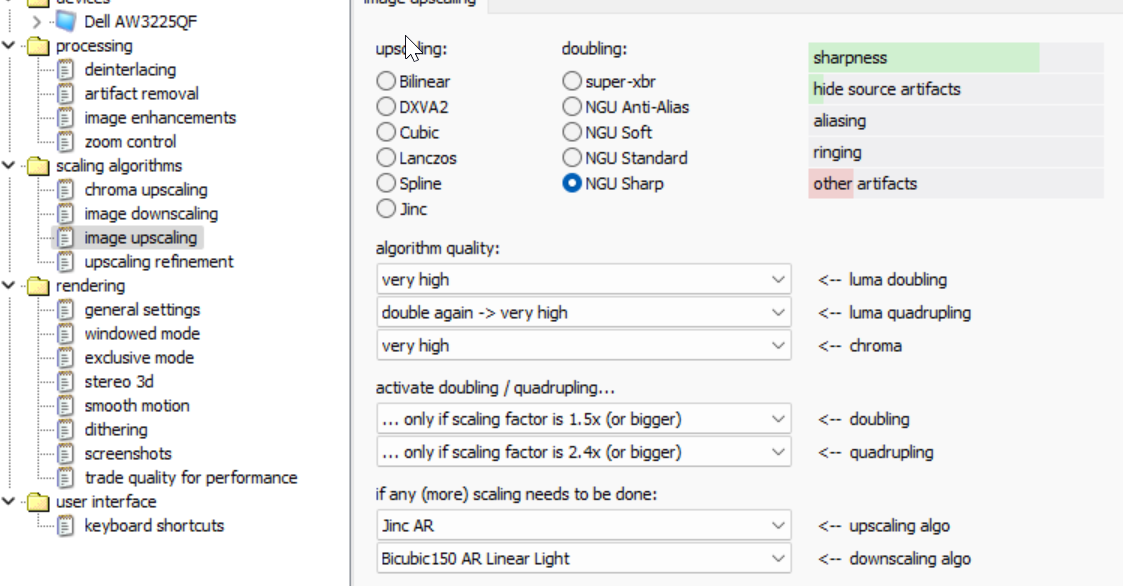

scaling algos: see picture, upscaling refinement: nothing activated
rendering: dithering: error diffusion option 2, change dither for every frame
exclusive mode: all 3 options checked, 8 frames in advance
smooth motion: off

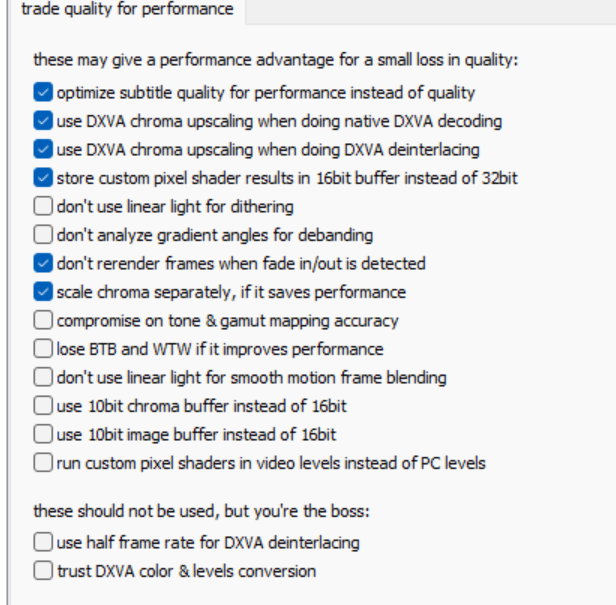

trade quality for performance: see picture


To be clear, I'm not unhappy with how MPC-HC + madVR has been rendering this and other content like this, just wondering if there are any easy modifications I can make that will improve it for this type of content specifically. Thanks

[Attachment 87902 - Click to enlarge]

[Attachment 87900 - Click to enlarge]

[Attachment 87903 - Click to enlarge]

[Attachment 87901 - Click to enlarge]
