Which kind of XP machine needed for lossless VHS capture

[Busty]

Hey everyone,

I'm - like so many others obviously - seeking for a way to capture my VHS tapes. I did some research and tests on my Apple G4 MDD and settled for a MiroMotion DC30+, and while I really like the picture quality, I am struggling with video/audio sync. It's not an issue resulting from dropped frames.

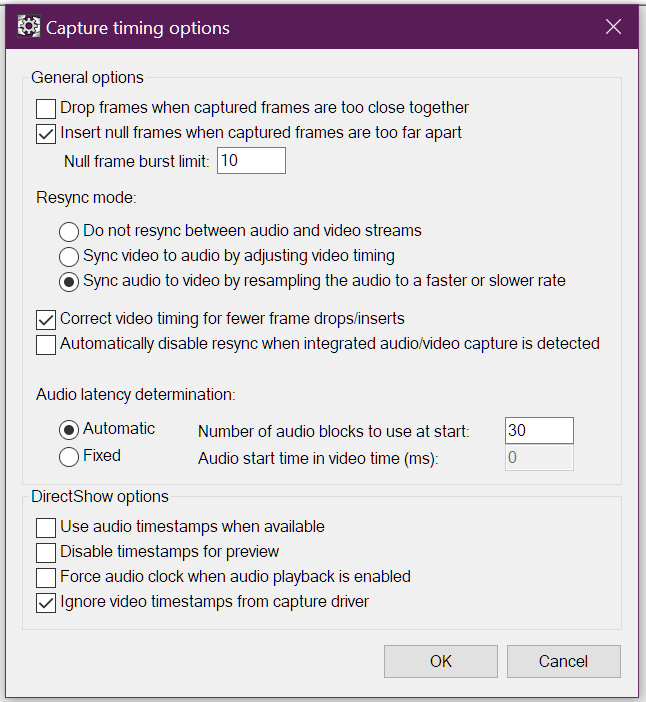

I read a bit - mostly in this forum - and got the impression that virtualdub's possibility to maintain sync is what I need. (I can't find a similar tool for my vintage mac.) I've read about an option in virtualdub that is called "resample audio dynamically", which helps keeping the media in sync. Since most of the videos I will digitize are concert recordings, this option is not satisfactory for me, I don't want to add any more fluctuation to the sound. But I also read that there is a similar option that is altering the video to keep it in sync, something like "sync video by adjusting video timing".

This, and lordsmurf's suggestion to get captures done on a Windows XP machine (since with them the ATI AIWs work) makes me think I might need to try that.

What kind of machine would I need for that? How fast does the processor need to be? Or am I maybe still missing something here?

If anyone has some suggestions as to what i could do on a PPC mac to get rid of sync issues I'd love to hear them, too

Thanks for listening / reading

[Darryl In Canada]

I built an XP machine to run an ATI AIW 9600XT. In restrospect, you can simply use an ATI TV Wonder 600 USB (aka ATI 600) on a Windows 7 desktop and that will be must easier to source and probably cheaper.

If you go the XP route, these specs are more than enough if you build one yourself:

ASRock 4CoreDual-SATA2
Core 2 Duo E7500
2 x Kingston kvr800d2n5/2g (4GB in all)
HDD: 2TB, 7500 rpm (for data)
HDD: 1 TB, 7500 rpm (OS)
Turtle Beach Santa Cruz TB400

Alternatively, if you absolutely need a Windows XP machine with a motherboard with an AGP slot, try the Dell Optiplex GX260, which was released in 2007 and seems to be the last Dell model to include an AGP low profile on its mobo. The next one they made, the GX280, doesn’t have AGP slot. The earlier model, GX240, has it, but the CPU is a bit slower. But I don't think that will matter. So, bottom line, look for a Dell Optiplex GX260 or GX240.

[Busty]

Thank you, that's useful input. Although upon a first search, I couldn't find any ATI TV Wonder 600 USB for sale right now. And I would still need to get a windows machine

But you gave me some numbers to work with. Thanks for taking the time to do that.

It's funny sometimes, after posting this question, I started to check some other possibilities with different software and hardware that I didn't think of before. "MyVCR" was the only capture app that I used all the time, so I first start checking out FinalCutPro, Adobe Premiere and BTV. I also have a Panasonic AG-7350 that I have to dig out and check if I can get the external sync to work.

I'll be back...

[manono]

You don't need an XP machine to capture losslessly.

[Sharc]

You don't need an XP machine to capture losslessly.

+1

[lollo]

+2

[Busty]

thanks, yeah, but that's not the issue. The issue is the audio drift, and my hope would be that virtualdub can be set up to counteract that. For that I would need a windows machine. And assuming I go that route, I could just pick up one running XP and putting in an ATI AIW card.

But right now I'm doing more tests with a 2 hour capture of a concert with my mac setup which ideally will help me make up my mind.

[jagabo]

The issue is the audio drift, and my hope would be that virtualdub can be set up to counteract that. For that I would need a windows machine.

But VirtualDub will do that by adding duplicates (to slow the video), or removing frames (to speed up the video). The result will be jerky video.

[Busty]

But VirtualDub will do that by adding duplicates (to slow the video), or removing frames (to speed up the video). The result will be jerky video.

ok, that's interesting, I didn't know that. Then I'd rather stay on my system. Thanks for pointing that out, this helps a lot to decide which way to go!

[themaster1]

You invest on hdmi gear a sony dvd recorder rdr hxd (with line tbc/proc amp) and a pcie hdmi card. You skip XP altogether just like i do. Audio drift should be limited, there can be an audio offset though. That's my advice
