comparting frame to frame in edius between direct source and avisynth

[marcorocchini]

Hi,

a cat. However

Be patient, thanjs

I have import

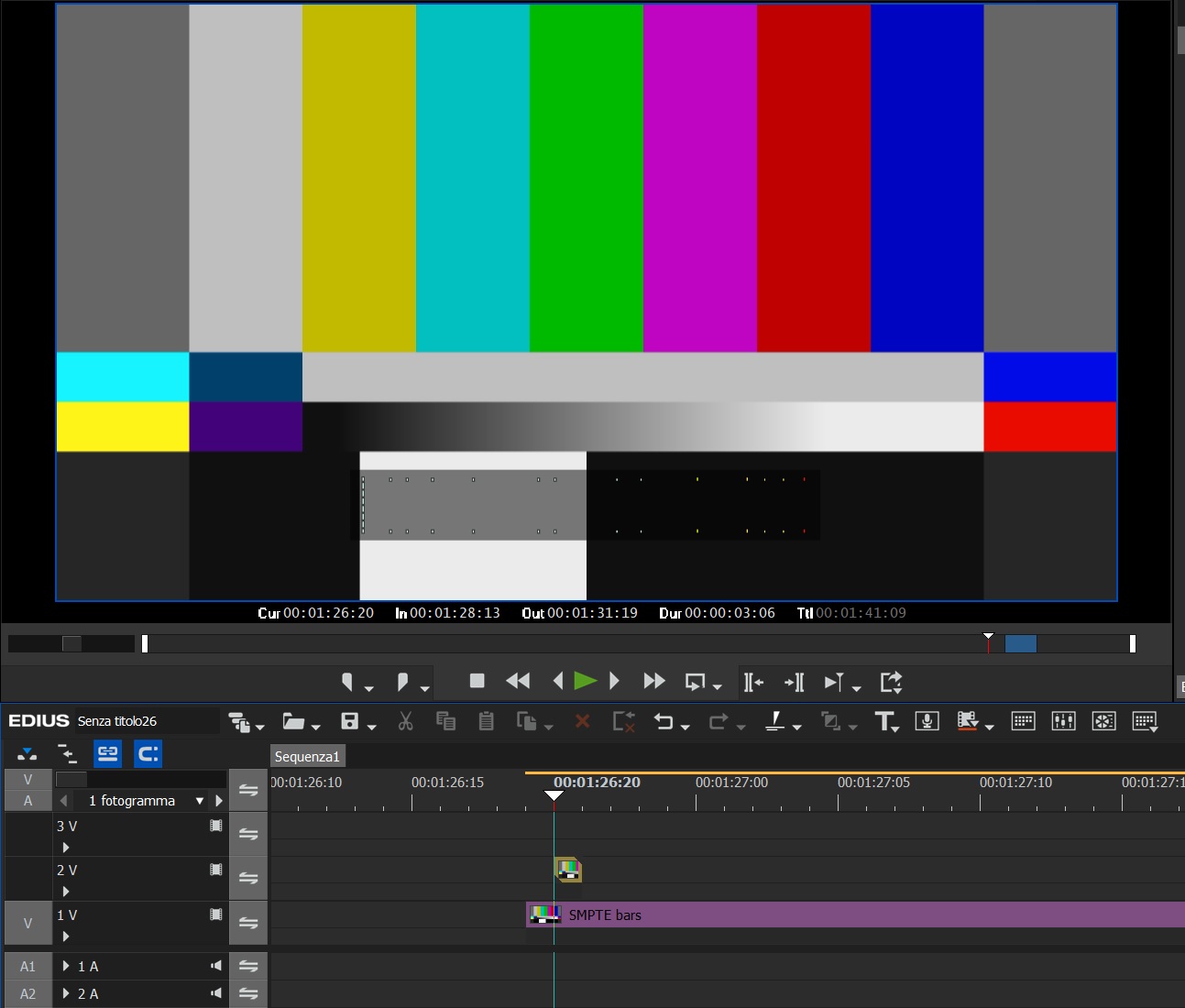

[Attachment 86323 - Click to enlarge] this attacjed SMPTE Bars jpeg file in timeline.

to compare output of avisynth via pismo file mount, back to edius for do clip to clip comparison.

The avisynth script is:

LoadPlugin("v:\automazioneclip\AviSynth\colormatrix26\X86\ColorMatrix32.dll")

FFVideoSource("v:\SMPTE bars .jpg")

ConvertToYUY2(interlaced=false)
colorMatrix(mode="Rec.601->Rec.709")

ColorYUV(levels="PC->TV")

this script let the pismo system to get ad .avi to import in edius and see the differecesed frame to frame.

There is s little "shift" on the bars colors when switching frame to frame.

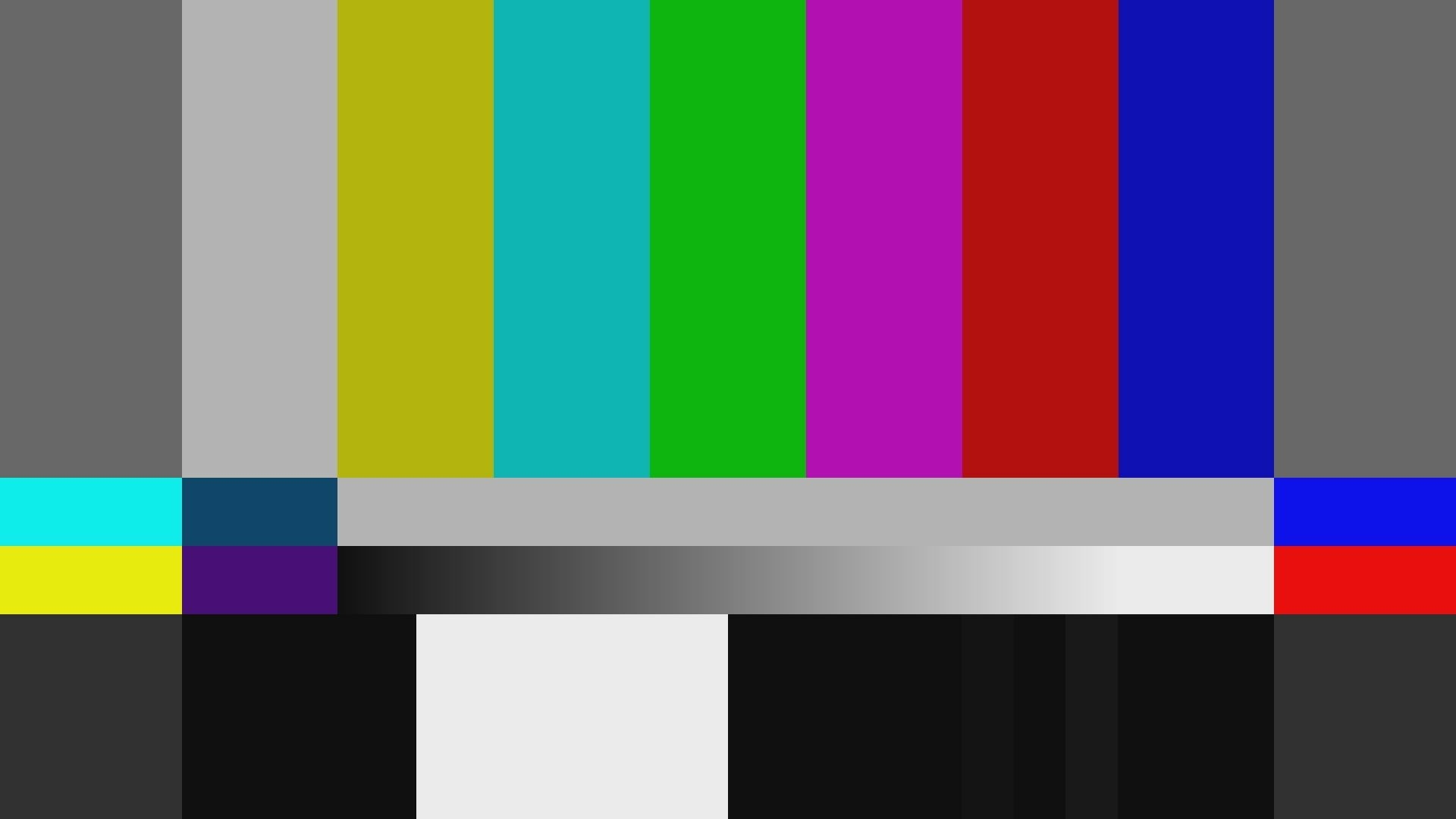

[Attachment 86324 - Click to enlarge]



this is the result

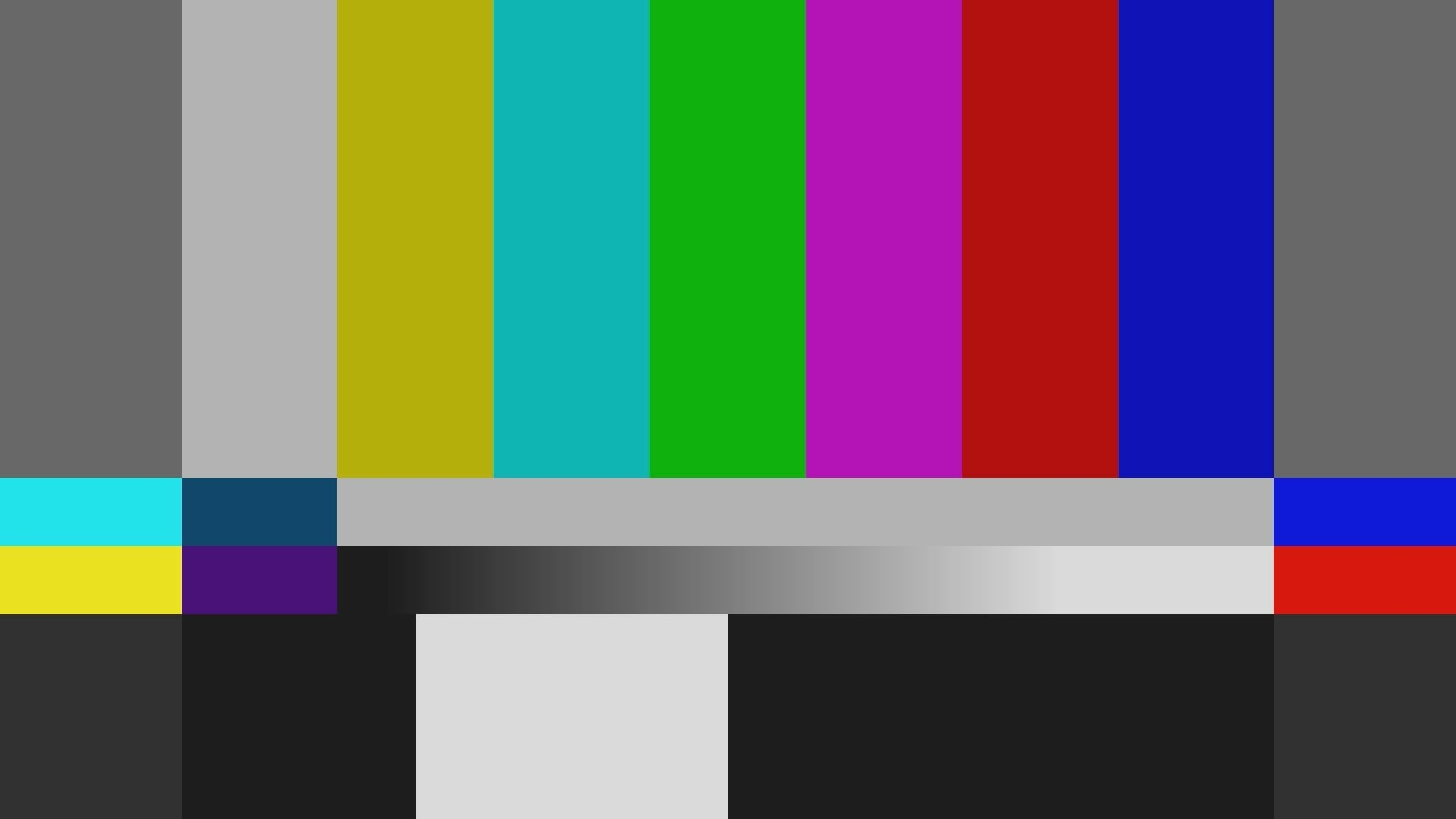

[Attachment 86325 - Click to enlarge]

[Attachment 86326 - Click to enlarge]


what can it be? thanks

[Sharc]

Try this

ImageSource("SMPTE bars .jpg")
converttoYV16() #convert to planar
z_ConvertFormat(pixel_type="YUV422P8",interlaced=false,colorspace_op="601:auto:auto:limited=>709:same:same:limited")
