  1. Member
    Join Date
    Mar 2019
    Location
    Henderson, KY, USA
    Search PM

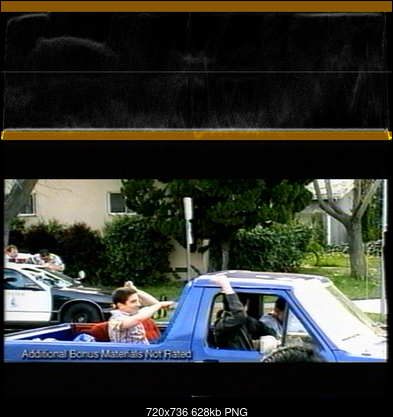

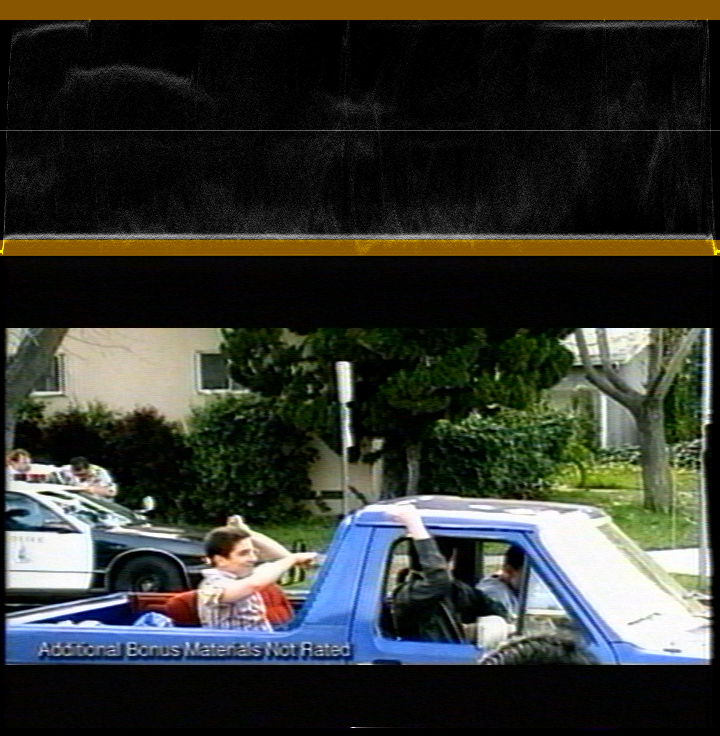

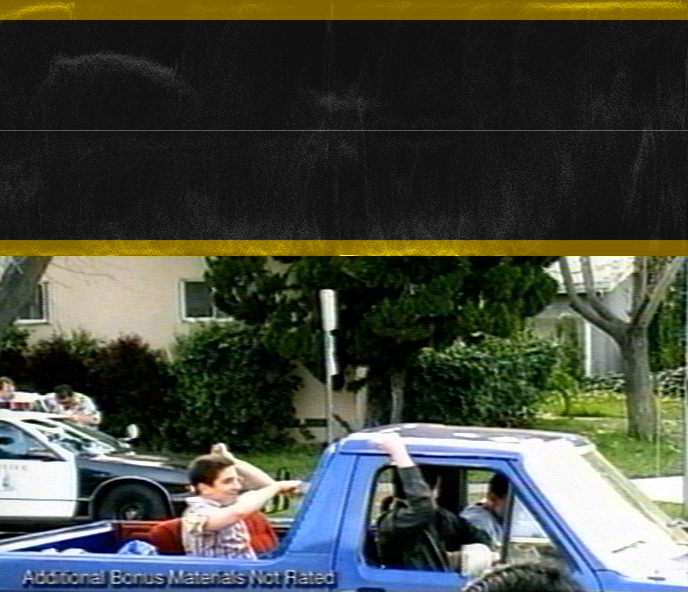

    i'm capping some retail tapes, some of them have macrovision. i usually use my tbc-3000 paired with my ag-1980's tbc, but on some tapes i have an issue where part of the screen is lagged behind for a frame or two, so for those tapes i have to turn the tbc off and run it through my es15. however, the whites are blown out. is there any way around this? my capture card is a gv-usb2, if that matters.

    Click image for larger version

Name:	eleXaK4.png
Views:	113
Size:	627.5 KB
ID:	83742
    Quote Quote
  2. It's a well-known problem. Try researching this board for ideas. Here's one example:

    Macrovision overexposure?
    Last edited by johnmeyer; 25th Nov 2024 at 16:25. Reason: typo
    Quote Quote
  3. Member
    Join Date
    Mar 2019
    Location
    Henderson, KY, USA
    Search PM
    Originally Posted by johnmeyer View Post
    It's a well-known problem. Try researching this board for ideas. Here's one example:

    Macrovision overexposure?
    i can't seem to find any leads other than maybe a proc amp before the es15. but a good one is probably out of my budget. are there any other options?

    edit: i apparently can't use a proc amp before the es15 since a proc camp digitizes the signal. i read a German forum thread of someone modifying an s-video cable with some resistors on the luma line, but i'm not that confident in my soldering skills.
    Last edited by ENunn; 25th Nov 2024 at 21:22.
    Quote Quote
  4. Member
    Join Date
    Mar 2019
    Location
    Henderson, KY, USA
    Search PM
    wanted to post an update. i'm still looking for leads on what to do. i read that you can mod an s-video cable with resistors to lower the gain, but 1. i'm not comfortable with hacking up my only good s-video cable (and it's almost impossible to find a good s-video cable in the us in 2025) and 2. i don't know if that'll even help with macrovision. someone sent me a list on videohelp that had some sony/pioneer dvd recorders with adjustable adc, but they're all pal. i don't know of any ntsc units. if anyone has any other suggestions, feel free to share. using a proc amp before the es15 is not an option, those will digitize the signal negating any use of the tbc in the es15.
    Quote Quote
  5. The darks are crushed as well. From the luma waveform it apears that there is no truly hard clipping in the signal, so there is a chance that you can improve it - at least a little - with color gradation tools of NLEs.
    Quote Quote
  6. Captures & Restoration lollo's Avatar
    Join Date
    Jul 2018
    Location
    Italy
    Search Comp PM
    Remove all black borders before doing any histogram analysis

    IOData GV-USB2 is able to capture the full 1-254 range (tested with 111, 114 and 115 drivers)
    Quote Quote
  7. Originally Posted by lollo View Post
    Remove all black borders before doing any histogram analysis

    IOData GV-USB2 is able to capture the full 1-254 range (tested with 111, 114 and 115 drivers)
    Sure, and it does it stably.

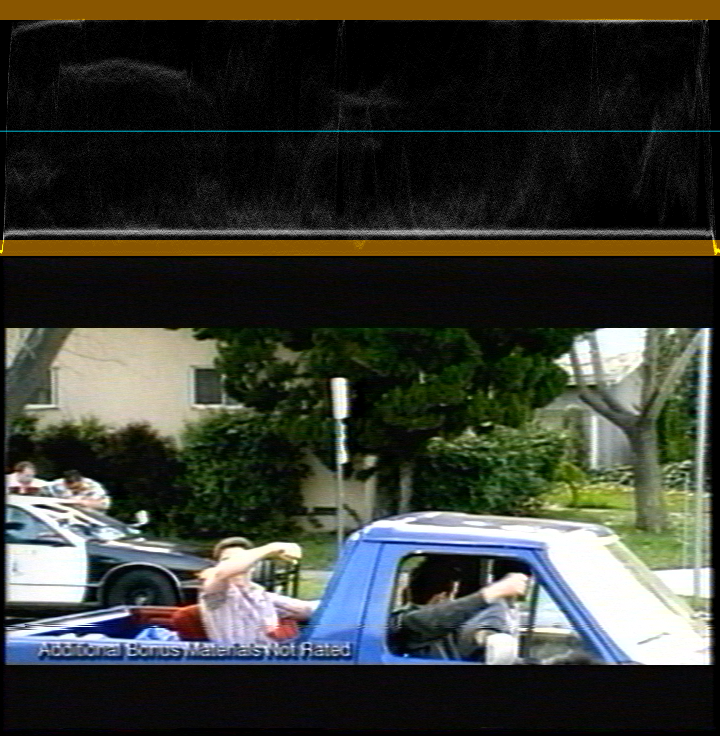

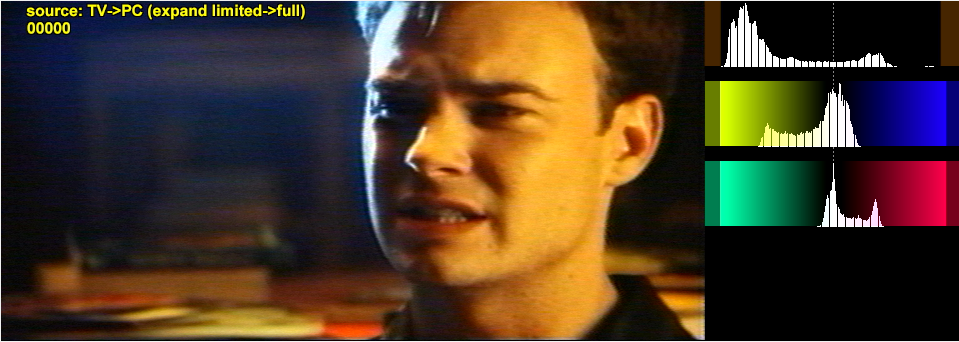

    What I mean there is still no hard clipping (=obvious damage) visible in the brights of the .png waveform or histogram. So some processing of the crushed overbrights is possible in Avisynth or using an NLE. Not sure about the success though as the windscreen seems to be extremely "flat" (like clipped) ..... Is it really due to macrovision? (I have no experience with macrovision tapes).

    [Attachment 88898 - Click to enlarge]
    Last edited by Sharc; 24th Sep 2025 at 11:19.
    Quote Quote
  8. What are you using to capture the video (i.e., what is your capture hardware)? Remember, Macrovision was invented to keep you from copying your tape to another analog tape, but it still let you view the content of that tape.

    Understanding that simple fact is the key to making a stable digital version of your original tape, with proper levels and colors.

    Because you should always be able to view a stable, correctly exposed image on your TV monitor, a simple, although low-quality approach to defeating Macrovision is to simply point a camera at the TV screen (with proper settings on the camera) and film the result. Of course that has massive problems of its own (I mention it just to drive home the point that the picture looks OK until you try to make a copy). A better way is to use a capture system which, like your old analog TV set, "plays" the video without attempting to re-encode it as another NTSC stream to be recorded as a copy on another VHS recorder.

    I always had good success simply attaching the video to a DV capture system (my Sony TRV-11 camcorder). However, if you don't have that hardware you can also experiment with not only composite output, but also component, S-video, and even the RF output. I'm pretty sure you'll eventually find a chain that works just fine.

    In all of my transfers of my own tapes as well as hundreds of tapes I've digitized for others, I have never had any problem with Macrovision when digitizing with my TRV-11.
    Last edited by johnmeyer; 24th Sep 2025 at 12:37. Reason: clarification
    Quote Quote
  9. For the partial frame that is behind - can you show a screenshot of that? I have found one tape that was just an off air EP recording that did it on each AG1980 that I tried it with, but I'm not really sure what causes it as that tape definitely didn't have macrovision. The only examples I've ever seen it's the very left of the frame vertically for maybe 20 pixels or so, so I'm curious if that is what you are seeing vs something else. I don't think I've ever seen it happen on a commercially produced tape.
    Quote Quote
  10. Originally Posted by aramkolt View Post
    ...I don't think I've ever seen it happen on a commercially produced tape.
    For home VHS it is not unusual that glossy reflecting surfaces like glass, plastic and metal are recorded as ~white (local overexposure) or as a flat graytone if the camera is overreacting. It's by the videocam and baked onto the tape, and there's little to nothing one can do about it.
    Quote Quote
  11. Member
    Join Date
    Mar 2019
    Location
    Henderson, KY, USA
    Search PM
    sorry for the late reply y'all

    Originally Posted by Sharc View Post
    The darks are crushed as well. From the luma waveform it apears that there is no truly hard clipping in the signal, so there is a chance that you can improve it - at least a little - with color gradation tools of NLEs.
    it's been a while since i posted this thread. i think the screenshot i sent was actually made after i adjusted the levels in aviysynth. i mentioned in another thread, i do levels adjustment in avisynth.

    i just did a recap of that tape, with both the vcr's tbc on + the tbc-3000 and the vcr's tbc off + the es15 and i found out that that particular tape is just trash. the whites on the tape are clipped on both captures, and i get a lot of chroma errors that i don't get with all of my other tapes. most of my retails with macrovision aren't like this through my tbc-3000.

    HOWEVER, i can confirm that the es15 is worse than running it through my tbc-3000. it is clipping the signal even more. it's not my capture card or my settings.

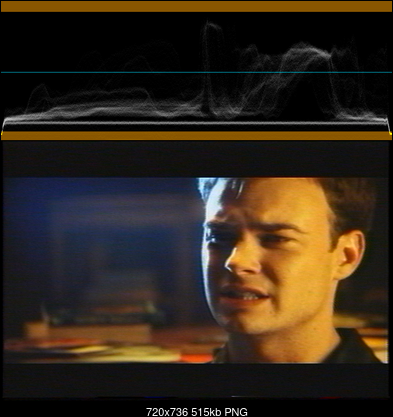

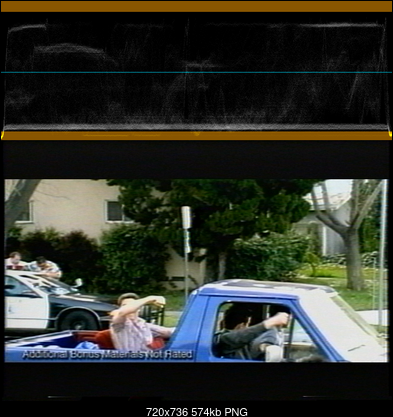

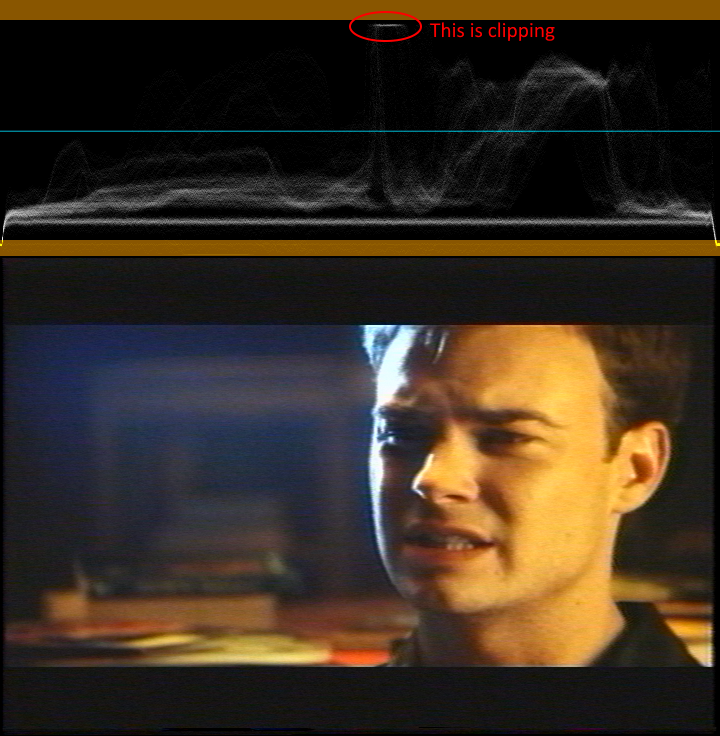

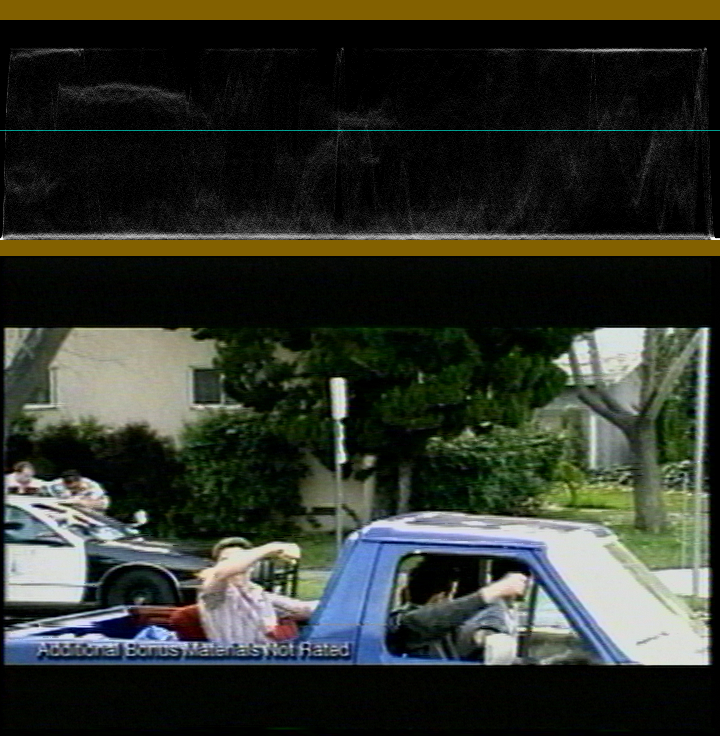

    from the datavideo tbc-3000:
    Click image for larger version

Name:	MMOo8W6.png
Views:	8
Size:	573.5 KB
ID:	88987

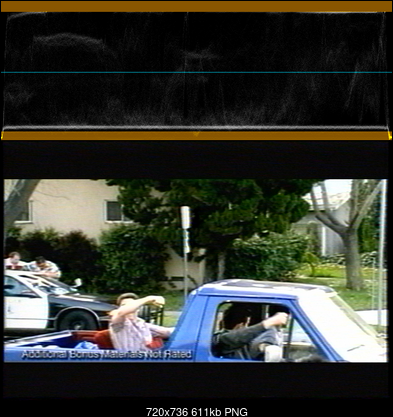

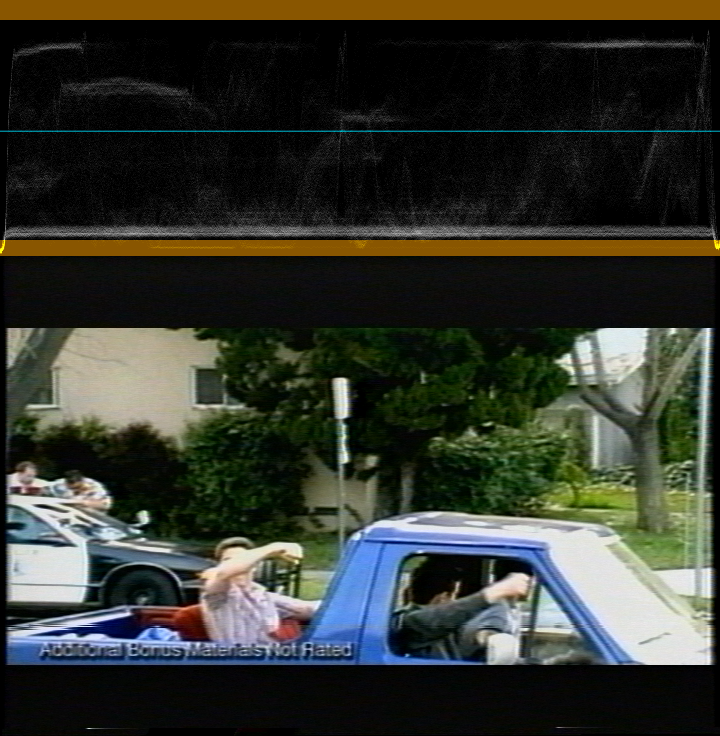

    from the es15:
    Click image for larger version

Name:	BR3QSvi.png
Views:	8
Size:	611.3 KB
ID:	88988

    both are captured through s-video and have not been messed with in post. my tbc-3000's proc-amp settings are the defaults, but for both captures i adjusted the proc amp on my gv-usb2, i basically upped the brightness and lowered the contrast. back when i first started doing tape transfers regularly i noticed that doing that gave me a bit more data to play around with in terms of dynamic range. i know it means nothing in the realm of vhs, but i like my blacks black and my whites white i'm just picky

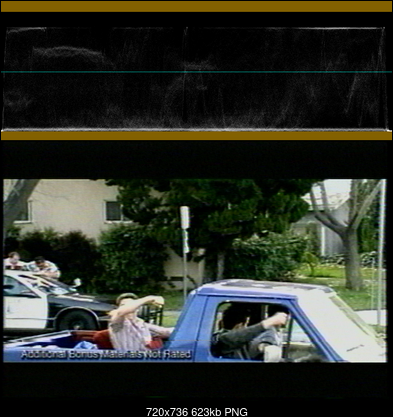

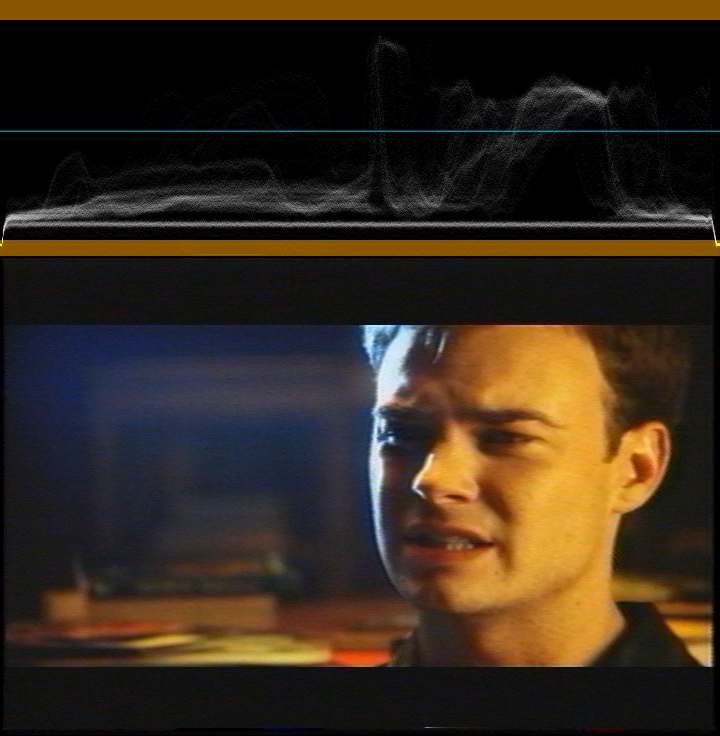

    i've also tried capturing through component routed through the open source scan converter, then the hdmi out of that goes to the avermedia live gamer 4k gc573, but i can't capture it with the es15 set to 480i. the moment the tape plays, the ossc says no signal. i tried a direct connection to the avermedia c027, and the signal goes out there too. but when i set my es15 to 480p and it displays fine. however, the component output of the es15 sucks. its too washed out. maybe i can just add some saturation in post. also i can't reinterlace properly so it's basically useless for me. looking at the histogram, it's not as bright as s-video, but it looks like it's still hard clipping.

    Click image for larger version

Name:	rC1uQ49.png
Views:	5
Size:	623.1 KB
ID:	88989


    Originally Posted by lollo View Post
    Remove all black borders before doing any histogram analysis

    IOData GV-USB2 is able to capture the full 1-254 range (tested with 111, 114 and 115 drivers)
    i heard something about that.

    Originally Posted by johnmeyer View Post
    What are you using to capture the video (i.e., what is your capture hardware)? Remember, Macrovision was invented to keep you from copying your tape to another analog tape, but it still let you view the content of that tape.
    panasonic ag-1980 > s-video
    datavideo-tbc 3000 OR panasonic dmr-es15 > s video
    io-data gv-usb2
    virtualdub for capture to lagarith or huffyuv

    i usually hook my vcr up to my crt for previewing, and it looks fine on there.

    Originally Posted by johnmeyer View Post
    Understanding that simple fact is the key to making a stable digital version of your original tape, with proper levels and colors.

    Because you should always be able to view a stable, correctly exposed image on your TV monitor, a simple, although low-quality approach to defeating Macrovision is to simply point a camera at the TV screen (with proper settings on the camera) and film the result. Of course that has massive problems of its own (I mention it just to drive home the point that the picture looks OK until you try to make a copy). A better way is to use a capture system which, like your old analog TV set, "plays" the video without attempting to re-encode it as another NTSC stream to be recorded as a copy on another VHS recorder.
    thats what i usually do with my tbc-3000, but its only really useful if my vcr's tbc is on. none of my macrovision tapes have clipping when i run them through that, only my es15, and for some reason, not all macrovision tapes do it on my es15. i don't know why.

    Originally Posted by johnmeyer View Post
    I always had good success simply attaching the video to a DV capture system (my Sony TRV-11 camcorder). However, if you don't have that hardware you can also experiment with not only composite output, but also component, S-video, and even the RF output. I'm pretty sure you'll eventually find a chain that works just fine.

    In all of my transfers of my own tapes as well as hundreds of tapes I've digitized for others, I have never had any problem with Macrovision when digitizing with my TRV-11.
    unfortunately i do "restoration", capturing to a lossless format is essential for my usecase.

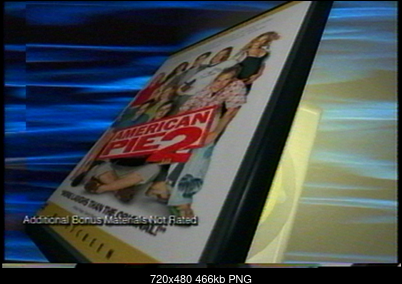

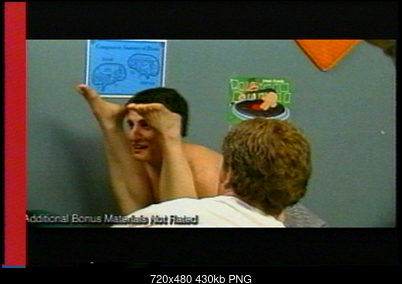

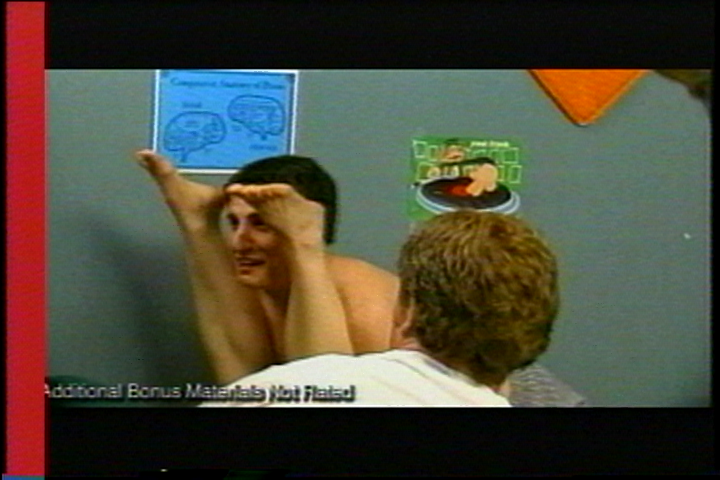

    Originally Posted by aramkolt View Post

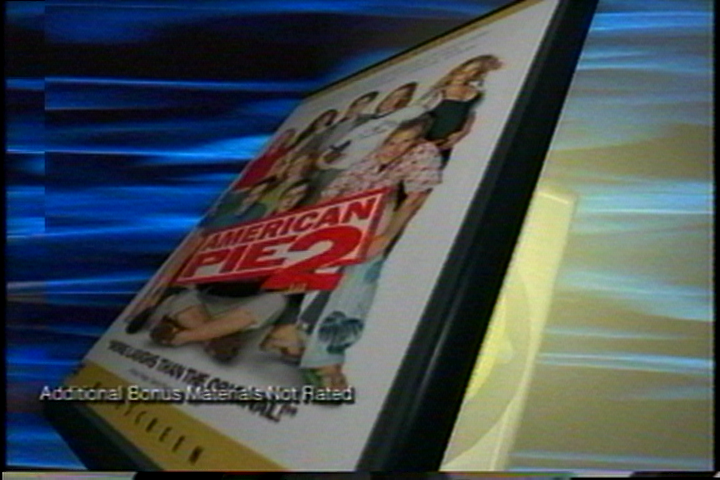

    For the partial frame that is behind - can you show a screenshot of that? I have found one tape that was just an off air EP recording that did it on each AG1980 that I tried it with, but I'm not really sure what causes it as that tape definitely didn't have macrovision. The only examples I've ever seen it's the very left of the frame vertically for maybe 20 pixels or so, so I'm curious if that is what you are seeing vs something else. I don't think I've ever seen it happen on a commercially produced tape.
    Click image for larger version

Name:	WIygeba.png
Views:	7
Size:	465.8 KB
ID:	88990
    Click image for larger version

Name:	uNIeGBD.png
Views:	6
Size:	429.7 KB
ID:	88991

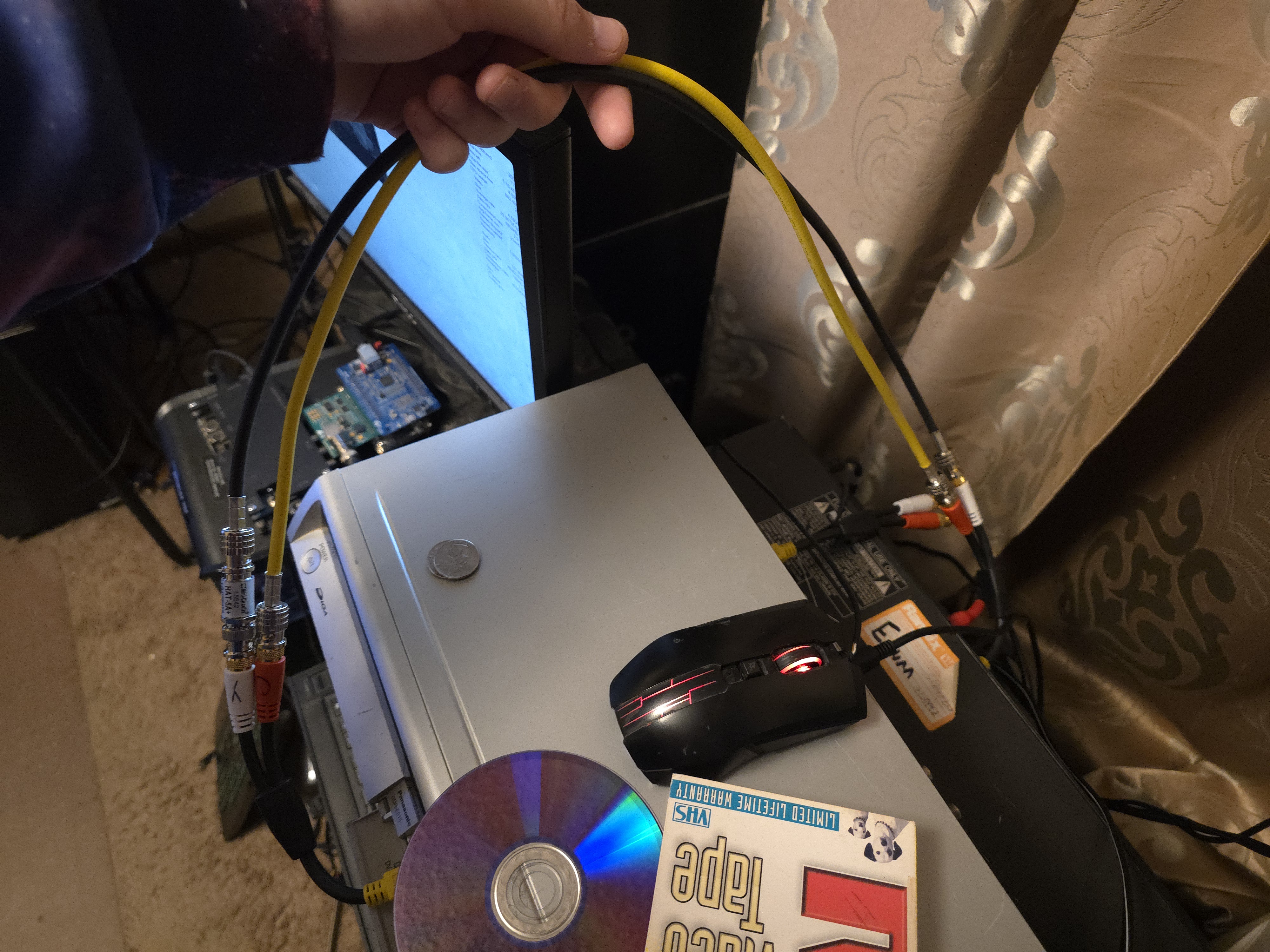

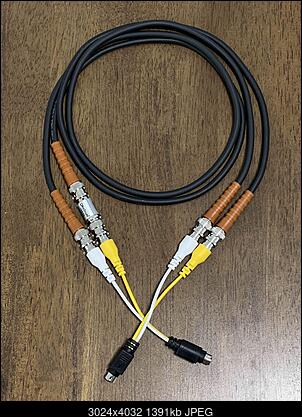

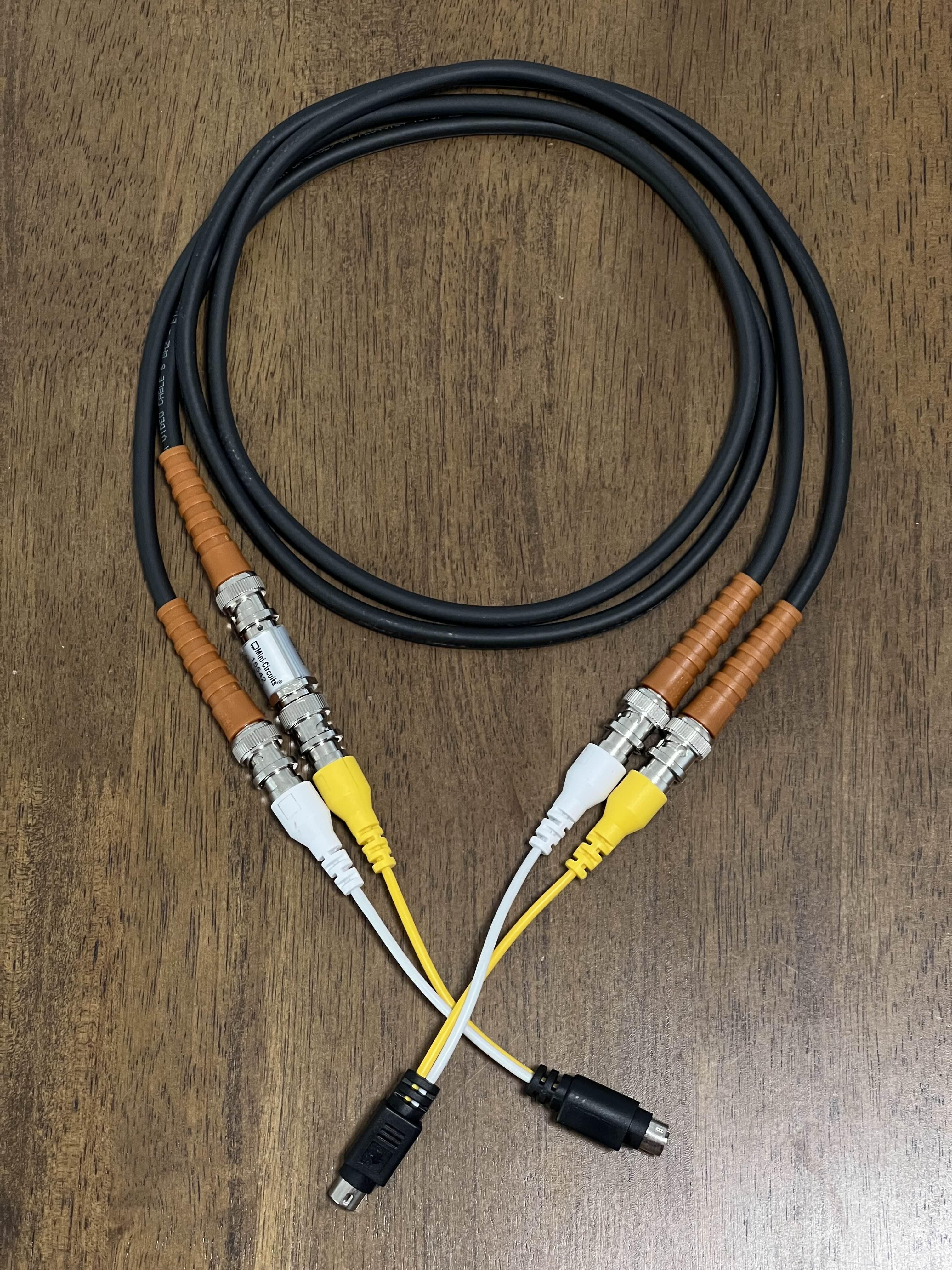

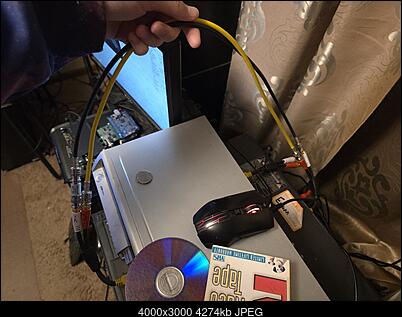

    now about the white level clipping, i have asked about this on the domesday86 discord server, and someone suggested i get some s-video to bnc breakout cables and some bnc cables from blue jeans cables, and a hat-5a+ fixed attenuator and apparently that can remedy clipping issues on the es15, and it can help with macrovision. i'm planning on getting those when i have some money, so i'll write back whenever i get them.
    Click image for larger version

Name:	GQ9LNOI.jpeg
Views:	5
Size:	1.36 MB
ID:	88992
    Quote Quote

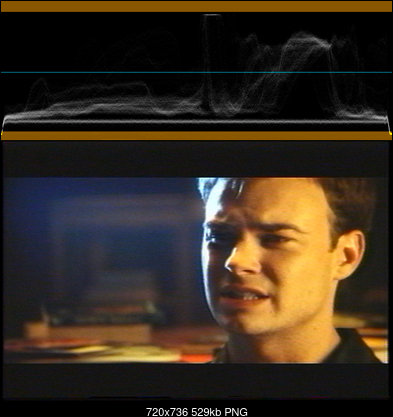

  12. The attenuator will bring down the brightest brights, but it will also crush the black levels some more. The added black crushing won't really matter if your capture card can capture full range (1-255) since it's not going to crush a 7.5IRE black all the way to zero. It does require you to correct the levels in post though which can be a kind of annoying step depending on your workflow.

    A 1K, 5K, or 10K potentiometer with the center tap going to the output and the other two legs going to signal and ground should give roughly the same effect, but you can variably control the luma level (but the black level will also be affected to some degree).

    That left area of the frame behind thing does look like what I've seen with certain EP tapes, but I'm still not sure what causes that since it doesn't happen with most tapes of any variety (regardless of tape speed and whether macrovision present or not), but a tape that do have it will do it consistently across all AG1980's.
    Quote Quote
  13. Member
    Join Date
    Mar 2019
    Location
    Henderson, KY, USA
    Search PM
    Originally Posted by aramkolt View Post
    The attenuator will bring down the brightest brights, but it will also crush the black levels some more. The added black crushing won't really matter if your capture card can capture full range (1-255) since it's not going to crush a 7.5IRE black all the way to zero. It does require you to correct the levels in post though which can be a kind of annoying step depending on your workflow.
    it's all good, i can easily fix it in post. i do it all the time with my tape transfers.

    Originally Posted by aramkolt View Post
    A 1K, 5K, or 10K potentiometer with the center tap going to the output and the other two legs going to signal and ground should give roughly the same effect, but you can variably control the luma level (but the black level will also be affected to some degree).
    i read something on that, i'm just not comfortable ripping apart my only good s-video cable.

    Originally Posted by aramkolt View Post
    That left area of the frame behind thing does look like what I've seen with certain EP tapes, but I'm still not sure what causes that since it doesn't happen with most tapes of any variety (regardless of tape speed and whether macrovision present or not), but a tape that do have it will do it consistently across all AG1980's.
    it's the time base corrector on the vcr. i do not get that issue when i turn it off and run the vcr through the es15.
    Quote Quote
  14. Originally Posted by aramkolt View Post
    A 1K, 5K, or 10K potentiometer with the center tap going to the output and the other two legs going to signal and ground should give roughly the same effect, but you can variably control the luma level (but the black level will also be affected to some degree).

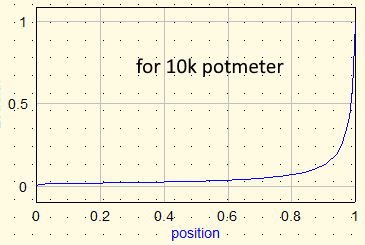

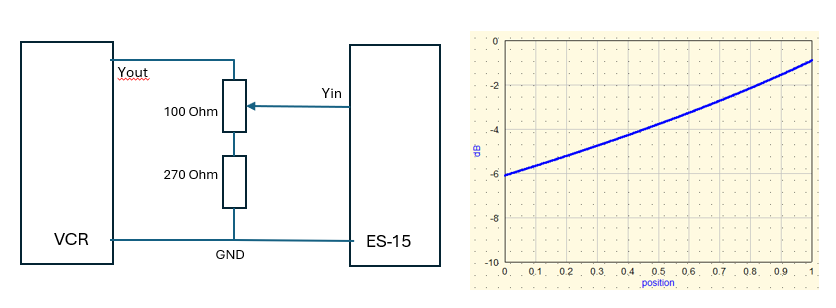

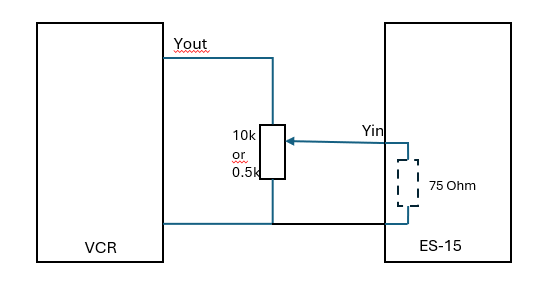

    Not really recommended IMO. The 1k, 5k, 10k potmeter
    - makes the 75 Ohms output signal of the VCR step up by up to 6dB (means ~doubling the voltage, depending on the setting of the potmeter) and worst case may introduce a new source for clipping
    - spoils the standard 75 Ohms termination of the VCR output and the 75 Ohms input of the subsequent device, causing signal reflections.

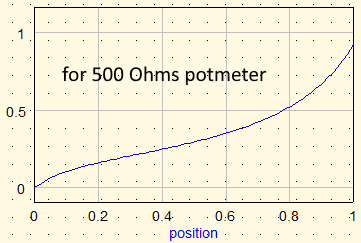

    May be ok for temporary tinkering using a potmeter of no more than ~0.5k ...1k to avoid a nearly uncontrollable "hockeystick" characteristic for the attenuation vs potmeter setting.

    These attenuators just attenuate the signal (reduce the voltage), simulating a longer Y-wire cable. Helps only if the input stage of the subsequent device is overdriven (> ~1Vpp sync tip to max bright, or sync pulse >300mV, use an oscilloscope to verify) hence possibly preventing proper AGC operation of the receiving device.
    Note that the attenuator in the Y-wire unbalances the luma/chroma signal level ratio and will usually require post processing to compensate.
    Last edited by Sharc; 1st Oct 2025 at 09:35.
