floating chroma shift issue?

[cinephil]

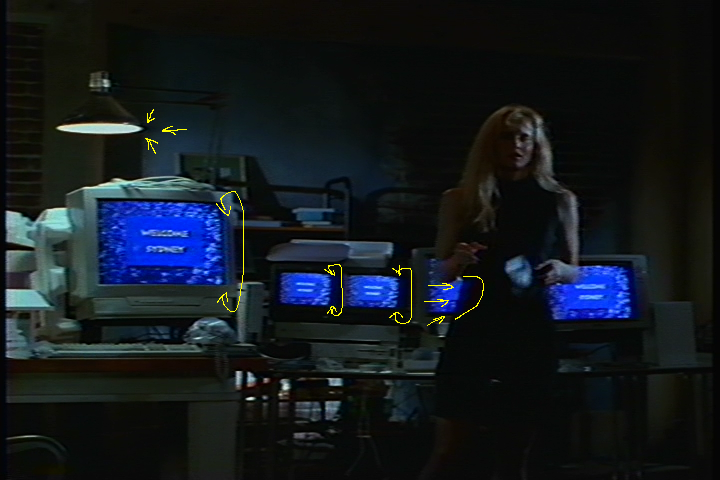

I try to remove some color shifting/bleeding issue in the interlaced VHS video capture (YUV2 .avi source). I tested short clips at the beginning and at the end. I shift chroma 4 pixels to the left with avisynth - ChromaShiftSP and it looks fine at first clip. But at the second (from the end) it looks too much shifted to the left.

Is there a way to solve this problem or just don't shift chroma at all?

Side Note:
I kinda tried to preserve as much details as possible and stay interlaced (there is some true 29.97 fps scenes in video). Maybe color conversion to RGB and back - don't hurt much, but not sure if there is bulletproof solution to go progressive and back to interlaced.

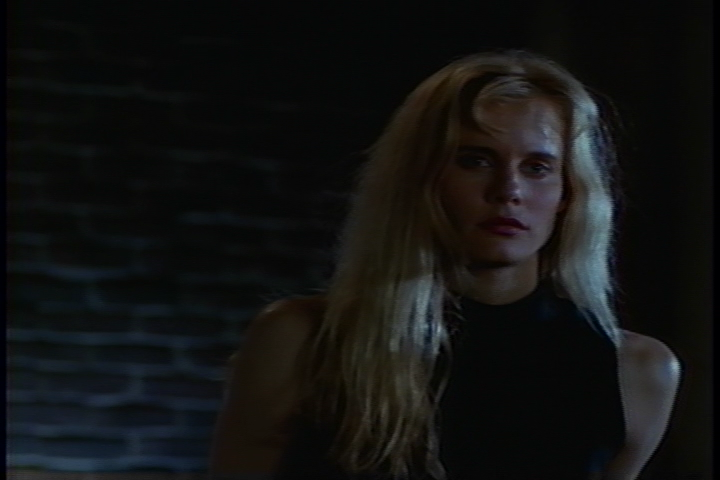

before shift (first clip)

[Attachment 81847 - Click to enlarge]

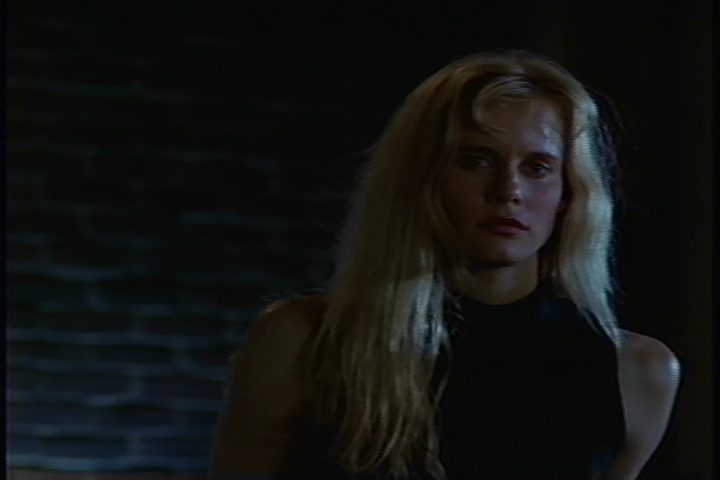

after shift

[Attachment 81848 - Click to enlarge]

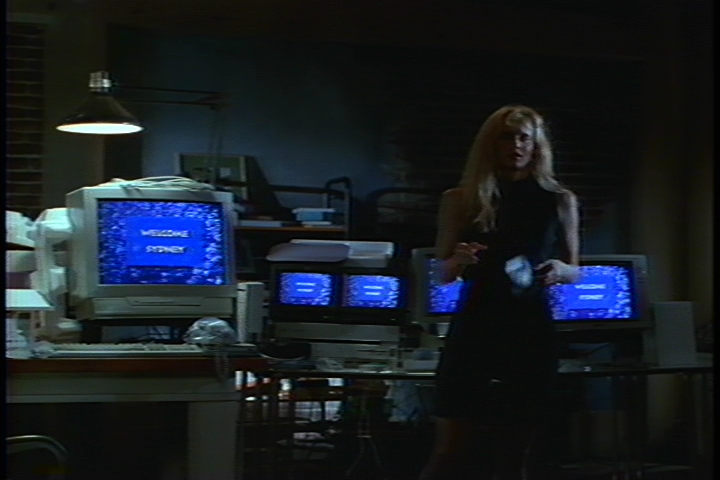

before shift (second clip)

[Attachment 81849 - Click to enlarge]
after shift

[Attachment 81850 - Click to enlarge]

my script:

LoadPlugin("M:\edit\MeGUI-2944-32\tools\ffms\ffms2.dll")
FFVideoSource("M:\edit\SAMPLE\video\05-5D[JP]+.avi")

ChromaShiftSP(X=4.0, Y=0.0) #shift chroma 4 pixels to the left
Overlay(last, last, x=8, mode="subtract", opacity=0.045) #reduce the ghost line
ColorYUV(gamma_y=-35, cont_y=48, gain_y=-10, off_y=0) #adjust gamma and contrast
Tweak(bright=16, coring=false)  #adjust brightness
Tweak(Sat=1.2, startHue=80, endHue=135) # "red" pixels (boost up)
Tweak(Sat=1.2, startHue=325, endHue=15) # "blue" pixels (boost up)
FFT3DFilter(sigma=0.3, plane=0, bw=16, bh=16, ow=8, oh=8, ncpu=4, sharpen=0.6, interlaced=true) # Y - noise reduction+sharp
FFT3DFilter(sigma=0.7, plane=3, bw=16, bh=16, ow=8, oh=8, ncpu=4, sharpen=0.9, interlaced=true) #UV - noise reduction+sharp

[cinephil]

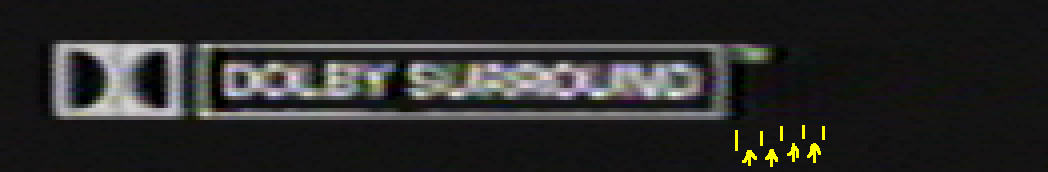

Maybe it's more a ghosting issue? In the end titles I see something like 4 ghost lines.


[Attachment 81910 - Click to enlarge]

I would appreciate some help in identifying and solving the problem.

[Selur]

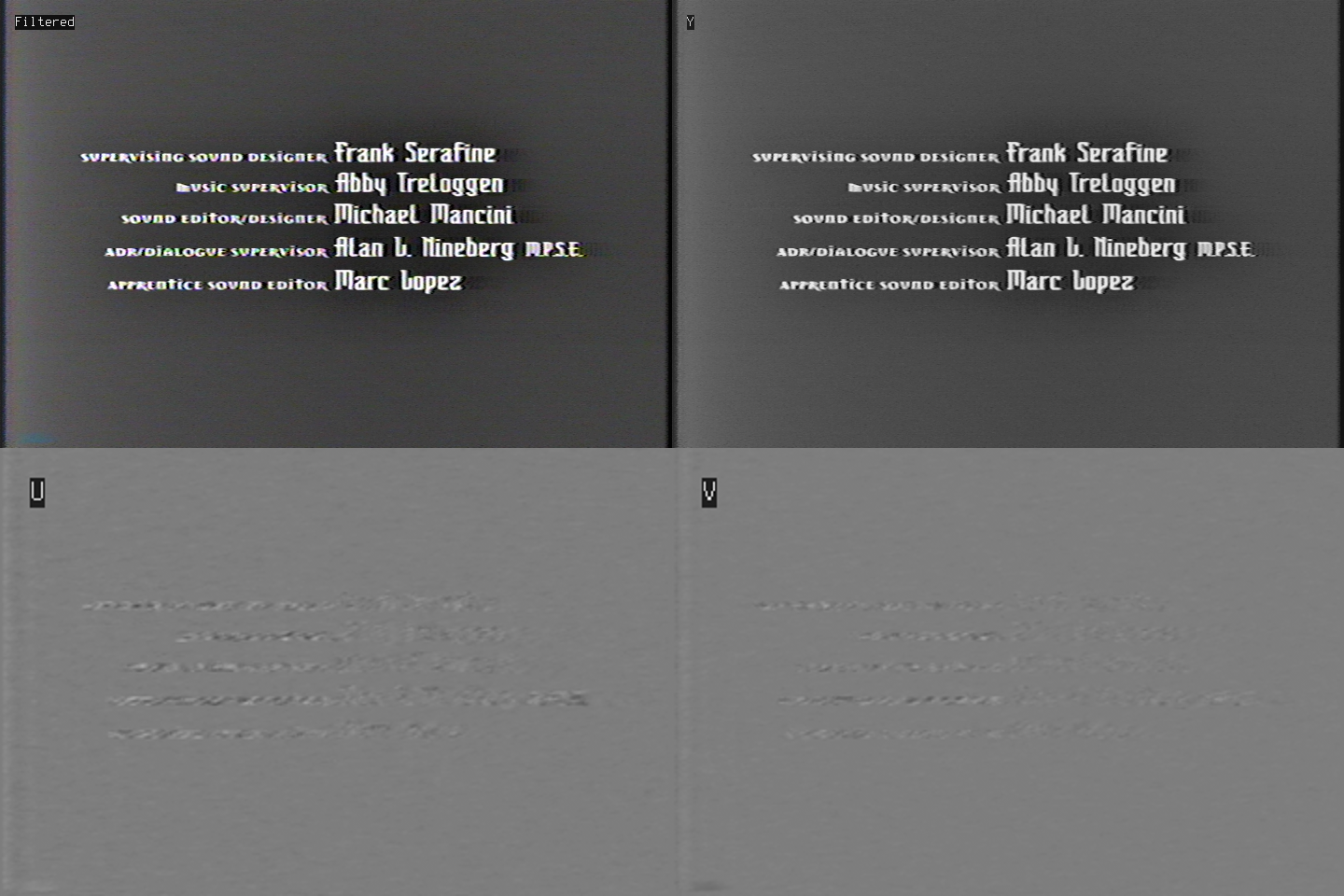

Yes, that does not look like chroma shifting:

[Attachment 81912 - Click to enlarge]
(used Retinex to boost brightness to better see the problem)

Cu Selur

[cinephil]

Yes, that does not look like chroma shifting:

Can you say that about the first video too?

[Selur]

(again, just used Retinex)
looks more like multi generation halos

[cinephil]

looks more like multi generation halos

Thanks!

Guess I need to look around for a decent DEhalo options. Saw some good examples from jagabo, but can't make it working on my setup so far

[Selur]

YAHR helps somewhat, maybe LGhost with the right settings,...

[cinephil]

I tried LGhost.
Some parts of the picture looks better, but the others not so much And there are still some color bleeding, I guess...

before:

[Attachment 81937 - Click to enlarge]
with LGhost:

[Attachment 81938 - Click to enlarge]

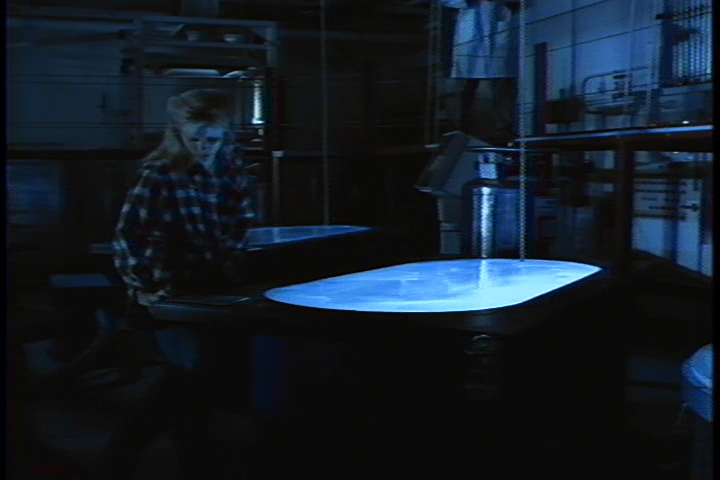

before:

[Attachment 81939 - Click to enlarge]
with LGhost:

[Attachment 81940 - Click to enlarge]

LoadPlugin("M:\edit\MeGUI-2944-32\tools\ffms\ffms2.dll")
FFVideoSource("M:\edit\SAMPLE\video\05-5D[JP]-01.avi")

LGhost(2, 6, -10,  2, 11, -5,  2, 16, -2,  2, 22,-1) #reduce ghosts
ColorYUV(gamma_y=-35, cont_y=48, gain_y=-10, off_y=0) #adjust gamma and contrast
Tweak(bright=20, coring=false)  #adjust brightness
Tweak(Sat=1.2, startHue=80, endHue=135) # "red" pixels (boost up)
Tweak(Sat=1.2, startHue=325, endHue=15) # "blue" pixels (boost up)
FFT3DFilter(sigma=0.3, plane=0, bw=16, bh=16, ow=8, oh=8, ncpu=4, sharpen=0.7, interlaced=true) # Y - noise reduction+sharp
FFT3DFilter(sigma=0.7, plane=3, bw=16, bh=16, ow=8, oh=8, ncpu=4, sharpen=0.9, interlaced=true) #UV - noise reduction+sharp

[Selur]

For the Chroma issues, depending on your setup.
You could try https://openmodeldb.info/models/1x-BleedOut-Compact
see: https://imgsli.com/MjkzNzAy
and maybe add DeHalo_alpha https://imgsli.com/MjkzNzAz

Cu Selur

[cinephil]

With BleedOut it looks good! Maybe little bit too soft looking... But I don't know how to use it. I assume it's not avisynth plugin?

Side Note:
I kinda tried to preserve as much details as possible and stay interlaced (there is some true 29.97 fps scenes in video). Maybe color conversion to RGB and back - don't hurt much, but not sure if there is bulletproof solution to go progressive and back to interlaced.

[Selur]

The model could be used with avs-mlrt when converted to onnx beforehand.

[cinephil]

The model could be used with avs-mlrt when converted to onnx beforehand.

Thanks for the tip! It will take some time to me to figure out how to make it (with some luck). But then again - I'm not so hurry with this project.

[Selur]

Attached 1x_BleedOut_Compact_300k_net_g.onnx for you which can be used in avs-mlrt.

[cinephil]

Thanks, Selur! Now will do some reading, to see how different this avs-mlrt from my current AviSynth 2.5.8 and try to do script.

[themaster1]

you can try autochroma fix (avisynth), last time i tried it wasn't 100% accurate and slow

https://forum.doom9.org/showthread.php?t=166834

[Selur]

avs-mlrt requires 64bit Avisynth+ and won't work with outdated Avisynth 2.5 (last 2.5 version was 14years ago).

Cu Selur

[cinephil]

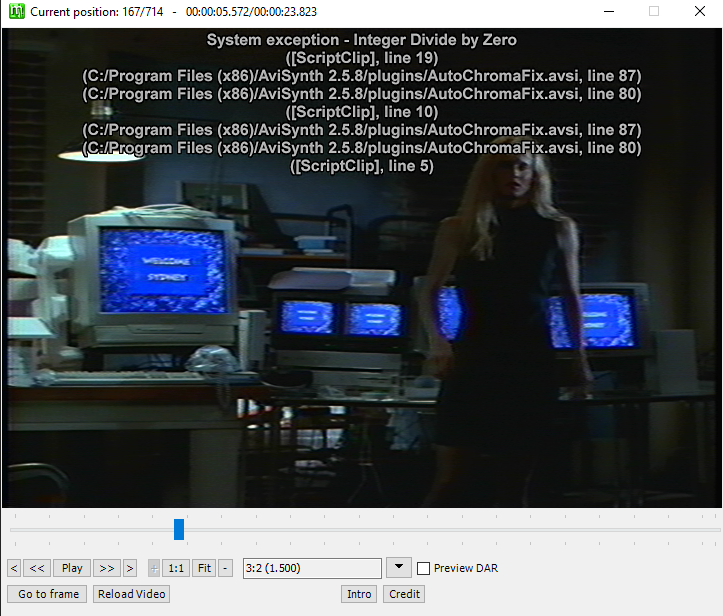

you can try autochroma fix (avisynth), last time i tried it wasn't 100% accurate and slow

I guess it did not changed since then. And it gives me some errors...


[Attachment 81954 - Click to enlarge]

avs-mlrt requires 64bit Avisynth+ and won't work with outdated Avisynth 2.5 (last 2.5 version was 14years ago).

I see... It's not that straight forward as I thought would be.
-----
I kind of confused - how to call and manage this 1x_BleedOut_Compact_300k_net_g.onnx from Avisynth+ script ? Is there any parameters that can be changed?
-----
Found exemple. It should be something like this:

mlrt_ncnn(network_path="1x_Dotzilla_Compact_80k_net_g.onnx")

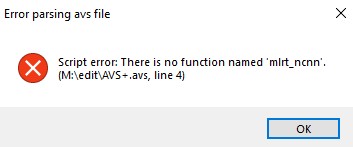

But I probably set up something wrong, since it give an error with this script:

LoadPlugin("M:\edit\MeGUI-2944-32\tools\ffms\ffms2.dll")
FFVideoSource("E:\VR.5\SAMPLE\video\05-5D[JP]+.avi")
ConvertToRGB()
mlrt_ncnn(network_path="1x_Dotzilla_Compact_80k_net_g.onnx")

[Attachment 81966 - Click to enlarge]

[Selur]

The error appears since you are trying to use something that isn't known.
Looks like you didn't load the mlrt_ncnn.dll. (I assume you downloaded everything you need.)
You did load ffms2 before using FFVideoSource.

[cinephil]

I thought it will be enough to place it in plugins+ folder

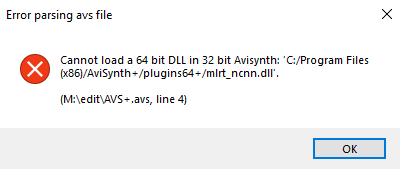

But I run into other problem:

LoadPlugin("M:\edit\MeGUI-2944-32\tools\ffms\ffms2.dll")
FFVideoSource("E:\VR.5\SAMPLE\video\05-5D[JP]+.avi")
ConvertToRGB()
LoadPlugin("C:\Program Files (x86)\AviSynth+\plugins64+\mlrt_ncnn.dll")
mlrt_ncnn(network_path="1x_Dotzilla_Compact_80k_net_g.onnx")

[Attachment 81969 - Click to enlarge]

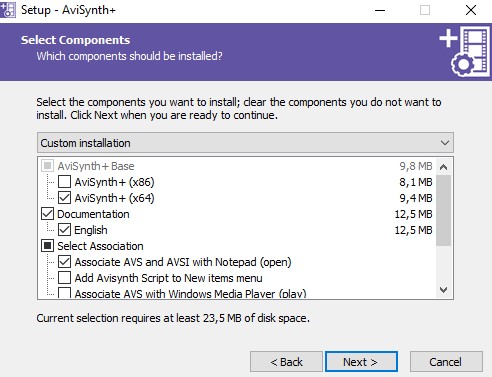

However I remember that choose only 64bit version of AviSynth+ during installation.

[Attachment 81970 - Click to enlarge]

[Selur]

Seems like your setup is a mess and you are using 32bit Avisynth.

[cinephil]

Seems like your setup is a mess and you are using 32bit Avisynth.

So how to install 64bit version, if choosing it during installation I got 32bit?

[Selur]

Seems like you are mixing multiple Avisynth installs.
Judging by the path of the ffms2.dll you are using MeGui which probably comes or installs it's own Avisynth version.
So what you should look into, is that whatever you are opening the script with should be a 64bit program which uses the right Avisynth,...

[cinephil]

I deinstalled other version of AviSynth before installing AviSynth+. But looking into Setup Log after reinstalling AviSynth+ it say:

2024-09-04 20:29:45.310   Setup version: Inno Setup version 5.6.1 (u)
2024-09-04 20:29:45.310   Original Setup EXE: M:\edit\AviSynthPlus_3.7.3_20230715_vcredist.exe
2024-09-04 20:29:45.310   Setup command line: /SL5="$909D4,39031282,168448,M:\edit\AviSynthPlus_3.7.3_20230715_vcredist.exe"
2024-09-04 20:29:45.310   Windows version: 10.0.19045  (NT platform: Yes)
2024-09-04 20:29:45.310   64-bit Windows: Yes
2024-09-04 20:29:45.310   Processor architecture: x64
2024-09-04 20:29:45.310   User privileges: Administrative
2024-09-04 20:29:45.325   64-bit install mode: No

Where can I find another installer with 64bit version only?

[Selur]

Sorry, No clue how MeGui works nowadays.
Haven't used it for probably 13+years,...
Years ago it had some package manager, where you could enable and disable which of its tools should be installed and updated,....

[cinephil]

I meant AviSynth+ 64bit only installer.

[Selur]

Afaik, there is no 64bit only installer. You take the normal installer, just install 64bit Avisynth and then use 64bit tools.
64bit tools can't load 32bit Avisynth scripts directly, and 64bit tools can't load 32bit Avisynth directly.
Your problem is probably that you have multiple avisynth versions installed and you are not using 64bit tool and 64bit Avisynth.
Sorry, but you are not sharing enough detail on the tools you are using, so I can't help you.
=> wish you the best of luck to figure out your setup

Cu Selur

[jagabo]

Just sharpen the chroma with something like:

# after IVTC:
MergeChroma(last, Spline36Resize(width/2, height).aWarpSharp2(depth=30).nnedi3_rpow2(2, cshift="Spline36Resize", fwidth=width, fheight=height))

[cinephil]

Afaik, there is no 64bit only installer. You take the normal installer, just install 64bit Avisynth and then use 64bit tools.
64bit tools can't load 32bit Avisynth scripts directly, and 64bit tools can't load 32bit Avisynth directly.
Your problem is probably that you have multiple avisynth versions installed and you are not using 64bit tool and 64bit Avisynth.
Sorry, but you are not sharing enough detail on the tools you are using, so I can't help you.
=> wish you the best of luck to figure out your setup

Thanks for help! Will try clearing the path tomorrow.

Just sharpen the chroma with something like:

# after IVTC:
MergeChroma(last, Spline36Resize(width/2, height).aWarpSharp2(depth=30).nnedi3_rpow2(2, cshift="Spline36Resize", fwidth=width, fheight=height))

Thanks for advice.
I probably should add this to the first post too:
Side Note:
I kinda tried to preserve as much details as possible and stay interlaced (there is some true 29.97 fps scenes in video). Maybe color conversion to RGB and back - don't hurt much, but not sure if there is bulletproof solution to go progressive and back to interlaced.

[cinephil]

Your problem is probably that you have multiple avisynth versions installed and you are not using 64bit tool and 64bit Avisynth.

I think got now full 64bit path. I deinstalled AviSynth and download latest MeGUI-6666.2308_x64 that include AviSynthPlus 20230715 3.7.3 (which I believe is also 64bit, since it don't give me the same error with not matched 64bit DLL and 32bit AviSynth).

But with this setup I got another error:

LoadPlugin("M:\edit\MeGUI-6666.2308_x64\tools\ffms\ffms2.dll")
FFVideoSource("E:\VR.5\SAMPLE\video\05-5D[JP]+.avi", fpsnum=30000, fpsden=1001, threads=1, colorspace="YUV420P8")
ConvertToRGB()
LoadPlugin("M:\edit\MeGUI-6666.2308_x64\tools\avs\plugins64\mlrt_ncnn.dll")
mlrt_ncnn(network_path="1x_BleedOut_Compact_300k_net_g.onnx")

[Attachment 81980 - Click to enlarge]

[Selur]

instead of:

ConvertToRGB()
LoadPlugin("M:\edit\MeGUI-6666.2308_x64\tools\avs\plugins64\mlrt_ncnn.dll")
mlrt_ncnn(network_path="1x_BleedOut_Compact_300k_net_g.onnx")

try:

ConvertBits(32)
ConvertToPlanarRGB()
LoadPlugin("M:\edit\MeGUI-6666.2308_x64\tools\avs\plugins64\mlrt_ncnn.dll")
mlrt_ncnn(network_path="1x_BleedOut_Compact_300k_net_g.onnx")
# assuming you want 8bit 4:2:0 output
ConvertBits(8)
ConverttoYv12()

Cu Selur
