Davinchi not rendering progressive HDV footage properly

[Danny1123]

Hi, I'm trying to edit this video that I shot using an HDV camcorder, I filmed it in progressive and when I try and render it through Davinchi the video isn't very clear but the RAW M2T footage is perfectly fine. Here is a google drive containing footage that was rendered using davinchi and the raw video

https://drive.google.com/drive/folders/1fEiGh-XUTh2GSOWLB4dyz_vxhOcAlc-Y?usp=sharing

[Alwyn]

Are you sure it was originally Progressive? There's something crazy going on with it; every 5th or so frame jumps backwards and then there's a massive jump forward.

I don't use Davinci so can't help with rendering settings but something's gone haywire somewhere.

You can attach video files to your post: max 500MB.

[aedipuss]

1080 HDV progressive is stored on tape as interlaced. 2 fields when shown together make 1 progressive frame. the editor should show the HDV video when imported as interlaced. then with vegas pro at least, you tell the editor to interpret it as progressive. as long as you have the correct field order it works.

[Danny1123]

Are you sure it was originally Progressive? There's something crazy going on with it; every 5th or so frame jumps backwards and then there's a massive jump forward.

I don't use Davinci so can't help with rendering settings but something's gone haywire somewhere.

You can attach video files to your post: max 500MB.

Im pretty sure its progressive. Here is some original test footage if anyone wants to help deinterlace it through davinchi

[Alwyn]

Nope, definitely Interlaced, Top Field First. You can verify this by opening it in MediaInfo. Go to the Text view and look in the video section of the report. I double-checked it in Virtual Dub.

If you tell Davinci that the video is Interlaced TFF, you should get a good render.

Added: In VDub, you can see the interlacing. If you apply the deinterlace filter, Yadif, Double Rate TFF, you'll get the progressive version in the right pane.

And yes Lollo and Sharc, I know there are better ways to check the interlacing.

[Danny1123]

Nope, definitely Interlaced, Top Field First. You can verify this by opening it in MediaInfo. Go to the Text view and look in the video section of the report. I double-checked it in Virtual Dub.

If you tell Davinci that the video is Interlaced TFF, you should get a good render.

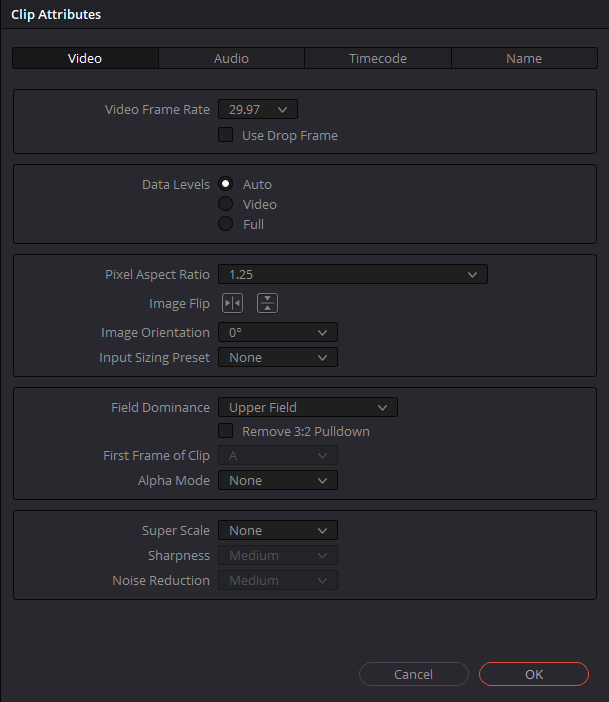

These are the settings I use for the clip when deinterlacing and I still get the same jumpy after product.

[Alwyn]

Post removed; irrelevant to the topic.

[Sharc]

@Alwyn
Frame 360....363, 390...392, 450...451, 480...483, 570...573, 631...633 of your Magix deint.
It's not in the source IMO.

[Alwyn]

Irrelevant to topic.

[Sharc]

Nothing to be fixed using a number of tools, one fixing the flaws of the other. Just use a decent deinterlacer.

Framerate is ok. I deleted that note from my post.

[Sharc]

Drag it backwards in VDub.

Re. the OP's source file: Vdub has issues with interlaced YV12 (interlaced YUV 4:2:0), as you may remember from your other thread
https://forum.videohelp.com/threads/415335-Creating-a-test-file-with-alternating-fields#post2743722


Edit:
I see you removed the magix crap of post#7, calling it "irrelevant to the topic". Well then. Just hoping now that Magix payware etc. can do as good or better than Avisynth (or similar) freeware

[lollo]

I see you removed the magix crap of post#7, calling it "irrelevant to the topic". Well then. Just hoping now that Magix payware etc. can do as good or better than Avisynth (or similar) freeware

Sharc, original file from OP also features strange field architecture at the beginning, with fields going back and forward in time. I do not know if it is a post-processing problem, a capture problem or a camera problem.

[Alwyn]

@Danny, I suggest you try those Davinci settings with Clip 25, because it is much better behaved than "untitled.mp4" and "unhhtitled.mp4", which both have the jumping back and forth, as I noted in post 2.

If you can render Clip 25 OK, then it would pay to recapture/transfer the other two (the car clip and the ferries clip) because they have fundamental problems.

Alternatively, just attach either the "untitled" original m2t or "unhhhtitled" original m2t. Then we can see if they are the same as Clip 25.

[aedipuss]

if the video was shot HDV 25p/30p progressive there is no reason to deinterlace. you combine the upper and lower fields to get a true progressive frame. just put the video on the timeline and set deinterlacing to none and it should work fine. make sure it's set to Top Field First, TFF.

if it was shot 24p that's a different story...
