  1. I recorded footage using a capture card and OBS studio. I've recorded over 70 videos previously without issue, but this time I made a typo when adjusting the resolution resulting in a severely distorted video. Screenshots linked here, or see attachments: https://imgur.com/a/g3MoRtU

    I know the resolution was the issue, because I tried correcting the resolution settings and recorded a test video which came out fine. For detail, the resolution I entered was 3820x2160 when the source was 3840x2160. The video is in .mkv format, and converting it to .mp4 does not change anything.

    Not sure if there's any way to salvage and repair this footage, but would be very grateful if anyone has any ideas. Thank you in advance.

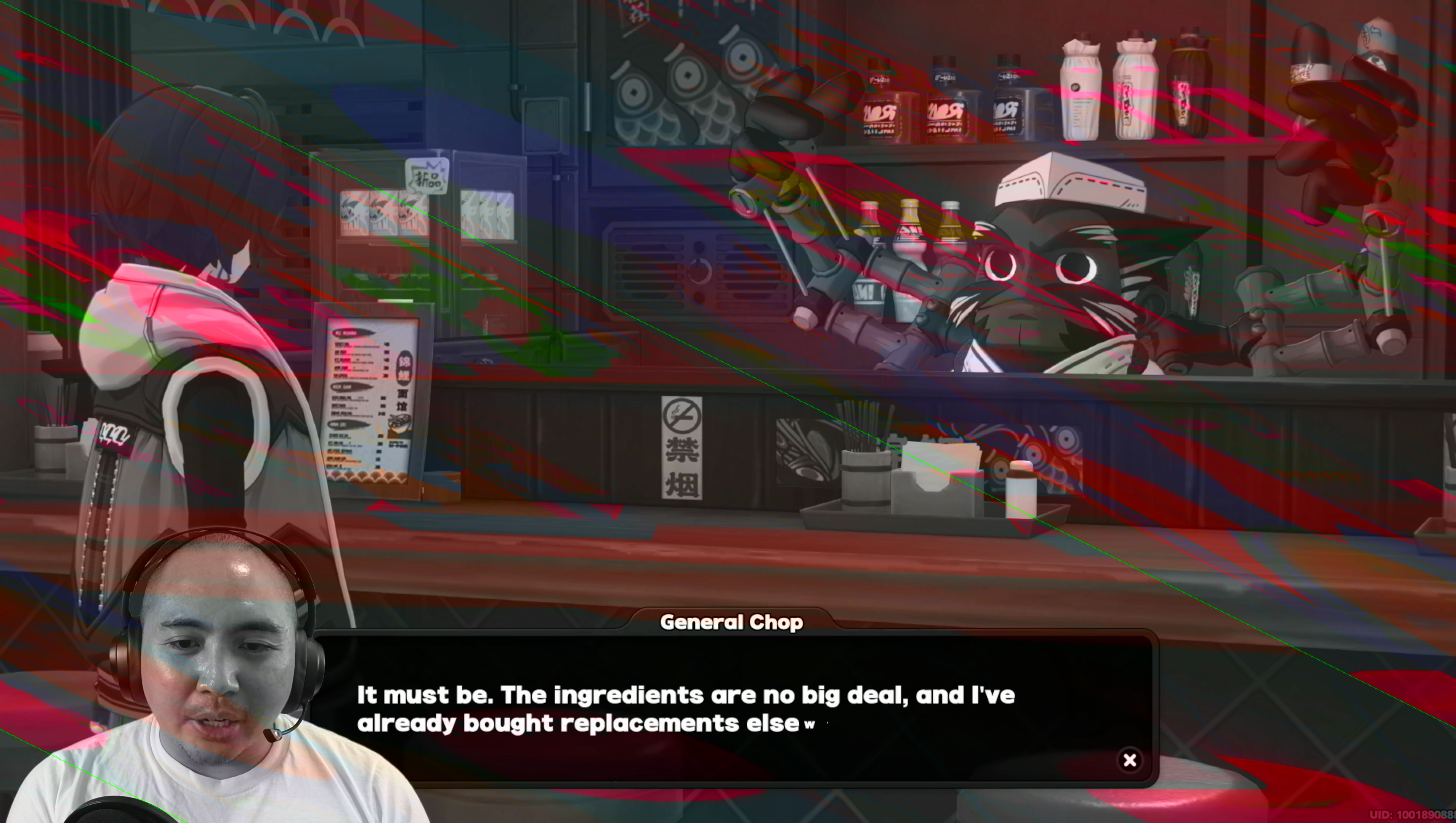

    Image Attached Thumbnails Click image for larger version

Name:	vlcsnap-2024-07-07-20h39m58s701.png
Views:	19
Size:	8.12 MB
ID:	80505

    Click image for larger version

Name:	vlcsnap-2024-07-07-20h40m43s688.png
Views:	16
Size:	5.40 MB
ID:	80506

    Quote Quote
  2. It looks like the codec you used does't support 4:2:2 or 4:2:0 chroma subsampling at a mod 4 frame size. It may be possible to fix. What coded did you use? Can you upload a video sample (don't reencode)?
    Quote Quote
  3. Originally Posted by jagabo View Post
    It looks like the codec you used does't support 4:2:2 or 4:2:0 chroma subsampling at a mod 4 frame size. It may be possible to fix. What coded did you use? Can you upload a video sample (don't reencode)?
    Hi jagabo! Appreciate the response. I used the x264 video encoder. Here's a link to a sample clip from the video. It's also in the attachments below.

    https://imgur.com/a/jO6v1wG

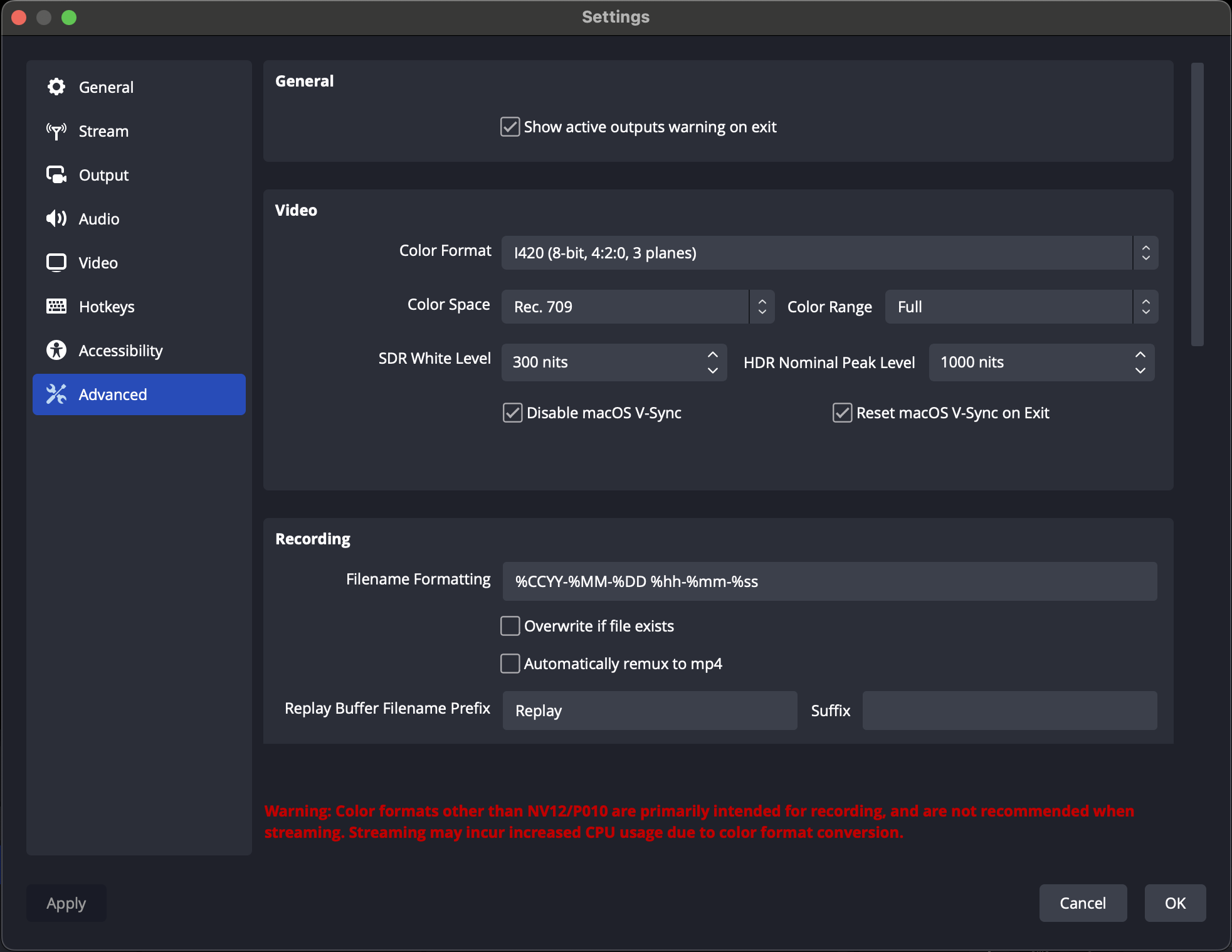

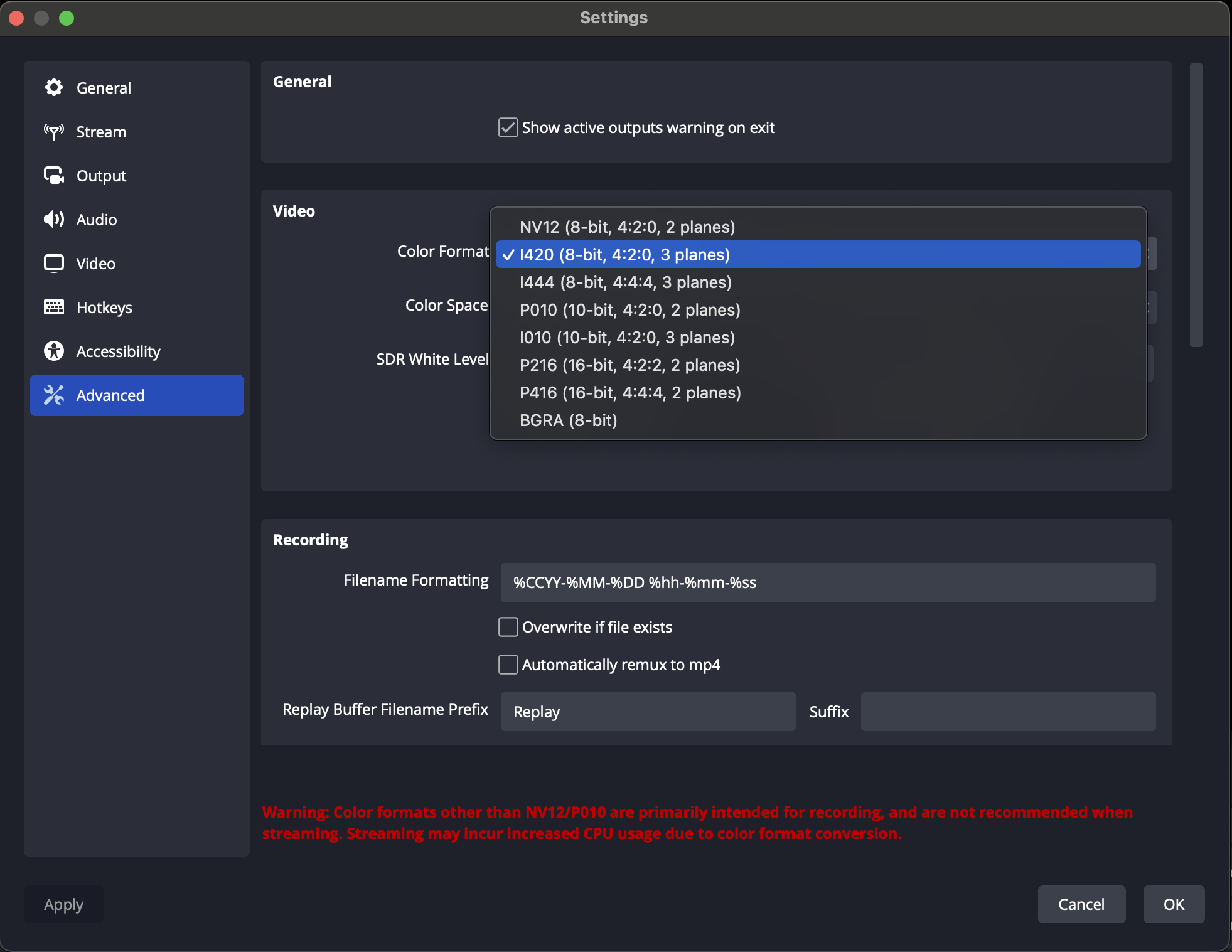

    I also shared some screenshots of the color settings I'm using in case you have any feedback. Thanks again for having a look!
    Image Attached Thumbnails Click image for larger version

Name:	Screenshot 2024-07-08 at 3.55.39 PM.png
Views:	18
Size:	238.2 KB
ID:	80531

    Click image for larger version

Name:	Screenshot 2024-07-08 at 3.55.41 PM.png
Views:	11
Size:	337.5 KB
ID:	80532

    Image Attached Files
    Quote Quote
  4. This is pretty close:

    Code:
    LWLibavVideoSource("sampleclip1.mp4", cache=false, prefer_hw=2)

    Crop(10,0,-10,-0)
    StackHorizontal(last, last, last)
    src = last

    HShear(63.45)

    MergeChroma(src, last)
    ChromaShiftSP(x=2158)

    Crop(0,0,width/3, height)
    #add back borders if you want
    Image Attached Files
    Quote Quote
  5. Member
    Join Date
    Jul 2024
    Location
    Hungary
    Search PM
    Dear Jagabo,

    May I ask if this trick would work in case of our problem, or there would be any solution to fix this ?:

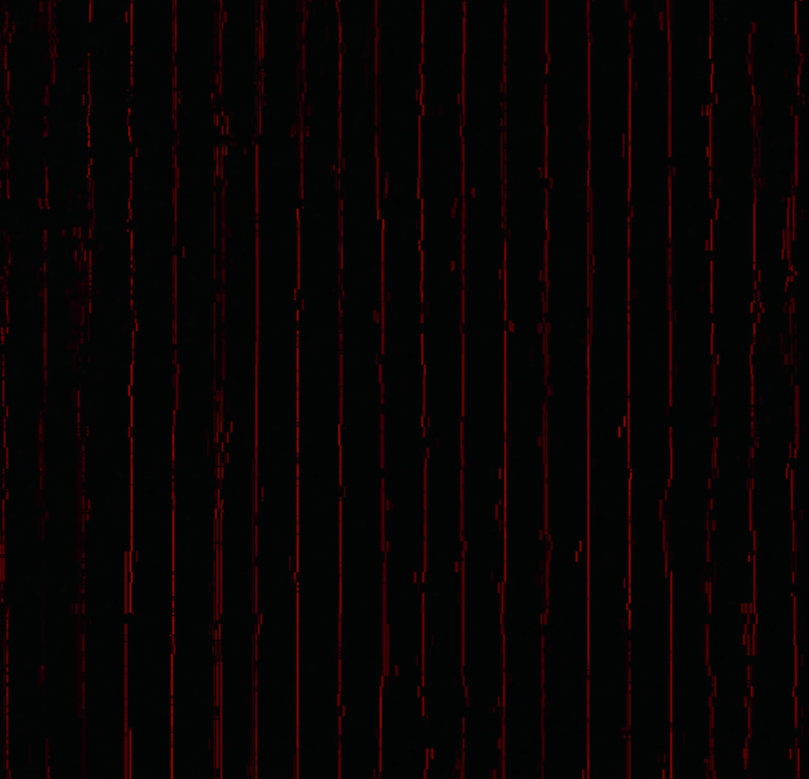

    [Attachment 80575 - Click to enlarge]
    [Attachment 80576 - Click to enlarge]

    (2nd screenshot need to open large to see the same problem can be easily spotted on the black areas of first screenshot)

    We recorded a stratospheric flight with my Son, as Father and Son project, but one of the camera produced these strange "red random straps" all over and ruin the spectacular recording. I am wondering if would be possible to fix this somehow, as impossible to repeat it and would make my Son and of course me very very happy.

    I had uploaded the the first chunk of the video as well here:

    https://master365office-my.sharepoint.com/:v:/g/personal/admin_master365office_onmicro...oR2cw?e=IU3QAu

    May I ask if you could have a look at it in hope we could fix this ? (we are not experienced in such video manipulation, so would be lost without help.

    VERY much appreciate your time and help in advance!
    Quote Quote
  6. Nice! I'm impressed. Chapeau!
    (for those wondering, HShear comes with http://avisynth.nl/index.php/Rotate)
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  7. Thanks, Selur. I forgot to mention hShear() was included with the Rotate filter. And ChromaShiftSP() can be found here:

    http://www.avisynth.nl/index.php/ChromaShiftSP
    Quote Quote
  8. May I ask if this trick would work in case of our problem, or there would be any solution to fix this ?:
    No, rotating the chroma and overlaying multiple copies of it and shifting the chroma won't help with your clip.

    We recorded a stratospheric flight with my Son, as Father and Son project, but one of the camera produced these strange "red random straps" all over and ruin the spectacular recording.
    Seems like there are issues in the V channel throughout the whole clip.
    Best look at the YUV channels separately to better see the problem.
    Try some heavy denoisers or artifact removers on the V channel. (multiple DeScratch calls probably can help with the lines)
    Last edited by Selur; 10th Jul 2024 at 14:00.
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  9. Member
    Join Date
    Jul 2024
    Location
    Hungary
    Search PM
    Dear Selur,

    Many thanks for your quick reply and help!

    May I ask if you could guide us how to do this: "Try some heavy denoisers or artifact removers on the V channel.". We are not experienced in video editing.

    BIG thank you for any help and sorry for the newbie question.
    Quote Quote
  10. Sorry, on my way to bed, but here's what multiple (here 4) Descratch calls
    Code:
    DeScratch(clip=clip,mindif=1,mindifuv=1,modey=0,modev=3,maxwidth=7,minlen=1,left=20)
    can do: https://imgsli.com/Mjc4MTE1

    Cu Selur
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  11. I've got something that removes a lot of the stronger red lines. But not the fuzzier blotches. I will continue playing with it but here's a sample with a crop from the original video on the left, the cleaned version on the right.

    Basically, I looked for vertical edges and reddish colors in the video. Anywhere that had both those properties had the V channel replaced with a blend of colors taken from the left and right.
    Image Attached Files
    Last edited by jagabo; 10th Jul 2024 at 15:25.
    Quote Quote
  12. Member
    Join Date
    Jul 2024
    Location
    Hungary
    Search PM
    Oh God, so much better already, we are so tanksful, you cant imagine! If may there be a solution, what we could ran over all the MOV files recoded by this camera, would be a true miracle. Thank you so so so much ! Waiting for your update with all of fingers crossed for luck. Once again, thank you!!!
    Quote Quote
  13. Here's a longer clip (same crop) where I also desaturated dark areas. Some of the bluish black areas have become pure black. You can see the filtering doesn't work as well on some parts of the video. I can desaturate the brightest areas too but the blue sky may turn white. If there are any areas of the video you are particularly interest in let me know. I'll take a look at those areas.
    Image Attached Files
    Quote Quote
  14. Member
    Join Date
    Jul 2024
    Location
    Hungary
    Search PM
    BIG thank you again, amazing result!!! I think this is a huge step forward.

    May I ask how can we reproduce this step by step, so we can ran on the 4+ hours recording ? Or this need to be down manually at every scene ?

    I sent you the complete video in private msg, but not to make you the hard work as we are not lazy, just to show you other critical areas you asked, like this:

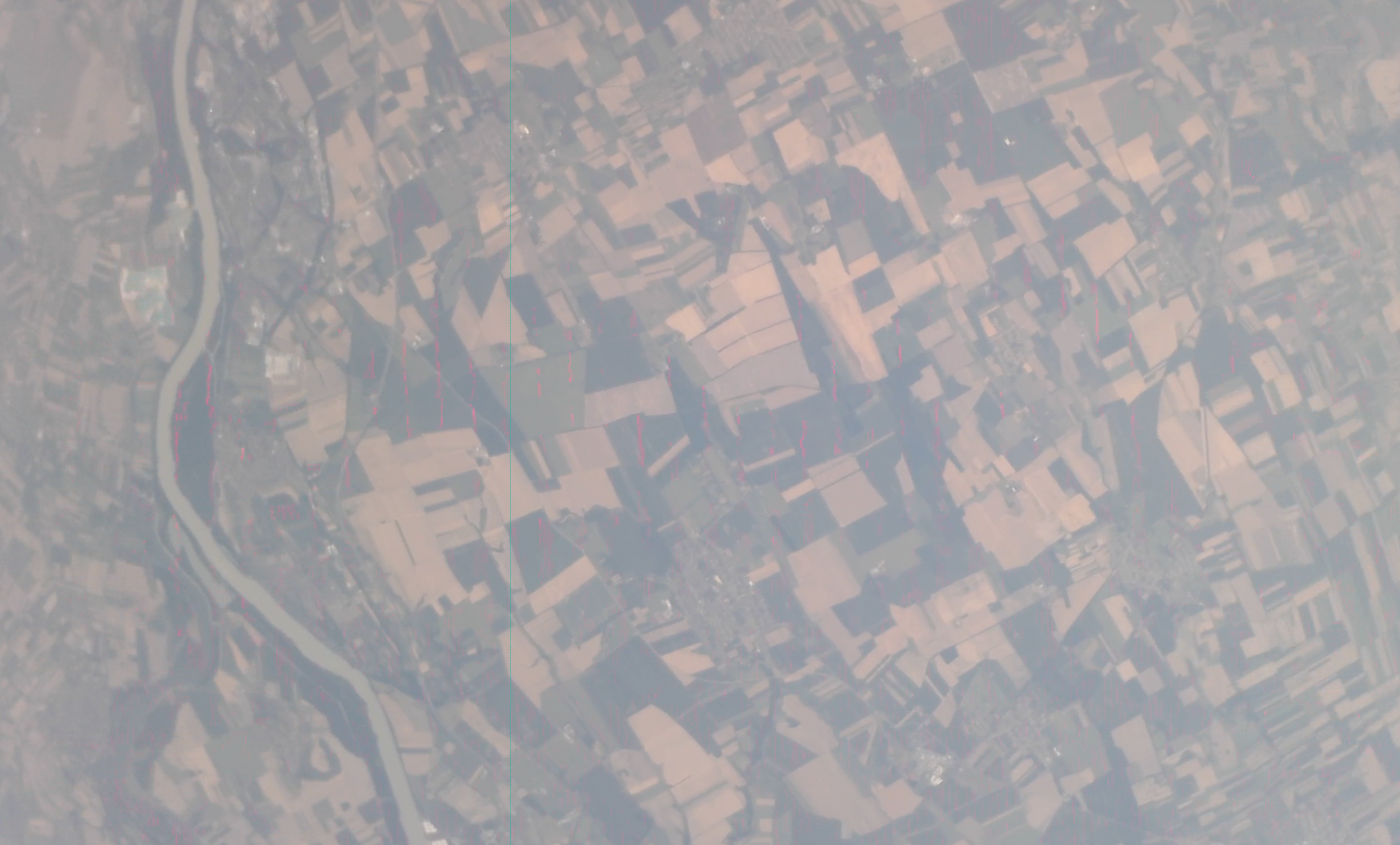

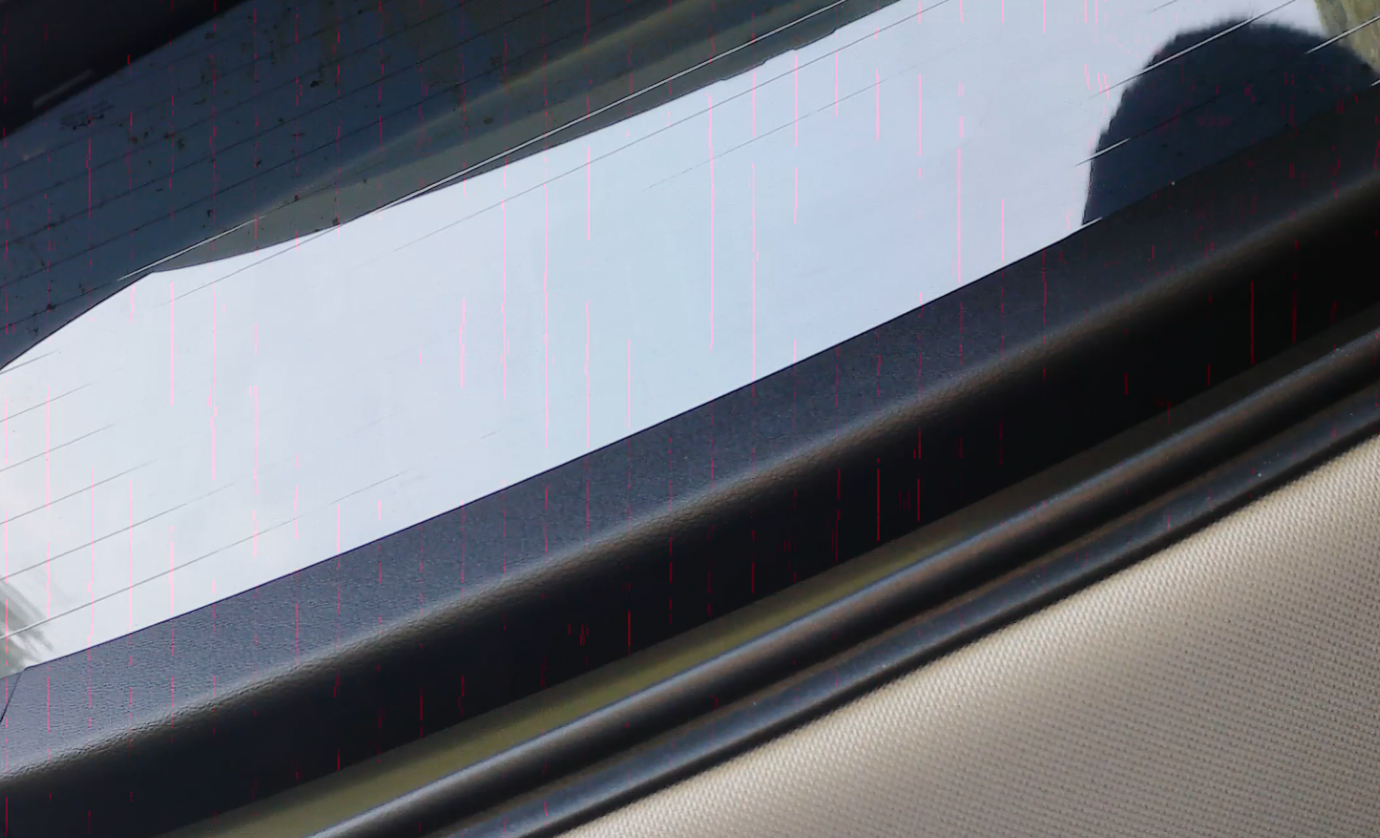

    [Attachment 80633 - Click to enlarge]
    [Attachment 80634 - Click to enlarge]
    [Attachment 80635 - Click to enlarge]
    [Attachment 80636 - Click to enlarge]
    [Attachment 80637 - Click to enlarge]


    Many many many thanks in advance!!
    Last edited by Darth Moore; 11th Jul 2024 at 16:36.
    Quote Quote
  15. You'll need to install 64 bit AviSynth+

    https://avs-plus.net/

    And a few third party filters (64 bit versions go in AviSynth+'s plugins64+ folder):

    http://avisynth.nl/index.php/Masktools2
    https://github.com/HomeOfAviSynthPlusEvolution/L-SMASH-Works/releases

    Then copy the following script to a text file named with the extension .AVS instead of .TXT.

    Code:
    ###############################################################################################
    #
    # An alpha mask based on Y.  Like mt_binarize except has optional range for softer transitions
    #
    ###############################################################################################

    function YMask(clip v, int "min", int "max")
    {
        min = default(min, 128)
        max = default(max, min)

        Levels(v, min, 1, max, 0, 255, coring=false).GreyScale()
    }


    ###############################################################################################
    #
    # Desaturate UV in bright and dark areas
    #
    ###############################################################################################

    function DeSaturateBrights(clip c, int low)
    {
        ymask = YMask(c, low, 235)
        Overlay(c, ColorYUV(c, cont_u=-256, cont_v=-256), mask=ymask)
    }

    function DeSaturateDarks(clip c, int high)
    {
        ymask = YMask(c, 16, high).Invert()
        Overlay(c, ColorYUV(c, cont_u=-256, cont_v=-256), mask=ymask)
    }


    ###############################################################################################

    LWLibavVideoSource("FILE240709060421F.MOV")
    src = last

    # build a mask of high V (as in  YUV) areas
    cmask = VtoY().BilinearResize(width,height).ColorYUV(off_y=-128).ColorYUV(gain_y=10000)

    # red vertical lines will usually have the normal colors to the left and right
    # get an average of those colors to replace the red lines
    shiftleft = Crop(6,0,0,0).AddBorders(0,0,6,0)
    shiftright = Crop(0,0,-6,0).AddBorders(6,0,0,0)
    shiftcenter = Merge(shiftleft, shiftright)

    # find sharp vertical edges in the V channel
    edges = VtoY().Sharpen(1.0, 0.0).mt_edge(mode="-1 2 -1   -1 2 -1  -1 2 -1", thy1=5, thy2=5).BilinearResize(width, height).mt_expand()#.Blur(1.0).Blur(1.0).Blur(1.0)

    # fix only areas that are red and have a vertical line in the V channel
    fixareas = Overlay(cmask, edges, mode="multiply")
    Overlay(last, shiftcenter, mask=fixareas)

    # Use the original luma and the new chroma
    MergeChroma(src, last)

    DesaturateDarks(50)
    Then you can open the script with any editor/encoder that supports AviSynth script. For example VirtualDub2, x264 CLI, ffmpeg...
    Quote Quote
  16. Member
    Join Date
    Jul 2024
    Location
    Hungary
    Search PM
    Ok, so:

    1) downloaded and installed:
    [Attachment 80638 - Click to enlarge]


    2) downloaded:
    [Attachment 80639 - Click to enlarge]

    [Attachment 80640 - Click to enlarge]

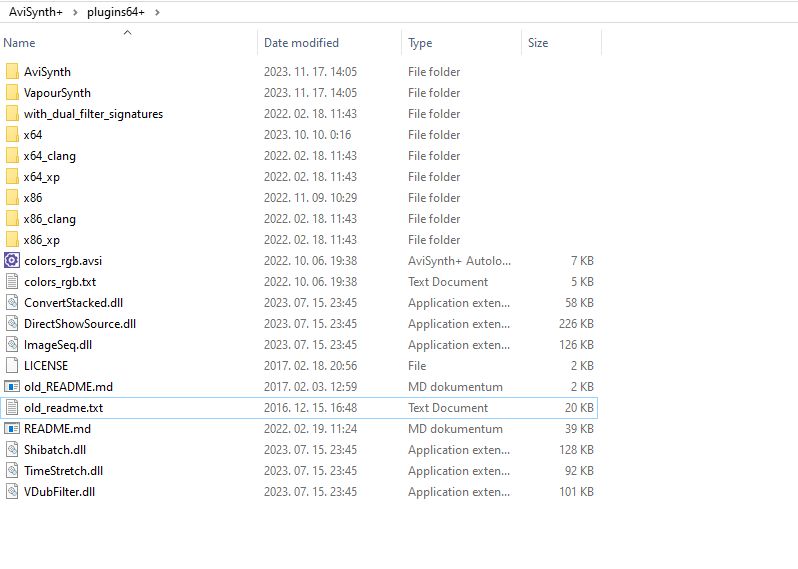

    and moved to plugin dir:
    [Attachment 80641 - Click to enlarge]


    3) downloaded and started VirtualDub2_44282

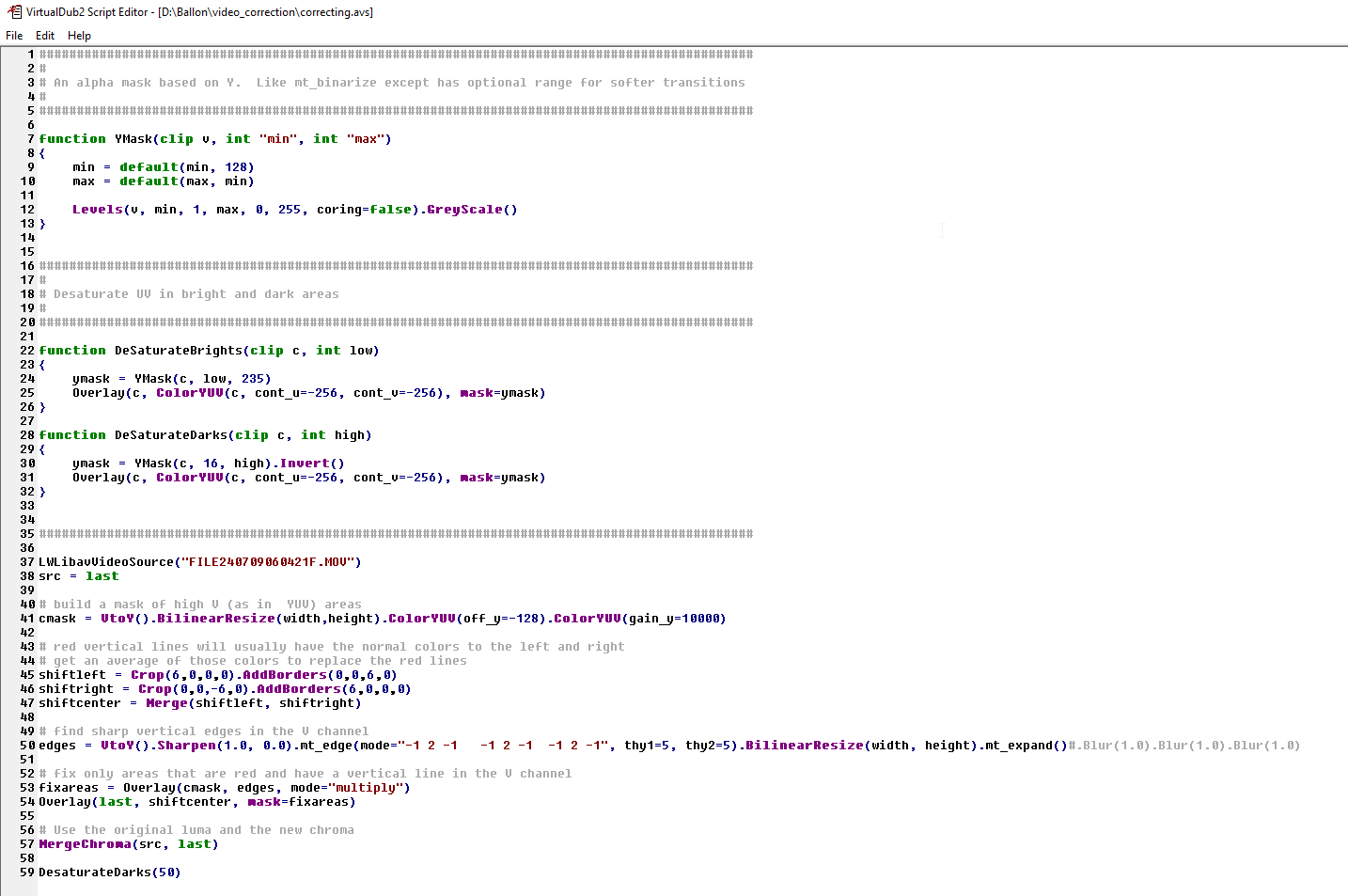

    4) Tools/Script editor, I loaded your previously saves script:
    [Attachment 80642 - Click to enlarge]



    May I ask what to do next? I mean I tried to play the video and export the video, but it doesnt seems to apply your script on it, so being a newbie, I am surely missing some simple trivial step, which very much apologize for, but could you point me to what should be done to get save the video applying your script but keeping the original video framerate, size, etc ?

    Many many thanks for your patience and help!
    Quote Quote
  17. You want just the dlls for masktools2 and LSMASH in the plugins64+ folder, not in subfolders therein. Ie, look in the x64 folder for the masktools2.dll and move it up to the plugins64+. Same for LSMASHSource.dll.

    Open the AVS script in AviSynth as if it a video file: File -> Open Video File...
    Quote Quote
  18. Member
    Join Date
    Jul 2024
    Location
    Hungary
    Search PM
    Thank you ! I moved .dll s and loaded AVS file (after I edited the video name in it) and seems to work. THANK YOU !

    There are only 2 areas, which still very problematic, the ground greenish, brownish and the water blueish, greenish area, like these imagesbelow.
    Since these are the key in this video, may I ask if you could have a look at it, when you have a spare moment?
    We dont want to take advantage on your kindness, just you are literally the last hope to have this fixed.
    (the full video link is in your forum inbox, where you can see these parts as being 70% of the total video, since this camera was the bottom camera.)

    [Attachment 80643 - Click to enlarge]


    [Attachment 80644 - Click to enlarge]


    Big heartfelt thank you !
    Quote Quote
  19. I'll see what I can do with those remaining areas. It will probably be a few days before I can start. Can you give me some frame numbers or time stamps so I don't have to hunt?
    Quote Quote
  20. Member
    Join Date
    Jul 2024
    Location
    Hungary
    Search PM
    Many many thanks in advance, VERY much appreciate it !!! Have a lovely day!
