  1. Member
    Join Date
    May 2020
    Location
    Las Vegas
    Search Comp PM
    I had some video tapes converted to Mp4. They turned out better than i expected, but there is some blurriness to them. Can any editors out there sharpen them and make them less blurry? Hoping that answer is a yes!
    Last edited by snafoo; 21st Jan 2024 at 21:33.
    Quote Quote
  2. Banned
    Join Date
    Nov 2022
    Search PM
    Care to share a sample? Is it blurriness or double image? Is the resulting video in 30p by chance?
    Quote Quote
  3. Member
    Join Date
    May 2020
    Location
    Las Vegas
    Search Comp PM
    yes, i will upload some of it It is blurriness from a 1980"s camcorder. Not sure of the speed, or anything. Will upload soon.
    Image Attached Files
    Last edited by snafoo; 21st Jan 2024 at 22:08.
    Quote Quote
  4. Banned
    Join Date
    Nov 2022
    Search PM

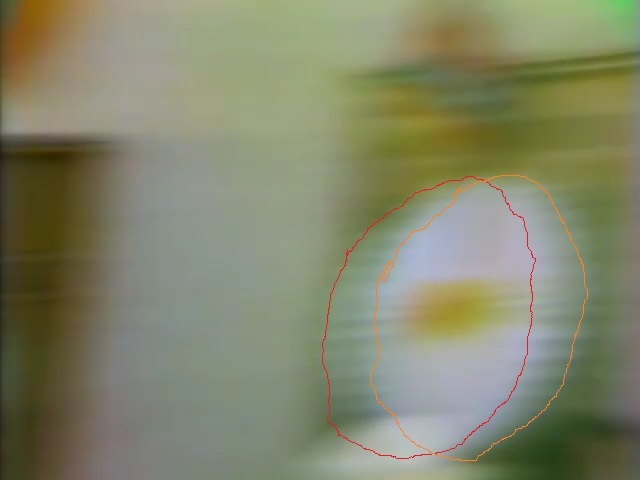

    Yes, it is 30p, so you lose both spatial and temporal resolution, and the deinterlacer softens the picture. You can start with capturing as interlaced and deinterlacing into 60p, this will help a bit on high-motion scenes.

    Frankly, I don't think this can be significantly improved. Even the static scenes are blurry. It is like the focus is not there - I cannot find a single object that is sharp. But let's see what the resident "cleaners" are going to say

    Can you, please, re-capture as interlaced and post that one? As close to the original source as possible. Ideally 720x480, yours is 640x480, but this matters less than capturing and saving it as interlaced.
    Image Attached Thumbnails Click image for larger version

Name:	Ghosting.jpg
Views:	9
Size:	34.9 KB
ID:	76358

    Quote Quote
  5. In theory you can try video deconvolution https://www.mathworks.com/help/images/deblurring-images-using-the-blind-deconvolution-algorithm.html
    Nowadays there is lot of activities on this with machine learning... search for blind deconvolution.
    But proper capture is primary step.
    Quote Quote
  6. I agree, proper capturing is the main step.
    ' video sample 1.mp4 ' is too far gone to produce anything useful even with current machine learning stuff.
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  7. Captures & Restoration lollo's Avatar
    Join Date
    Jul 2018
    Location
    Italy
    Search Comp PM
    Once more, capture Analog SD in YUV 4:2:2, lossless, interlaced, using an Y/C signal Time Base Corrected. With the recommended workflow. Then move to restoration.
    Quote Quote
  8. Side note, for clarification: lossless does not mean uncompressed. (So any video format that is lossless and supports interlacing can be used, but: 'Yes, lossless files are huge.')
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  9. Member
    Join Date
    May 2020
    Location
    Las Vegas
    Search Comp PM
    Originally Posted by Bwaak View Post
    Yes, it is 30p, so you lose both spatial and temporal resolution, and the deinterlacer softens the picture. You can start with capturing as interlaced and deinterlacing into 60p, this will help a bit on high-motion scenes.

    Frankly, I don't think this can be significantly improved. Even the static scenes are blurry. It is like the focus is not there - I cannot find a single object that is sharp. But let's see what the resident "cleaners" are going to say

    Can you, please, re-capture as interlaced and post that one? As close to the original source as possible. Ideally 720x480, yours is 640x480, but this matters less than capturing and saving it as interlaced.

    I had the tape digitized from a local business that does tape digitizations. i will inquire to the people there if they can re-capture as interlaced. The tape conversion cost me $30. I want a better finished product, and i will get one. I will find out in a few days what they can do.



    Thanks!
    Quote Quote
  10. Highly suspect with that resolution and file format that they just used an Elgato video capture. Way to know for sure it to see if the bitrate also matches what Elgato does. Seems like most video capturing services use those because it's easy and files don't take up much space and are therefore easy to distribute.

    Theres' a YouTube channel/business called GotMemories that does that, and he states that interlaced lossless captures are possible to do, but he'd charge 10x the price for doing them and no one wants to pay that. Costs don't really go up much to capture lossless/interlaced, it's just hard to fit a bunch of tapes onto flash drives and being interlaced isn't really in a final viewing format for most modern devices. He does have pretty good google reviews, so I guess most people are satisfied with the quality of the Elgato captures anyway.
    Quote Quote
  11. Member
    Join Date
    May 2005
    Location
    Australia-PAL Land
    Search Comp PM
    Originally Posted by Aramkolt
    Costs don't really go up much to capture lossless/interlaced
    For a business, I think they do because you either have to halve your capture rate because you're using your computer to recode the lossless capture and so can't capture the next tape or you have to buy another computer to capture. Double the hardware, not to mention the extra time it takes faffing around deinterlacing and managing files, as well as the know-how required to properly process lossless interlaced captures.
    Quote Quote
  12. Banned
    Join Date
    Nov 2022
    Search PM
    Originally Posted by aramkolt View Post
    interlaced isn't really in a final viewing format for most modern devices
    Most software players can deal with interlaced just fine. It is YT that is the main culprit. I don't get why YT cannot do offline what all TVs do in realtime. If YT cannot reliably detect interlacing, it could offer a checkbox when uploading. I also hate that YT does not honor 576p50 and 480p60.

    I think converting to something like 720p60 is better, even if it is pillarboxed (hello, Cloner Alliance box). If Cloner guys make a box that records into, say, 960x720 @ 59.94 or 1440x1080 @ 59.94, they would steal the market from Elgato.
    Last edited by Bwaak; 22nd Jan 2024 at 21:43.
    Quote Quote
