  1. 2nd Dec 2023 14:29 #1
    kernelfree
    kernelfree is offline
    Member
    Join Date
    Sep 2020
    Search PM

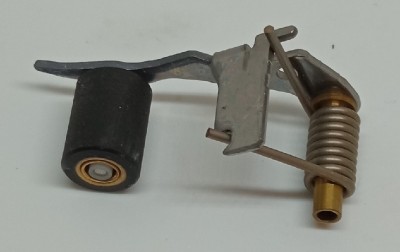

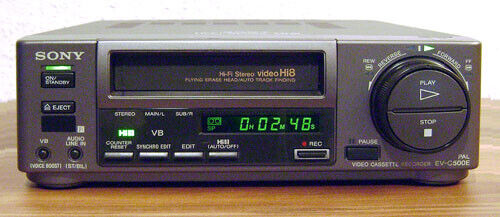

    Hi everyone, my sony EV-C500E deck cannot stably play my SP Hi8 tapes, constantly switching between SP and LP mode. By applying a slight pressure on the pinch roller assy against the capstan playback is far more stable. I have gone as far as replacing the entire assy (and pinch roller) with a brand new one but playback keeps being unstable. What am I missing?

    [Attachment 75225 - Click to enlarge]
    [Attachment 75223 - Click to enlarge]
    Last edited by kernelfree; 2nd Dec 2023 at 14:36.
    Quote Quote
  2. 2nd Dec 2023 15:01 #2
    themaster1
    themaster1 is offline
    Member themaster1's Avatar
    Join Date
    Nov 2006
    Location
    France
    Search Comp PM

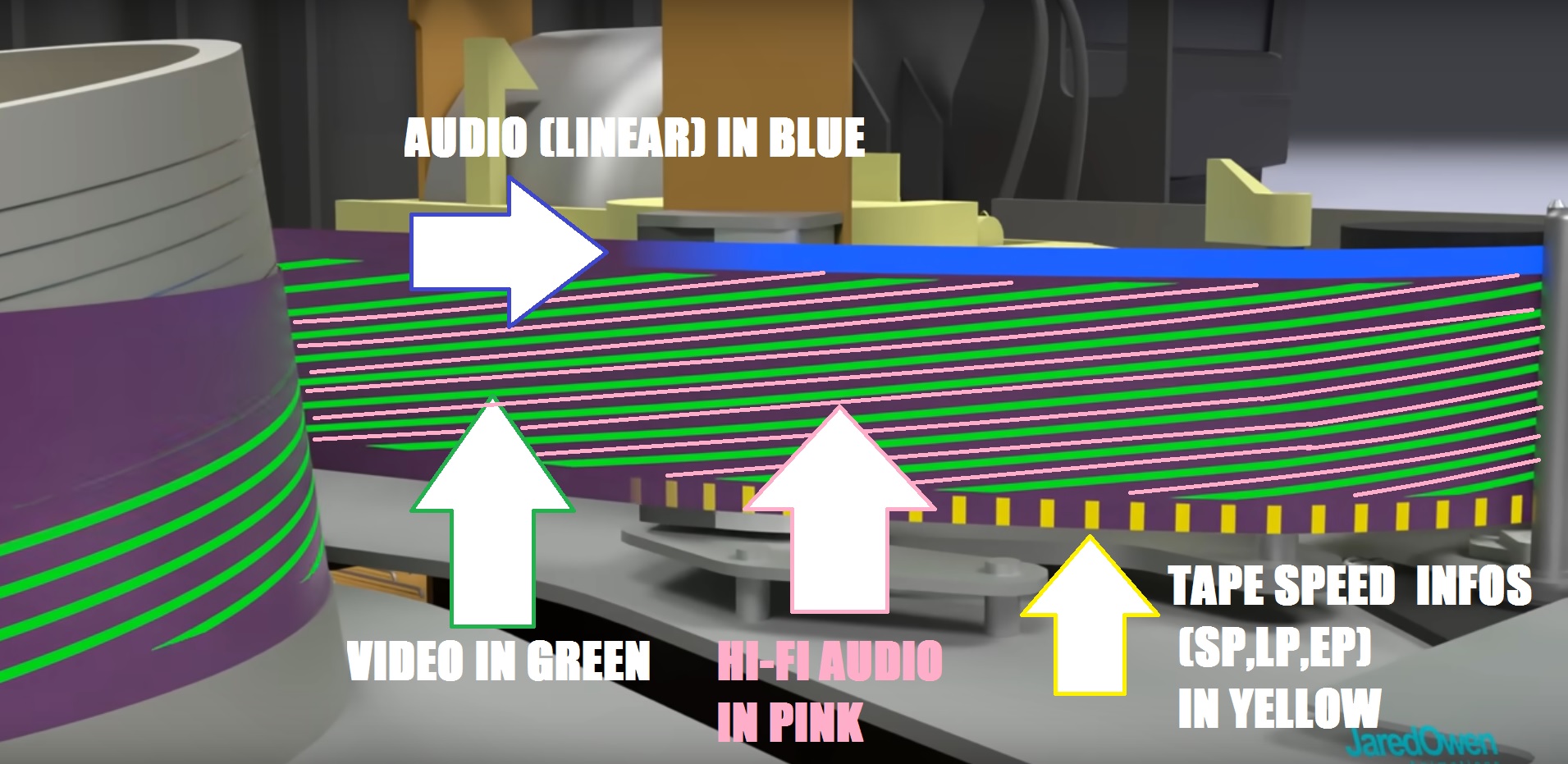

    fine adjusting of the Ac head is my guessImage
    [Attachment 75226 - Click to enlarge]
    and perhaps checking the tension arm (does it provides enough tension ?)
    *** DIGITIZING VHS / ANALOG VIDEOS SINCE 2001**** GEAR: JVC HR-S7700MS, TOSHIBA V733EF AND MORE
    Quote Quote
  3. 3rd Dec 2023 09:24 #3
    kernelfree
    kernelfree is offline
    Member
    Join Date
    Sep 2020
    Search PM

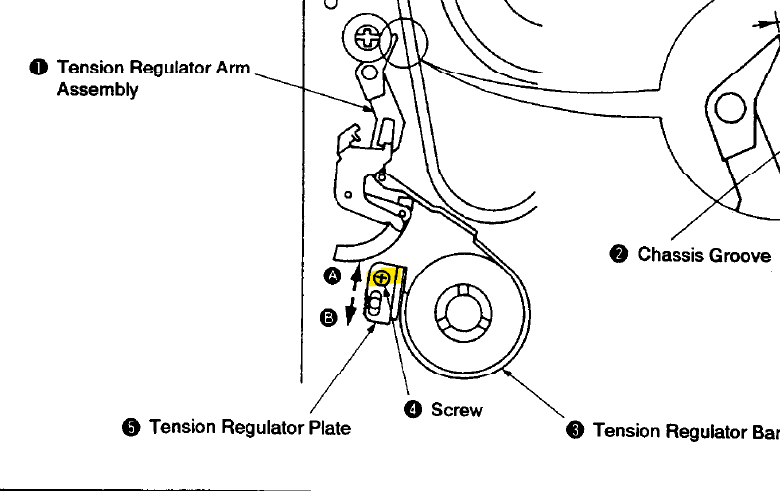

    [EDIT] Looks like I can mitigate the problem by adjusting tension but I cannot get a stable result, tension keeps fluctuating, should I replace the tension band?
    [Attachment 75243 - Click to enlarge]
    Last edited by kernelfree; 4th Dec 2023 at 07:48.
