    First time poster here.
    I love all vintage audio and video tape mediums (and new tech) and one of those interests is VCR's.
    Recently I bought my first Betacord a fully functional mono Sanyo VTR-M30.

    Someone out there may be able to help with a question I have regarding tapes.
    Currently on a local auction site there are for sale L500 tapes, some with old movies on them - but one of the movies is Dances With Wolves which is approx 4 hours long - so will my above mentioned unit play those tapes at the right speed if at all?

    Other info is they were recorded in Indonesia and are stated as legit but look a little "homebaked" in the images i.e. stickers & typed text look unprofessional.
    I have researched this topic but there is frustratingly little on forums and googling brings up the same old stuff?
    Does this unit sense the tape speed to play these longer tapes - I have read about BI BII BIII and wonder whether my machine uses this technology?
    This is a PAL unit.
    Thanks for any replies.
    Quote Quote
  2. Member
    Join Date
    Jul 2007
    Location
    United States
    Search Comp PM
    Thank you for saying Betacord and not Betamax! Beta is the format and Betamax is only Sony Beta VCRs.

    Any consumer Beta VCR other than the first Sony Betamax will play back βII and βIII. Most professional Beta machines will only play back and record βII.

    The max playback time of an L-500 (which is the amount of tape in feet) is 195m for PAL, 180m for NTSC at βIII. So the movie must be on a L-750, L-830 or if it's a commercial release, a custom length. Look at the dust cover, the spool length may be printed there.

    L-750's are standard and will probably work fine in any machine. But beware of any L-830 as they use an even thinner tape than the L-750 and are prone to jamming and breakage.

    While playing with vintage electronics is fun, VCRs are extremely complex and it's likely the belts and other rubber parts are probably worn out and need replacement. IMO, best not to stress them doing unnecessary recording and playback as they're all well past their end of useful life. As much of a Betaphile as I was (20+ Betamax), when I moved in 2017, I sent them all to a well deserved final rest.

    Visit palsite.com for info about your
    Quote Quote
  3. Video Restorer lordsmurf's Avatar
    Join Date
    Jun 2003
    Location
    dFAQ.us/lordsmurf
    Search Comp PM
    Originally Posted by lingyi View Post
    Thank you for saying Betacord and not Betamax! Beta is the format and Betamax is only Sony Beta VCRs.
    I saw you mention this elsewhere a while back. I didn't know that.

    Betamax is the deck brand, sort of like Nikon has Nikkor lenses.
    Beta is the tape format.

    Somehow, it was retconned where the tape format is Betamax. And I think Sony endorsed it, especially by using Betacam as the next format. And yet, ED-Beta and SuperBeta.
    Want my help? Ask here! (not via PM!)
    FAQs: Best Blank Discs • Best TBCs • Best VCRs for capture • Restore VHS
    Quote Quote
  4. Member
    Join Date
    Nov 2023
    Location
    Christchurch NZ
    Search Comp PM
    Thank you for your informative reply.

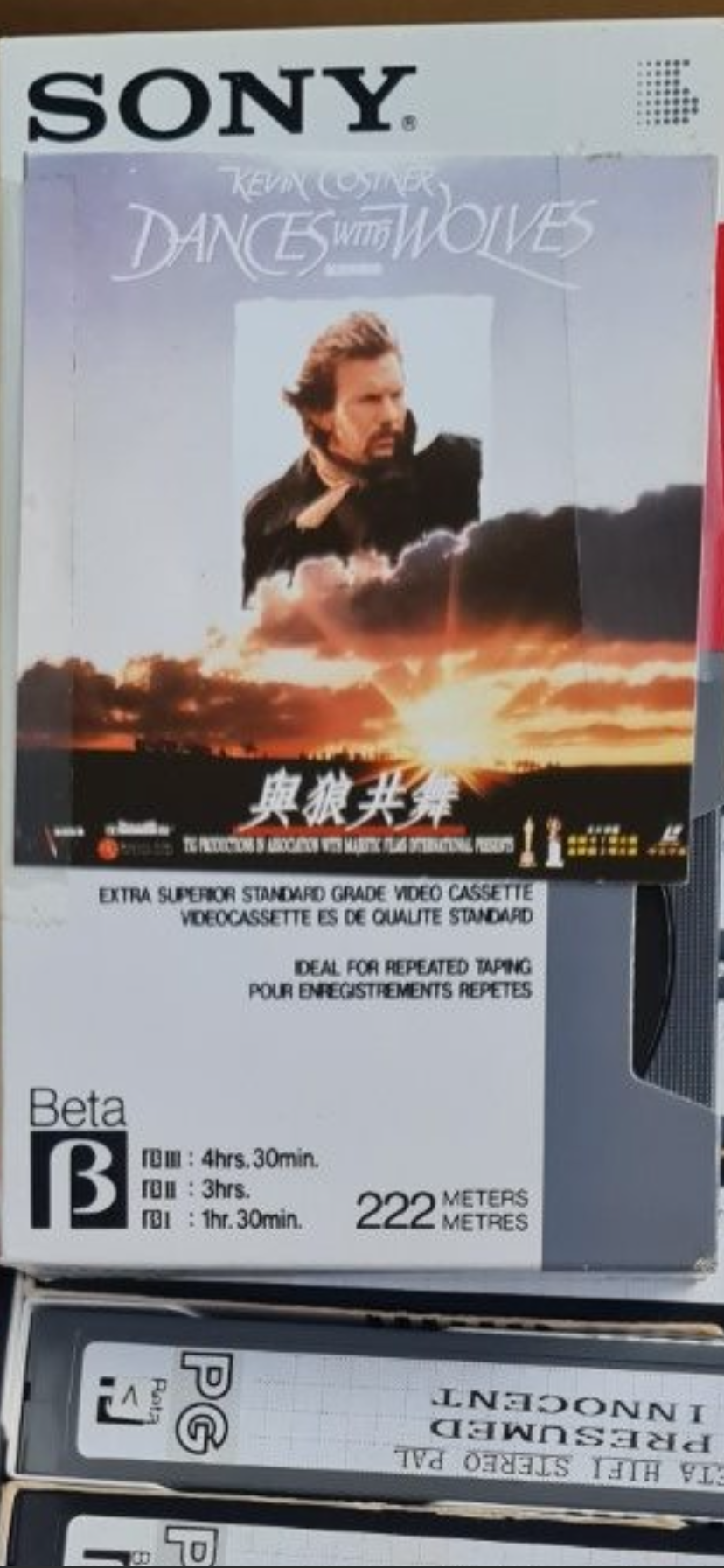

    The image of the Dances WW tape I am so curious about, which seemingly shows BIII at an incredible 4h 30m with 222 feet of tape - or does it?!

    The Betacord VCR is a curiosity for my Man Cave. I was fully prepared to do the idlers and belts but she's a good one and works well even with an accurate "tape remaining" indicator. Good picture too, a little superior to VHS in my opinion. Must have been restored at some point.

    I am a collector of Vintage tape mediums - everything from Reel to Reel, 8 track, Handycams, Video Walkmans, Vinyl, etc.
    I have very basic electrical repair skills and work out the mechanics of devices - but know when to seek help from the local vintage repair guy.

    Where I live tapes are rare, and I have the opportunity to buy all the Beta tapes I will ever need and more very cheaply.

    I am interested in comments with regard to it please (e.g. if it's indeed only 222 feet how do they fit 4+hours on it?)
    All the other pictured tapes in the auction are L500, so I assumed the DWW tape was too?
    [Attachment 74907 - Click to enlarge]
    Quote Quote
  5. The only reason to buy counterfeit products is if they are significantly cheaper than real ones and not significantly worse. This tape in particular, you can record one yourself.
    Quote Quote
  6. Member
    Join Date
    Jul 2007
    Location
    United States
    Search Comp PM
    Originally Posted by lordsmurf View Post
    Originally Posted by lingyi View Post
    Thank you for saying Betacord and not Betamax! Beta is the format and Betamax is only Sony Beta VCRs.
    I saw you mention this elsewhere a while back. I didn't know that.

    Betamax is the deck brand, sort of like Nikon has Nikkor lenses.
    Beta is the tape format.

    Somehow, it was retconned where the tape format is Betamax. And I think Sony endorsed it, especially by using Betacam as the next format. And yet, ED-Beta and SuperBeta.
    The master learned something from me? : yeah:

    Trivia: IIRC, probably read it in Akio Morita's excellent book, Sony couldn't trademark the Beta name and letter, so they added -max and trademarked that in 1974. Interestingly, at least to me, is the the trademark covers cassettes, TV receivers and tape recorders. https://trademarks.justia.com/730/89/betamax-73089740.html Makes sense since the the first Betamax was integrated into a TV console.

    Which is why only Sony branded tapes are also Betamax and other brands are only Beta or have the β logo. I noticed this in the very early 80's after I got my first Betamax and wondered why only my Sony branded tapes had the Betamax name. And was scared to be non-Sony tapes because I wasn't sure they were compatible.
    Quote Quote
  7. Member
    Join Date
    Jul 2007
    Location
    United States
    Search Comp PM
    I am interested in comments with regard to it please (e.g. if it's indeed only 222 feet how do they fit 4+hours on it?)
    All the other pictured tapes in the auction are L500, so I assumed the DWW tape was too?
    An L-750 is 750 ft, ~229 meters and can record up to ~4:45m in Pal / 4:30m in NTSC. The times listed on the box are for NTSC. Not sure about VHS, but all Beta tapes could record up to ~5 minutes more in βII. Almost useless trivia time. IMO, "B" when used to refer to Beta speeds is incorrect. It's β (for Beta) or Beta I, Beta II, Beta III.

    https://en.wikipedia.org/wiki/Betamax

    Unlike VHS where the number designated the running time, Beta tapes were all listed by the length of tape inside.* So VHS tapes for Europe were prefixed with an E and therefore an E-120 was equivalent to a T-120 in the U.S., for recording time, but held less tape.

    https://en.wikipedia.org/wiki/VHS#:~:text=A%20VHS%20cassette%20holds%20a,play%22%20(SP)%20quality.

    *However, professional Beta tapes such as Beta SP, were labeled by their running time.

    Using this as an opportunity to ramble on about my beloved Beta. In addition to βI, βII, βIII. There was also βI Hi-Band, introduced in the SL-HF1000 and βI Super Hi-Band introduced in the flagship SL-HF2100. IIRC, βI Hi-Band could be played back in the companion SL-HF900. But the βI Super Hi-Band could only be played back by the SL-HF2100. In addition, βI tapes recorded on the original LV-1901, which only recorded in βI. won't play back properly in another other machine because it used wider videoheads than those used to allow βII in the SL-8200 going forward.

    If you find your machine fascinating, watch the SL-HF2100 (the 15th Anniversary Beta) in action. I can't bear to watch because it breaks my heart!
    But as great as it was, I felt it was second to my pair of EDV-7500s, which were the last Betamax I owned.

    Unfortunately, all the machines I listed where NTSC only. The best Beta/Betamax Europe got was the SL-HF950. Which despite it's name is the SL-HF750 in North America and Japan.

    I don't know anything about professional Beta machines, but Cornucopia and I believe dellsam34? know a lot about them.

    You're a tape machine collector, but IMO, the Pioneer LD-W1 Laserdisc player was an engineering marvel! https://www.youtube.com/watch?v=jGZym8G2rbY

    It held two Laserdiscs at once and would automatically play all four sides in sequence, though it took up to 30 seconds to move the motor into position making an awful racket in the process. It also had digital freeze and frame by frame for non-CAV discs. It was a behemoth, built like a tank! At least mine had a better faith than my Betamax(s) since it went to Goodwill.

    Understandably, it's a unique one of a kind Laserdisc player! I've think I've read rumors of an LD-W2, but I'm probably conflating it with the LD-S2

    If you're interested, here the LaserDisc Database: https://www.lddb.com/ which is understandably focused on NTSC.

    Thank you for sharing my love of Beta!

    Edit: For those who are curious about why I gave up on my beloved Betamax(s) and hundreds of tapes. In 2017, we sold our family home and I had had to seriously downsize. Only about half of my 20+ machines were fully working, and they along with my tape collection took up half a room. And by that time, I had largely moved on to DVDs. Which i still collect to this day, though all of them have been transferred to my hard drives for easier access.
    Quote Quote
  8. Member
    Join Date
    Jul 2007
    Location
    United States
    Search Comp PM
    I just took a closer look at your picture and it's 1000% not an original. Not only is the tape not in a retail case, it has Chinese wording and the LaserDisc logo on the bottom. So it's very likely a copy from a Chinese LD.
    Quote Quote
  9. Video Restorer lordsmurf's Avatar
    Join Date
    Jun 2003
    Location
    dFAQ.us/lordsmurf
    Search Comp PM
    Originally Posted by lingyi View Post
    I just took a closer look at your picture and it's 1000% not an original. Not only is the tape not in a retail case, it has Chinese wording and the LaserDisc logo on the bottom. So it's very likely a copy from a Chinese LD.
    Chinese or HK? I don't recall many boot LDs not coming from HK.
    Want my help? Ask here! (not via PM!)
    FAQs: Best Blank Discs • Best TBCs • Best VCRs for capture • Restore VHS
    Quote Quote
  10. Member
    Join Date
    Nov 2023
    Location
    Christchurch NZ
    Search Comp PM
    Great info thanks!
    My other question then is, if some of the tapes are NTSC (you refer to the timings on the DWW box as NTSC) will my PAL Sanyo VTC-M30 play them?
    I am guessing your response will be - no?
    Quote Quote
  11. Member
    Join Date
    Jul 2007
    Location
    United States
    Search Comp PM
    Originally Posted by lordsmurf View Post
    Originally Posted by lingyi View Post
    I just took a closer look at your picture and it's 1000% not an original. Not only is the tape not in a retail case, it has Chinese wording and the LaserDisc logo on the bottom. So it's very likely a copy from a Chinese LD.
    Chinese or HK? I don't recall many boot LDs not coming from HK.
    Ahhh...good for you catching [me] committing my Pet Peeve #218! Using the term Chinese generically to describe anything from Hong Kong, Macau, Taiwan or mainland China as Chinese nationality versus ethnicity. My apologies to anyone from Hong Kong, Macau and Taiwan!

    Off topic, but trivia of another of my interests.

    Don't know the legal specifics of each title/release, but there were definitely non Hong Kong releases from companies like Long Shong in Taiwan. These were usually the Taiwanese theatrical versions of Hong Kong movies, which were often released there before Hong Kong itself. And sometimes were different than the Hong Kong releases. Probably the best known Taiwanese version of a movie is the longer alternate version of John Woo's The Killer https://www.movie-censorship.com/report.php?ID=476290 Unfortunately, AFAIK, there never was a [Taiwanese] LD release of The Killer.

    Edit: Some/many? of the Taiwanese, don't know if there were any Mainland Chinese LD releases, were created from the same source, possibly even directly recorded, from the VHS versions.

    Even today, Hong Kong based companies like Tai Seng and Mei Ah release their movies in Hong Kong and Taiwanese versions. With the Taiwanese versions usually being lower quality and sometimes different versions. I bought the Taiwanese DVD of Wong Kar Wai's Ashes of Time because it had a few seconds of Joey Wong Jyo Yin / Wang Tsu Hsien as "The Girl". https://www.youtube.com/watch?v=N_67NlpqsG0

    Trivia. These few seconds show that "The Girl", played by Charlie Yeung Choi Lei in the actual release, was completely different. Reportedly more like the actual character in the Jin Wong's The Legend of the Condor Heroes.

    Sorry for the off topic. I rarely get to share about my favorite subject. Asian cinema.
    Last edited by lingyi; 18th Nov 2023 at 23:12.
    Quote Quote
  12. Member
    Join Date
    Jul 2007
    Location
    United States
    Search Comp PM
    Originally Posted by Graay View Post
    Great info thanks!
    My other question then is, if some of the tapes are NTSC (you refer to the timings on the DWW box as NTSC) will my PAL Sanyo VTC-M30 play them?
    I am guessing your response will be - no?
    Correct. With the exception of a handful of multi-system, usually PAL/NTSC/SECAM Beta VCRs, all other VCRs are system specific. Here's a thread with a list of models: https://forum.videohelp.com/threads/396147-Betamax-Player-Dual-Format-NTSC-PAL

    These were primarily for the UAE market and were very expensive. I considered getting one during my Betaphile heydays, but decided against it as reports of the time [stated they weren't as good as single system units]. I believe in addition to the machines listed in the thread above, Aiwa also made a multi-system model.

    Note that AFAIK, none of these machines did any system conversion internally. You needed an external converter or a multi-system TV.
    Last edited by lingyi; 18th Nov 2023 at 11:32.
    Quote Quote
  13. Member
    Join Date
    Jul 2007
    Location
    United States
    Search Comp PM
    Since you're interested in vintage tape systems, you may be familiar with the V2000, which as Techmoan says, was: The format that came third in a two-horse race https://www.youtube.com/watch?v=SeSz6MoX00Q www.v2000.palsite for more info.

    I highly recommend Techmoan's channel, especially for someone like you who's interested in vintage tape systems.
    Quote Quote
  14. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    You will be lucky if it was recorded from a LD, My gut feeling tells me it was recorded from a VCD, based on the jacket that used to accompany those illegally copied discs, VCD is a very mediocre format used for bootlegging back in early 2000's of VHS, LD and DVD pre-recorded materials, It barely resolved VHS quality at best. I would stay away from any non-official copies regardless the source and only get materials from well known production houses. If bought in lots they are pretty cheap nowadays.
    Quote Quote
  15. Member
    Join Date
    Nov 2023
    Location
    Christchurch NZ
    Search Comp PM
    Thanks for your reply Lingyi.
    I watch Techmoan & another interesting You Tube channel is "12volt vids".
    I am happy I have found answers to all my questions from this forum.

    The tapes I have been asking about were bought when the seller was in Indonesia.
    Quote Quote
  16. Member
    Join Date
    Jul 2007
    Location
    United States
    Search Comp PM
    Edit: Mods, I apologize for getting too off-topic. The OP's question has been well answered.

    Originally Posted by dellsam34 View Post
    You will be lucky if it was recorded from a LD, My gut feeling tells me it was recorded from a VCD, based on the jacket that used to accompany those illegally copied discs, VCD is a very mediocre format used for bootlegging back in early 2000's of VHS, LD and DVD pre-recorded materials, It barely resolved VHS quality at best. I would stay away from any non-official copies regardless the source and only get materials from well known production houses. If bought in lots they are pretty cheap nowadays.
    I disagree. The artwork shown is definitely from the LD release and most Asian VCD covers I've seen are much more eye-catching, i.e. larger pics and text because of the CD sized case. At least for Hong Kong and Japanese releases, almost everything was released on LD, except the most obscure, low budget movies.

    Oddly, I don't see Dances With Wolves listed as a release at LaserDisc DataBase (lddb.com), so it's likely a bootleg. https://www.lddb.com/search.php?search=dances+with+wolves&sort=title

    LD trivia for those few who may be interested.

    Prior to 1995 when I got on the 'net, I found out about what was available through the LD rental stores. I'd ask if a title was available on LD and be told if it was, but was out on rental. There were a couple of handful of releases that were confirmed to exist, but I was told they were rented out and never returned.

    The LaserDisc DataBase (LDDB) has 4851 Hong Kong LD releases https://www.lddb.com/search.php?adv_search=*&adv_reference=&country=3 and 1783 Taiwan releases https://www.lddb.com/search.php?adv_search=*&adv_reference=&country=11 Japan releases can't be displayed because they exceed 5000. Granted, a good number of them are karaoke discs, but that's still thousands of movies! And this list is definitely not all encompassing.

    The heyday of LDs ended in Sept 2001, when the last Hong Kong laserdisc was released. VCDs continued to thrive, particularly in India and Pakistan well into the 2010s. https://en.wikipedia.org/wiki/LaserDisc#:~:text=The%20last%20title%20released%20in,Tok...lden%20Harvest.
    Last edited by lingyi; 19th Nov 2023 at 18:49.
    Quote Quote
  17. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    Originally Posted by lingyi View Post
    I disagree. The artwork shown is definitely from the LD release and most Asian VCD covers I've seen are much more eye-catching, i.e. larger pics and text because of the CD sized case. At least for Hong Kong and Japanese releases, almost everything was released on LD, except the most obscure, low budget movies.
    You can disagree all you want, I've never said the artwork is not from LD. But I've personally seen those VCD's sold in flea markets and China towns back in early 2000's here in the US, not only the quality of the video is mediocre but often the aspect ratio is wrong. Off course they are going to copy the art work from the laser disc jacket, What else they are going to get it for free? Internet database was not as rich as today when it comes to materials artwork.

    His VHS cassette was copied from such VCD based on the evidence of the artwork itself that was pulled from an actual VCD disc bootleg copy, unless they were copying both VCD and VHS and slapping VCD artwork on the VHS cassettes, I can see that happening. But most of VHS bootlegs I've seen had cheaply made VHS artwork often black and white photocopies.
    Quote Quote
  18. Member
    Join Date
    Nov 2023
    Location
    Christchurch NZ
    Search Comp PM
    [QUOTE=dellsam34;2713207]
    Originally Posted by lingyi View Post

    His VHS cassette was copied from such VCD based on the evidence of the artwork itself that was pulled from an actual VCD disc bootleg copy, unless they were copying both VCD and VHS and slapping VCD artwork on the VHS cassettes, I can see that happening. But most of VHS bootlegs I've seen had cheaply made VHS artwork often black and white photocopies.
    Slight correction - these are Beta tapes not VHS.
    Quote Quote
  19. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    Yes that's correct, They were VHS and Beta bootlegs.
    Quote Quote
  20. Member
    Join Date
    Nov 2023
    Location
    Christchurch NZ
    Search Comp PM
    Hi again. Just an update about the tapes discussed in this thread.

    I purchased the tapes and what was very evident at the beginning was - the "Laserdisc" logo.
    The quality is poor, but good enough to watch if you aren't too fussy and enjoy the content.

    Regarding the reason for buying these 20 Beta tapes for my collection was simply to have material to copy video onto using my BetaCord Sanyo.
    It's a Mono machine so my novel idea is to record early mono Rock performances off YT to enjoy offline at my leisure.

    I have yet to try recording with my BetaCord but have no great expectations - but then again early 1960's video won't be high quality either!

    Just as an aside, I vividly remember in 1982 being out shopping for a VCR and being faced with a choice between Beta and VHS!
    The sole reason I chose VHS was because the shop assistant stated there would be more head wear on the Beta because it rewound across the heads which would cause more wear compared to the VHS which unlaced. That was it, I bought an AWA AV-11 VHS VCR which eventually died only years ago, and I still have it's corded remote for some reason!

    Thanks again for your help in this forum.
    Quote Quote
  21. Originally Posted by Graay View Post
    my novel idea is to record early mono Rock performances off YT to enjoy offline at my leisure.
    Would not it be simpler to just download those videos as files?
    Quote Quote
  22. Member
    Join Date
    Nov 2023
    Location
    Christchurch NZ
    Search Comp PM
    Originally Posted by Bwaak View Post
    Originally Posted by Graay View Post
    my novel idea is to record early mono Rock performances off YT to enjoy offline at my leisure.
    Would not it be simpler to just download those videos as files?
    If I interpret your 12 word single line post correctly - Why not just download the digital files of aforementioned YT videos and enjoy digitally?

    That would be very easy, but that would not involve my Betacord VCR and the 20 tapes I purchased for recording said videos.

    My Betacord is a historical relic and where I come from, very rare and parts are still available with a few clicks of my mouse.
    It is a testament to the build quality of the Sanyo Betacord range that these exist in 2023.

    In my world blending my hobbies of music and vintage machines makes me happy - end of story.
    Quote Quote
  23. Originally Posted by Graay View Post
    If I interpret your 12 word single line post correctly - Why not just download the digital files of aforementioned YT videos and enjoy digitally?

    That would be very easy, but that would not involve my Betacord VCR and the 20 tapes I purchased for recording said videos.

    My Betacord is a historical relic and where I come from, very rare and parts are still available with a few clicks of my mouse.
    It is a testament to the build quality of the Sanyo Betacord range that these exist in 2023.

    In my world blending my hobbies of music and vintage machines makes me happy - end of story.
    Sure, why not. Some people build a whole railroad track to run their own steam engine. They even shoot movies about trains that look like old ones. For example, The Winter's Snow, a homage to British Transport Film productions, should look great when played on your Betacord, in no small part because color-under machines resolve higher luminance resolution on monochrome pictures.
    Quote Quote
  24. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    Originally Posted by Graay View Post
    My Betacord is a historical relic and where I come from, very rare and parts are still available with a few clicks of my mouse.
    It is a testament to the build quality of the Sanyo Betacord range that these exist in 2023.
    There is actually nothing special about this model, a low budget mono and composite VCR that records into basic Beta format, The good Betas are the Sony's later models, The Super Beta HiFi and the ED Betas with S-Video out and 500 lines of resolution, I've actually recorded materials on a metal ED cassette using the EDV-7500 and it beats DVD at every quality level, Those the dream machines as the Beta forums would like to call them.
    Quote Quote
  25. Member
    Join Date
    Nov 2023
    Location
    Christchurch NZ
    Search Comp PM
    Originally Posted by dellsam34 View Post
    Originally Posted by Graay View Post
    My Betacord is a historical relic and where I come from, very rare and parts are still available with a few clicks of my mouse.
    It is a testament to the build quality of the Sanyo Betacord range that these exist in 2023.
    There is actually nothing special about this model, a low budget mono and composite VCR that records into basic Beta format, The good Betas are the Sony's later models, The Super Beta HiFi and the ED Betas with S-Video out and 500 lines of resolution, I've actually recorded materials on a metal ED cassette using the EDV-7500 and it beats DVD at every quality level, Those the dream machines as the Beta forums would like to call them.
    You are correct about your comments regarding Sony's later models.
    You are correct about the specs of my Betacord.
    However Betamax and Betacord are ultra rare where I come from, moreover the Betacord seem to outlast the Betamax units, mine works perfectly at 40 years old.

    Finding tapes even harder - especially L750.

    One day I might find a Betamax HiFi unit but for now I have a "nothing special" unit - it's a novelty for me added to my "Man-Shed" with lots of other audio, video, reel to reel etc.

    It works well, has no issues and I am happy with it - end of story.
    Quote Quote
  26. Member
    Join Date
    Jul 2007
    Location
    United States
    Search Comp PM
    The OP is in PAL country where Beta was never popular and the high end machines like the SL-HF2100 and ED-Beta were never made available in PAL. There may be a super rare multi-system machine with SuperBeta and Beta Hi-Fi, but I've never read about their existance.
    Quote Quote
  27. Originally Posted by dellsam34 View Post
    it beats DVD at every quality level
    First generation, luminance only, stabilized through a TBC (does the EDV-7500 have built-in TBC?) - maybe.

    Do you have ED Beta content on your channel? Reely Interesting has some, like this: 1987 Sony ED Beta test tape. Even stabilized, it still shows some shimmering, I guess you like this "organic" feel. They tried to avoid color bleeding, so they carefully staged the shots, but whenever you see a big red flower over green grass or a girl on a yellow bike, it become immediately apparent, that it is the same color-under garbage with big color splotches.

    I am not a video engineer, but I wonder could Sony allocate less bandwidth to luminance and more to chrominance and create a more balanced format. Other people asked the same question. This 1989 article reads:

    Originally Posted by David Ranada
    All three high-luminance-resolution video formats (S-VHS, ED-Beta, and Hi8) have color resolutions unchanged from their original, low-resolution formats: 50 lines. Moreover, this is a theoretical maximum; because of noise problems, color resolution is typically only 30 to 40 lines. Back when standard Beta, VHS, and 8mm were the only systems available, their limited luminance resolutions formed a close visual match to their limited color resolutions. While the recordings made on these systems have always been inferior to videodisc reproduction, their pictures were nonetheless visually "balanced."
    ...
    Obsessed with horizontal resolution performance, VCR-format standardizers have gone overboard in obtaining improved luminance resolution specs for their new high-luminance-resolution home VCR formats. The color performance remains basically unchanged and, in some ways, has become worse. To me, the most important visual artifact made more obvious by the high-luminance-resolution VCR systems is what I call color fringing. This manifests itself as a tinted aura around a brightly colored object, especially when seen against a white or gray background. It's as if the color in that object somehow leaked outside its area on the image - the so-called "paint by the numbers" effect.
    Quote Quote
  28. Member
    Join Date
    Jul 2007
    Location
    United States
    Search Comp PM
    *SIGH* I remember that test tape! It came with my EDV-7500s.

    I never had any personal high quality video source, but I did record some of my Laserdiscs to ED-Beta and definitely saw the quality difference on my uncalibrated PVM-2530.

    AFAIK, no non-pro Beta machine had a built in TBC, but I believe some the high end professional, SLX series did. The ED-Beta X500/X300/X000 series were prosumer machines, with the tunerless EDW-30F the professional version of the EDV-9500/9300/9000.
    Quote Quote
  29. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    Originally Posted by Bwaak View Post
    First generation, luminance only, stabilized through a TBC (does the EDV-7500 have built-in TBC?) - maybe.

    Do you have ED Beta content on your channel?
    For whatever reason, Sony never advertised TBC functionality in their VCRs, But they do have digital processing and memory buffer, which is the recipe for a TBC, but never gave the user the option to turn them on or off. Currently I have the Canadian EDV-7300 an identical model of the US EDV-7500. In fact, the EDV series use digital pause not continuous analog freeze, Whether it uses the frame buffer to do some TBC work or not, no one knows, Sony has always been and it is secretive about their designs, But from the looks of the video and the way it behaves it looks like it has some sort of line or field TBC and DNR.

    Yes I posted some ED recordings made by the original owner of the deck back in late 90's from what it looked like a Canadian cable TV service, and yes I do have the famous ED Beta demo tape, but I think Reely-Interesting has a cleaner copy, I might do an upload in the future to see how it stacks up against his upload.

    Yes chroma for tape formats suck, but using S-Video for recording and metal tape formulation improved chroma reproduction a bit compared to VHS over composite on a normal tape. The way I compared ED Beta and DVD is by using a clean digital HD file in a media player out from HDMI to S-Video converter, made one recording into ED Beta-II (I wish Sony kept B-I recording) and another recording into a DVD recorder from the same S-Video output using the highest MPEG-2 setting. The obvious difference was that ED was sharper and cleaner, DVD was soft and it has compression artifacts.
    Quote Quote
  30. Originally Posted by dellsam34 View Post
    The way I compared ED Beta and DVD is by using a clean digital HD file in a media player out from HDMI to S-Video converter, made one recording into ED Beta-II (I wish Sony kept B-I recording) and another recording into a DVD recorder from the same S-Video output using the highest MPEG-2 setting. The obvious difference was that ED was sharper and cleaner, DVD was soft and it has compression artifacts.
    Realtime recording onto DVD recorder? Come on, this is videohelp, not avsforum

    Although you can make a case that 10 Mbit/s (realistically, 9.5 Mbit/s or even 8 Mbit/s for some packages) for a high-detail, noisy, shaky home video may be not always enough, compared to clean Hollywood movies with slow panning and blurry background. In any case, all the further copies are identical, unlike analog, this is why I don't like analog.

    P.S. I see blocking in a couple of scenes on the Reely Interesting's video at 1080p setting, and the swaying wheat disintegrates into mush. Switching to 1440p makes it better, so I gues it DOES make sense if only for higher bitrate. It would be a tough scene for a DVD.
    Last edited by Bwaak; 23rd Dec 2023 at 23:14.
    Quote Quote



Similar Threads

Visit our sponsor! Try DVDFab and backup Blu-rays!
