  1. I'm trying to add TrueHD Atmos to my extended Hobbit 3D blurays. This is normally easy, but the 3D versions come on two discs, while the remastered 2d version comes on one disc. After extensive testing I have concluded that remuxing doesn't work, I need to edit manually and reencode. I have acquired PowerDirector, which can edit the files no problem, but I'm stuck on rendering.

    I first tried rendering to 3D MVC, which produces 3D files but my Dune HD reads them as 2D. MediaInfo tells me this is because L and R are stored as Video #1 High@L4.1 and Video #2 Stereo High@L4.1, rather than a single Stereo High@L4.1 / High@L4.1 video track. Is there a software that can fix this? I have tried both MakeMKV and DVD Fab and neither worked. DVD Fab rendered it as separate video tracks and MakeMKV couldn't open the file at all.

    Another option is rendering to Side By Side Full. which works perfectly, producing a 3840x1080 file, but this is also played as 2D. I have yet to find software that can properly convert SBS Full to 3D MVC. Apparently FRIM might work but I couldn't figure out which parameters it needs.

    Does anyone know a way to do what I want to do?
    Quote Quote
  2. Member Ennio's Avatar
    Join Date
    May 2005
    Location
    Netherlands
    Search Comp PM
    Originally Posted by Ingane View Post
    I first tried rendering to 3D MVC...
    What do you mean by that? 3D on BD already is (AVC +) MVC.

    Originally Posted by Ingane View Post
    ...and MakeMKV couldn't open the file at all.
    What file exactly?

    I'm not sure what it is exactly what you have/haven't tried to do concerning remux workflows. My approach from the hip would be splitting up the Atmos track and remux the two parts with tsMuxer in two "movie only" ISOs.
    If you tried this but it didn't work, can you tell why?
    Quote Quote
  3. Originally Posted by Ennio View Post
    What do you mean by that? 3D on BD already is (AVC +) MVC.
    I mean putting the two 3D MVC files into PowerDirector, making the necessary edit, and rendering the file. It supports 3D MVC but the files I get if I use that don't seem to use the same structure as the files MakeMKV produces, and thus don't register as 3D on my Dune HD.

    Originally Posted by Ennio View Post
    What file exactly?
    Any file I tried. MKV, MP4, M2TS, BD folder. I just get "Failed to open disc" in MakeMKV. Here's a screenshot of a test render and the BD rip in TSMuxer:

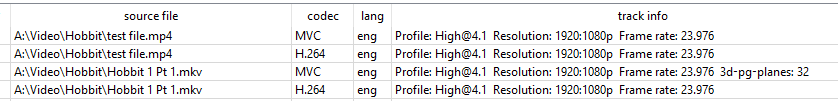

    As you can see both eyes are there, but something is missing.

    Originally Posted by Ennio View Post
    I'm not sure what it is exactly what you have/haven't tried to do concerning remux workflows. My approach from the hip would be splitting up the Atmos track and remux the two parts with tsMuxer in two "movie only" ISOs.
    If you tried this but it didn't work, can you tell why?
    That's not an ideal solution because the editing is slightly different. In the 2D version, the sound of the wolves slightly overlaps with the sound of Rivendell, while in 3D they play over a black screen, and the next disc starts on Rivendell, with no wolves audible. I might end up doing that if I can't figure out the video conversion, but I would much prefer to combine the two video files into one long file, and that's not possible with remuxing because the keyframes don't align correctly.

    I also don't use ISOs for playback, but MKV files.
    Quote Quote
  4. Member Ennio's Avatar
    Join Date
    May 2005
    Location
    Netherlands
    Search Comp PM
    Originally Posted by Ingane View Post
    I mean putting the two 3D MVC files into PowerDirector, making the necessary edit, and rendering the file. It supports 3D MVC but the files I get if I use that don't seem to use the same structure as the files MakeMKV produces,
    I see. I don't know PowerDirector and if/what could be wrong with its 3D MVC outputs. I take it PowerDirector can't output as 3D ISO?
    As for mkv, I certainly hope it doesn't mux AVC and MVC as separate videotracks. In matroska, these have to be interleaved into one elementary stream. Which is exactly what MakeMKV does.
    Should the latter be the case, you can try a workaround that has a chance of success. Maybe tsMuxer can create an intermediate 3D ISO of (any of) PowerDirector's 3D mvc outputs. Which you could mount and import in MakeMKV and let it remux into a working mkv. Main issue here is that MakeMKV tends to throw errors when handling a tsMuxer-created 3D ISO. But sometimes it just works.

    It may be helpful when you'd post MediaInfo data of several types of PowerDirector's MVC 3D output files.


    As for Full SBS (and Full T&B for that matter), to my knowledge these types do require 4K capable 3D players. As a first question, is your player 4K capable?
    Quote Quote
  5. Originally Posted by Ennio View Post
    I see. I don't know PowerDirector and if/what could be wrong with its 3D MVC outputs. I take it PowerDirector can't output as 3D ISO?
    As for mkv, I certainly hope it doesn't mux AVC and MVC as separate videotracks. In matroska, these have to be interleaved into one elementary stream. Which is exactly what MakeMKV does.
    They're stored as Video #1 and Video #2 according to MediaInfo, but VLC only sees one video track. I tried some other software which did store them as totally separate video tracks, not sure which software but I think it was DVDfab.


    Originally Posted by Ennio View Post
    Should the latter be the case, you can try a workaround that has a chance of success. Maybe tsMuxer can create an intermediate 3D ISO of (any of) PowerDirector's 3D mvc outputs. Which you could mount and import in MakeMKV and let it remux into a working mkv. Main issue here is that MakeMKV tends to throw errors when handling a tsMuxer-created 3D ISO. But sometimes it just works.
    I tried doing that and it did indeed just error.

    Originally Posted by Ennio View Post
    It may be helpful when you'd post MediaInfo data of several types of PowerDirector's MVC 3D output files.
    MT2S render:
    General
    ID : 0 (0x0)
    Complete name : Produce test.m2ts
    Format : MPEG-TS
    File size : 246 MiB
    Duration : 35 s 300 ms
    Overall bit rate mode : Variable
    Overall bit rate : 58.5 Mb/s
    Maximum Overall bit rate : 60.1 Mb/s
    FileExtension_Invalid : ts m2t m2s m4t m4s tmf ts tp trp ty

    Video #1
    ID : 4113 (0x1011)
    Menu ID : 1 (0x1)
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : High@L4.1
    Format settings : CABAC / 2 Ref Frames
    Format settings, CABAC : Yes
    Format settings, Reference frames : 2 frames
    Codec ID : 27
    Duration : 35 s 621 ms
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Variable
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive

    Video #2
    ID : 4114 (0x1012)
    Menu ID : 1 (0x1)
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : Stereo High@L4.1
    MultiView_Count : 2
    Format settings : CABAC / 2 Ref Frames
    Format settings, CABAC : Yes
    Format settings, Reference frames : 2 frames
    Codec ID : 32
    Duration : 35 s 621 ms
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Variable
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive

    BD Folder render:
    General
    ID : 0 (0x0)
    Complete name : My Video\BDMV\STREAM\00000.m2ts
    Format : BDAV
    Format/Info : Blu-ray Video
    File size : 456 MiB
    Duration : 2 min 30 s
    Overall bit rate mode : Variable
    Overall bit rate : 25.4 Mb/s
    Maximum Overall bit rate : 27.5 Mb/s

    Video #1
    ID : 4113 (0x1011)
    Menu ID : 1 (0x1)
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : High@L4
    Format settings : CABAC / 2 Ref Frames
    Format settings, CABAC : Yes
    Format settings, Reference frames : 2 frames
    Format settings, GOP : M=3, N=16
    Codec ID : 27
    Duration : 2 min 30 s
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate : 23.976 (24000/1001) FPS
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive

    Video #2
    ID : 4114 (0x1012)
    Menu ID : 1 (0x1)
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : Stereo High@L4
    MultiView_Count : 2
    Format settings : CABAC / 2 Ref Frames
    Format settings, CABAC : Yes
    Format settings, Reference frames : 2 frames
    Codec ID : 32
    Duration : 2 min 30 s
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate : 23.976 (24000/1001) FPS
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive

    MP4 render:
    General
    Complete name : Produce test.mp4
    Format : MPEG-4
    Format profile : Sony PSP
    Codec ID : MSNV (MSNV/isom/mp42)
    File size : 342 MiB
    Duration : 48 s 640 ms
    Overall bit rate : 59.0 Mb/s
    Encoded date : UTC 2022-11-14 00:21:06
    Tagged date : UTC 2022-11-14 00:21:06

    Video
    ID : 1
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : High@L4.1
    Format settings : CABAC / 2 Ref Frames
    Format settings, CABAC : Yes
    Format settings, Reference frames : 2 frames
    Format settings, GOP : M=3, N=13
    Codec ID : avc1
    Codec ID/Info : Advanced Video Coding
    Duration : 48 s 632 ms
    Source duration : 48 s 632 ms
    Bit rate : 58.8 Mb/s
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Variable
    Frame rate : 23.976 FPS
    Minimum frame rate : 23.962 FPS
    Maximum frame rate : 23.981 FPS
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive
    Bits/(Pixel*Frame) : 1.182
    Stream size : 341 MiB (100%)
    Source stream size : 341 MiB (100%)
    Language : English
    Encoded date : UTC 2022-11-14 00:21:06
    Tagged date : UTC 2022-11-14 00:21:06
    mdhd_Duration : 48632
    Codec configuration box : avcC

    Weirdly MP4 doesn't seem to be 3D at all, even though PowerDirector claims to support MP4 MVC.
    Edit: it is 3D, editing it in PD shows so.

    Originally Posted by Ennio View Post
    As for Full SBS (and Full T&B for that matter), to my knowledge these types do require 4K capable 3D players. As a first question, is your player 4K capable?
    It's a Real Vision 4K which is indeed 4K capable, but it just plays the file as a 3840x1080 video. I can force it to SBS 3D, but it assumes half SBS, so it looks crushed.
    Last edited by Ingane; 13th Nov 2022 at 19:41.
    Quote Quote
  6. Member Ennio's Avatar
    Join Date
    May 2005
    Location
    Netherlands
    Search Comp PM
    There's some things standing out when seeing the infos you posted.

    The videos from the m2ts and mp4 render show variable framerate. This strikes me as odd, but it can be a MediaInfo misinterpretation due to some wrong timestamps, often at the start of the stream. Which nevertheless could point to a (minor) flaw in PowerDirector.

    To my knowledge, MakeMKV only accepts AVC+MVC streams when they are either interleaved into one track when in mkv. Or, when they each are contained in their own m2ts when authored in BD folder structure.

    As for the "BD Folder render", the videoproperties themselves look compliant for AVC+MVC. However, PowerDirector interleaved the two streams in one same 00000.m2ts. Which is not the BD specific way of authoring 3D. As mentioned earlier, 3DBD has each stream held in separate m2ts containers.
    Nonetheless, also because both framerates seem proper, this BD folder render would be my first choice to furtherly process. Did you actually import that result in MakeMKV and try to mux a proper mkv? If so but it didn't work, can you post what error MakeMKV throws or a screenshot of what it says is/went wrong?

    [EDIT] I forgot to ask. Can PowerDirector put AVC+MVC out as mkv? If so, could you post MediaInfo of it?
    Last edited by Ennio; 14th Nov 2022 at 08:17.
    Quote Quote
  7. Originally Posted by Ennio View Post
    Nonetheless, also because both framerates seem proper, this BD folder render would be my first choice to furtherly process. Did you actually import that result in MakeMKV and try to mux a proper mkv? If so but it didn't work, can you post what error MakeMKV throws or a screenshot of what it says is/went wrong?
    I tried both the DB folder and an ISO, same result:

    MakeMKV v1.17.2 win(x64-release) started
    Using direct disc access mode
    AACS directory not present, assuming unencrypted disc
    The source file '00001.clpi' is corrupt or invalid at offset #1100, attempting to work around
    Title #01200.mpls was skipped
    Title #00000.m2ts was skipped
    Title #00001.m2ts was skipped
    Failed to open disc

    00000.m2ts is the menu video, 00001.m2ts is the "movie" file:

    General
    ID : 0 (0x0)
    Complete name : \My Video\BDMV\STREAM\00001.m2ts
    Format : BDAV
    Format/Info : Blu-ray Video
    File size : 79.0 MiB
    Duration : 28 s 465 ms
    Overall bit rate mode : Variable
    Overall bit rate : 23.3 Mb/s
    Maximum Overall bit rate : 27.5 Mb/s

    Video #1
    ID : 4113 (0x1011)
    Menu ID : 1 (0x1)
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : High@L4
    Format settings : CABAC / 2 Ref Frames
    Format settings, CABAC : Yes
    Format settings, Reference frames : 2 frames
    Format settings, GOP : M=3, N=16
    Codec ID : 27
    Duration : 28 s 278 ms
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate : 23.976 (24000/1001) FPS
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive

    Video #2
    ID : 4114 (0x1012)
    Menu ID : 1 (0x1)
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : Stereo High@L4
    MultiView_Count : 2
    Format settings : CABAC / 2 Ref Frames
    Format settings, CABAC : Yes
    Format settings, Reference frames : 2 frames
    Codec ID : 32
    Duration : 28 s 278 ms
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate : 23.976 (24000/1001) FPS
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive

    Audio
    ID : 4352 (0x1100)
    Menu ID : 1 (0x1)
    Format : AC-3
    Format/Info : Audio Coding 3
    Commercial name : Dolby Digital
    Codec ID : 129
    Duration : 28 s 320 ms
    Bit rate mode : Constant
    Bit rate : 256 kb/s
    Channel(s) : 2 channels
    Channel layout : L R
    Sampling rate : 48.0 kHz
    Frame rate : 31.250 FPS (1536 SPF)
    Compression mode : Lossy
    Delay relative to video : 22 ms
    Stream size : 885 KiB (1%)
    Service kind : Complete Main

    It's pretty short so I don't waste hours rendering the full movie every time, I assume that shouldn't matter.

    Originally Posted by Ennio View Post
    [EDIT] I forgot to ask. Can PowerDirector put AVC+MVC out as mkv? If so, could you post MediaInfo of it?
    It cannot.
    Last edited by Ingane; 14th Nov 2022 at 08:44.
    Quote Quote
  8. Member Ennio's Avatar
    Join Date
    May 2005
    Location
    Netherlands
    Search Comp PM
    Originally Posted by Ingane View Post
    It's pretty short so I don't waste hours rendering the full movie every time, I assume that shouldn't matter.
    As for functionality, it usually doesn't matter.
    However in this case videoruntime is about 28 seconds, which could be too short for MakeMKV's default minimum title length. Which default is 2 minutes.
    You may want to check by either decreasing MakeMKV's minimum title length setting, or - maybe better - render a some longer BD folder structure. If you're lucky, MakeMKV has succesfully performed the mentioned workaround but has skipped the title simply on runtime being too short.
    Quote Quote
  9. Originally Posted by Ennio View Post
    Originally Posted by Ingane View Post
    It's pretty short so I don't waste hours rendering the full movie every time, I assume that shouldn't matter.
    As for functionality, it usually doesn't matter.
    However in this case videoruntime is about 28 seconds, which could be too short for MakeMKV's default minimum title length. Which default is 2 minutes.
    You may want to check by either decreasing MakeMKV's minimum title length setting, or - maybe better - render a some longer BD folder structure. If you're lucky, MakeMKV has succesfully performed the mentioned workaround but has skipped the title simply on runtime being too short.
    I forgot to say that I did indeed lower the cutoff before making that post, and it made no difference, MakeMKV still skipped the files. Just in case I tried making another disc image with a 3 minute video, and got the same result.

    MakeMKV v1.17.2 win(x64-release) started
    Using direct disc access mode
    AACS directory not present, assuming unencrypted disc
    The source file '00001.clpi' is corrupt or invalid at offset #1100, attempting to work around
    Title #01200.mpls was skipped
    Title #00000.m2ts was skipped
    Title #00001.m2ts was skipped
    Failed to open disc
    Quote Quote
  10. Member Ennio's Avatar
    Join Date
    May 2005
    Location
    Netherlands
    Search Comp PM
    I can't think of any more options for handling PowerDirector mvc outputs. Hopefully other forum members can be of service.
    IIRC the MakeMKV problem with tsMuxer ISO was recently mentioned again somewhere on VH. For years the issue has been mentioned and maybe it needs the two dev camps having a joint look at it.

    Maybe you can get your player to properly playback Full-SBS. Where you may need to consult on specific player's owner forums. Some players rely on filenaming convention or even filename extension to trigger certain types of 3D playback. Also the value of mkv's stereo mode header can be at play. At least these are some things you can try.
    Quote Quote
  11. Member Ennio's Avatar
    Join Date
    May 2005
    Location
    Netherlands
    Search Comp PM
    I just came across something. Haven't tried myself though. If you can demux Powerdirector output to elementary AVC and MVC streams, it's maybe worth to try CombineMVC. Read here:

    https://forum.videohelp.com/threads/395498-BD3D2MK3D-Convert-3D-BDs-or-MKV-to-3D-SBS-T...11#post2672581
    Quote Quote
  12. Originally Posted by Ennio View Post
    CombineMVC.
    Many thanks for that. It's not a perfect solution, I would certainly prefer to not have to re-encode the files twice, but it does actually work, unlike everything else so far.
    So my current workflow is render Full SBS with PowerDirector, render MVC with BDRebuilder, wait for BDR to fail building (due to a bug I've reported), combine the output from BDR with CombineMVC, then muxing with MKVToolnixGUI. The resulting MKV file plays as intended on my Dune HD. I didn't notice any of the mentioned sync issues, though I only tried on a fairly short file.

    This may be the best way forward short of travelling to New Zealand and forcing Peter Jackson to release the remastered movies in 3D.

    Edit: I was able to use TSMuxer to Demux the MP4 file from PowerDirector, so I can eliminate BDRebuilder from the above workflow.
    Last edited by Ingane; 15th Nov 2022 at 08:23.
    Quote Quote
  13. Member Ennio's Avatar
    Join Date
    May 2005
    Location
    Netherlands
    Search Comp PM
    Originally Posted by Ingane View Post
    I would certainly prefer to not have to re-encode the files twice...
    why encoding twice and using BDRebuilder? Correct me if I'm seeing things wrong, but the initial AVC+MVC encode in PowerDirector appears to me as the only one required. After which you demux PowerDirector's output into separate AVC and MVC streams. Which two on their turn you'd import in CombineMVC to interleave them into one stream. MKVToolNix should accept this result for final mkv mux.
    Last edited by Ennio; 15th Nov 2022 at 08:38.
    Quote Quote
  14. Originally Posted by Ennio View Post
    Originally Posted by Ingane View Post
    I would certainly prefer to not have to re-encode the files twice...
    why encoding twice and using BDRebuilder? Correct me if I'm seeing things wrong, but the initial encode in PowerDirector appears to me as the only one required. After which you demux PowerDirector's output into separate AVC and MVC streams. Which two on their turn you'd import in CombineMVC to interleave them into one stream. MKVToolNix should accept this result for final mkv mux.
    Yes, per my edit I realised BDR is unnecessary. It feels great to finally have a solution after a week of trying.
    Quote Quote
  15. Member Ennio's Avatar
    Join Date
    May 2005
    Location
    Netherlands
    Search Comp PM
    Well, maybe you wanna hold the cigar until you did the full movie and all works well on your player. What a coincidence r0lZ mentioned that tool.
    I reckon you use tsMuxer to demux PowerDirector's MVC BD folder output?
    Quote Quote
  16. Originally Posted by Ennio View Post
    Well, maybe you wanna hold the cigar until you did the full movie and all works well on your player. What a coincidence r0lZ mentioned that tool.
    I reckon you use tsMuxer to demux PowerDirector's MVC BD folder output?
    No, I used the MP4 MVC output. I tried the BD output but the M2TS file only showed one video track in tsMuxer.
    Quote Quote
  17. Member Ennio's Avatar
    Join Date
    May 2005
    Location
    Netherlands
    Search Comp PM
    Yes, I just read your edit more carefully.

    As for the variabable framerate in MP4 mentioned by MediaInfo, chances are this concerns some wrong container timestamps. Which will dissolve when extracting the elementary streams.

    Should you nonetheless encounter problems, you may want to try instead with PowerDirector's MVC BD folder output. Where you can import each m2ts in two instances of tsMuxer and demux.

    Let it know if all has worked out ok and your player plays good on it.
    Last edited by Ennio; 15th Nov 2022 at 09:09.
    Quote Quote
  18. Originally Posted by Ennio View Post
    Well, maybe you wanna hold the cigar
    Seems so. I rendered to MVC MP4, and tsMuxer can't open the file. When I try, I get an empty error message. I will try to render as disc now.
    Click image for larger version

Name:	TU7JtAx.png
Views:	5
Size:	8.0 KB
ID:	67663

    Edit: looking at the videos, I have concluded that PowerDirector is not a good way of doing this, as the video quality is noticeably worse. I need to find a way to only re-encode a few seconds and keep the rest untouched.
    Last edited by Ingane; 15th Nov 2022 at 23:21.
    Quote Quote
  19. Member Ennio's Avatar
    Join Date
    May 2005
    Location
    Netherlands
    Search Comp PM
    Sorry to hear. I suppose you've checked on exports quality settings?
    I agree smart rendering is the way to go, but I don't know of any software that will do this on mvc 3D.


    [EDIT] Reading back, I have to correct myself on something. For what it's still worth...

    Originally Posted by Ennio View Post
    ...you may want to try instead with PowerDirector's MVC BD folder output. Where you can import each m2ts in two instances of tsMuxer and demux.
    Here I totally overlooked the fact that PowerDirector BD output has both streams in one m2ts. So the "two instances" don't make sense. Sorry for any confusion.

    Originally Posted by Ingane View Post
    I tried the BD output but the M2TS file only showed one video track in tsMuxer.
    Have you actually tried to demux it? Note that tsMuxer is able to demux into separate AVC and MVC when they are interleaved in mkv. Not showing two streams in the list for m2ts (where they do show with mkv, btw) may be an innocent flaw. Possibly tsMuxer isn't programmed to parse/recognize AVC+MVC for m2ts. Where chances are that it will demux properly.
    Last edited by Ennio; 16th Nov 2022 at 04:43.
    Quote Quote



Similar Threads
