    Why is this video so strangely described (bold), what's the point?

    MPC recognizes this as Full / BT.601. Correctly?


    Video
    ID : 1
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : Baseline@L4.1
    Format settings : 1 Ref Frames
    Format settings, CABAC : No
    Format settings, Reference frames : 1 frame
    Format settings, GOP : M=1, N=30
    Codec ID : avc1
    Codec ID/Info : Advanced Video Coding
    Duration : 27 s 978 ms
    Source duration : 27 s 959 ms
    Bit rate : 21.9 Mb/s
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Variable
    Frame rate : 29.543 FPS
    Minimum frame rate : 10.004 FPS
    Maximum frame rate : 30.303 FPS
    Real frame rate : 30.000 FPS
    Standard : NTSC
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive
    Bits/(Pixel*Frame) : 0.357
    Stream size : 73.0 MiB (99%)
    Source stream size : 73.0 MiB (99%)
    Title : VideoHandle
    Language : English
    Encoded date : UTC 2022-07-15 11:53:09
    Tagged date : UTC 2022-07-15 11:53:09
    Color range : Limited
    colour_range_Original : Full
    Color primaries : BT.709
    colour_primaries_Original : BT.601 NTSC
    Transfer characteristics : BT.709
    transfer_characteristics_Original : BT.601
    Matrix coefficients : BT.709
    matrix_coefficients_Original : BT.601
    mdhd_Duration : 27978
    Codec configuration box : avcC
    Quote Quote
  2. MPC recognizes this as Full / BT.601. Correctly?
    No, it's BT.709, limited.

    Color range : Limited
    colour_range_Original : Full
    Color primaries : BT.709
    colour_primaries_Original : BT.601 NTSC
    Transfer characteristics : BT.709
    transfer_characteristics_Original : BT.601
    Matrix coefficients : BT.709
    matrix_coefficients_Original : BT.601
    The video analyzed is BT.709, color range limited (probably resized), but was encoded from source BT.601, color range full.
    Last edited by ProWo; 27th Sep 2022 at 10:59.
    Quote Quote
  3. _Original = flags of the stream
    without the _Original = flags of the container
    -> remuxing without the container flags should help.
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  4. Member
    Join Date
    Aug 2018
    Location
    Wrocław
    Search PM
    Originally Posted by ProWo View Post
    MPC recognizes this as Full / BT.601. Correctly?
    No, it's BT.709, limited.

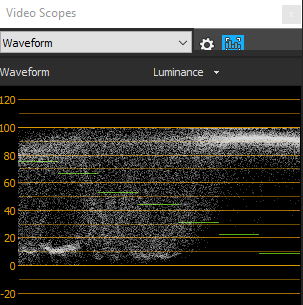

    It is definitely not limited, because Vegas also recognized it as full (see attachment).

    Color range : Limited
    colour_range_Original : Full
    Color primaries : BT.709
    colour_primaries_Original : BT.601 NTSC
    Transfer characteristics : BT.709
    transfer_characteristics_Original : BT.601
    Matrix coefficients : BT.709
    matrix_coefficients_Original : BT.601
    The video analyzed is BT.709, color range limited (probably resized), but was encoded from source BT.601, color range full.
    This is a video file from my phone.
    Image Attached Images
    Last edited by rgr; 27th Sep 2022 at 16:52.
    Quote Quote
  5. Member
    Join Date
    Aug 2018
    Location
    Wrocław
    Search PM
    Originally Posted by Selur View Post
    _Original = flags of the stream
    without the _Original = flags of the container
    -> remuxing without the container flags should help.
    Thanks, got it.
    The ffmpeg copy streams helped.
    Quote Quote
  6. Originally Posted by rgr View Post
    Originally Posted by Selur View Post
    _Original = flags of the stream
    without the _Original = flags of the container
    -> remuxing without the container flags should help.
    Thanks, got it.
    The ffmpeg copy streams helped.
    Selur and you are right, my mistake, sorry.
