I was wondering if the Pioneer GGV1305 Service Disc is compatible with a Pioneer DVR-560H recorder, to replace a dying hard drive?
I gave a donation to Hkan years ago for the 1305 service disc, to upgrade the hard drive in my long gone, old DVR-543, in which the dvd burner died a few years after. I then bought the DVR-560H, which has been great up until now.
Can I use the 1305 disc to replace the hard drive in the DVR-560H, or do I need the GGV1321 disc?
I found an ISO image of the GGV1321 disc here: https://archive.org/details/pioneer-ggv-1321-type-2
I do not think it is a working copy though, because it is readable in my pc dvd player. It shows a bunch of .BIN folders. (unless I did not burn it right, I used ISOburn to burn the disc, finalized) This disc should not be readable in a pc, should it??
If I cannot use the 1305 disc, where can I get a good copy of the GGV1321 disc? Can Hkan still be contacted somehow, for info, or a possible download link?
Any information would be greatly appreciated. Thanks!
+ Reply to Thread
Results 1 to 9 of 9
Nobody knows ??
Possibly, but unknown for sure.

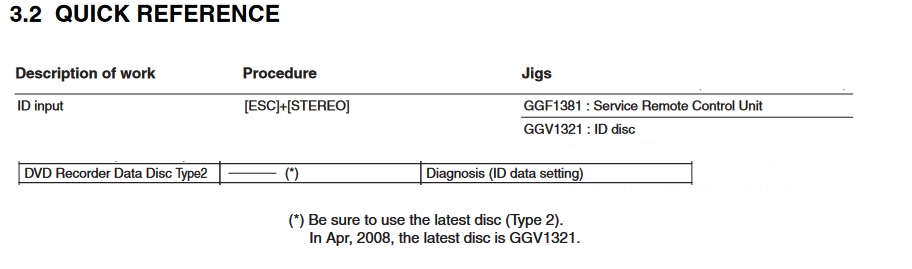

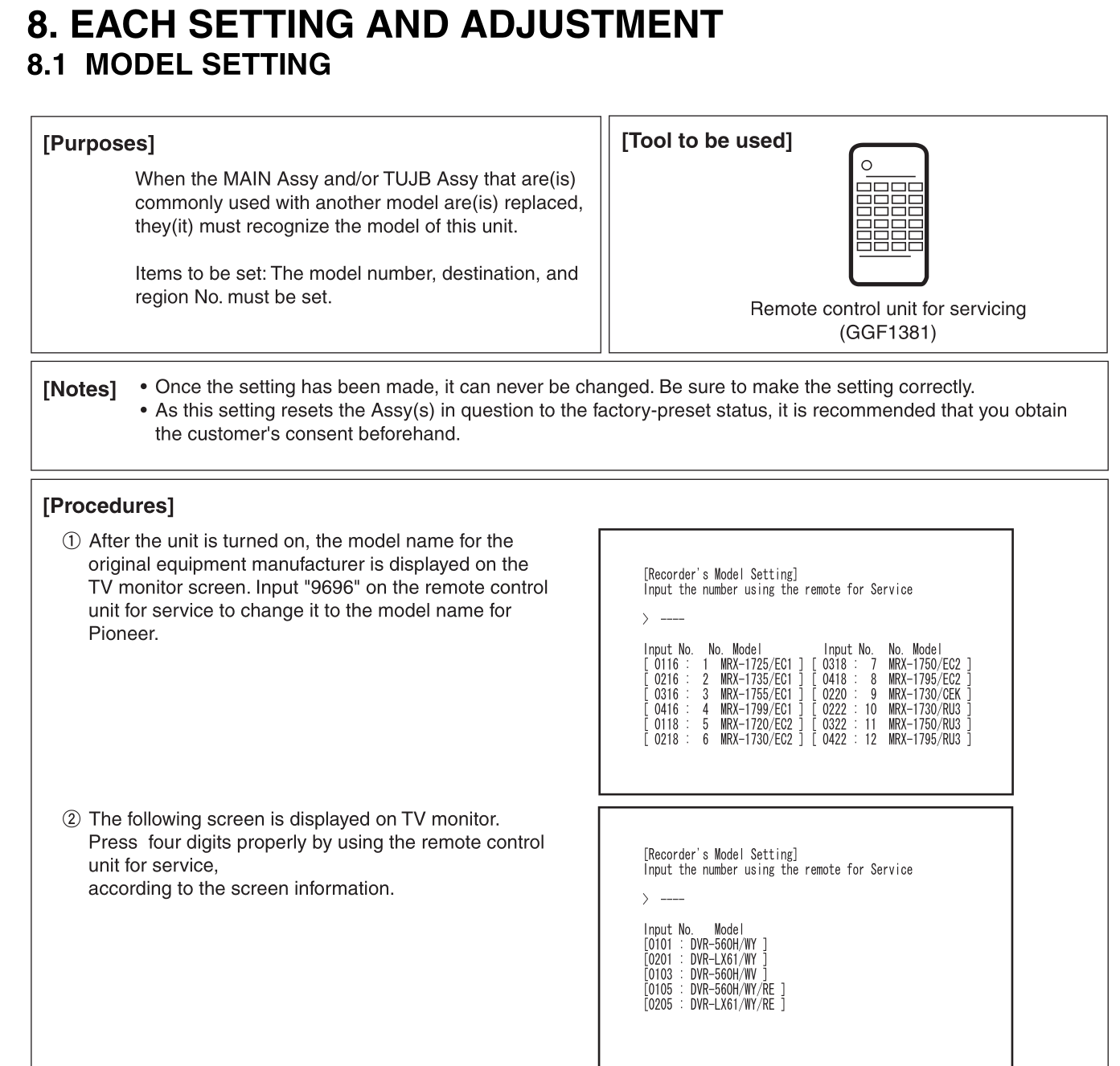

The Service Manual for the UK/Euro models
The x60 series all came out in 2008, both in UK/Euro and Canada.

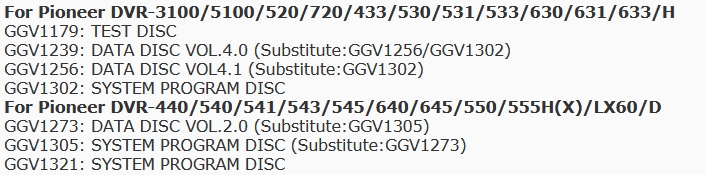

The last comprehensive ID data disc listing show the GGV1305 was a preceeding disc that covered earlier models.
The "list" is from an "English" adjacent language speaker.. so the use of the term "Substitute" is open to interpretation.. it might mean its a Substitute "for" a previous disc.. or an indirect reference to when Pioneer and Onkyo stereo systems were being serviced by the same shops.
The System Programming discs appeared to be released in "Epochs" over time to cover a "Tools / Jigs" release schedule.. which was not exactly linear. Some might be released in parallel, so there was some over lap.
Someone, a long time ago, started referring to the DVRs in groups, called "Type1" or "Type2" and referring to the ID Discs as members of the "Type1" or "Type2" discs.
The last ID disc I'm aware of is the GGV1321
Last edited by jwillis84; 21st Sep 2022 at 03:21.
Thanks for the replies.
Looks like I need the 1321 disc. Anybody know if the link in my first post for the GGV1321 disc is a good, working copy?
There is an ISO file for the GGV1321 disc, and a Torrent file there also.
I downloaded the ISO file, and burned it with "ISOburn", but the disc is readable in my PC's dvd drive. I read somewhere that if the disc can be read on a PC drive, that the copy is no good, and should NOT be readable in a PC.
So, is this ISO download link for the disc no good, or am I burning it wrong?
The DVR-420 is a "very" old model, the middle digit represents the year of issue.
So the 420 is four years or generations older than a 560
The GGV ID discs Hkan used to make available often came as Nero .nrg files not .iso files, but by the time of GGV1321 he was allowing them to be downloaded as .iso files and recommending burning those with Imgburn or iso recorder.
I think its a matter of "size" the GGV1321 .iso file is 1.6 GB in size that will not fit on even the largest CD-R so it has to be a DVD.
Also over time the DVD drive in these recorders varied in the media they preferred or would read. DVD-RW versus DVD+RW or DVD-R versus DVD+R
I "believe" the preferred media is/was up until the end DVD-R media.
Occasionally you could get DVD-RW media to work in certain models, but not all. A weak laser could also sabotage the ability to read any media.
DVD+RW "in theory" is better.. since it had registration tracks on the disc.. but came so late in the game almost no one had a DVD drive that could read it, other than HP and a handful of oem's Outside computers DVD+RW was almost never used in DVD recorders.
So your best option is a handful of DVD-R media.
I say a "hand full" because you only get one shot at making a DVD-R media before its used up, and because you may have to burn it a couple times to get a "good one".

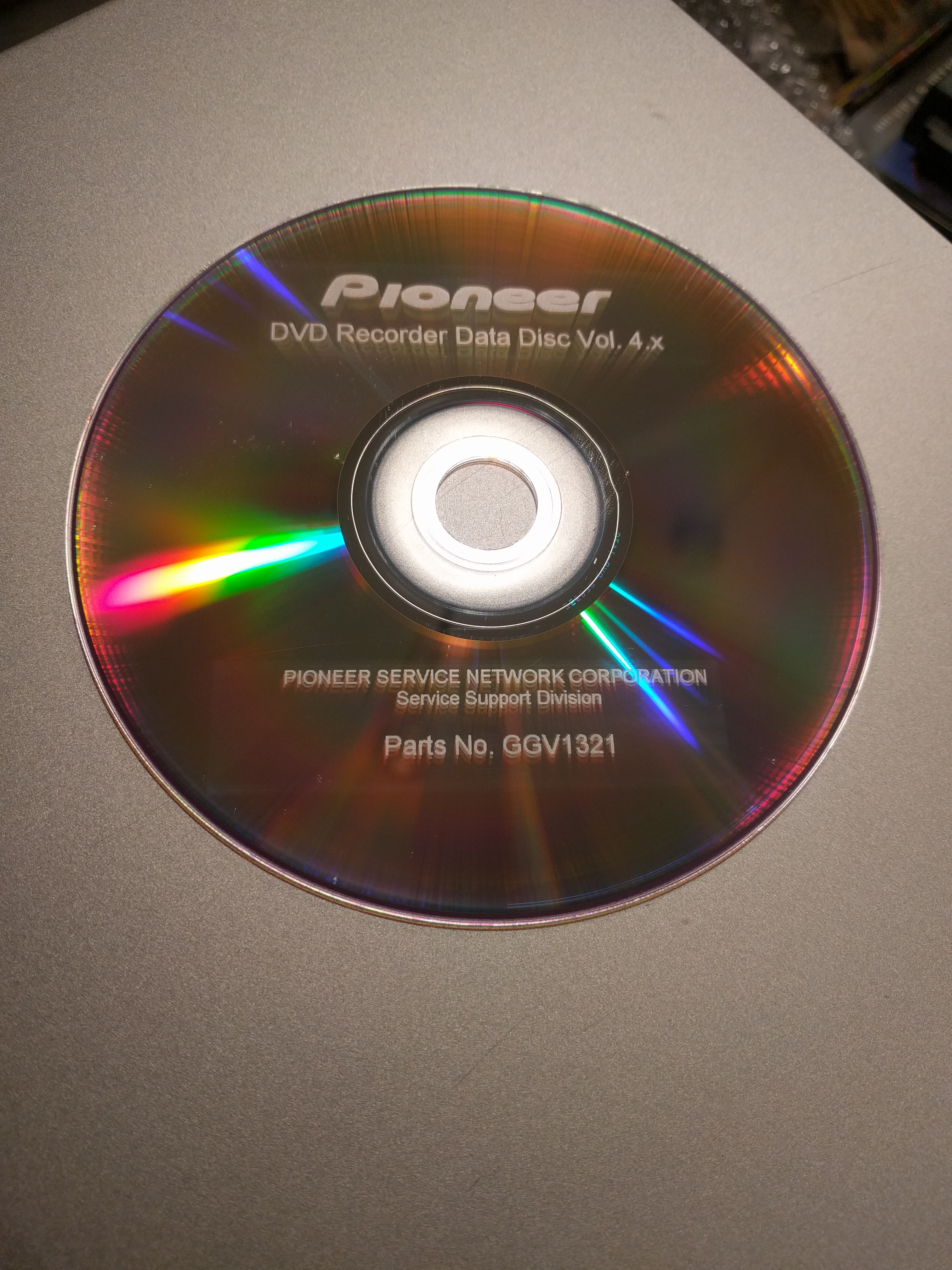

The "best" GGV1321 is a DVD-R disc you know is good from someone that has used it before in a DVD recorder to perform the procedure your trying to do.
Even better is if they used it in a DVD recorder that is the exact same model as yours.
I did mess around with making one or two at one time several years ago, five-ish ? Around 2017
I don't know if I still have this disc.
I was learning how to use a DVD label printer at the time
Last edited by jwillis84; 22nd Sep 2022 at 20:44.
I did check the md5sum on the page from archive org that you provided in the original message post.
It did match the one I got years ago, and that worked for me in a Pioneer DVD recorder.
If you get that image and run an md5 checksum tool on it and the checksum matches, there is a fair chance that it will work.
