Hi, i am using Vegas Pro 17 to edit videos, and i need to import .ass subtitles over them, but vegas pro doesnt support .ass subtitles. So i though i could prerender the ass subtitles as .png image sequence and then import it in vegas and overlay it. I have Subtitle Edit, and i found that it can export subtitles to .png, but it exports each line as 1 png and adds the lenght of the png into .xml file (which again the vegas doesnt support)
Is there a way to prerender it into sequence that has the correct lenght and framerate? (for example if 1 subtitle line lasts 1 second, its gonna export the line to 24 pngs (if the video is 24fps))
+ Reply to Thread
Results 1 to 7 of 7
Try rendering them in front of a green screen

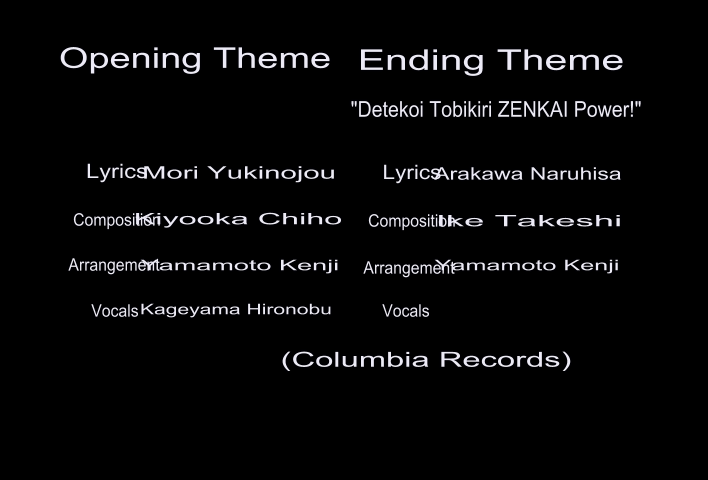

Converting to SRT may lose much of the formatting of ASS subs. You could use ffmpeg to create a black video with the ASS subs. Then use that video as an overlay (and alpha channel?) in Vegas.
ffmpeg -y -f lavfi -i color=c=black:s=720x480:r=29.94 -vf ass=subs.ass -to 00:02:00.000 -preset ultrafast subs.mp4
[Attachment 66407 - Click to enlarge]
Yes, if the .ass is more than plain text (ie. colors, fonts, effects/ karaoke,formatting etc...) , then a .srt conversion will lose all those .
Another option to render an .ass properly is using an alpha channel mask (essentially a "transparent video") using masksub in avisynth using one of the vsfilter derivatives . Most of them (or all of them) require adding FlipVertical() to the end of the script. In the link below there is an example that uses the clip properties to automatically fill in the width,height, length, fps. You would use an appropriate source filter - eg. if you had MKV, you would use LWLibavVideoSource or FFVideoSource
You can encode a video using lagarith or utvideo in RGBA mode using vdub2 or ffmpeg (or anything that accepts avs scripts) - so as a video that preserves the framecount , fps and timing . You may have to interpret the alpha channel in the vegas media bin (instead of "none") . Or you can use avfs - a "virtual" file instead of encoding something. But if you have a large project, massive number of edits, a "physical" intermediate can perform better
Install AviSynth and download VSFilter.
Make a very simple AviSynth script that looks like this:
MaskSub("C:\Subtitles.ass", video_width, video_height, fps, movie_length_in_frames) Flipvertical()
Use that AviSynth script as a video source in Vegas. May have to tell Vegas it has an alpha channel.
