AmarecTV recorded video won't play

[boolian2]

Trying to use AmarecTV instead of OBS. When I try to open an AmarecTV video with MPC, it says something about the "pins" in the "graph". I installed the AMV video codec.

[davexnet]

Trying to use AmarecTV instead of OBS. When I try to open an AmarecTV video with MPC, it says something about the "pins" in the "graph". I installed the AMV video codec.

Investigate the video/audio properties by opening the file in mediainfo. Put it in text view to see the details and post the info here
if you need further assiatance

[boolian2]

Trying to use AmarecTV instead of OBS. When I try to open an AmarecTV video with MPC, it says something about the "pins" in the "graph". I installed the AMV video codec.

Investigate the video/audio properties by opening the file in mediainfo. Put it in text view to see the details and post the info here
if you need further assiatance

General
Complete name : D:\amarectv310\amarec(20220621-1645).avi
Format : AVI
Format/Info : Audio Video Interleave
File size : 236 MiB
Duration : 33 s 633 ms
Overall bit rate : 58.8 Mb/s

Video
ID : 0
Format : AMV4
Codec ID : AMV4
Duration : 33 s 633 ms
Bit rate : 55.0 Mb/s
Width : 720 pixels
Height : 480 pixels
Display aspect ratio : 3:2
Frame rate : 30.000 FPS
Bits/(Pixel*Frame) : 5.302
Stream size : 220 MiB (93%)

Audio
ID : 1
Format : PCM
Format settings : Little / Signed
Codec ID : 1
Duration : 33 s 633 ms
Bit rate mode : Constant
Bit rate : 1 536 kb/s
Channel(s) : 2 channels
Sampling rate : 48.0 kHz
Bit depth : 16 bits
Stream size : 6.16 MiB (3%)
Alignment : Aligned on interleaves

[davexnet]

video codec=AMV4. This is Amarec's prorietary codec which they charge for.
Switch to a common codec such as Lagarith, HuffyUV or UT Codec

[boolian2]

video codec=AMV4. This is Amarec's prorietary codec which they charge for.
Switch to a common codec such as Lagarith, HuffyUV or UT Codec

Ok thanks that worked

[davexnet]

Lagarith @ 4.2.2 chroma, seems good. Does your device deinterlace on the fly?

Are you able to select 29.97 as the frame rate? THis would be more accurate for VHS.

[boolian2]

Lagarith @ 4.2.2 chroma, seems good. Does your device deinterlace on the fly?

Are you able to select 29.97 as the frame rate? THis would be more accurate for VHS.

Yes I think my Startech S-Video/Composite to HDMI Converter automatically deinterlaces. https://www.startech.com/en-us/audio-video-products/vid2hdcon2

I'm using the Startech with https://www.avermedia.com/us/product-detail/BU110

I set Amarec to 29.97, but mediainfo still says 30.00.

General
Format : AVI
Format/Info : Audio Video Interleave
File size : 219 MiB
Duration : 36 s 200 ms
Overall bit rate : 50.8 Mb/s

Video
ID : 0
Format : Lagarith
Codec ID : LAGS
Duration : 36 s 167 ms
Bit rate : 47.3 Mb/s
Width : 720 pixels
Height : 480 pixels
Display aspect ratio : 3:2
Frame rate : 30.000 FPS
Bits/(Pixel*Frame) : 4.558
Stream size : 204 MiB (93%)

Audio
ID : 1
Format : PCM
Format settings : Little / Signed
Codec ID : 1
Duration : 36 s 200 ms
Bit rate mode : Constant
Bit rate : 1 536 kb/s
Channel(s) : 2 channels
Sampling rate : 48.0 kHz
Bit depth : 16 bits
Stream size : 6.63 MiB (3%)
Alignment : Aligned on interleaves

[jagabo]

Yes, that video has been deinterlaced somewhere along the line. Along with the deinterlacing artifacts it has a duplicate frame every 5th frame.

[boolian2]

Yes, that video has been deinterlaced somewhere along the line. Along with the deinterlacing artifacts it has a duplicate frame every 5th frame.

How can you tell?

[davexnet]

Yes, that video has been deinterlaced somewhere along the line. Along with the deinterlacing artifacts it has a duplicate frame every 5th frame.

How can you tell?

Open it in virtualdub2, find a place with movement, and use the right arrow key to advance it frame by frame. You'll soon see it

[boolian2]

Yes, that video has been deinterlaced somewhere along the line. Along with the deinterlacing artifacts it has a duplicate frame every 5th frame.

How can you tell?

Open it in virtualdub2, find a place with movement, and use the right arrow key to advance it frame by frame. You'll soon see it

Ok I see the duplication every 5 frames. But how can you tell it's been deinterlaced?

[davexnet]

Yes, that video has been deinterlaced somewhere along the line. Along with the deinterlacing artifacts it has a duplicate frame every 5th frame.

How can you tell?

Open it in virtualdub2, find a place with movement, and use the right arrow key to advance it frame by frame. You'll soon see it

Ok I see the duplication every 5 frames. But how can you tell it's been deinterlaced?

<snip> You can easily run decimate and re-encode it back to 24

[jagabo]

Ok I see the duplication every 5 frames. But how can you tell it's been deinterlaced?

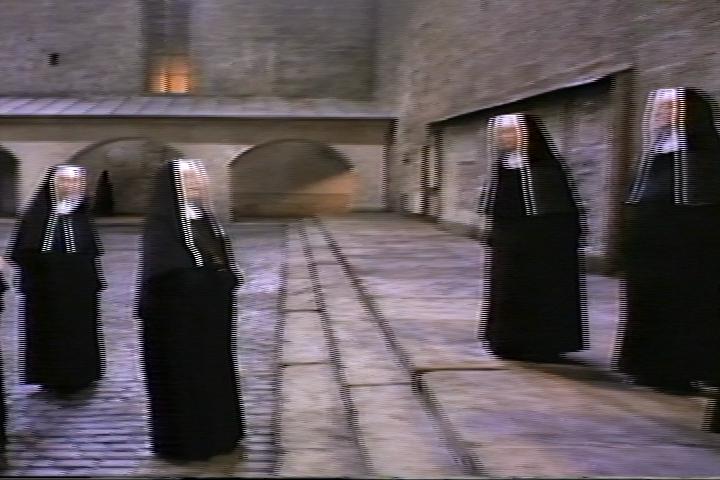

With VirtualDub you would see combing during motion. Something like this:


[Attachment 65549 - Click to enlarge]

[lollo]

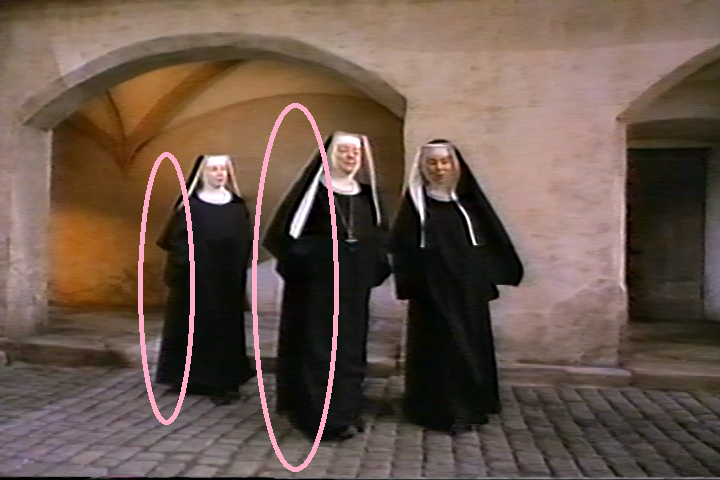

boolian2, remove any sharpening in the player or in the capture card, to avoid the halos:


[Attachment 65553 - Click to enlarge]

when you'll have your new GV-USB card, capture 4:2:2, losslees, interlaced; you will deinterlace later in postprocessing if needed

[TimA-C]

I find I get more repeatable results by setting up a preset in AmarecTV and using that rather than making changes in the Config section. (Hauppauge USB Live2, Win10 Home)

[Sharc]

@boolian2: Didn't you already capture this clip correctly as 29.97 telecined in your other thread, using AmarecTV? Just IVTC it.
https://forum.videohelp.com/threads/406142-I-o-DATA-GV-USB2-default-settings-sample
This source should be IVTCed rather than deinterlaced because there is nothing to be deinterlaced. Just field match and decimate.
Maybe I am missing something ... ?
