  1. Hello, I've been using a S-VHS JVC player to output these results:
    Unprocessed Original audio = named "1audio.wav" at the bottom of the post
    Filtered audio (post-capture) = named "1filteredaudio.wav" at the bottom of the post
    I also included the video-file, split into 3 parts: 1.avsnittPart1.avi etc. with the original audio, and 1.avsnittPart1Filtered.mkv etc. with filtered audio (post-capture)

    The original stats of the current video file attached in here is the one at the right side:

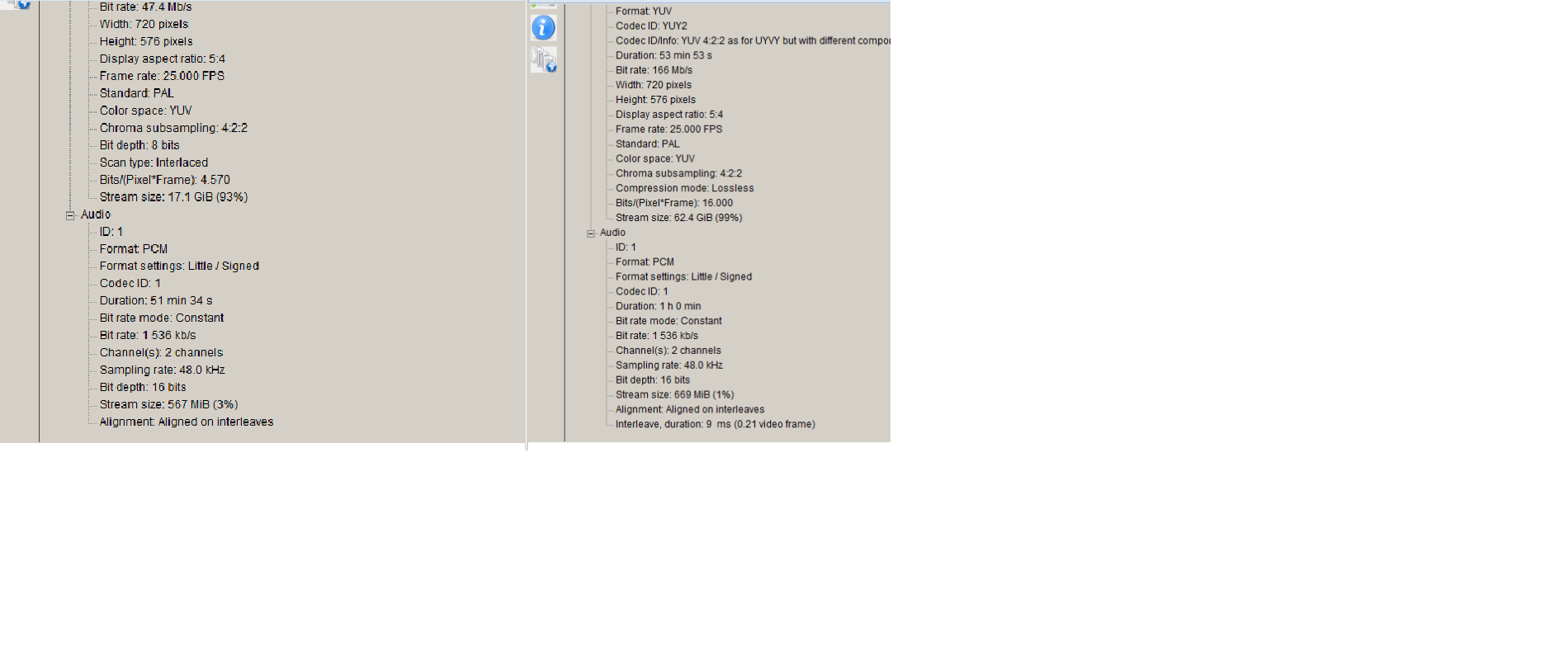

    [Attachment 65355 - Click to enlarge]

    Btw (perhaps I should start another thread for this), but is it okay to have a 5:4 display aspect ratio instead of the conventional 4:3 for PAL vhs tapes?

    Is there something I could have done to help clean up the background noise during the capture process of the VHS-tape in the first place (i.e. before applying noise reduction filters)? Like:
    Cleaning the S-VHS recorder's lense with a Q-tip dipped in alcohol?
    Making further VCR software or PC software tweaks
    Or get another S-VHS-recorder altogether?
    I don't think it's worth the risk to do anything with the tape itself. Perhaps it was just this tape that was a bit more worn out than my other tapes?

    Adding a clip for reference = called "Reference clip from another tape avsnitt2.avi" at the bottom of the post, is from another tape was captured during the same week as the video above (so I'm not looking to make any approvements to this clip, but only to the one at the top of the message).
    Here, the background noise is noticable as well, so it maybe it has something to do with the condition of the VCR itself. Do you think the level of background noise is reasonable?
    Image Attached Files
    Last edited by Desve; 14th Jun 2022 at 09:12. Reason: added files to the site and removed youtube links
    Quote Quote
  2. Originally Posted by Desve View Post
    Hello, I've been using a S-VHS JVC player to output these results:
    Original video https://www.youtube.com/watch?v=WarWCJRc66I
    Filtered video (post-capture) https://www.youtube.com/watch?v=MES4qAYBE2s
    Youtube is useless for any serious analysis because everything is re-encoded with very poor settings. You should upload your samples directly to this site (up to 500 MB per file is accepted). Or use a file transfer service.

    Originally Posted by Desve View Post
    is it okay to have a 5:4 display aspect ratio instead of the conventional 4:3 for PAL vhs tapes?
    OK for what? For your personal use -- if you don't care -- it's fine. But it's wrong.
    Quote Quote
  3. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    Coming out of your S-VHS deck is standard analog PAL video, which, barring the rare exception of specialty tapes with 16:9 WSS, will ALWAYS be 720x576 @ 25i at 4:3 DAR, WHEN DIGITIZED PROPERLY . Sometimes the full 720 width is included in the AR, sometimes only 702 or 704, with pillarbox padding added (though that doesn't really change much overall).
    Whatever setup you have going on, either the equipment is faulty, your settings are wrong, or you have done some post-processing that wasn't fully aware of the (hopefully) existing non-square pixel/sample aspect ratio, and then changed it to show as square pixel. Or a combination of these. My guess is the post-processing, but evidently lots of these el cheapo ez-crap devices don't output with correct AR, so who knows. We would need much further details.

    Regardless, this would be showing an image which may or may not be bothersome in its mishapen-ness. That's for only you to decide (I personally would never allow that).

    ******************

    There are a number of questions about your capture signal chain that might be affecting this, or it could be that is what your output truly looks like directly from the deck to an analog monitor - too early to tell. However, what I see appears to have a number of issues, with background/deck playback noise being one of the least of them. Btw, most better SVHS decks have some form of dropout compensation noise reduction built-in. Perhaps yours is turned off?

    As jagabo mentioned, critical analysis cannot be done through low quality YouTube intermediates, nor can much be done without understanding the full provenance/process, in detail.


    Scott
    Quote Quote
  4. The black level looks to be a little too high and the white level way too low. But that could just be those shots. We need to see a wider variety of shots to say for sure (look for the darkest darks and brightest brights). I'm guessing the levels should be more like:

    original, adjusted:
    [Attachment 65378 - Click to enlarge]
    Last edited by jagabo; 13th Jun 2022 at 22:48.
    Quote Quote
  5. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    If the audio is coming from the normal mono linear track the level of noise is expected to be about right, However the audio level cannot be judged from youtube, you will have to upload a sample from the raw capture file or note the dB meter after the ADC during capturing if the capture software provides it, anything from -15dB to 0db is acceptable, ideally -10dB to -5dB.
    Quote Quote
  6. Originally Posted by dellsam34 View Post
    If the audio is coming from the normal mono linear track the level of noise is expected to be about right, However the audio level cannot be judged from youtube, you will have to upload a sample from the raw capture file or note the dB meter after the ADC during capturing if the capture software provides it, anything from -15dB to 0db is acceptable, ideally -10dB to -5dB.
    After re-reading his post you may be right, he may have been asking about the audio, not the video.

    For the OP: make sure you have the HiFi track selected (if any), not the linear audio track (LoFi).
    Quote Quote
  7. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    Oh, i didn't even check the audio..

    Scott
    Quote Quote
  8. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    I just assumed because it's in the audio sub forum, It doesn't hurt to give more advice than what it's needed, One thing I couldn't understand is "Cleaning the S-VHS recorder's lense with a Q-tip dipped in alcohol?"
    Quote Quote
  9. Originally Posted by Desve View Post
    Btw (perhaps I should start another thread for this), but is it okay to have a 5:4 display aspect ratio instead of the conventional 4:3 for PAL vhs tapes?
    You may want to read a somewhat disjointed wikipedia entry on the topic.
    Quote Quote
  10. Member
    Join Date
    May 2005
    Location
    Australia
    Search Comp PM
    Originally Posted by Scott
    Coming out of your S-VHS deck is standard analog PAL video, which, barring the rare exception of specialty tapes with 16:9 WSS, will ALWAYS be 720x576 @ 25i at 4:3 DAR, WHEN DIGITIZED PROPERLY . Sometimes the full 720 width is included in the AR, sometimes only 702 or 704, with pillarbox padding added (though that doesn't really change much overall).
    Whatever setup you have going on, either the equipment is faulty, your settings are wrong, or you have done some post-processing that wasn't fully aware of the (hopefully) existing non-square pixel/sample aspect ratio, and then changed it to show as square pixel. Or a combination of these. My guess is the post-processing, but evidently lots of these el cheapo ez-crap devices don't output with correct AR, so who knows. We would need much further details.
    That's odd Scott because every 720x576 VHS capture into a lossless codec eg HUFF, LAGS, Magic or uncompressed I have ever done with every gizmo I have with Virtual Dub or AmarecTV has resulted in a 5:4 Mediainfo report.

    Originally Posted by Desve
    Btw (perhaps I should start another thread for this), but is it okay to have a 5:4 display aspect ratio instead of the conventional 4:3 for PAL vhs tapes?
    No problem, when you encode it into MP4 or whatever, just set the encode ratio to 4:3.

    You can see the difference by opening one of your AVIs in Virtual Dub and right-clicking on the video then choosing 4:3. You'll see the image widen a tad to be more natural.
    Quote Quote
  11. Captures & Restoration lollo's Avatar
    Join Date
    Jul 2018
    Location
    Italy
    Search Comp PM
    That's odd Scott because every 720x576 VHS capture into a lossless codec eg HUFF, LAGS, Magic or uncompressed I have ever done with every gizmo I have with Virtual Dub or AmarecTV has resulted in a 5:4 Mediainfo report.
    Given a 720x576 capture of a captured Analog SD signal, here is how I read the numbers:

    DAR (Display Aspect Ratio) = 4:3 -> the 720x576 frame will be properly displayed by the player (i.e. VLC) at heigth * DAR x heigth = 576 * 4/3 x 576 = 768x576

    SAR (Storage Aspect Ratio) = ratio between the width and the height of the frame = 720/576 = 5/4

    PAR (Pixel Aspect Ratio) = DAR / SAR = 4/3 / 5/4 = 4/3 * 4/5 = 16/15

    Sometimes the names are mixed between them, i.e ffmpeg calls SAR what generally is defined as PAR and MediaInfo calls DAR what generally is defined as SAR
    Quote Quote
  12. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    Yes, SAR as in scripts just means Sample Aspect Ratio, the sample is the unit of sampling which is referred to as pixel in the digital domain. When you are sampling an analog signal you can't call it pixel yet so the name sample stuck I guess, But yes names are mixed up and it is confusing sometimes for a lot of people.
    Quote Quote
  13. Updated the files in the OP. I extracted the untouched audio into one single file and converted the untouched video file to .mp4.

    Without applying too much filter to the audio, what would be some of the most effective filters to use? As you can hear the background noise is less prominent in the filtered wav files, but I assume there's room for improvement
    I used a JVC S-VHS HR-S8500EH https://www.manualslib.com/products/Jvc-Hr-S8500eh-256317.html, Hauppage 610 Usb-Live 2, and VDub

    Originally Posted by Alwyn View Post
    Originally Posted by Scott
    Coming out of your S-VHS deck is standard analog PAL video, which, barring the rare exception of specialty tapes with 16:9 WSS, will ALWAYS be 720x576 @ 25i at 4:3 DAR, WHEN DIGITIZED PROPERLY . Sometimes the full 720 width is included in the AR, sometimes only 702 or 704, with pillarbox padding added (though that doesn't really change much overall).
    Whatever setup you have going on, either the equipment is faulty, your settings are wrong, or you have done some post-processing that wasn't fully aware of the (hopefully) existing non-square pixel/sample aspect ratio, and then changed it to show as square pixel. Or a combination of these. My guess is the post-processing, but evidently lots of these el cheapo ez-crap devices don't output with correct AR, so who knows. We would need much further details.
    That's odd Scott because every 720x576 VHS capture into a lossless codec eg HUFF, LAGS, Magic or uncompressed I have ever done with every gizmo I have with Virtual Dub or AmarecTV has resulted in a 5:4 Mediainfo report.

    Originally Posted by Desve
    Btw (perhaps I should start another thread for this), but is it okay to have a 5:4 display aspect ratio instead of the conventional 4:3 for PAL vhs tapes?
    No problem, when you encode it into MP4 or whatever, just set the encode ratio to 4:3.

    You can see the difference by opening one of your AVIs in Virtual Dub and right-clicking on the video then choosing 4:3. You'll see the image widen a tad to be more natural.
    That's good to know, is it common that lossless huffyuv PAL captures in Vdub output files that has a 5:4 AR? I added a video to the OP, the aspect ratio of which I have changed to 4:3 (it has only been lossy converted once from the lossless original video)

    Even if the audio is the main focus, getting tips about how to improve the video won't hurt either, even though that's a little bit of a lower priority at the moment. I also tried another workflow once, where I burned captured VHS tape signals from a VCR onto a DVD with a DVD-recorder, so I assume the video has been stabilized for that version a little bit. But it also had playback compatibility problem, if I just skipped a little bit ahead in the video or sped/slowed it down, then the audio got out of synch, until I played it from scratch again, at least that's how the files I copied/ripped to the computer acted like. The original burned DVD-disc itself played well though.


    Originally Posted by dellsam34 View Post
    I just assumed because it's in the audio sub forum, It doesn't hurt to give more advice than what it's needed, One thing I couldn't understand is "Cleaning the S-VHS recorder's lense with a Q-tip dipped in alcohol?"
    Oh I should've used other words, I just meant to clean the VCR heads, as discussed here:
    https://forum.videohelp.com/threads/234763-Best-way-to-clean-VCR-heads
    Perhaps that would decrease the levels of background noise if I were to make an attempt to digitize the tape again? Hopefully the tape's hasn't degraded in quality too much since last session


    Originally Posted by dellsam34 View Post
    If the audio is coming from the normal mono linear track the level of noise is expected to be about right, However the audio level cannot be judged from youtube, you will have to upload a sample from the raw capture file or note the dB meter after the ADC during capturing if the capture software provides it, anything from -15dB to 0db is acceptable, ideally -10dB to -5dB.
    I updated the OP with the raw files (one of them being converted though)



    Originally Posted by Cornucopia View Post
    Coming out of your S-VHS deck is standard analog PAL video, which, barring the rare exception of specialty tapes with 16:9 WSS, will ALWAYS be 720x576 @ 25i at 4:3 DAR, WHEN DIGITIZED PROPERLY . Sometimes the full 720 width is included in the AR, sometimes only 702 or 704, with pillarbox padding added (though that doesn't really change much overall).
    Whatever setup you have going on, either the equipment is faulty, your settings are wrong, or you have done some post-processing that wasn't fully aware of the (hopefully) existing non-square pixel/sample aspect ratio, and then changed it to show as square pixel. Or a combination of these. My guess is the post-processing, but evidently lots of these el cheapo ez-crap devices don't output with correct AR, so who knows. We would need much further details.

    Regardless, this would be showing an image which may or may not be bothersome in its mishapen-ness. That's for only you to decide (I personally would never allow that).

    ******************

    There are a number of questions about your capture signal chain that might be affecting this, or it could be that is what your output truly looks like directly from the deck to an analog monitor - too early to tell. However, what I see appears to have a number of issues, with background/deck playback noise being one of the least of them. Btw, most better SVHS decks have some form of dropout compensation noise reduction built-in. Perhaps yours is turned off?

    As jagabo mentioned, critical analysis cannot be done through low quality YouTube intermediates, nor can much be done without understanding the full provenance/process, in detail.


    Scott
    I used a Hauppage usb-live 610 capture device, which at the time I bought it, some years ago, were considered highly regarded

    I followed a guide on Digitalfaq and/or the one here on Videohelp (the popular one(s) that received good feedback in the comments etc) sort of thoroughly, it was a couple of years ago I digitized the tapes so I don't have it super-fresh in memory. The sample is from VDub, using PAL B or G (for region SE). I don't recall if there was any changable field that wasn't greyed-out, in Vdub once hauppage usb-live 610 had been recognized as a device and the correct PAL region had been (but not entirely sure about this) that allowed you to specify DAR and set it to 4:3 when using huffyuv codec for PAL G/B. Maybe there was, if so I have to go back and set it all up again. When Vdub detected the usb device and the right region had been selected most of it, for that part, seemed to be automatic - for example it automatically inserted 720x576. I might have to redo it all again though. Just thought I'd see how the major concensus was about the capture, the audio qulity in particular.
    Quote Quote
  14. Originally Posted by Desve View Post
    is it common that lossless huffyuv PAL captures in Vdub output files that has a 5:4 AR?
    Forget about this number, it is useless. Mediainfo probably just divides 720 by 576. It should be you who should know whether it is 4:3 or 14:9 or 16:9 and adjust PAR accordingly when creating a deliverable. Use a container that has robust metadata support like MKV or MP4.
    Quote Quote
  15. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    Originally Posted by Desve View Post
    Oh I should've used other words, I just meant to clean the VCR heads, as discussed here:
    Perhaps that would decrease the levels of background noise if I were to make an attempt to digitize the tape again? Hopefully the tape's hasn't degraded in quality too much since last session.
    The heads you should be cleaning are the stationary heads since it's linear audio judged from your samples, HiFi audio have little to no audible background noise (assuming the recording is clean) even with dirty HiFi heads you'll hear crackling not background noise. It's ok to use cotton swabs on stationary heads but not the video drum.
    Quote Quote
  16. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    Going to try to reconstruct what I wrote earlier that got lost...

    @Alwyn, I'm sorry to hear you're getting that kind of info from your systems. I trust that you know well enough what you're doing, and can compensate for equipment or apps that don't provide proper information, so am sure all is good in the end. But rest assured, there are better quality devices that fully follow the 601 spec and provide non-square output with proper flagging, to give you a true 4:3 DAR designation upon saving and playback. I've used a number of devices, but mostly recently they have been Ospreys. Not that I do much analog capture any more, but once upon a time, that was what I did commercially day-in-day-out.

    ConsumerDV is probably right if MediaInfo is considering that number a Storage AR (which doesn't exist). For a long time now, I've wanted MI to document where & how they derive their info from (container, vid stream, direct from headers, calculated...), and had even put in a couple of requests for the same, but never got a budge on that so gave up. MI is often a useful tool, but one has to know that it has its weaknesses. This is one of them.


    Scott
    Quote Quote
  17. Member
    Join Date
    May 2005
    Location
    Australia
    Search Comp PM
    Scott, I won't be forking out hundreds for an Opsrey. I'll cope with my 5:4. I just find it odd that I've never had a 4:3-designated capture file and you've never had a 5:4 capture.

    Originally Posted by ConsumerDV
    Forget about this number, it is useless. Mediainfo probably just divides 720 by 576.
    I'm sure I read that analogue capture files don't have AR info in them. That would explain why Mediainfo is reporting 5:4. And I can assure you that when such a video is first-opened in Virtual Dub, or played in VLC Player, it is 5:4. On both, select 4:3 for aspect ratio and you'll see the stretch to 4:3.

    If in doubt, check with a ruler.
    Quote Quote
  18. Captures & Restoration lollo's Avatar
    Join Date
    Jul 2018
    Location
    Italy
    Search Comp PM
    I'm sure I read that analogue capture files don't have AR info in them
    Correct, on my lossless captured avi files the DAR flag is not settled, so the DAR is not specified. That's why if you open them with VLC without specifying a 4:3 view, the proportions are distorted.

    Mediainfo shows the SAR, or better the width/heigth ratio as Scott prefers to call it.
    Quote Quote
  19. Originally Posted by Alwyn View Post
    I'm sure I read that analogue capture files don't have AR info in them.
    This is only partly true. The original AVI spec (which many programs use) did not include any aspect ratio information other than the frame width and frame height. The later OpenDML extensions did add an aspect ratio flag (in the vprp header) but it is rarely used by programs. Video codecs used within an AVI container can include their own aspect ratio information (DV for example) but that requires that the program being used specifically know how to deal with that codec and extract that information (it's not available through VFW -- the Windows library that is often used to deal with AVI files.

    And not all capture programs save as AVI. Other containers can include aspect ratio flags -- MOV for example.
    Quote Quote
  20. Member
    Join Date
    May 2005
    Location
    Australia
    Search Comp PM
    Jagabo, thanks for that. For our plain, vanilla SD VHS AVI captures with VDub or AmarecTV, it sounds like it's the capture program that determines whether there's a flag or not, not the capture hardware. So if I used an Osprey to capture with VDub, I'd still get 5:4?
    Quote Quote
  21. Yes, the capture software is responsible for setting any AR information at the container level. Since AVI usually doesn't flag display or sampling aspect ratios programs like MediaInfo just use the frame dimensions. 720:576 = 5:4, 720x480 = 3:2. I seem to recall long ago that some program(s) would just assume a 4:3 display aspect ratio when it encountered the standard ITU frame sizes in AVI.
    Quote Quote
  22. Member
    Join Date
    May 2005
    Location
    Australia
    Search Comp PM
    Thank you Jagabo.
    Quote Quote
  23. Originally Posted by Cornucopia View Post
    Coming out of your S-VHS deck is standard analog PAL video, which, barring the rare exception of specialty tapes with 16:9 WSS, will ALWAYS be 720x576 @ 25i at 4:3 DAR, WHEN DIGITIZED PROPERLY . Sometimes the full 720 width is included in the AR, sometimes only 702 or 704, with pillarbox padding added (though that doesn't really change much overall).
    Whatever setup you have going on, either the equipment is faulty, your settings are wrong, or you have done some post-processing that wasn't fully aware of the (hopefully) existing non-square pixel/sample aspect ratio, and then changed it to show as square pixel. Or a combination of these. My guess is the post-processing, but evidently lots of these el cheapo ez-crap devices don't output with correct AR, so who knows. We would need much further details.

    Regardless, this would be showing an image which may or may not be bothersome in its mishapen-ness. That's for only you to decide (I personally would never allow that).



    Scott
    I found an old screenshot of the settings I used in Amarec, and it turns out I did digitize it properly when it comes to the AR part! (there may be other things that I could improve upon, but the HW i chose were well regarded at the time back then. Also, I'm kind of semi-new to this stuff so. Only that it outputs the video with a different AR than what I set it to do, or more likely, as discussed in this thread, it may not show the correct stats properly for analogue files.

    Note that the pictures blow shows the the settings I had for Amarec. The first Mediainfo picture I posted in the OP shows stats for the Amarec video to the left (i.e. only the reference clip intended to compare audio, which I was not supposed to analyze as closely) while the Vdub video stats was to the right (all of the rest of the clips and audio that I wanted to analyze). But I believe I made certain (most likely), unless the AR field was greyed-out, that Vdub was also set to 4:3

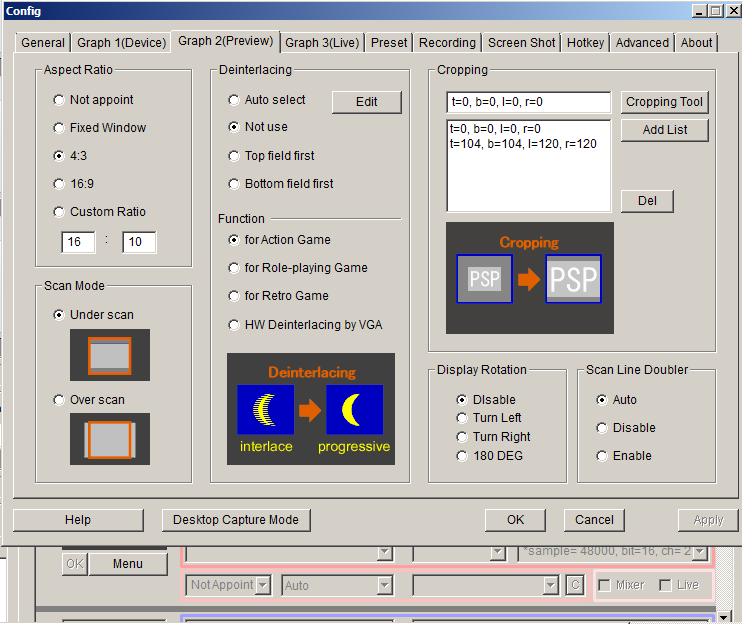

    [Attachment 65426 - Click to enlarge]

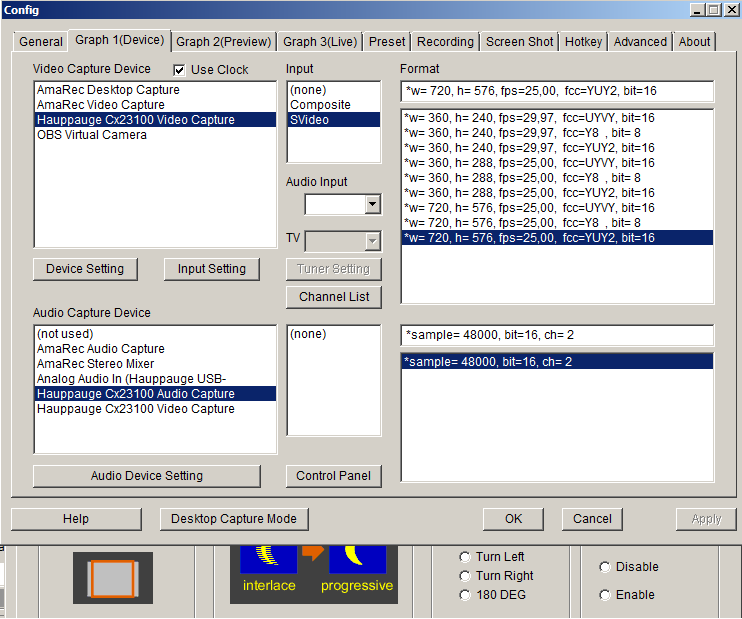

    [Attachment 65427 - Click to enlarge]



    Originally Posted by jagabo View Post
    The black level looks to be a little too high and the white level way too low. But that could just be those shots. We need to see a wider variety of shots to say for sure (look for the darkest darks and brightest brights). I'm guessing the levels should be more like:

    original, adjusted:

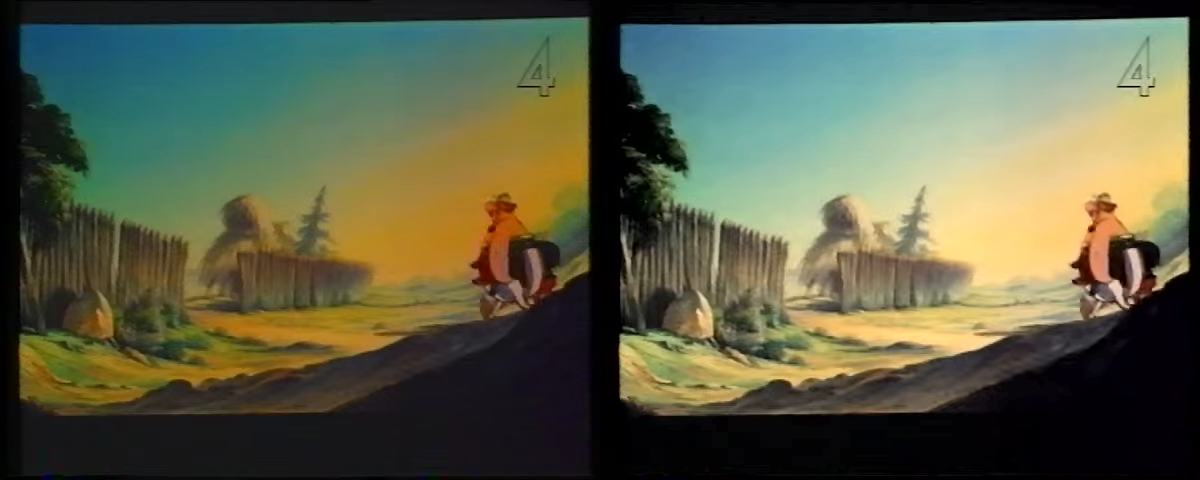

    [Attachment 65378 - Click to enlarge]
    That's a good improvement. May I ask what filters you used? If so I could apply it to the movie but if the brightest parts get too bright, then I could tune it down.




    ------------

    Originally Posted by dellsam34 View Post
    If the audio is coming from the normal mono linear track the level of noise is expected to be about right, However the audio level cannot be judged from youtube, you will have to upload a sample from the raw capture file or note the dB meter after the ADC during capturing if the capture software provides it, anything from -15dB to 0db is acceptable, ideally -10dB to -5dB.
    Originally Posted by jagabo View Post
    Originally Posted by dellsam34 View Post
    If the audio is coming from the normal mono linear track the level of noise is expected to be about right, However the audio level cannot be judged from youtube, you will have to upload a sample from the raw capture file or note the dB meter after the ADC during capturing if the capture software provides it, anything from -15dB to 0db is acceptable, ideally -10dB to -5dB.
    After re-reading his post you may be right, he may have been asking about the audio, not the video.

    For the OP: make sure you have the HiFi track selected (if any), not the linear audio track (LoFi).
    Now that I updated the OP with the raw files, could you notice any difference? It seems like it's stereo audio, unless it's 2 mono audio tracks. Are the dB levels acceptable? And, is there any way to tell if I have captured it in stereo from an analogue tape source?
    Quote Quote
  24. Member
    Join Date
    May 2005
    Location
    Australia
    Search Comp PM
    Desve, don't get wound up about the ratio. You've set AmarecTV and VDub correctly. They are not setting the correct flag in the file info, as per Jagabo's comments. Mediainfo is basically correct; your AVI capture files come out as 5:4 (as they are for most of us). Don't worry about it, just encode your "Save" or export file as 4:3.
    Quote Quote
  25. I think I used this:

    Code:
    ColorYUV(gain_y=300, off_y=-75).ColorYUV(gamma_y=100).ColorYUV(levels="PC->TV")
    I was playing around with the values so they may have been a little different at the time. The first ColorYUV() got the black level down to Y=0, the white level up to Y=255 -- because the following gamma adjustment works better with full range video. Then the gamma was increased to lighten very dark details. Finally, the video was restored the to more traditional limited range (Y=16 to 235).

    Regarding the audio: It sounds better than the typical VHS linear audio track. The noise level is probably on the tape, from the original source. It's stereo in the sense that there is a left and right audio track. But they are nearly identical. So effectively mono.
    Last edited by jagabo; 15th Jun 2022 at 10:47.
    Quote Quote
  26. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    The HiFi icon should be displayed on the VCR's VFD if it's playing a HiFi stereo material. Some VCR's display L & R letters vs Normal for linear.
    Quote Quote
  27. Originally Posted by Alwyn View Post
    Desve, don't get wound up about the ratio. You've set AmarecTV and VDub correctly. They are not setting the correct flag in the file info, as per Jagabo's comments. Mediainfo is basically correct; your AVI capture files come out as 5:4 (as they are for most of us). Don't worry about it, just encode your "Save" or export file as 4:3.
    Ok good to know! Always good to capture it losslessly in the first place so you're free to encode it to whatever you want to later on


    Originally Posted by jagabo View Post
    I think I used this:

    Code:
    ColorYUV(gain_y=300, off_y=-75).ColorYUV(gamma_y=100).ColorYUV(levels="PC->TV")
    I was playing around with the values so they may have been a little different at the time. The first ColorYUV() got the black level down to Y=0, the white level up to Y=255 -- because the following gamma adjustment works better with full range video. Then the gamma was increased to lighten very dark details. Finally, the video was restored the to more traditional limited range (Y=16 to 235).

    Regarding the audio: It sounds better than the typical VHS linear audio track. The noise level is probably on the tape, from the original source. It's stereo in the sense that there is a left and right audio track. But they are nearly identical. So effectively mono.
    Ok thanks for the code, I will try it later on
    Also I thought the audio tracks looked very similar so yea, not the best, not the worst quality


    Originally Posted by dellsam34 View Post
    The HiFi icon should be displayed on the VCR's VFD if it's playing a HiFi stereo material. Some VCR's display L & R letters vs Normal for linear.
    I have to go back and tinker with the audio settings somehow and perhaps do a small audio sample capture to see if it increases the audio quality. Have to set up things and get the old tv out of the closet etc which will take a while though.
    Quote Quote
  28. So I finally got the big old heavy tv out of the closet and checked the tape. First, I checked with a commercial "newer" vhs-tape. While it was running, I was able to switch between all the supported audio modes with the remote, as was expected for a commercial vhs. They were either:

    1. (speaker icon pointing to the left) Norm (speaker icon pointing to the right)
    2. (speaker icon pointing to the left) (speaker icon pointing to the right)
    3. (speaker icon pointing to the left)
    4. (speaker icon pointing to the right)
    5. Norm



    When I inserted the tape that I'm currently analysing from which I've also included samples in this thread (1.avsnitt etc.), I discovered that only "Norm" (#5 above) was the possible mode after having tried to toggle between the audio modes in vain. So, except cleaning VHS-tape (risky) or the VHS deck, I guess I can't get any better audio quality out of it than what's present in the audio clips in this thread. I assume it's not a setting either , (I've used the audio button on the remote, and looked into the vcr's menu for other options). That's a shame, but, the MGM tape itself is recorded in -94, so even if stereo/hifi sound was still possible back then for VHS decks/tapes, the units that supported that function were perhaps not so common or a bit more pricy during the time (taking a wild guess here, maybe someone knows more about this). At least it seems like none of those kind of units were used back then when the programme was recorded.




    Originally Posted by jagabo View Post
    Regarding the audio: It sounds better than the typical VHS linear audio track. The noise level is probably on the tape, from the original source. It's stereo in the sense that there is a left and right audio track. But they are nearly identical. So effectively mono.

    Originally Posted by dellsam34 View Post

    The heads you should be cleaning are the stationary heads since it's linear audio judged from your samples, HiFi audio have little to no audible background noise (assuming the recording is clean) even with dirty HiFi heads you'll hear crackling not background noise. It's ok to use cotton swabs on stationary heads but not the video drum.
    Since the audio seems to be something between stereo and mono, but mostly leaning towards mono, should I still mainly target the stationary heads even if it's not HiFi audio?

    A few random questions about settings:
    I always activate the in-line TBC function switch on the vhs-deck, but there's another one beneath that called Rec Link. So far I've left it untouched
    Also, in the VCR's menu settings I chose to de-activate 'time scan audio'
    In the menu for the VCR there's an option called: Rec Level CTL (HiFi-rec level control) I've just set to "preset" instead of manual (the marker is in the middle between a min and max scale)
    Actually I've turned off almost every setting: Auto Timer, O.S.D, B.E.S.T, Auto SP-LP timer, Digital 3R (I read somewhere that my VHS deck has a primitive version of this function so I deactivated it), Edit, Time scan audio
    Only these were different: Colour system: PAL/NTSC, AV2 Select: video, S-VHS: Auto
    Do these settings seem ok? I'm a little unsure of O.S.D and B.E.S.T but I don't know how well they perform in JVC S-VHS HR-S8500EH
    Quote Quote
  29. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    The stationary heads are the linear audio heads, You stated that with the tape in question there is no option for left or right which clearly and without a doubt indicates that the tape is indeed non HiFi Stereo, so the audio is coming from the stationary heads right before the pinch roller.
    As to settings:
    1- Time Scan - OFF but this feature has no effect on capturing.
    2- Rec Level is only for recording, not capturing/playback
    3- B.E.S.T (Biconditional Equalised Signal Tracking) should be ON all the time, It works for both recording and playback.
    4- Digital 3R is tape based, test it for each tape and decide.
    5- Picture mode should be set to EDIT.
    6- OSD should always be off during capturing.
    7- Auto SP-LP timer OFF but this is a recording feature.

    Edit:
    I also noticed that your model has "SPATIALIZER" feature for audio, make sure it's OFF.
    Last edited by dellsam34; 19th Jun 2022 at 13:22.
    Quote Quote
  30. Originally Posted by dellsam34 View Post
    The stationary heads are the linear audio heads, You stated that with the tape in question there is no option for left or right which clearly and without a doubt indicates that the tape is indeed non HiFi Stereo, so the audio is coming from the stationary heads right before the pinch roller.
    As to settings:
    1- Time Scan - OFF but this feature has no effect on capturing.
    2- Rec Level is only for recording, not capturing/playback
    3- B.E.S.T (Biconditional Equalised Signal Tracking) should be ON all the time, It works for both recording and playback.
    4- Digital 3R is tape based, test it for each tape and decide.
    5- Picture mode should be set to EDIT.
    6- OSD should always be off during capturing.
    7- Auto SP-LP timer OFF but this is a recording feature.

    Edit:
    I also noticed that your model has "SPATIALIZER" feature for audio, make sure it's OFF.
    Good to have that sorted out, I'll activate B.E.S.T and Edit. Some years ago I saw people arguing whether Edit should be 'on' or 'off', but I'll just go with 'on' I guess.
    I read that Spatializer simulates stereo sound for mono sources spacious sound for stereo sources. Should this setting still be off even for HiFi tapes? And should the rest of the settings remain as-is when capturing signals from HiFi tapes?
    Quote Quote



Similar Threads
