Outputting Frame Sequence Images to Create A Single Image

[imaginethat]

edit; delete, wrong thread

[jagabo]

It's really of no interest to me but sometimes I like to learn things. I added some metadata via an SRT and a downscaling option:

@echo off

REM user variables.  Set these to the desired values.
REM cols is the number of columns for the image array.
REM t_interval is the time interval in seconds.
REM downscale is the factor by which to downscale the thumbnails, eg 2 results in half size thumbnails

set /A cols = 3
set /A t_interval = 30
set /A downscale = 1


REM get video stats:

ffprobe.exe -v quiet -show_entries stream=r_frame_rate -of default=noprint_wrappers=1:nokey=1 -select_streams v:0 %1 > temp.txt
set /p fps= <temp.txt
ffprobe.exe -v quiet -show_entries stream=width -of default=noprint_wrappers=1:nokey=1 -select_streams v:0 %1 > temp.txt
set /p width= <temp.txt
ffprobe.exe -v quiet -show_entries stream=height -of default=noprint_wrappers=1:nokey=1 -select_streams v:0 %1 > temp.txt
set /p height= <temp.txt
ffprobe.exe -v quiet -show_entries format=duration -of default=noprint_wrappers=1:nokey=1 -select_streams v:0 %1 > temp.txt
set /p duration= <temp.txt


REM At this point the environment variables cols, t_interval, fps, duration, width, and height are available.
REM
REM Note 1 fps is in numerator/denominator format -- convert to an integer with set /A frate = fps.
REM Note 2: caculate the number of rows.
REM note 3: calculate the frame count interval from user t_interval * frate

set /A frate = %fps%
set /A rows = duration / t_interval / cols
if %rows% EQU 0 set /A rows = 1
set /A interval = t_interval * frate
set /A width = (%width% / %downscale% / 2) * 2
set /A height = (%height% / %downscale% / 2) * 2


REM get metadata into SRT

echo 1 >temp.srt
echo 00:00:00,000 --^> 00:00:%t_interval%,000 >>temp.srt
echo "%~nx1" >>temp.srt
echo dimensions: %width%x%height% >>temp.srt
echo duration: %duration% seconds >>temp.srt

ffprobe.exe -v quiet -show_entries stream=codec_name -of default=noprint_wrappers=1:nokey=1 -select_streams v:0 %1 > temp.txt
set /p codec_name= <temp.txt
echo video codec: %codec_name% >>temp.srt



REM for debugging
REM echo duration = %duration%
REM echo fps = %fps%
REM echo frate = %frate%
REM echo width = %width%
REM echo height = %height%
REM echo downscale = %downscale%
REM echo cols = %cols%
REM echo rows = %rows%
REM echo interval = %interval%
REM pause

@echo on

ffmpeg -y -i %1 -vf "subtitles=temp.srt,thumbnail=%interval%,scale=%width%:%height%,tile=%cols%x%rows%" -frames:v 1 "%~dpnx1.jpg"

pause

REM delete temp files
del temp.srt
del temp.txt

I just realized that the frame size that's burned into the image is the scaled size, not the original size. I'm sure you can figure out how to fix that.

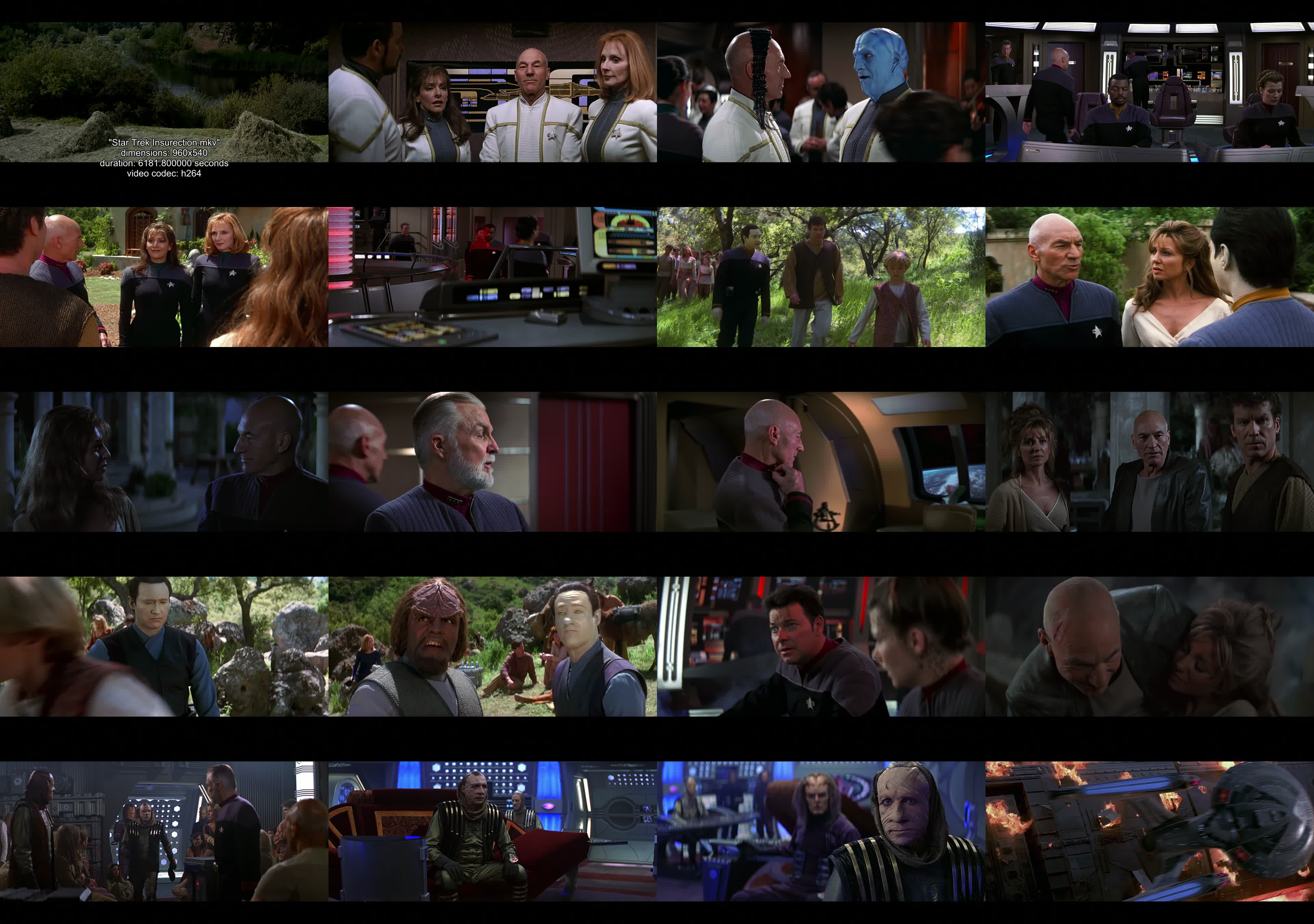

103 minute movie, 1920x1080, rows=4, t_interval=300, downscale=2:


[Attachment 62992 - Click to enlarge]
