AV1 codec in Virtualdub

[jairovital]

I have some plugins like "FFMpeg Suported Files", "FFMpeg (All formats)", "DirectShow Input Driver" to open different codecs onto Virtualdub.
But videos from Youtube encoded with AV1 codec commonly to freeze Vdub.


Does anybody know a way to open such videos without problems?

[Nilzzon]

https://sourceforge.net/projects/mpxplay/files/xAV1vfw/

[jairovital]

Thank you, Nilzzon, but how to open files?

I installed xAV1vfw and tried to open file using:

Default file types
FFMpeg Suported Files
FFMpeg (All formats)
DirectShow Input Driver

and dragging the file directly to Vdub.

No success.

[jagabo]

User VirtualDub2 instead.

[jairovital]

User VirtualDub2 instead.

Than you, jagabo, but...

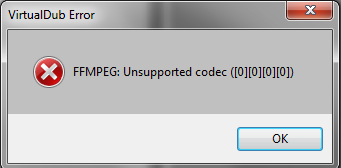

[Attachment 62556 - Click to enlarge]

[davexnet]

Lsmash/LwLibAVVideoSource works ok

[jagabo]

Oops, the video I thought was AV1 when I tested VirtualDub2 was not AV1. You may have to resort to using AviSynth to open the file in VirtualDub(2) using the the LSMASH source filter.

LWLibavVideoSource("filename.ext")

[jairovital]

Hi, guys.

Sorry for delaying too much, but I couldn't answer early.

Using LWLibavVideoSource with AvsPmod 2.5.1, I got this error:

"There is no function named WLibavVideoSource"


So...


Edit:
I put LSMASHSource.dll in Avisynth (2.60) plugin folder.
Windows 7 here.

[jagabo]

If you're using 32 bit AviSynth make sure you put the 32 bit lsmashsource.dll in the AviSynth plugins folder.

[poisondeathray]

"There is no function named WLibavVideoSource"

typo? missing "L" ?

[jairovital]

"There is no function named WLibavVideoSource"

typo? missing "L" ?

No. I wrote the right command. But made a typo mistake when writing here.

If you're using 32 bit AviSynth make sure you put the 32 bit lsmashsource.dll in the AviSynth plugins folder.

Yes, using 32 bit Avisynth.
I searched for 32 bit version of LSMASH Source and got this from Doom9 forum:

https://www.dropbox.com/sh/3i81ttxf028m1eh/AAABkQn4Y5w1k-toVhYLasmwa?dl=0

There are 6 files:
avcodec-57.dll
avformat-57.dll
avresample-3.dll
avutil-55.dll
LSMASHSource.dll
swscale-4.dll
and I put all in plugins folder.

Same error...

[poisondeathray]

Those are from 2017, AV1 probably not supported

These are more recent and come with x86 and x64 versions
https://github.com/HomeOfAviSynthPlusEvolution/L-SMASH-Works/releases/

[jairovital]

Those are from 2017, AV1 probably not supported

These are more recent and come with x86 and x64 versions
https://github.com/HomeOfAviSynthPlusEvolution/L-SMASH-Works/releases/

And this is 64 bit, I guess.
Already tried and didn't work...

[jairovital]

I also tried to install Avisynth 3.7.0 (Avisnth+) and AvsPmod didn't open (said there is no Avisynth installed).

What a pain to open an AV1 script...

[poisondeathray]

You already tried the newer version, the x86 .dll ? And it was the same error message "no function named..." ?

The other option is ffms2 as the source filter

Here is a fairly recent one
http://forum.doom9.net/showpost.php?p=1949799&postcount=2666

[jairovital]

You already tried the newer version, the x86 .dll ? And it was the same error message "no function named..." ?

The other option is ffms2 as the source filter

Here is a fairly recent one
http://forum.doom9.net/showpost.php?p=1949799&postcount=2666

Requires a password.


Edit:
Second link is OK. No password.

[poisondeathray]

The password is in the post

pass: tTnkia1ToVkw

The problem is if you use older source filters, they often do not have AV1 support. You need some within the last year or so

[jairovital]

Thank you guys, but I give up...

Installed many versions of Avisynth, LSMASH, ffmpegsource,...
Registry and system folders became full of inconsistencies and...


[Attachment 62601 - Click to enlarge]


Maybe tomorrow, I'll try again.


(Perhaps I'm becoming dumb, even after becoming old, after years...)

[jagabo]

Those are from 2017, AV1 probably not supported

These are more recent and come with x86 and x64 versions
https://github.com/HomeOfAviSynthPlusEvolution/L-SMASH-Works/releases/

And this is 64 bit, I guess.
Already tried and didn't work...

No, it has both 64 bit (x64 folder) and 32 bit (x86 folder).

[jairovital]

I'm back, after some waste of time trying to load an AV1 codec into Virtualdub.

Probably, I'm doing something wrong, because I tried all tips above without success.
To get a concrete example, I want to load this video, after download it:

Hues Corporation - Rock The Boat • TopPop

I got this file:

General
Unique ID : 65392825175610104412735799271089255734 (0x31323334353637383930313233343536)
Complete name : B:\Meus documentos\Downloads\Hues Corporation - Rock The Boat - TopPop.mkv
Format : Matroska
Format version : Version 4
File size : 8.52 MiB
Duration : 3 min 15 s
Overall bit rate : 366 kb/s
Writing application : IDMmkvlib0.1
Writing library : IDMmkvlib0.1
Language : und

Video
ID : 1
Format : AV1
Format/Info : AOMedia Video 1
Format profile : Main@L2.1
Codec ID : V_AV1
Duration : 3 min 15 s
Width : 488 pixels
Height : 360 pixels
Display aspect ratio : 4:3
Frame rate mode : Constant
Frame rate : 25.000 FPS
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Default : Yes
Forced : No
Color range : Limited
Color primaries : BT.601 PAL
Transfer characteristics : BT.709
Matrix coefficients : BT.601

Audio
ID : 2
Format : Opus
Codec ID : A_OPUS
Duration : 3 min 15 s
Channel(s) : 2 channels
Channel layout : L R
Sampling rate : 48.0 kHz
Bit depth : 16 bits
Compression mode : Lossy
Default : Yes
Forced : No

I'm using AvsPMod portable 2.5.1
My Avisynth is 2.60
Windows 7 SP1


Plugin folder has:

    avcodec-57.dll
    avformat-57.dll
    avresample-3.dll
    avutil-55.dll
    colors_rgb.avsi
    DirectShowSource.dll
    ffms2.dll
    ffms2.lib
    ffmsindex.exe
    LSMASHSource.dll
    swscale-4.dll
    TCPDeliver.dll

Trying the following Avisynth commands:

LoadPlugin("C:\Program Files (x86)\AviSynth\plugins\ffms2.dll")
LoadPlugin("C:\Program Files (x86)\AviSynth\plugins\LSMASHSource.dll")

v1=DirectShowSource("Hues Corporation - Rock The Boat - TopPop.mkv")
v1=FFVideoSource("Hues Corporation - Rock The Boat - TopPop.mkv")
v1=ffms2_FFVideoSource("Hues Corporation - Rock The Boat - TopPop.mkv")
v1=WLibavVideoSource("Hues Corporation - Rock The Boat - TopPop.mkv")

return v1

Error is about "There is no function...".
Also tried one by one of above.
And tried without "LoadPlugin" command.

I read about Avisynth+ and got installed it too, but I'm afraid if it's making conflicting or something...

What is wrong? Any suggestions to do?

[jairovital]

With "DirectShowSource" command, I got "No video" message, no errors.

[jagabo]

DriectShowSource() will only work if DirectShow is set up for the container and the codecs.

I don't think ffVideoSource() supports AV1. The version I have doesn't.

You have a typo in the LSMASH line

v1=WLibavVideoSource(...

should be:

v1=LWLibavVideoSource(...

Only the last of those works for me. And you want to include only one of them in your script.

[Alwyn]

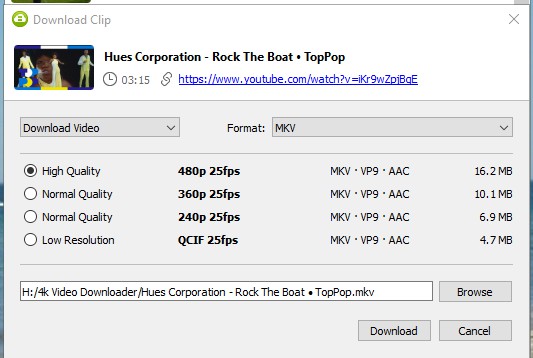

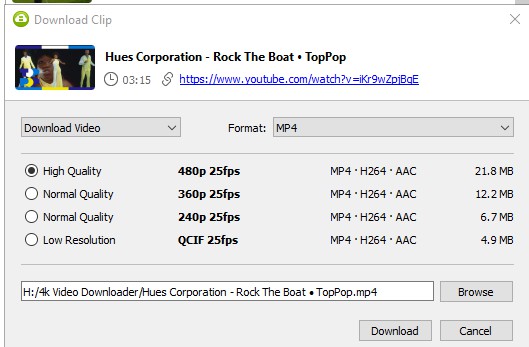

Odd. I used 4k Video Downloader and it gives VP9 and H264 options for the download. The "Stats for nerds" shows AV1.


[Attachment 64120 - Click to enlarge]

[jagabo]

Yt-dlp shows the following streams are available:

C:\Youtube-dl>yt-dlp -F https://www.youtube.com/watch?v=iKr9wZpjBqE
[youtube] iKr9wZpjBqE: Downloading webpage
[youtube] iKr9wZpjBqE: Downloading android player API JSON
[info] Available formats for iKr9wZpjBqE:
ID  EXT   RESOLUTION FPS │  FILESIZE  TBR PROTO │ VCODEC         VBR ACODEC      ABR     ASR MORE INFO
───────────────────────────────────────────────────────────────────────────────────────────────────────────────
sb2 mhtml 48x27          │                mhtml │ images                                     storyboard
sb1 mhtml 60x45          │                mhtml │ images                                     storyboard
sb0 mhtml 121x90         │                mhtml │ images                                     storyboard
139 m4a   audio only     │   1.11MiB  47k https │ audio only         mp4a.40.5   47k 22050Hz low, m4a_dash
249 webm  audio only     │   1.05MiB  45k https │ audio only         opus        45k 48000Hz low, webm_dash
250 webm  audio only     │   1.32MiB  56k https │ audio only         opus        56k 48000Hz low, webm_dash
140 m4a   audio only     │   2.96MiB 127k https │ audio only         mp4a.40.2  127k 44100Hz medium, m4a_dash
251 webm  audio only     │   2.40MiB 103k https │ audio only         opus       103k 48000Hz medium, webm_dash
17  3gp   176x144      6 │   1.86MiB  79k https │ mp4v.20.3      79k mp4a.40.2    0k 22050Hz 144p
394 mp4   194x144     25 │   1.31MiB  56k https │ av01.0.00M.08  56k video only              144p, mp4_dash
160 mp4   194x144     25 │   1.91MiB  82k https │ avc1.4d400b    82k video only              144p, mp4_dash
278 webm  194x144     25 │   1.70MiB  73k https │ vp9            73k video only              144p, webm_dash
395 mp4   324x240     25 │   2.92MiB 125k https │ av01.0.00M.08 125k video only              240p, mp4_dash
133 mp4   324x240     25 │   3.71MiB 159k https │ avc1.4d400d   159k video only              240p, mp4_dash
242 webm  324x240     25 │   3.92MiB 168k https │ vp9           168k video only              240p, webm_dash
396 mp4   488x360     25 │   6.13MiB 263k https │ av01.0.01M.08 263k video only              360p, mp4_dash
134 mp4   488x360     25 │   9.21MiB 395k https │ avc1.4d4015   395k video only              360p, mp4_dash
18  mp4   488x360     25 │  15.73MiB 676k https │ avc1.42001E   676k mp4a.40.2    0k 44100Hz 360p
243 webm  488x360     25 │   7.16MiB 308k https │ vp9           308k video only              360p, webm_dash
397 mp4   650x480     25 │  11.31MiB 486k https │ av01.0.04M.08 486k video only              480p, mp4_dash
135 mp4   650x480     25 │  18.85MiB 810k https │ avc1.4d401e   810k video only              480p, mp4_dash
244 webm  650x480     25 │  13.25MiB 569k https │ vp9           569k video only              480p, webm_dash

[Alwyn]

VP9 version:


[Attachment 64121 - Click to enlarge]

[jairovital]

DriectShowSource() will only work if DirectShow is set up for the container and the codecs.

How to set it up to do so?

You have a typo in the LSMASH line

Yes, but even fixing it, I still got an error...

Only the last of those works for me. And you want to include only one of them in your script.

Where are your LSMASHSource.dll?

If I load it (LoadPlugin("C:\Program Files (x86)\AviSynth\plugins\LSMASHSource.dll")), I get:
Unable to load plugin error 0xc1

I I don't load, I get this:
Script error: There is no function named WLibavVideoSource.

[jairovital]

In other words...



I copied this to Avisynth folders.

ffms2.dll
ffms2.lib
ffmsindex.exe

With this,

v1=FFVideoSource("video.mkv")

or this:

v1=ffms2_FFVideoSource("video.mkv")

I get this error:

No video track found

But it creates video.ffindex file.


If I use other version of ffmpeg, I get this error:

Script error: There is no function named FFVideoSource

or

Script error: There is no function named ffms2_FFVideoSource

With this:

v1=DirectShowSource("video.mkv")

I get no error, but this message:

No video

I copied LSMASHSource.dll to Avisynth folders.

If I load it in the script,

LoadPlugin("C:\Program Files (x86)\AviSynth\plugins\LSMASHSource.dll")

I get:

Unable to load plugin error 0xc1

If I don't load, I get this:

Script error: There is no function named LWLibavVideoSource

[jairovital]

In the middle of this codec nightmare, I think I got a little light ahead.

Alwyn talked about 4kvideodownloader.
It uses VP9 and this codec I can open via AvsPMod and Virtualdub.

If nothing else works, I'll download video with VP9 codec instead of AV1.

But the question will remain: what did I do wrong?

[davexnet]

create a simple one line script with this line, and when you drop it onto Vdub2 or mpc-hc, you'll get a box that gives
you some basic Avisynth build info. If this works it confirms the installation is OK

version()

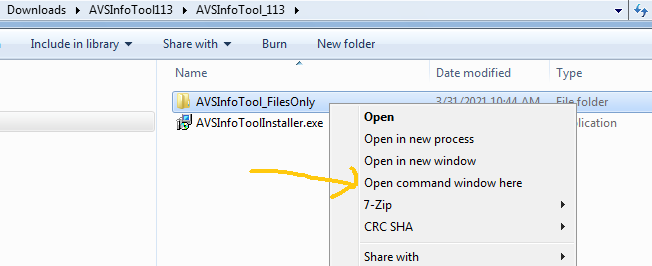

Secondly, download the Avisynth info tool and extract it to a folder. In windows Explorer you navigate to it,
hold down the shift key/right click with the mouse and select "open command window"
https://www.videohelp.com/download/AVSInfoTool113.7z

Then when the CMD window opens type in

avsinfotool

and it will open a box and tell you about your installation, including good/bad plugins and other errors

[jairovital]

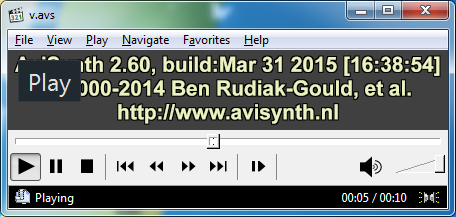

create a simple one line script with this line, and when you drop it onto Vdub2 or mpc-hc, you'll get a box that gives
you some basic Avisynth build info. If this works it confirms the installation is OK

version()

I've already checked version of it.
I got the same picture of your sample.

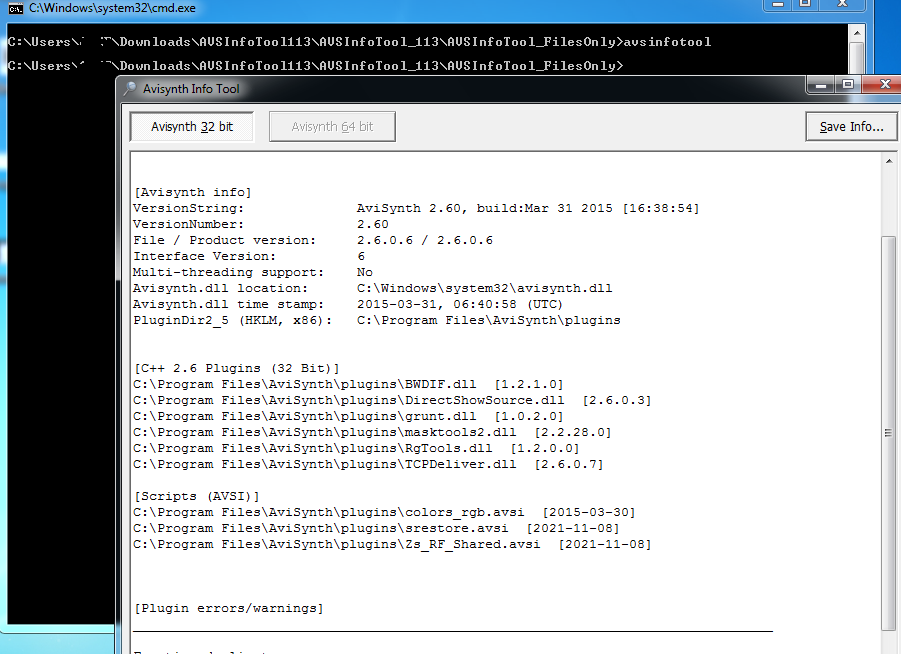

Secondly, download the Avisynth info tool and extract it to a folder. In windows Explorer you navigate to it,
hold down the shift key/right click with the mouse and select "open command window"

Here the diagnostics:

[OS/Hardware info]
Operating system:           Windows 7 (x64) Service Pack 1.0 (Build 7601)

CPU:                        Intel(R) Core(TM) i7-4790 CPU @ 3.60GHz / Haswell (Core i7)
                            MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, FMA3, AVX, AVX2
                            4 physical cores / 8 logical cores


[Avisynth info]
VersionString:              AviSynth 2.60, build:Mar 31 2015 [16:38:54]
VersionNumber:              2.60
File / Product version:     2.6.0.6 / 2.6.0.6
Interface Version:          6
Multi-threading support:    No
Avisynth.dll location:      C:\Windows\SysWOW64\avisynth.dll
Avisynth.dll time stamp:    2015-03-31, 06:40:58 (UTC)
PluginDir2_5 (HKLM, x86):   C:\Program Files (x86)\AviSynth\plugins


[C++ 2.6 Plugins (32 Bit)]
C:\Program Files (x86)\AviSynth\plugins\DirectShowSource.dll  [2.6.0.3]
C:\Program Files (x86)\AviSynth\plugins\ffms2.dll  [2.40.1285.13]
C:\Program Files (x86)\AviSynth\plugins\LSMASHSource.dll  [2021-08-10]
C:\Program Files (x86)\AviSynth\plugins\TCPDeliver.dll  [2.6.0.7]

[Scripts (AVSI)]
C:\Program Files (x86)\AviSynth\plugins\colors_rgb.avsi  [2015-03-30]

[Uncategorized DLLs (32 Bit)]
C:\Program Files (x86)\AviSynth\plugins\avcodec-57.dll  [57.81.100.0]
C:\Program Files (x86)\AviSynth\plugins\avformat-57.dll  [57.66.102.0]
C:\Program Files (x86)\AviSynth\plugins\avresample-3.dll  [3.2.0.0]
C:\Program Files (x86)\AviSynth\plugins\avutil-55.dll  [55.47.100.0]
C:\Program Files (x86)\AviSynth\plugins\swscale-4.dll  [4.3.101.0]

[Uncategorized files]
C:\Program Files (x86)\AviSynth\plugins\ffms2.lib  [2020-08-22]
C:\Program Files (x86)\AviSynth\plugins\ffmsindex.exe  [2.40.1285.13]



[Plugin errors/warnings]
_________________________________________________________________________________________________

Function duplicates:

"DirectShowSource" : "[InternalFunction]"
"DirectShowSource" : "[PluginFunction]"
"TCPServer" : "[InternalFunction]"
"TCPServer" : "[PluginFunction]"
"TCPSource" : "[InternalFunction]"
"TCPSource" : "[PluginFunction]"

_________________________________________________________________________________________________

LoadPlugin: unable to load "C:\Program Files (x86)\AviSynth\plugins\ffms2.dll", error=0xc1

Dependencies that could not be loaded:
  MSVCP140.dll
  VCRUNTIME140.dll

Note: Visual Studio 2015/2017/2019 Runtime doesn't seem to be installed
_________________________________________________________________________________________________

LoadPlugin: unable to load "C:\Program Files (x86)\AviSynth\plugins\LSMASHSource.dll", error=0xc1

Dependencies that could not be loaded:
  VCRUNTIME140.dll

Note: Visual Studio 2015/2017/2019 Runtime doesn't seem to be installed
_________________________________________________________________________________________________

It seems, I missed Visual Studio 2015...
Probably it is. I had to restore my whole system.

I'm busy now, but I'll check all of this later.
