    Ok so I use format factor about 6 mos. ago then my PC crash and lost the program. Grabbed a new format factory program and now it does not fix my MVK files to work in the car like before. When i converted them from MVK large files into MP4 they played great in my cars DVD Kenwood radio. If i recall I did nothing more the click on MP4 then covert. now I do it and it says can not play this file.......Does anyone have any idea what I'm doing wrong. Thanks in advice for the help. Jeff
    Quote Quote
  2. Member
    Join Date
    Oct 2021
    Location
    Fremont Calif.
    Search PM
    >>Bump> Any help Please
    Quote Quote
  3. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    Use mediaino (put it in text view for all details) and compare a working with a non-working file

    If you don't see anything obvious, post the results here
    Quote Quote
  4. Member
    Join Date
    Oct 2021
    Location
    Fremont Calif.
    Search PM
    working one

    General
    Complete name : E:\Format Factory Program Movies Car\A.Simple.Plan.1998.1080p.BluRay.X264-AMIABLE.mp4
    Format : MPEG-4
    Format profile : Base Media
    Codec ID : isom (isom/iso2/avc1/mp41)
    File size : 4.02 GiB
    Duration : 2 h 1 min
    Overall bit rate : 4 755 kb/s
    Writing application : Lavf58.29.100

    Video
    ID : 1
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : High@L4
    Format settings : CABAC / 4 Ref Frames
    Format settings, CABAC : Yes
    Format settings, Reference frames : 4 frames
    Codec ID : avc1
    Codec ID/Info : Advanced Video Coding
    Duration : 2 h 1 min
    Bit rate : 4 695 kb/s
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Constant
    Frame rate : 23.976 (24000/1001) FPS
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive
    Bits/(Pixel*Frame) : 0.094
    Stream size : 3.90 GiB (97%)
    Writing library : x264 core 157
    Encoding settings : cabac=1 / ref=3 / deblock=1:0:0 / analyse=0x3:0x113 / me=hex / subme=7 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=1 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=12 / lookahead_threads=2 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=3 / b_pyramid=2 / b_adapt=1 / b_bias=0 / direct=1 / weightb=1 / open_gop=0 / weightp=2 / keyint=250 / keyint_min=23 / scenecut=40 / intra_refresh=0 / rc_lookahead=40 / rc=abr / mbtree=1 / bitrate=4695 / ratetol=1.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / ip_ratio=1.40 / aq=1:1.00
    Language : English
    Menus : 3
    Codec configuration box : avcC

    Audio
    ID : 2
    Format : AAC LC
    Format/Info : Advanced Audio Codec Low Complexity
    Codec ID : mp4a-40-2
    Duration : 2 h 1 min
    Bit rate mode : Constant
    Bit rate : 128 kb/s
    Channel(s) : 2 channels
    Channel layout : L R
    Sampling rate : 44.1 kHz
    Frame rate : 43.066 FPS (1024 SPF)
    Compression mode : Lossy
    Stream size : 111 MiB (3%)
    Language : English
    Default : Yes
    Alternate group : 1
    Menus : 3

    Menu #1
    ID : 3
    Codec ID : text
    Duration : 2 h 1 min
    Language : English
    Bit rate mode : CBR
    Menu For : 1,2
    00:00:00.000 : 00:00:00.000
    00:08:54.200 : 00:08:54.200
    00:18:24.770 : 00:18:24.770
    00:27:32.192 : 00:27:32.192
    00:38:44.322 : 00:38:44.322
    00:44:35.673 : 00:44:35.673
    00:49:34.430 : 00:49:34.430
    00:54:03.031 : 00:54:03.031
    01:00:50.438 : 01:00:50.438
    01:19:39.942 : 01:19:39.942
    01:27:59.816 : 01:27:59.816
    01:35:38.274 : 01:35:38.274
    01:40:21.390 : 01:40:21.390
    01:47:27.566 : 01:47:27.566
    01:52:49.763 : 01:52:49.763
    01:55:34.928 : 01:55:34.928
    Bit rate mode : Constant

    Menu #2
    00:00:00.000 : 00:00:00.000
    00:08:54.200 : 00:08:54.200
    00:18:24.770 : 00:18:24.770
    00:27:32.192 : 00:27:32.192
    00:38:44.322 : 00:38:44.322
    00:44:35.673 : 00:44:35.673
    00:49:34.430 : 00:49:34.430
    00:54:03.031 : 00:54:03.031
    01:00:50.438 : 01:00:50.438
    01:19:39.942 : 01:19:39.942
    01:27:59.816 : 01:27:59.816
    01:35:38.274 : 01:35:38.274
    01:40:21.390 : 01:40:21.390
    01:47:27.566 : 01:47:27.566
    01:52:49.763 : 01:52:49.763
    01:55:34.928 : 01:55:34.928

    non working:

    General
    Complete name : E:\Format Factory Program Movies Car\maybe bad movies\Cry_Macho_2021_2160p_HMAX_WEB-DL_DD5_1_HDR_HEVC-CMRG-xpost (1).mp4
    Format : MPEG-4
    Format profile : Base Media
    Codec ID : isom (isom/iso2/avc1/mp41)
    File size : 3.56 GiB
    Duration : 1 h 43 min
    Overall bit rate mode : Variable
    Overall bit rate : 4 910 kb/s
    Writing application : Lavf58.29.100

    Video
    ID : 1
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : Main@L4
    Format settings : CABAC / 1 Ref Frames
    Format settings, CABAC : Yes
    Format settings, Reference frames : 1 frame
    Codec ID : avc1
    Codec ID/Info : Advanced Video Coding
    Duration : 1 h 43 min
    Bit rate mode : Variable
    Bit rate : 4 777 kb/s
    Maximum bit rate : 14.3 Mb/s
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Constant
    Frame rate : 23.976 (24000/1001) FPS
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive
    Bits/(Pixel*Frame) : 0.096
    Stream size : 3.47 GiB (97%)
    Codec configuration box : avcC

    Audio
    ID : 2
    Format : AAC LC
    Format/Info : Advanced Audio Codec Low Complexity
    Codec ID : mp4a-40-2
    Duration : 1 h 43 min
    Duration_LastFrame : -12 ms
    Bit rate mode : Constant
    Bit rate : 128 kb/s
    Channel(s) : 2 channels
    Channel layout : L R
    Sampling rate : 44.1 kHz
    Frame rate : 43.066 FPS (1024 SPF)
    Compression mode : Lossy
    Stream size : 95.4 MiB (3%)
    Title : English
    Language : English
    Default : Yes
    Alternate group : 1
    Quote Quote
  5. Member
    Join Date
    Oct 2021
    Location
    Fremont Calif.
    Search PM
    davexnet,
    I see stuff that looks differnt not sure if it matters or not and if so how would I change the sluff in format factory
    Quote Quote
  6. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    I would do a test encode, perhaps a few minutes, set the AVC/H.264 encoder to use preset Medium, bitrate control CRF 18
    and see if that works
    Quote Quote
  7. Member
    Join Date
    Oct 2021
    Location
    Fremont Calif.
    Search PM

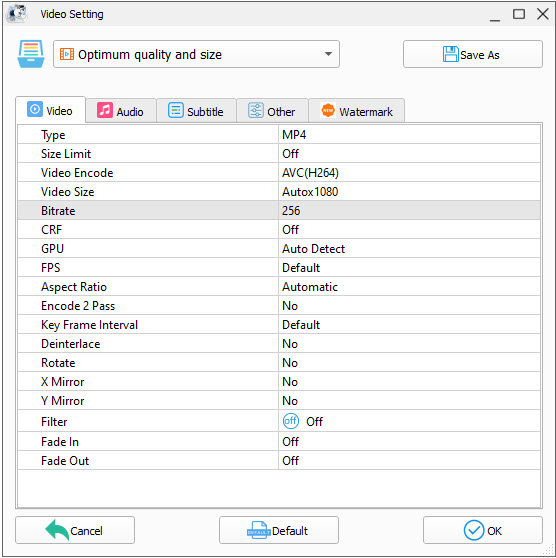

    I might need a little hand hold here until I understand what going on I really appreciate the help. So I only see AVC/H.264 the rest I don't see. Jeff
    Image Attached Thumbnails Click image for larger version

Name:	10-14-2021 8-37-49 PM.jpg
Views:	3
Size:	80.3 KB
ID:	61290

    Quote Quote
  8. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    Unfortunately I do not FF installed, so I cannot advise further. How do you play these files in the car, USB stick?
    If you want something simple for this conversion, I'd recommend FFmpeg and simple command line
    which you can put in a batch file so you just drag your source onto it and it will start
    Quote Quote

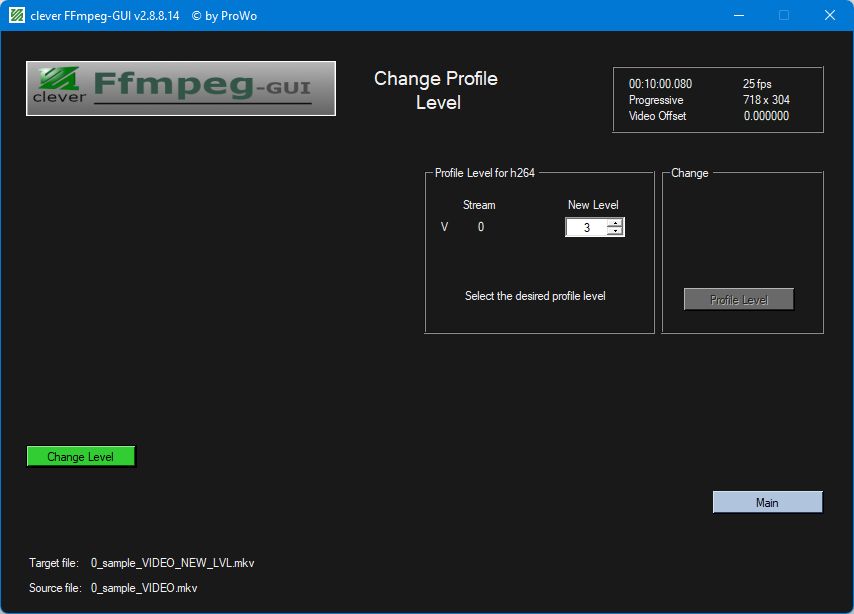

  9. You could also try to change the profile level (from 4 to 3) on the non working video.
    No recode is needed, so there is no quality loss.
    Use clever FFmpeg-GUI.
    [Attachment 61291 - Click to enlarge]
    Last edited by ProWo; 15th Oct 2021 at 06:13. Reason: typo
    Quote Quote
  10. Member
    Join Date
    Oct 2021
    Location
    Fremont Calif.
    Search PM
    Originally Posted by davexnet View Post
    Unfortunately I do not FF installed, so I cannot advise further. How do you play these files in the car, USB stick?
    If you want something simple for this conversion, I'd recommend FFmpeg and simple command line
    which you can put in a batch file so you just drag your source onto it and it will start
    Yes I use a USB stick ok I will try that. Thanks


    Prowo I will try this also and report back. Thanks
    Quote Quote
  11. Member
    Join Date
    Oct 2021
    Location
    Fremont Calif.
    Search PM
    Prowo,

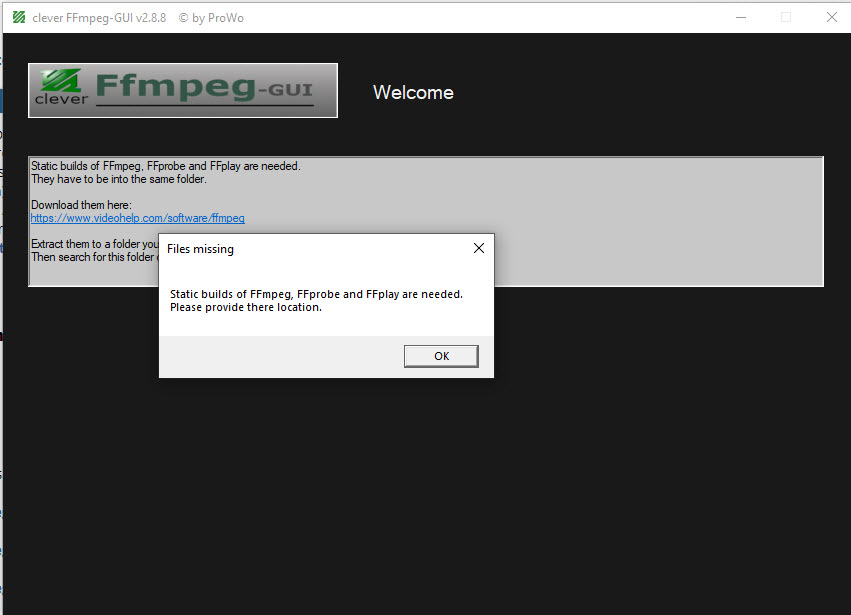

    it keeps trying to open it with adobe how else can I try to get this program. Thanks Jeff

    got it to d/l now it says this???Image
    [Attachment 61292 - Click to enlarge]
    Last edited by worble7; 15th Oct 2021 at 09:35.
    Quote Quote
  12. Follow the indications.
    Download a ffmpeg static build for your system (x86 or x64) (you can click the link after download from here).
    Extract the downloaded file to any location you want on your computer. Then point to the folder that contains ffmpeg.exe, ffprobe.exe and ffplay.exe.
    That's all.
    You have to do this only one time.
    Quote Quote
  13. Member
    Join Date
    Oct 2021
    Location
    Fremont Calif.
    Search PM
    I would like to thank everyone who helped me get this figured out. ProWo That's a great program and it works flawlessly. Thanks Again everyone. Jeff
