    I have noticed something relatively small and was wondering if I have really have an issue, or if I am thinking about this too much. I looked around on this and other websites to see if I could get an answer, and I would say this topic does not come up at all.

    I'll first describe my workflow so you can understand the context of what I am asking.

    1. I record a video using OBS and the lossless UT Video Codec. It has 2 audio streams, one for my voice, and another for the desktop sound.
    Specifically I use AVI for the video container and PCM as the audio format. I have attached a picture of my OBS settings.

    2. I use Davinci Resolve to edit my videos. In order to make the video compatible with Resolve, I convert the same video using handbrake two different times. The First time in high quality so the video compatible with Resolve, the second time for a proxy for easy editing within resolve.

    This is where my lack of experience is getting the better of me. When I run the video through Handbrake, no matter the audio format I chose, it always re-encodes it with a bit of "extra" blank space at the beginning of the audio stream. I have attached a picture for what I mean. The video is the converted video, the top audio track is the converted audio track that is ahead, and the bottom audio track that was extracted from the original non-converted video, and is the one that is "correct".

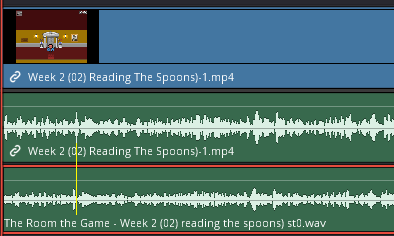

    I have drawn a line in yellow to illustrate that they do not match up.


    I have tried changing the audio codec to AAC or AC3 in OBS to alleviate this problem, but the audio streams extracted from those videos also have those "extra" bits.

    I have a couple of concerns that I would like to understand better within that context.

    1. When converting the video using handbrake and the audio changes, does the video portion change to match that small change? I am under the impression it does not.

    2. If I record with OBS using AAC as a format (for example), even though it adds that extra space, will it matter in the end video product due to some compensation? Does the video account for that extra space added?

    3. As a work around I can extract the audio from the original source files and then add them in resolve after conversion, but I am concerned for the same reason as #2.

    My ultimate goal is to have the audio and video match exactly as it was recorded, after conversion. I will state that when it comes to picture and audio quality, I am happy with the overall video and audio quality produced, but I see the post conversion audio/video mismatch as "making a mistake".

    Is what I am asking for possible, am I overthinking this, and is what I want even desirable?
    Image Attached Thumbnails Click image for larger version

Name:	obs64_2021-09-14_04-49-29.png
Views:	6
Size:	50.6 KB
ID:	60716

    Image Attached Images
    Quote Quote
  2. Check the headers of the output of handbrake, I assume that it has a/v delay info which compensated the delay you showed.
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  3. Member
    Join Date
    Sep 2021
    Location
    Arizona
    Search Comp PM
    So I after some googling, I downloaded MediaInfo which produced a lot of useful information, but I am unsure how to parse ~80% of it. This was the output from the converted file, pardon it's verbosity.

    Is MediaInfo the correct tool for this, or is there a better way to look at the headers of the video file?


    General
    Complete name : D:\Re-Renders\
    Format : MPEG-4
    Format profile : Base Media / Version 2
    Codec ID : mp42 (mp42/iso2/avc1/mp41)
    File size : 1.73 GiB
    Duration : 46 min 23 s
    Overall bit rate : 5 324 kb/s
    Encoded date : UTC 2021-09-14 12:10:01
    Tagged date : UTC 2021-09-14 12:10:01
    Writing application : HandBrake 1.4.1 2021081500

    Video
    ID : 1
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : Baseline@L4.2
    Format settings : 4 Ref Frames
    Format settings, CABAC : No
    Format settings, Reference : 4 frames
    Format settings, GOP : M=1, N=60
    Codec ID : avc1
    Codec ID/Info : Advanced Video Coding
    Duration : 46 min 23 s
    Bit rate : 4 679 kb/s
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Constant
    Frame rate : 60.000 FPS
    Standard : Component
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive
    Bits/(Pixel*Frame) : 0.038
    Stream size : 1.52 GiB (88%)
    Encoded date : UTC 2021-09-14 12:10:01
    Tagged date : UTC 2021-09-14 12:10:01
    Color range : Limited
    Color primaries : BT.709
    Transfer characteristics : BT.709
    Matrix coefficients : BT.709
    Codec configuration box : avcC

    Audio #1
    ID : 2
    Format : AC-3
    Format/Info : Audio Coding 3
    Commercial name : Dolby Digital
    Codec ID : ac-3
    Duration : 46 min 23 s
    Source duration : 46 min 23 s
    Bit rate mode : Constant
    Bit rate : 320 kb/s
    Channel(s) : 2 channels
    Channel layout : L R
    Sampling rate : 48.0 kHz
    Frame rate : 31.250 FPS (1536 SPF)
    Compression mode : Lossy
    Stream size : 106 MiB (6%)
    Source stream size : 106 MiB (6%)
    Title : Stereo
    Service kind : Complete Main
    Default : Yes
    Alternate group : 1
    Encoded date : UTC 2021-09-14 12:10:01
    Tagged date : UTC 2021-09-14 12:10:01
    mdhd_Duration : 2783611

    Audio #2
    ID : 3
    Format : AC-3
    Format/Info : Audio Coding 3
    Commercial name : Dolby Digital
    Codec ID : ac-3
    Duration : 46 min 23 s
    Source duration : 46 min 23 s
    Bit rate mode : Constant
    Bit rate : 320 kb/s
    Channel(s) : 2 channels
    Channel layout : L R
    Sampling rate : 48.0 kHz
    Frame rate : 31.250 FPS (1536 SPF)
    Compression mode : Lossy
    Stream size : 106 MiB (6%)
    Source stream size : 106 MiB (6%)
    Title : Stereo
    Service kind : Complete Main
    Default : No
    Alternate group : 1
    Encoded date : UTC 2021-09-14 12:10:01
    Tagged date : UTC 2021-09-14 12:10:01
    mdhd_Duration : 2783611
    Quote Quote
  4. Nope, no delay indication there.
    Mediainfo would show a 'Delay relative to video'.
    You might also want to look at the data of the input file wo see whether there is a delay info.
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  5. Member
    Join Date
    Sep 2021
    Location
    Arizona
    Search Comp PM
    This is the MediaInfo Output from the original recorded file.


    General
    Complete name : E:\Recordings\The Room Game\The Room The Game - Week 1.avi
    Format : AVI
    Format/Info : Audio Video Interleave
    Format profile : OpenDML
    File size : 76.1 GiB
    Duration : 46 min 23 s
    Overall bit rate : 235 Mb/s
    Writing application : Lavf58.29.100

    Video
    ID : 0
    Format : YUV
    Codec ID : ULH0
    Codec ID/Info : Ut Video Lossless Codec
    Codec ID/Hint : Ut Video
    Duration : 46 min 23 s
    Bit rate : 229 Mb/s
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate : 60.000 FPS
    Color space : YUV
    Chroma subsampling : 4:2:0
    Compression mode : Lossless
    Bits/(Pixel*Frame) : 1.839
    Stream size : 74.1 GiB (97%)

    Audio #1
    ID : 1
    Format : PCM
    Format profile : Float
    Codec ID : 00000003-0000-0010-8000-00AA00389B71
    Codec ID/Hint : IEEE
    Duration : 46 min 23 s
    Bit rate mode : Constant
    Bit rate : 3 072 kb/s
    Channel(s) : 2 channels
    Channel layout : L R
    Sampling rate : 48.0 kHz
    Bit depth : 32 bits
    Stream size : 1 019 MiB (1%)
    Alignment : Aligned on interleaves
    Interleave, duration : 21 ms (1.28 video frame)

    Audio #2
    ID : 2
    Format : PCM
    Format profile : Float
    Codec ID : 00000003-0000-0010-8000-00AA00389B71
    Codec ID/Hint : IEEE
    Duration : 46 min 23 s
    Bit rate mode : Constant
    Bit rate : 3 072 kb/s
    Channel(s) : 2 channels
    Channel layout : L R
    Sampling rate : 48.0 kHz
    Bit depth : 32 bits
    Stream size : 1 019 MiB (1%)
    Alignment : Aligned on interleaves
    Interleave, duration : 21 ms (1.28 video frame)
    Quote Quote
  6. Nope,no delay either, so this is probably a by product of handbrakes processing. (as a side note: as long as the delay is really short you won't notice it)
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  7. Member
    Join Date
    Sep 2021
    Location
    Arizona
    Search Comp PM
    The small "delay" also happens when I change my OBS audio codec to AAC or AC3. I think this might be a quirk of the codecs.

    I put the files in audacity and you can see the delay more easily explained. Its more like an added silent wave form at the beginning. I have attached a picture of what I mean.

    Top is AAC, the middle is AC3, and bottom is PCM. All were recorded using their respective codecs in OBS and stripped from the video file. Sound was playing constantly for each separate recording, and before the recording started.
    Image Attached Thumbnails Click image for larger version

Name:	Audacity_2021-09-14_10-35-22.png
Views:	6
Size:	55.4 KB
ID:	60733

    Quote Quote
  8. Question is:
    a. do you see/here the delay during playback when muxed (note that depending on the container and format there might be an additional delay, no clue whether handbrake compensates these, on muxing)
    b. assuming you want to compensate the delay adding the delay info to the muxed container should help. (or alternativelay adjusting the audio stream) Since I don't use Handbrake at all I have no clue whether it allows to add a/v delay infos to the container. You could always use ffmpeg to remux and change the audio delay.

    There's probably a handbrake user somewhere here in the forum that might be able to help with whether there is an option in handbrake to delay an audio/video stream.

    Cu Selur
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  9. Member
    Join Date
    Sep 2021
    Location
    Arizona
    Search Comp PM
    To answer question a.
    When I edit the file in Davinci Resolve, and I do an a/b test for the different audio streams, it is noticeable that the original PCM stream lines up better.

    When you play them together, you get a strange echo(?) effect, due to the delay. The problem with this is that Davinci Resolve does not allow for small enough increments to edit and fix the audio.


    As for question b.
    These files are not the final products, and as such playback won't matter in the editor, at least as far as I can tell.

    Unfortunately, even though handbrake supports audio codecs that do not add silence to the beginning of the audio, they are in a container (MKV) that Davinci Resolve will not support at least for the audio as the video comes over fine.

    Sorry if this isn't helpful.
    Quote Quote
  10. -> If handbrake creates audio but doesn't add a delay your best bet is probably try other tools for the conversion and see how they fair.
