    Hi.

    I am not new to videos but just know the basic.

    I've an Iphone XR and I record videos with the camera (it uses by default always 1080 HD at 30 fps) and all seems ok in the Iphone.
    When I want to make a video in my PC using some of my recordings, they become a .MOV (that then I need to convert to .mp4 because Vegas doesn't work with .MOV).

    But my problem is that SOME of my videos don't fit the screen like this one for example: https://www.youtube.com/watch?v=iSoi7DGrUfY
    And other videos fits 100% the screen and I never change the configuration.

    1) Why does this happen?

    2) For the videos that are already like this, what's the best way to fix it? I've tried, it becomes bigger (not the whole screen) but a lot of reolution is lost.

    Thanks!
    Quote Quote
  2. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    Open the original phone video with mediainfo, put it in view/text mode and post the info here.
    If possible, also post a short clip cut directly from the original phone video
    Quote Quote
  3. Member
    Join Date
    Aug 2012
    Location
    Canada
    Search Comp PM
    Originally Posted by davexnet View Post
    Open the original phone video with mediainfo, put it in view/text mode and post the info here.
    If possible, also post a short clip cut directly from the original phone video
    Thanks for your reply.

    Ok, so I opened the .MOV file. I get this:

    Format : MPEG-4
    Format profile : QuickTime
    Codec ID : qt 0000.00 (qt )
    File size : 318 MiB
    Duration : 5 min 38 s
    Overall bit rate mode : Variable
    Overall bit rate : 7 889 kb/s
    Encoded date : UTC 2021-07-12 10:29:31
    Tagged date : UTC 2021-07-12 10:35:10
    Writing library : Apple QuickTime
    com.apple.quicktime.make : Apple
    com.apple.quicktime.model : iPhone XR
    com.apple.quicktime.software : 14.6
    com.apple.quicktime.creationdate : 2021-07-12T12:29:31+0200

    Video
    ID : 1
    Format : HEVC
    Format/Info : High Efficiency Video Coding
    Format profile : Main@L4@Main
    Codec ID : hvc1
    Codec ID/Info : High Efficiency Video Coding
    Duration : 5 min 38 s
    Bit rate : 7 667 kb/s
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Rotation : 90
    Frame rate mode : Variable
    Frame rate : 29.970 (29970/1000) FPS
    Minimum frame rate : 28.571 FPS
    Maximum frame rate : 30.000 FPS
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Bits/(Pixel*Frame) : 0.123
    Stream size : 309 MiB (97%)
    Title : Core Media Video
    Encoded date : UTC 2021-07-12 10:29:31
    Tagged date : UTC 2021-07-12 10:35:10
    Color range : Limited
    Color primaries : BT.709
    Transfer characteristics : BT.709
    Matrix coefficients : BT.709
    Codec configuration box : hvcC

    Audio
    ID : 2
    Format : AAC LC
    Format/Info : Advanced Audio Codec Low Complexity
    Codec ID : mp4a-40-2
    Duration : 5 min 38 s
    Source duration : 5 min 38 s
    Bit rate mode : Variable
    Bit rate : 175 kb/s
    Channel(s) : 2 channels
    Channel layout : L R
    Sampling rate : 44.1 kHz
    Frame rate : 43.066 FPS (1024 SPF)
    Compression mode : Lossy
    Stream size : 7.05 MiB (2%)
    Source stream size : 7.05 MiB (2%)
    Title : Core Media Audio
    Encoded date : UTC 2021-07-12 10:29:31
    Tagged date : UTC 2021-07-12 10:35:10

    Other #1
    Type : meta
    Duration : 5 min 38 s
    Duration_FirstFrame : -319495

    Other #2
    Type : meta
    Duration : 5 min 38 s
    Bit rate mode : Variable

    Other #3
    Type : meta
    Duration : 5 min 38 s
    Bit rate mode : Variable

    Another video with that problem, this one is short in the original .MOV:

    https://drive.google.com/file/d/1H3m24ewmh6akquvqD84wbCxXgu-SgTj9/view?usp=sharing

    This one for example was taken the same day and it fits all the screen:

    https://drive.google.com/file/d/1ubGG0wLT64409nql9dfFJpz1EgzGy7Cr/view?usp=sharing
    Quote Quote
  4. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    The files have the same resolution, but the first has a flag to show it should be viewed vertically (portrait mode),
    while the 2nd is correct in landscape mode.
    The Youtube video was edited by you since it has titles, it looks as if something went wrong during the editing,
    since the titles are full screen and look normal

    Did it look like that before you uploaded it to Youtube?
    Last edited by davexnet; 11th Sep 2021 at 03:21.
    Quote Quote
  5. Member
    Join Date
    Aug 2012
    Location
    Canada
    Search Comp PM
    Originally Posted by davexnet View Post
    The files have the same resolution, but the first has a flag to show it should be viewed vertically (portrait mode),
    while the 2nd is correct in landscape mode.
    The Youtube video was edited by you since it has titles, it looks as if something went wrong during the editing,
    since the titles are full screen and look normal

    Did it look like that before you uploaded it to Youtube?
    Yeah. Some videos in .MOV are like that.

    I edited with Vegas but the original video is the problem, not the editing.

    This is the original video: https://drive.google.com/file/d/1C-69PH5e1inmXjTC4YZUp6IxDm9AWepS/view?usp=sharing
    Quote Quote
  6. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    The file is flagged with rotate to show it should be played in portrait mode, but it's only good for about the first 9 seconds.
    Then person who shot the video re-oriented the phone to landscape mode, but the file continues to play in portrait mode.
    Perhaps you can clip the video there and correct the second bit so that it's played in landscape mode.

    For example:
    Image Attached Files
    Last edited by davexnet; 11th Sep 2021 at 17:36.
    Quote Quote
  7. Member
    Join Date
    Aug 2012
    Location
    Canada
    Search Comp PM
    Originally Posted by davexnet View Post
    The file is flagged with rotate to show it should be played in portrait mode, but it's only good for about the first 9 seconds.
    Then person who shot the video re-oriented the phone to landscape mode, but the file continues to play in portrait mode.
    Perhaps you can clip the video there and correct the second bit so that it's played in landscape mode.

    For example:
    I'm not sure if I'm following you completely.

    I was the person who shot that video. Yes, I started vertically and after 9 seconds I re-oriented the phone horizontally because it was more comfortable, but the whole video doesn't fit the screen.
    I don't know what you did to fix it.

    Look, I've played all my videos and it seems that the issue I've happens only when I record the video vertically. When I shot horizontally it fits the whole screen.
    I've recorded these 2 short videos today and you can see that the issue is only with the vertical one:

    https://drive.google.com/file/d/1MHJUFDW4hwWA4GBnP8sWHIw41LKyN6j4/view
    https://drive.google.com/file/d/1VJz8SN9qgO6bcqEPFX4St2U5wwdHpzpP/view
    Quote Quote
  8. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM

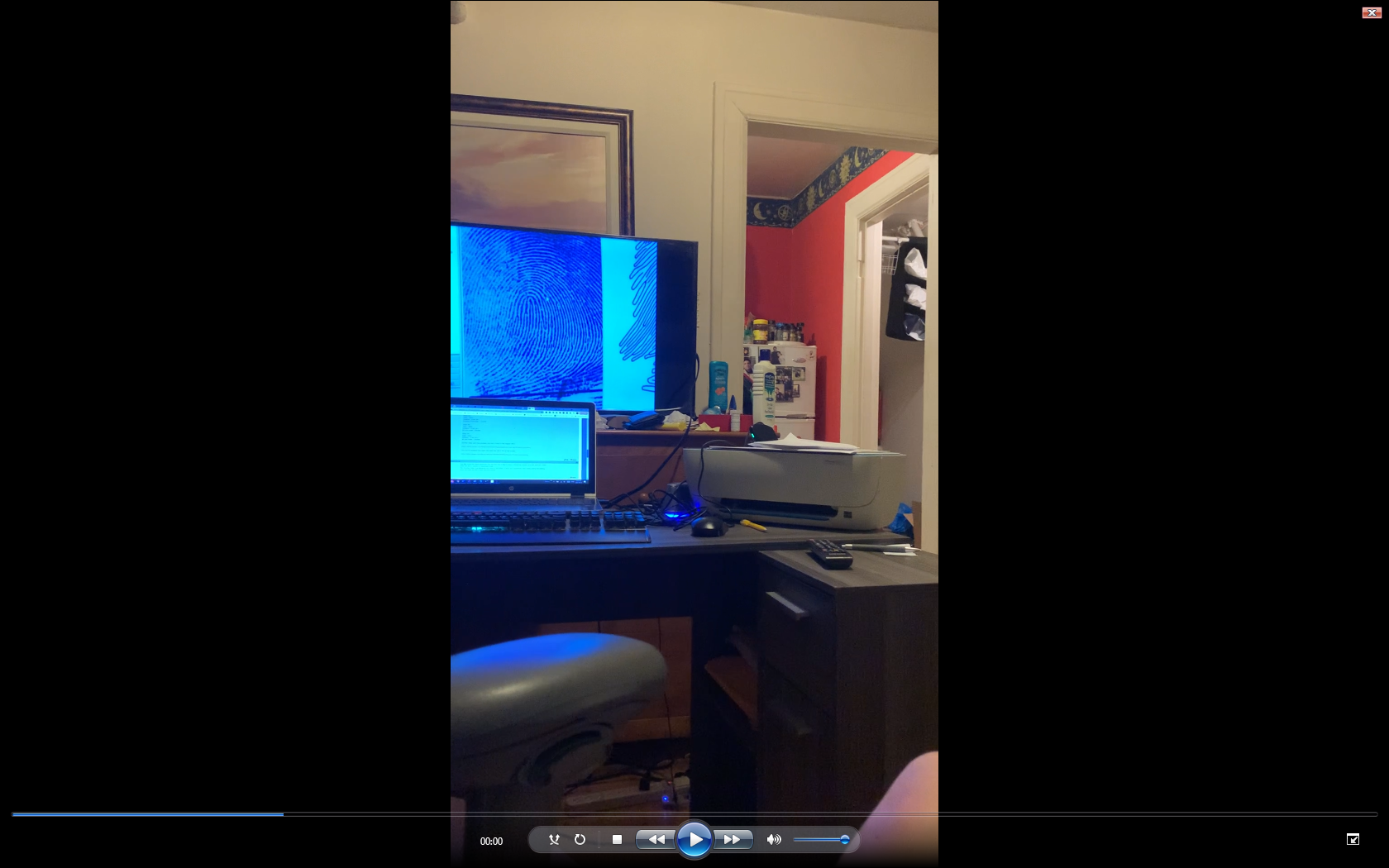

    This is how it looks on my 16:10 (1680x1050) monitor. On a 16:9 screen it will look even worse.

    It's never going to fit the screen, the aspect ratio of the video Vs. the screen are too different.

    If you want the video to fill the fill the screen, shoot landscape

    If you're asking what can be done to mitigate already existing portrait oriented video to better fill the screen,
    it can be only be done with heavy cropping, top/bottom to more align the A/R - that's about it

    You can crop it to 1080(width) by 608 (height) to make it fit the screen, but as you can see
    a massive part of the picture is lost
    Image Attached Thumbnails Click image for larger version

Name:	out-3.png
Views:	4
Size:	1.03 MB
ID:	60683

    Image Attached Files
    Last edited by davexnet; 11th Sep 2021 at 21:44.
    Quote Quote
  9. Member
    Join Date
    May 2005
    Location
    Australia
    Search Comp PM
    Essentially, when you bring your video into an editor, the limiting dimension will determine how it looks. In this case, the limiting dimension is the vertical 1920 pixels (as it is 1920 high by 1080 wide). It will be limited to 1080 pixels by your project "shape" (1920wide by 1080high). Therefore, the 1920-high image is "shrunk" down to 1080-high, and because the project 16:9 shape is retained, you get black bars on the sides (called pillarboxing).

    If you want the whole video to be in 16:9 landscape, you have no option but to severely crop the the initial vertical part. I've attached my attempt; you'll see a lot of the vertical has been cropped away to create a 16:9 look on the initial part before I rotate and zoom out to the landscape second portion (after you've rotated the phone to landscape).

    Here's one frame of the crop ( I had to resize/move the area as the rotation came in):
    [Attachment 60686 - Click to enlarge]
    Image Attached Files
    Last edited by Alwyn; 12th Sep 2021 at 01:48.
    Quote Quote
  10. Member hech54's Avatar
    Join Date
    Jul 2001
    Location
    Yank in Europe
    Search PM
    Can't you set an iPhone to record/save videos in MP4?......or is it just the app that I'm using?
