  1. Dear forum friends,

    I have been using Hybrid, vapoursynth and ffmpeg for a short time and learning a lot!
    What do you think it would be the best way to clean up this footage?

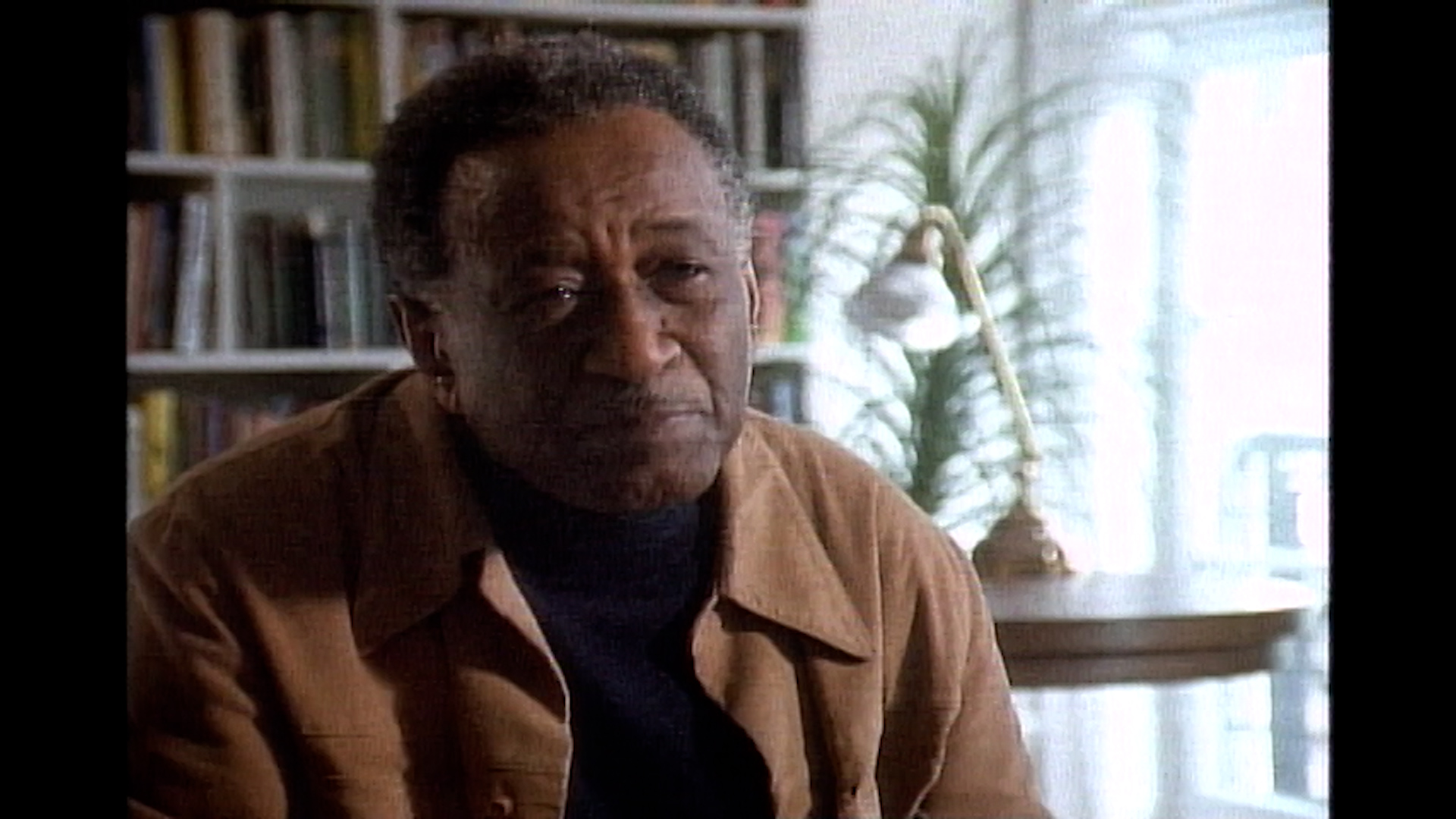

    [Attachment 60648 - Click to enlarge]

    https://drive.google.com/file/d/1OyiYOeYqCgUz3S2vSN8_OjghObBTM2AZ/view?usp=sharing

    Really appreciate the help.
    Cheers from Rio,
    Quote Quote
  2. I would recommand to use differend filtering settings for [0 317] and [318 617]. You might want to enable "Filtering->Vapoursynth->UI->Show 'Apply only to'-controls" and use them if you use Hybrid. (not that there is a mistake in the description you need to use [a b] instead of [a-b] to filter just the frames a-b.

    Did you add the timer to that source and the source you want to filter does not have that timer on it or is it a fixed part of the source?
    If it's a fixed part it's probably more compilcated since you should keep it out of filtering (which Hybrid atm. does not support), to avoid filters like DeDot or Spotless to break apart the timer when trying to remove straches etc.

    Cu Selur

    Ps.: Question in the round: Where do people get such crappy HD content from?
    Last edited by Selur; 9th Sep 2021 at 14:43.
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  3. Originally Posted by Selur View Post
    I would recommand to use differend filtering settings for [0 317] and [318 617]. You might want to enable "Filtering->Vapoursynth->UI->Show 'Apply only to'-controls" and use them if you use Hybrid. (not that there is a mistake in the description you need to use [a b] instead of [a-b] to filter just the frames a-b.

    Did you add the timer to that source and the source you want to filter does not have that timer on it or is it a fixed part of the source?
    If it's a fixed part it's probably more compilcated since you should keep it out of filtering (which Hybrid atm. does not support), to avoid filters like DeDot or Spotless to break apart the timer when trying to remove straches etc.

    Cu Selur

    Ps.: Question in the round: Where do people get such crappy HD content from?
    Haha, my thoughts exactly on the crappy content part
    Thankfully, I added the timer because it's copyrighted, so no need to bother with that. I will try your settings, thank you!
    Quote Quote
  4. btw. if you want to see the real horror of the artifacts enable Color->Misc->Retinex and check the Vapoursynth Preview.

    Going to bed now, but might look at it a bit tomorrow.
    My guess is the main problem is to get a handle on the flickering and scratches/dirt.

    Cu Selur
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  5. tested two settings:
    HQDN3D:
    Code:
    # Imports
    import os
    import sys
    import vapoursynth as vs
    # getting Vapoursynth core
    core = vs.core
    # Import scripts folder
    scriptPath = 'I:/Hybrid/64bit/vsscripts'
    sys.path.insert(0, os.path.abspath(scriptPath))
    # Loading Plugins
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/SharpenFilter/AWarpSharp2/libawarpsharp2.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/SharpenFilter/CAS/CAS.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/DenoiseFilter/HQDN3D/libhqdn3d.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/libtemporalmedian.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/libmvtools.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/SourceFilter/LSmashSource/vslsmashsource.dll")
    # Import scripts
    import havsfunc
    import mvsfunc
    import lostfunc
    import SpotLess
    # source: 'C:\Users\Selur\Desktop\2121160_trecho.mp4'
    # current color space: YUV420P8, bit depth: 8, resolution: 1920x1080, fps: 29.97, color matrix: 709, yuv luminance scale: limited, scanorder: progressive
    # Loading C:\Users\Selur\Desktop\2121160_trecho.mp4 using LibavSMASHSource
    clip = core.lsmas.LibavSMASHSource(source="C:/Users/Selur/Desktop/2121160_trecho.mp4")
    # making sure input color matrix is set as 709
    clip = core.resize.Bicubic(clip, matrix_in_s="709",range_s="limited")
    # making sure frame rate is set to 29.970
    clip = core.std.AssumeFPS(clip=clip, fpsnum=30000, fpsden=1001)
    # Setting color range to TV (limited) range.
    clip = core.std.SetFrameProp(clip=clip, prop="_ColorRange", intval=1)
    # cutting from frame 318 to end - WARNING: This might cause synch issues
    clip = core.std.Trim(clip=clip, first=318)
    # cropping the video to 1432x974
    clip = core.std.CropRel(clip=clip, left=244, right=244, top=106, bottom=0)
    clip = SpotLess.SpotLess(clip=clip, chroma=False, radT=3, ablksz=64, aoverlap=32, asearch=4)
    # denoising using HQDN3D
    clip = core.hqdn3d.Hqdn3d(clip=clip)
    clip = lostfunc.DeSpot(o=clip)
    clip = lostfunc.DeSpot(o=clip)
    clip = lostfunc.DeSpot(o=clip)
    clip = lostfunc.DeSpot(o=clip)
    # contrast sharpening using CAS
    clip = core.cas.CAS(clip=clip, sharpness=0.800)
    # line darkening using Toon
    clip = havsfunc.Toon(input=clip)
    # adjusting output color from: YUV420P8 to YUV420P10 for x265Model
    clip = core.resize.Bicubic(clip=clip, format=vs.YUV420P10, range_s="limited")
    # set output frame rate to 29.970fps
    clip = core.std.AssumeFPS(clip=clip, fpsnum=30000, fpsden=1001)
    # Output
    clip.set_output()

    DPIR: (a lot slower)
    Code:
    # Imports
    import os
    import sys
    import vapoursynth as vs
    # getting Vapoursynth core
    core = vs.core
    # Import scripts folder
    scriptPath = 'I:/Hybrid/64bit/vsscripts'
    sys.path.insert(0, os.path.abspath(scriptPath))
    # Loading Plugins
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/SharpenFilter/AWarpSharp2/libawarpsharp2.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/SharpenFilter/CAS/CAS.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/libtemporalmedian.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/libmvtools.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/SourceFilter/LSmashSource/vslsmashsource.dll")
    # Import scripts
    import havsfunc
    import mvsfunc
    import lostfunc
    import SpotLess
    # source: 'C:\Users\Selur\Desktop\2121160_trecho.mp4'
    # current color space: YUV420P8, bit depth: 8, resolution: 1920x1080, fps: 29.97, color matrix: 709, yuv luminance scale: limited, scanorder: progressive
    # Loading C:\Users\Selur\Desktop\2121160_trecho.mp4 using LibavSMASHSource
    clip = core.lsmas.LibavSMASHSource(source="C:/Users/Selur/Desktop/2121160_trecho.mp4")
    # making sure input color matrix is set as 709
    clip = core.resize.Bicubic(clip, matrix_in_s="709",range_s="limited")
    # making sure frame rate is set to 29.970
    clip = core.std.AssumeFPS(clip=clip, fpsnum=30000, fpsden=1001)
    # Setting color range to TV (limited) range.
    clip = core.std.SetFrameProp(clip=clip, prop="_ColorRange", intval=1)
    # cutting from frame 318 to end - WARNING: This might cause synch issues
    clip = core.std.Trim(clip=clip, first=318)
    # cropping the video to 1432x974
    clip = core.std.CropRel(clip=clip, left=244, right=244, top=106, bottom=0)
    clip = SpotLess.SpotLess(clip=clip, chroma=False, radT=3, ablksz=64, aoverlap=32, asearch=4)
    from vsdpir import DPIR
    # adjusting color space from YUV420P8 to RGBS for vsDPIRDenoise
    clip = core.resize.Bicubic(clip=clip, format=vs.RGBS, matrix_in_s="709", range_s="limited")
    # denoising using DPIRDenoise
    clip = DPIR(clip=clip, strength=10.000, device_index=0)
    # adjusting color space from RGBS to YUV444P16 for vsDeSpot
    clip = core.resize.Bicubic(clip=clip, format=vs.YUV444P16, matrix_s="709", range_s="limited")
    clip = lostfunc.DeSpot(o=clip)
    clip = lostfunc.DeSpot(o=clip)
    clip = lostfunc.DeSpot(o=clip)
    clip = lostfunc.DeSpot(o=clip)
    # contrast sharpening using CAS
    clip = core.cas.CAS(clip=clip, sharpness=0.800)
    # line darkening using Toon
    clip = havsfunc.Toon(input=clip)
    # adjusting output color from: YUV444P16 to YUV420P10 for x265Model
    clip = core.resize.Bicubic(clip=clip, format=vs.YUV420P10, range_s="limited")
    # set output frame rate to 29.970fps
    clip = core.std.AssumeFPS(clip=clip, fpsnum=30000, fpsden=1001)
    # Output
    clip.set_output()


    also made a HQDN3D + DPIR version,...

    and attached a reencode where I stacked the version. (tl=original, tr=spotless_hqdn3d_despot_cas, bl=spotless_dpir_despot_cas, br=spotless_hqdn3d_dpir_despot_cas)

    Not totally happy with any of them, but I thought sharing the results wouldn't hurt and might help to find a better solution.

    Cu Selur
    Image Attached Files
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  6. Dear @selur, thank you so much for the tests taken.
    I tried to replicate them here, but Hybrid unfortunately has crashed. It is very possible that I'm doing something wrong

    Attached to this post is the log, which I followed the instructions from forum.selur.net

    Thanks again,
    Image Attached Files
    Quote Quote
  7. This isn't the cause for the crash, but the 1st step should be decimating the duplicates . Every 5th frame is a duplicate. It's "23.976p in 29.97p"

    Because they are not 100% true duplicates (there is a bit of noise and compression artifact difference between them), you need to adjust the settings for vdecimate, such as increase the block size. At least on the version you uploaded. The log file says "prores" for the actual file - so you might have to adjust the settings for that

    It would look something like this, where VDecimate is inserted after AssumeFPS

    And the 2nd last line before the output node should say fpsnum=24000, fpsden=1001, or you can comment it out
    Code:
    # making sure frame rate is set to 29.970
    clip = core.std.AssumeFPS(clip=clip, fpsnum=30000, fpsden=1001)
    # decimate duplicates
    clip = core.vivtc.VDecimate(clip, dupthresh=1.1, blockx=256, blocky=256)
    # Setting color range to TV (limited) range.
    clip = core.std.SetFrameProp(clip=clip, prop="_ColorRange", intval=1)
    .
    .
    .

    # set output frame rate to 23.976fps
    clip = core.std.AssumeFPS(clip=clip, fpsnum=24000, fpsden=1001)
    # Output
    clip.set_output()
    Last edited by poisondeathray; 13th Sep 2021 at 20:24.
    Quote Quote
  8. Reason for the crash is due to a bug in Hybrid that it forgot to at the end of the LibavSMASHSource-call. (since it returns an array if the input has an alpha channel)
    -> will send you a link to my current dev version, which fixes this.


    Cu Selur
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  9. Thanks for the fix! It worked, but I lost sync between audio and video in the h265 lossless convert.
    Is there a quick way to cut the videos generated in Hybrid (without having to reconvert) so i dont have to upload the whole video?
    Quote Quote
  10. a. Need a debug output to see what you did and whether Hybrid something wrong.
    b. Need a step-by-step to reproduce the issue
    c. Hybrid does offer a rough cut support when (Internals->Cut Support; read the top-tips of the options) is enabled. It's experimental, but might work. That said, the async output isn't really interessting since it does not show why it's async.
    If you for example added the suggested lines from poisondeathray without telling Hybrid about the frame rate and frame count change async output is to be expected.
    -> a sample of the source and step-by-step instructions which allow to reproduce the problem with that sample will help to reproduce this, a sample of the async source not.

    Cu Selur
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  11. Dear forum friends, sorry for taking this long to reply, I am still learning so it took me a while to organize the assets.
    Here is a google folder with the tests
    https://drive.google.com/drive/folders/1VA0S-LadGmEL1dR03W-4gciMH9o1-eP6?usp=sharing

    Since this is copyrighted material, I can only share a small 20s example.
    I numbered them chronological, being

    00 ORIGINAL - original files in PRORES

    01 HYBRID HQDN3D - it was the test i did using @selur's first idea:
    Originally Posted by Selur View Post
    tested two settings:
    HQDN3D:
    [code]# Imports
    import os
    import sys
    import vapoursynth as vs
    # getting Vapoursynth core
    core = vs.core
    # Import scripts folder
    02 NEAT (40percent) then HYBRID QTMG deinterlace - I used Neat Video plugin on Premiere then Hybrid only for Deinterlace QTGCM.

    03 HYBRID h265 change speed - I came back to the forum and tried this:
    Originally Posted by poisondeathray View Post
    (...)you need to adjust the settings for vdecimate, such as increase the block size. At least on the version you uploaded. The log file says "prores" for the actual file - so you might have to adjust the settings for that(...)
    @poisondeathray, I dunno how to set the vdecimate on Hybrid, so I checked the box on
    Filtering > Speed Change > Change Speed > 23.976
    I believe this is why my h265 was really out of sync. Here attached is the log again:

    04 HYBRID QTMG deinterlace - then I realized I shoulda deinterlace on Hybrid BEFORE using Neat Video on Premiere, which lead to:

    05 HYBRID QTMG deinter then NEAT -10% - and I used Neat Video on Premiere Pro to capture the noise and this is the best result I got so far.

    I really appreciate all the help and support given!
    I think the bad quality it's understandable since the source material is an old SD Betacam SP Ampex.
    Also the dust and scratches do not bother me, but the constant noise on the entire video, even in the color parts, they do.

    Let me know what you think, if you want of course.
    Cheers from Rio,
    Image Attached Files
    Quote Quote
  12. Sorry, but I won't look at a 197MB debug output. No clue how long it would take me to read all that.

    Using 'Change Speed' was wrong and not what poisondeathray intended.
    His comment basically said to drop every 5th frame since it's a duplicate and adjust the frame rate accordingly.
    This does not really change the general denoising.
    To archive the dropping of the frame you could use one of these:
    • enable "Filtering->(De)Interlace/Telecine->Deinterlace/Teleince settings->Overwrite the input scan type to" set it to "telecine" and select either "VIVTC (Vapoursynth)" or "TIVTC (Vapoursynth)"
    • enable "Filtering->Vapoursynth->Frame->Reduction->SelectEvery" and enter as offsets "0 1 2 3"
    • set "Filtering->Vapoursynth->Custom->Insert Berfore" to "Deinterlace" enabled the custom section and enter:
      Code:
      clip = core.vivtc.VDecimate(clip, dupthresh=1.1, blockx=256, blocky=256)
      # framerate 23.976
      Check the Vapoursynth preview move the slider to the far right to see the number of the last frame (frame count = last frame number +1)
      Enable "Filtering->Misc->Overwirte Output"
      Enable "Filtering->Misc->Overwirte Output->Frame count to" and enter the new frame count (whatever the Vapoursynth Preview showed)
      Enable "Filtering->Misc->Overwirte Output->Frame rate to" and enter the new frame rate (23.976)

    What confuses me is that you want to deinterlace the video. When I load the video in Hybrid it's reported as progressive and since the Vapoursynth Preview shows no combing, I would assume that it is progressive.

    As a side note: what ever you used to cut the mov didn't do a good job.
    Code:
    Video
    Count                                    : 378
    Count of stream of this kind             : 1
    Kind of stream                           : Video
    Kind of stream                           : Video
    Stream identifier                        : 0
    StreamOrder                              : 0
    ID                                       : 1
    ID                                       : 1
    Format                                   : ProRes
    Format                                   : ProRes
    Commercial name                          : ProRes
    Format version                           : Version 0
    Format profile                           : 422 HQ
    Codec ID                                 : apch
    Codec ID/Url                             : http://www.apple.com/quicktime/download/standalone.html
    Duration                                 : 211011
    Duration                                 : 3 min 31 s
    Duration                                 : 3 min 31 s 11 ms
    Duration                                 : 3 min 31 s
    Duration                                 : 00:03:31.011
    Duration                                 : 00:03:30:24
    Duration                                 : 00:03:31.011 (00:03:30:24)
    Source duration                          : 20020
    Source duration                          : 20 s 20 ms
    Source duration                          : 20 s 20 ms
    Source duration                          : 20 s 20 ms
    Source duration                          : 00:00:20.020
    Bit rate mode                            : VBR
    Bit rate mode                            : Variable
    Bit rate                                 : 20232915
    Bit rate                                 : 20.2 Mb/s
    Width                                    : 1920
    Width                                    : 1 920 pixels
    Height                                   : 1080
    Height                                   : 1 080 pixels
    Sampled_Width                            : 1920
    Sampled_Height                           : 1080
    Pixel aspect ratio                       : 0.909
    Display aspect ratio                     : 1.616
    Display aspect ratio                     : 16:10
    Rotation                                 : 0.000
    Frame rate mode                          : CFR
    Frame rate mode                          : Constant
    Frame rate                               : 29.970
    Frame rate                               : 29.970 (30000/1001) FPS
    FrameRate_Num                            : 30000
    FrameRate_Den                            : 1001
    Frame count                              : 6324
    Source frame count                       : 600
    Color space                              : YUV
    Chroma subsampling                       : 4:2:2
    Chroma subsampling                       : 4:2:2
    Scan type                                : Progressive
    Scan type                                : Progressive
    Bits/(Pixel*Frame)                       : 0.326
    Delay                                    : 3478800
    Delay                                    : 57 min 58 s
    Delay                                    : 57 min 58 s 800 ms
    Delay                                    : 57 min 58 s
    Delay                                    : 00:57:58.800
    Delay_Settings                           : DropFrame=No / 24HourMax=No / IsVisual=No
    Delay_DropFrame                          : No
    Delay, origin                            : Container
    Delay, origin                            : Container
    Stream size                              : 533670979
    Stream size                              : 509 MiB (89%)
    Stream size                              : 509 MiB
    Stream size                              : 509 MiB
    Stream size                              : 509 MiB
    Stream size                              : 508.9 MiB
    Stream size                              : 509 MiB (89%)
    Proportion of this stream                : 0.89223
    Source stream size                       : 594268624
    Source stream size                       : 567 MiB (99%)
    Source stream size                       : 567 MiB
    Source stream size                       : 567 MiB
    Source stream size                       : 567 MiB
    Source stream size                       : 566.7 MiB
    Source stream size                       : 567 MiB (99%)
    Source_StreamSize_Proportion             : 0.99354
    Writing library                          : adb0
    Writing library                          : adb0
    Language                                 : en
    Language                                 : English
    Language                                 : English
    Language                                 : en
    Language                                 : eng
    Language                                 : en
    colour_description_present               : Yes
    colour_description_present_Source        : Container / Stream
    Color primaries                          : BT.709
    colour_primaries_Source                  : Container / Stream
    Transfer characteristics                 : BT.709
    transfer_characteristics_Source          : Container / Stream
    Matrix coefficients                      : BT.709
    matrix_coefficients_Source               : Container / Stream
    mdhd_Duration                            : 211011
    Length and delay of the container are totally wrong.

    -> will look at the video tomorrow.

    Cu Selur
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  13. Hahah sorry for the 200mb file, I had no idea!
    Gonna delete it

    About the cutting, Hybrid did a good job on cutting the PRORES, but I didn't manage to do the rest.
    So I used
    ffmpeg -ss 00:03:11 -i input.mov -to 00:03:31 -c copy -copyts output.mov
    Quote Quote
  14. I adjusted Hybrid to use the 'Source duration' and the 'Source frame count'.

    Using:
    Code:
    # Imports
    import os
    import sys
    import ctypes
    # Loading Support Files
    Dllref = ctypes.windll.LoadLibrary("I:/Hybrid/64bit/vsfilters/Support/libfftw3f-3.dll")
    import vapoursynth as vs
    # getting Vapoursynth core
    core = vs.core
    # Import scripts folder
    scriptPath = 'I:/Hybrid/64bit/vsscripts'
    sys.path.insert(0, os.path.abspath(scriptPath))
    # Loading Plugins
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/SharpenFilter/CAS/CAS.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/DenoiseFilter/CTMF/CTMF.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/DenoiseFilter/HQDN3D/libhqdn3d.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/DenoiseFilter/NEO_FFT3DFilter/neo-fft3d.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/libtemporalmedian.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/libmvtools.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/RemapFramesVapoursynth.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/fmtconv.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/SourceFilter/LSmashSource/vslsmashsource.dll")
    # Import scripts
    import havsfunc
    import SpotLess
    import lostfunc
    import adjust
    # source: 'C:\Users\Selur\Desktop\00 ORIGINAL.mov'
    # current color space: YUV422P10, bit depth: 10, resolution: 1920x1080, fps: 29.97, color matrix: 709, yuv luminance scale: limited, scanorder: progressive
    # Loading C:\Users\Selur\Desktop\00 ORIGINAL.mov using LibavSMASHSource
    clip = core.lsmas.LibavSMASHSource(source="C:/Users/Selur/Desktop/00 ORIGINAL.mov")
    # making sure input color matrix is set as 709
    clip = core.resize.Bicubic(clip, matrix_in_s="709",range_s="limited")
    # making sure frame rate is set to 29.97
    clip = core.std.AssumeFPS(clip=clip, fpsnum=30000, fpsden=1001)
    # Setting color range to TV (limited) range.
    clip = core.std.SetFrameProp(clip=clip, prop="_ColorRange", intval=1)
    # adjusting frame with SelectEvery
    clip = core.std.SelectEvery(clip=clip, cycle=5, offsets=[0, 1, 2, 3])
    clip = core.std.AssumeFPS(clip=clip,fpsnum=24000, fpsden=1001)# new fps: 23.976
    # cropping the video to 1580x1080
    clip = core.std.CropRel(clip=clip, left=170, right=170, top=0, bottom=0)
    clip = core.fmtc.resample(clip=clip, kernel="spline16", w=1580, h=1080, interlaced=False, interlacedd=False)
    # Color Adjustment
    clip = core.remap.Rfs(baseclip=clip, sourceclip=adjust.Tweak(clip=clip, hue=0.00, sat=0.00, cont=1.00, coring=True), mappings="[228 479]")
    clip = lostfunc.DeSpot(o=clip)
    clip = lostfunc.DeSpot(o=clip)
    clip = lostfunc.DeSpot(o=clip)
    clip = lostfunc.DeSpot(o=clip)
    clip = core.remap.Rfs(baseclip=clip, sourceclip=SpotLess.SpotLess(clip=clip, radT=1), mappings="[227 479]")
    # adjusting color space from YUV422P16 to YUV444P8 for vsTemporalDegrain
    clip = core.resize.Bicubic(clip=clip, format=vs.YUV444P8, range_s="limited")
    # removing grain using TemporalDegrain
    clip = core.remap.Rfs(baseclip=clip, sourceclip=havsfunc.TemporalDegrain(inpClip=clip), mappings="[0 227]")
    # contrast sharpening using CAS
    clip = core.remap.Rfs(baseclip=clip, sourceclip=core.cas.CAS(clip=clip, sharpness=0.700), mappings="[0 227]")
    # adjusting output color from: YUV444P8 to YUV420P10 for x265Model
    clip = core.resize.Bicubic(clip=clip, format=vs.YUV420P10, range_s="limited")
    # set output frame rate to 23.976fps
    clip = core.std.AssumeFPS(clip=clip, fpsnum=24000, fpsden=1001)
    # Output
    clip.set_output()
    It mainly filters the first part:
    • Select Every
    • Crop
    • DeSport
    • TemporalDegrain
    • CAS
    and does some adjustments to the second part:
    • Select Every
    • Crop
    • Tweak to limit the colors to gray scale
    • DeSpot
    will look into some further filtering of the second part.

    btw. did you upscale the original to 1080p (noise reduction is easier when done in the original resolution)?

    Cu Selur
    Image Attached Files
    users currently on my ignore list: deadrats, Stears555
    Quote Quote
  15. Video Restorer lordsmurf's Avatar
    Join Date
    Jun 2003
    Location
    dFAQ.us/lordsmurf
    Search Comp PM
    Originally Posted by Selur View Post
    Ps.: Question in the round: Where do people get such crappy HD content from?
    The main culprit, when you have HD from videotapes, is by using crap like OBS, HDMI converters, and Blackmagic cards. That method is essentially putting the video content in a blender, then taking a dump on it, then trying to watch it. Everything is screwed, from interlaced to luma values.

    Trying to "fix" it in post is ridiculous. Quality starts with a quality capture. Not a crappy capture and Avisynth.
    Quote Quote
  16. Had another go at it:
    Code:
    # Imports
    import os
    import sys
    import ctypes
    # Loading Support Files
    Dllref = ctypes.windll.LoadLibrary("I:/Hybrid/64bit/vsfilters/Support/libfftw3-3.dll")
    Dllref = ctypes.windll.LoadLibrary("I:/Hybrid/64bit/vsfilters/Support/libfftw3f-3.dll")
    import vapoursynth as vs
    # getting Vapoursynth core
    core = vs.core
    # Import scripts folder
    scriptPath = 'I:/Hybrid/64bit/vsscripts'
    sys.path.insert(0, os.path.abspath(scriptPath))
    # Loading Plugins
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/SharpenFilter/CAS/CAS.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/DebandFilter/Flash3kDeband/flash3kyuu_deband.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/SharpenFilter/AWarpSharp2/libawarpsharp2.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/TCanny.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/vcm.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/libmvtools_sf_em64t.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/DenoiseFilter/CTMF/CTMF.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/DenoiseFilter/HQDN3D/libhqdn3d.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/DenoiseFilter/NEO_FFT3DFilter/neo-fft3d.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/libtemporalmedian.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/libmvtools.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/RemapFramesVapoursynth.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/Support/fmtconv.dll")
    core.std.LoadPlugin(path="I:/Hybrid/64bit/vsfilters/SourceFilter/LSmashSource/vslsmashsource.dll")
    # Import scripts
    import mvsfunc
    import muvsfunc
    import G41Fun
    import havsfunc
    import SpotLess
    import lostfunc
    import adjust
    # source: 'C:\Users\Selur\Desktop\00 ORIGINAL.mov'
    # current color space: YUV422P10, bit depth: 10, resolution: 1920x1080, fps: 29.97, color matrix: 709, yuv luminance scale: limited, scanorder: progressive
    # Loading C:\Users\Selur\Desktop\00 ORIGINAL.mov using LibavSMASHSource
    clip = core.lsmas.LibavSMASHSource(source="C:/Users/Selur/Desktop/00 ORIGINAL.mov")
    # making sure input color matrix is set as 709
    clip = core.resize.Bicubic(clip, matrix_in_s="709",range_s="limited")
    # making sure frame rate is set to 29.970
    clip = core.std.AssumeFPS(clip=clip, fpsnum=30000, fpsden=1001)
    # Setting color range to TV (limited) range.
    clip = core.std.SetFrameProp(clip=clip, prop="_ColorRange", intval=1)
    # adjusting frame with SelectEvery
    clip = core.std.SelectEvery(clip=clip, cycle=5, offsets=[0, 1, 2, 3])
    clip = core.std.AssumeFPS(clip=clip,fpsnum=24000, fpsden=1001)# new fps: 23.976
    # cropping the video to 1580x1080
    clip = core.std.CropRel(clip=clip, left=170, right=170, top=0, bottom=0)
    clip = core.fmtc.resample(clip=clip, kernel="spline16", w=1580, h=1080, interlaced=False, interlacedd=False)
    # Color Adjustment
    clip = core.remap.Rfs(baseclip=clip, sourceclip=adjust.Tweak(clip=clip, hue=0.00, sat=0.00, cont=1.00, coring=True), mappings="[228 479]")
    clip = lostfunc.DeSpot(o=clip)
    clip = lostfunc.DeSpot(o=clip)
    clip = SpotLess.SpotLess(clip=clip, chroma=False, radT=1, ablksz=16, aoverlap=8)
    # adjusting color space from YUV422P16 to YUV444P8 for vsTemporalDegrain
    clip = core.resize.Bicubic(clip=clip, format=vs.YUV444P8, range_s="limited")
    # removing grain using TemporalDegrain
    clip = core.remap.Rfs(baseclip=clip, sourceclip=havsfunc.TemporalDegrain(inpClip=clip), mappings="[0 227]")
    # denoising using mClean
    clip = core.remap.Rfs(baseclip=clip, sourceclip=G41Fun.mClean(clip=clip), mappings="[228 479]")
    # contrast sharpening using CAS
    clip = core.remap.Rfs(baseclip=clip, sourceclip=core.cas.CAS(clip=clip, sharpness=0.700), mappings="[0 227]")
    # adjusting output color from: YUV444P16 to YUV420P10 for x265Model
    clip = core.resize.Bicubic(clip=clip, format=vs.YUV420P10, range_s="limited")
    # set output frame rate to 23.976fps
    clip = core.std.AssumeFPS(clip=clip, fpsnum=24000, fpsden=1001)
    # Output
    clip.set_output()
    attached a lossless encode again.

    Cu Selur

    Ps.: I'll also compile and upload my current dev version so you can do the things I did with Hybrid.
    Image Attached Files
    users currently on my ignore list: deadrats, Stears555
    Quote Quote



Similar Threads
