specific conversion settings required

[Frequency]

Hi everyone,

I am attempting to play back video on my mobile device (CAT B26). Since only FLV and AVI formats are supported I have to convert my original MP4 files accordingly.

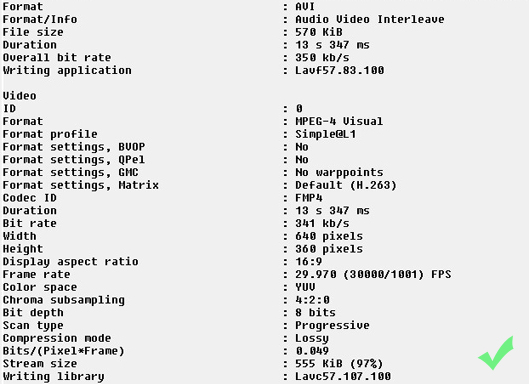

A sample AVI file i acquired online works just fine. Its attributes are documented in the image below:


[Attachment 59690 - Click to enlarge]

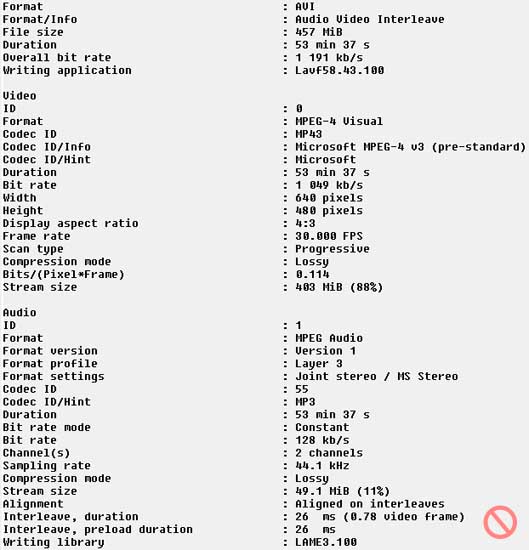

On the contrary, my conversion software (MiniTool Video Converter) produces a AVI variation that is not being played back, even though sound can be heard:


[Attachment 59688 - Click to enlarge]

The same goes for the FLV type.
As I am inexperienced with video conversion I can not identify the critical settings that might cause the issue.

Your help will be greatly appreciated.
Thanks in andvance.

[Selur]

Main difference I see is that the first one uses Standard MPEG-4 ASP and the second some old pre-standard (in this case this means not standard conform) video.
-> use another software or if the software allows it another encoder like XviD or DivX which is MPEG-4 ASP conform.

[ProWo]

Use clever Ffmpeg-Gui, convert to xvid and mux to avi

[Selur]

@ProWo: you should at least tell him how to configure that tool to be compatible with the first clip since the standard settings are probably not.

[Frequency]

Thanks guys! It worked. ✔
