    Using debian linux and dvgrab to capture DVCAM from a Sony DSR-20P.

    I initially had issues with dropped frames, which I overcame by using a ramdisk.

    The software starts a new file when it finds a discontinuity in the timecode, which works fine most of the time but I see that some of the files are dated in the future.

    For example

    /tmp/ramdisk/Beating-Retreat-1999.11.30_00-00-00.dv
    /tmp/ramdisk/Beating-Retreat-2067.02.15_22-26-25.dv

    Watching the capture I can see that the initial timecoded file name is a valid one, then a future dated file gets created, after which the original file is updated some more.
    Using vlc the future dated file shows vertical colour bars and has a duration of 15 seconds.

    Is there a way, using ffprobe maybe, to display the timecode of each frame so I can determine where the problem occurs?
    Quote Quote
  2. <edit>
    Oops, sorry, this gets you the display timecodes, not the recording date/time metadata. Still, you may be able find a break in the progression to determine where your problem is.
    </edit>

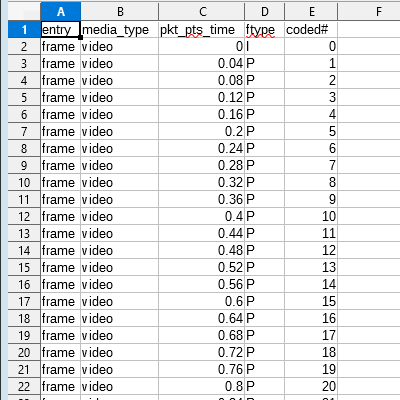

    This in a batch file will get you the timestamps in a CSV file, ready to import into a spreadsheet. Or edit with a text editor.
    Code:
    echo entry,media_type,pkt_pts_time,ftype,coded# > "%~n1.csv"
    ffprobe.exe -v 32 -stats -y -hide_banner -i %1 -select_streams v -print_format csv -of csv -show_entries "frame=media_type,coded_picture_number,pkt_pts_time,pict_type" >> "%~n1.csv"
    Drag/drop a video file onto the batch file. Output will have the same base name as the video file, with a .CSV extension.

    [Attachment 59410 - Click to enlarge]
    Last edited by jagabo; 11th Jun 2021 at 10:54.
    Quote Quote
  3. Member
    Join Date
    Nov 2020
    Location
    United Kingdom
    Search Comp PM
    Thank you jagabo

    It has worked nicey and has helped identify the frames where the issue occurs.
    Now I need to think what I can do about it
