    Hello I was wondering does the AJA Kona LHi support 720*480i 29.97? Also is there a way to tell the AJA Control Room v15.5 capture software to stop capturing after a certain amount of time?

    Thanks
    Quote Quote
  2. 13th Jan 2021 20:00 #2
    ron spencer
    ron spencer is offline
    Rancid User ron spencer's Avatar
    Join Date
    May 2005
    Location
    Ish-ka-bibble
    Search Comp PM
    Seems like it does not support it:

    https://www.aja.com/products/kona-lhi#techspecs
    'Do I look absolutely divine and regal, and yet at the same time very pretty and rather accessible?' - Queenie
    Quote Quote
  3. 13th Jan 2021 21:07 #3
    Waloshin
    Waloshin is offline
    Member
    Join Date
    Nov 2018
    Search Comp PM
    Seems like 525i is the same as 480i.
    https://en.m.wikipedia.org/wiki/480i

    Is 525i 59.94 just 480i 29.97?
    Last edited by Waloshin; 13th Jan 2021 at 21:21.
    Quote Quote
  4. 14th Jan 2021 00:24 #4
    dellsam34
    dellsam34 is offline
    Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    Yes, Interlaced video counts the fields, 60 (59.94) fields per second is 30 (29.97) full frames per second.
    Quote Quote
  5. 14th Jan 2021 08:59 #5
    jagabo
    jagabo is offline
    Member
    Join Date
    Dec 2005
    Search Comp PM
    Yes, 480i and 525i are the same thing. The analog signal is 525i but only about 480 lines contain picture content and are captured. Most of the other lines are just there for analog sync.

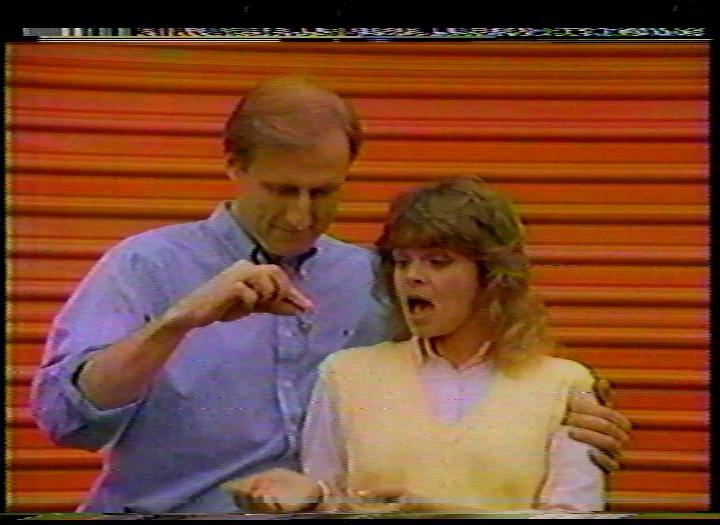

    Here's a frame from a full 525 line capture:

    [Attachment 56785 - Click to enlarge]

    Most of those black/white dots near the top of the frame are from a broadcaster put a station logo in that portion of the signal. That area would normally be black and it wouldn't be visible on a normal TV.
    Last edited by jagabo; 14th Jan 2021 at 10:38.
    Quote Quote
  6. 14th Jan 2021 11:01 #6
    Waloshin
    Waloshin is offline
    Member
    Join Date
    Nov 2018
    Search Comp PM
    Thank you everyone for the quick responses and education.
