    I wanted to share my way of converting 4:3 format materials to 16:9 format. This is useful for converting old movies or TV series or sports broadcasts (generally anything made before 2000).

    Simply cutting out part of the image, i.e. removing the border at the bottom and top of the screen usually gives unsatisfactory results. In this way a significant part of the image is lost. I was looking for a tool on the Internet that I could convert the video differently, but I found nothing. That is why I invented the conversion method myself. Only a small part of the image is removed. If I would stop at that, there would of course be black bars on the left and right side. To avoid this, the image is stretched - only that it is not just a simple stretch of the whole, but a gradual one. The image in the center is kept in standard proportions, but the further away from the center, the bigger scaling is used. Thanks to this, the faces of actors or characters appearing in the center have unchanged proportions and look natural. Closer to the edge there is an extension, which, however, is not noticeable, because most of the time you look at the central objects. You can say that there is a trick to image perception.

    In my opinion, the results are better than just cutting out or using black bands on the sides or filling an inactive area with a blurred image. Basically, when watching such prepared material on a widescreen TV one can forget that its source was 4:3 format material.

    And now how to do it -> I used ffmpeg and wrote special scripts.


    1) Software conversion of PAL material

    Of course you need to have the ffmpeg.exe file and save the following script in a file named e.g. conversion.bat. Such an executable file is launched from the command line, giving the name of the input and output file as parameters.


    ffmpeg -c:v mpeg2video -i %1.mpg -vf "yadif=1:-1:0,hqdn3d=8,crop=720:480:y=48,scale=1152:720:flag s=bicubic,split=11[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10][v11];[v1]crop=96:720:x=0,scale=96+20:720:flags=bicubic[v1];[v2]crop=96:720:x=96,scale=96+16:720:flags=bicubic[v2];[v3]crop=96:720:x=192,scale=96+12:720:flags=bicubic[v3];[v4]crop=96:720:x=288,scale=96+8:720:flags=bicubic[v4];[v5]crop=96:720:x=384,scale=96+4:720:flags=bicubic[v5];[v6]crop=192:720:x=480[v6];[v7]crop=96:720:x=672,scale=96+4:720:flags=bicubic[v7];[v8]crop=96:720:x=768,scale=96+8:720:flags=bicubic[v8];[v9]crop=96:720:x=864,scale=96+12:720:flags=bicubic[v9];[v10]crop=96:720:x=960,scale=96+16:720:flags=bicubic[v10];[v11]crop=96:720:x=1056,scale=96+20:720:flags=bicubic[v11];[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10]
    [v11]hstack=inputs=11,pad=1280:720:x=4,setsar=1/1" -map 0:v -map 0:a:1 -f mp4 -c:v libx264 -preset veryfast -profile:v baseline -level 1.3 -b:v 5000k -c:a aac -ac 2 -b:a 256k -sn -map_metadata -1 -map_chapters -1 %1.mp4


    The key place of the script is the video filter, which follows -vf in quotation marks. The image is divided into 11 fragments with different scaling and then merged into a whole. The encoding parameters can be changed freely (e.g. video or audio bitrate).


    2) Hardware conversion of PAL material

    The difference is that the method built into the NVidia graphics card, not yadif, is used for deinterlacing. Also the first scaling is done by the graphics card.

    ffmpeg -hwaccel cuda -c:v mpeg2_cuvid -deint adaptive -crop 48x48x0x0 -resize 1152x720 -r 50 -i %1.mpg -vf "hqdn3d=8,split=11[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10][v11];[v1]crop=96:720:x=0,scale=96+20:720:flags=bicubic[v1];[v2]crop=96:720:x=96,scale=96+16:720:flags=bicubic[v2];[v3]crop=96:720:x=192,scale=96+12:720:flags=bicubic[v3];[v4]crop=96:720:x=288,scale=96+8:720:flags=bicubic[v4];[v5]crop=96:720:x=384,scale=96+4:720:flags=bicubic[v5];[v6]crop=192:720:x=480[v6];[v7]crop=96:720:x=672,scale=96+4:720:flags=bicubic[v7];[v8]crop=96:720:x=768,scale=96+8:720:flags=bicubic[v8];[v9]crop=96:720:x=864,scale=96+12:720:flags=bicubic[v9];[v10]crop=96:720:x=960,scale=96+16:720:flags=bicubic[v10];[v11]crop=96:720:x=1056,scale=96+20:720:flags=bicubic[v11];[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10][v11]hstack=inputs=11,pad=1280:720:x=4,setsar=1/1" -map 0:v -map 0:a:1 -f mp4 -c:v libx264 -preset veryfast -profile:v baseline -level 1.3 -b:v 5000k -c:a aac -ac 2 -b:a 256k -sn -map_metadata -1 -map_chapters -1 %1.mp4

    3) Sofware conversion of NTSC material

    American materials have a slightly different format, so you need to use a modified script.

    ffmpeg -c:v mpeg2video -i %1.mpg -vf "yadif=1:-1:0,hqdn3d=4,crop=720:400:y=45,scale=1152:720:flag s=bicubic,split=11[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10][v11];[v1]crop=96:720:x=0,scale=96+20:720:flags=bicubic[v1];[v2]crop=96:720:x=96,scale=96+16:720:flags=bicubic[v2];[v3]crop=96:720:x=192,scale=96+12:720:flags=bicubic[v3];[v4]crop=96:720:x=288,scale=96+8:720:flags=bicubic[v4];[v5]crop=96:720:x=384,scale=96+4:720:flags=bicubic[v5];[v6]crop=192:720:x=480[v6];[v7]crop=96:720:x=672,scale=96+4:720:flags=bicubic[v7];[v8]crop=96:720:x=768,scale=96+8:720:flags=bicubic[v8];[v9]crop=96:720:x=864,scale=96+12:720:flags=bicubic[v9];[v10]crop=96:720:x=960,scale=96+16:720:flags=bicubic[v10];[v11]crop=96:720:x=1056,scale=96+20:720:flags=bicubic[v11];[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10][v11]hstack=inputs=11,pad=1280:720:x=4,setsar=1/1" -f mp4 -c:v libx264 -preset veryfast -profile:v baseline -level 1.3 -b:v 5000k -c:a aac -ac 2 -b:a 256k -sn -map_metadata -1 -map_chapters -1 %1.mp4


    4) Hardware conversion of NTSC material

    ffmpeg -hwaccel cuda -c:v mpeg2_cuvid -deint adaptive -crop 45x35x0x0 -resize 1152x720 -r 60000/1001 -i %1.mpg -vf "hqdn3d=4,split=11[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10][v11];[v1]crop=96:720:x=0,scale=96+20:720:flags=bicubic[v1];[v2]crop=96:720:x=96,scale=96+16:720:flags=bicubic[v2];[v3]crop=96:720:x=192,scale=96+12:720:flags=bicubic[v3];[v4]crop=96:720:x=288,scale=96+8:720:flags=bicubic[v4];[v5]crop=96:720:x=384,scale=96+4:720:flags=bicubic[v5];[v6]crop=192:720:x=480[v6];[v7]crop=96:720:x=672,scale=96+4:720:flags=bicubic[v7];[v8]crop=96:720:x=768,scale=96+8:720:flags=bicubic[v8];[v9]crop=96:720:x=864,scale=96+12:720:flags=bicubic[v9];[v10]crop=96:720:x=960,scale=96+16:720:flags=bicubic[v10];[v11]crop=96:720:x=1056,scale=96+20:720:flags=bicubic[v11];[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10][v11]hstack=inputs=11,pad=1280:720:x=4,setsar=1/1" -f mp4 -c:v libx264 -preset veryfast -profile:v baseline -level 1.3 -b:v 5000k -c:a aac -ac 2 -b:a 256k -sn -p_metadata -1 -map_chapters -1 %1.mp4


    The output image has a resolution of 1280x720.

    Finally, note to all scripts. There is a filter that removes noise hqdn3d (Higt Quality Denoiser 3D). Its use depends on the quality of the material we convert. As a general heuristic rule I can suggest that for materials created in the 80s or earlier I used hqdn3d=8, for materials from the 90s hqdn3d=4, and for those from the first decade of the 21st century it was unnecessary to use this filter (you can remove this fragment).
    Quote Quote
  2. Member DB83's Avatar
    Join Date
    Jul 2007
    Location
    United Kingdom
    Search Comp PM
    I have not tested your script(s). I have no motivation in doing so to be frank. Whilst there may be a perception that one does not notice the stretching there is also a perception that most will not notice, or be bothered by, the borders that appear on 4:3 material displayed on wider screens. And there are many out there that stretch the full image and really do not care that the image is wrong.


    Of course some may welcome your work and I do not wish to be depreciating it. But what you may wish to do is enhance your own topic by providing actual examples.
    Quote Quote
  3. Originally Posted by Jaglo View Post
    That is why I invented the conversion method myself.
    You invented nothing:
    http://avisynth.nl/index.php/WarpedResize

    Crop the amount you want from top and bottom and then use WarpedResize on what's left.

    The whole idea is absurd and here's why:
    https://forum.videohelp.com/threads/363684-4-3-to-16-9-avisynth#post2314433

    You signed up here just to promote this?
    Quote Quote
  4. I've been aware of this idea since 2005, when HD was first becoming popular. I even created some warp filters for Sonic Foundry Vegas. However, I could never get anything that looked good, and as the camera panned, the effect could be quite disconcerting.

    However, I would certainly be interested in seeing a clip of something you have produced. No need to upload anything because for this, a simple upload to YouTube will suffice. Make sure you have a clip where you have motion moving horizontally across the frame, as well as a clip where the camera pans horizontally.

    Who knows, despite the two skeptical comments above, maybe you've figured out some magic numbers for the warp. That is the key to getting something that looks good.

    However, having tilted at this windmill myself, I'm pretty content with the black bars on the side and, when I watch a 4:3 movie, I do so on my home projector. I zoom it out and it fills the screen because my screen is from the 1980s, so it is more square than rectangular.
    Quote Quote
  5. Member DB83's Avatar
    Join Date
    Jul 2007
    Location
    United Kingdom
    Search Comp PM
    BTW I was not being sceptical. Just expressing an opinion.


    But someone pls tell me if I got this wrong. Here in Pal-land, as the OP states, the typical way of 'converting' 4:3 material to 16:9 does indeed involve cropping away the frame from 576 pixels to 432. Yet reading the script the OP suggests cropping to 480 pixels. So that is not an insignificant amount of picture loss.
    Quote Quote
  6. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    I used to have a Yamaha rear projection TV (about 15 years ago) that had this technology built-in.
    You could set it so that any 4x3 signal received could be stretched, as described by the OP,
    where the stretching was evident on the sides but not the center.

    Pretty sure all I had then was analog cable
    Quote Quote
  7. PAL land comment here:
    I have seen the cropping DB83 mentions, black borders left and right, borders made out of blurring the frame but keeping the originally aspect of the original picture and while there was a transition to 16:9 video there were quite a few shows in 14:9.

    I encoded some private videos to 14:9 because my relatives had a mix of 4:3 and 16:9 TVs. Not sure it was worth the effort though.
    Quote Quote
  8. You only have to think of all those old tv series originally filmed in 4:3 and then re-broadcast on Netflix as 16:9 which look natural widescreen without squashing. X-Files being one of them. They must crop the picture and zoom it in to get a perfect 16:9 without distortion losing only slight image? The original pilot of X-Files being a classic example of this revamping. But HBO broadcasts some original filmed widescreen shows in 4:3 which is apparently making a comeback in some circles. I prefer the 2.00 aspect myself as a happy medium of all ratios.
    Quote Quote
  9. Member
    Join Date
    Nov 2020
    Location
    Poland
    Search Comp PM
    I didn't know the WarpedResize and I don't promote it. The idea is the same, but different realization. My script does not divide smoothly according to the formula, but divides into 11 parts.The number of parts and scaling was chosen in such a way that the negative effects are as little noticeable as possible and do not distract attention. The key here is not to apply too much scaling to the borders of the image. This can be a major problem when using the WarpResize function.

    Examples with a chessboard should not be discouraged, because geometric objects rarely appear in the real film. The strength of this method lies in the fact that the viewer usually does not know what proportions the objects have. The brain takes what it sees as the truth.

    Examples:

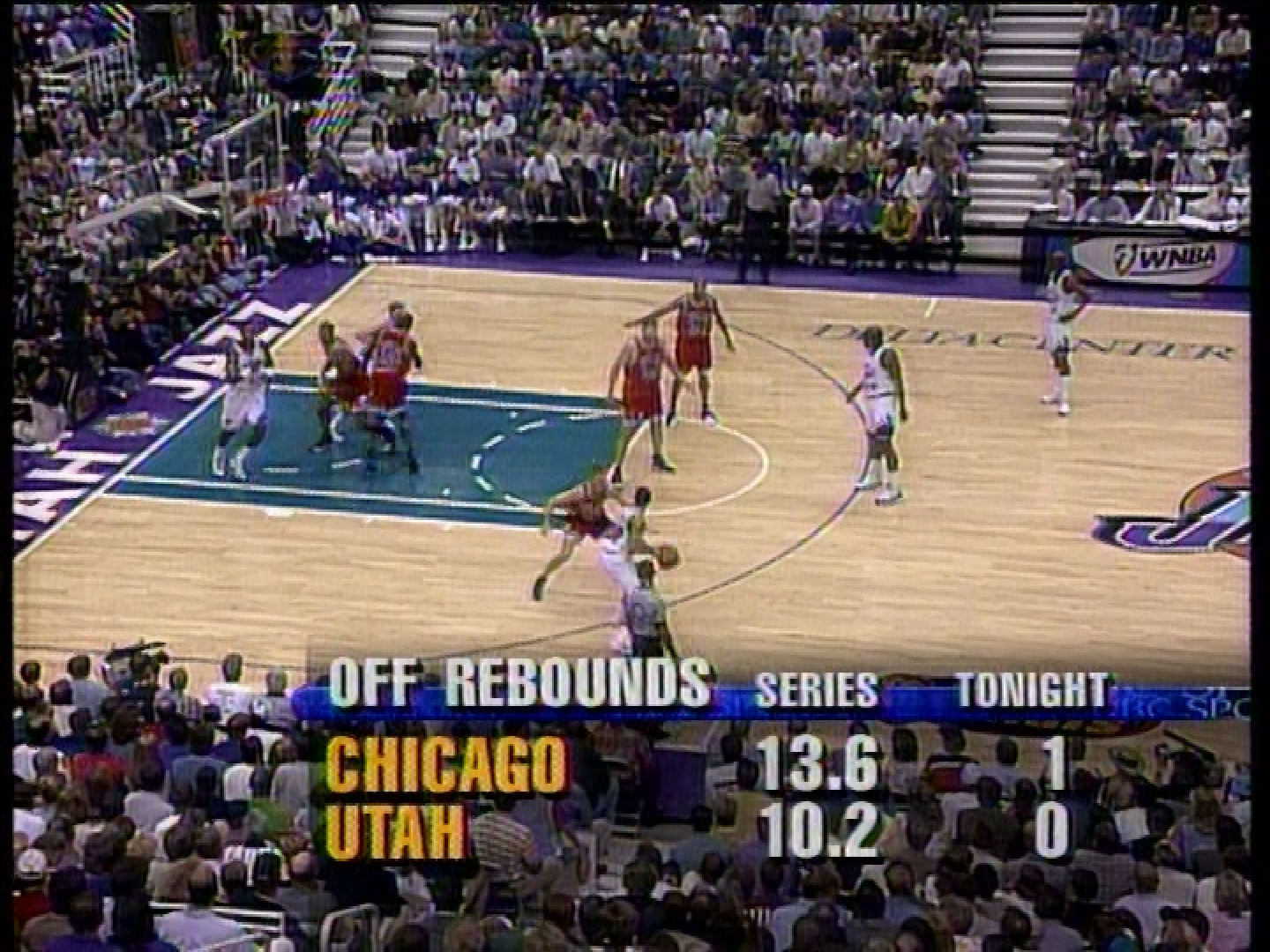

    Oryginal material 4:3
    [Attachment 55827 - Click to enlarge]

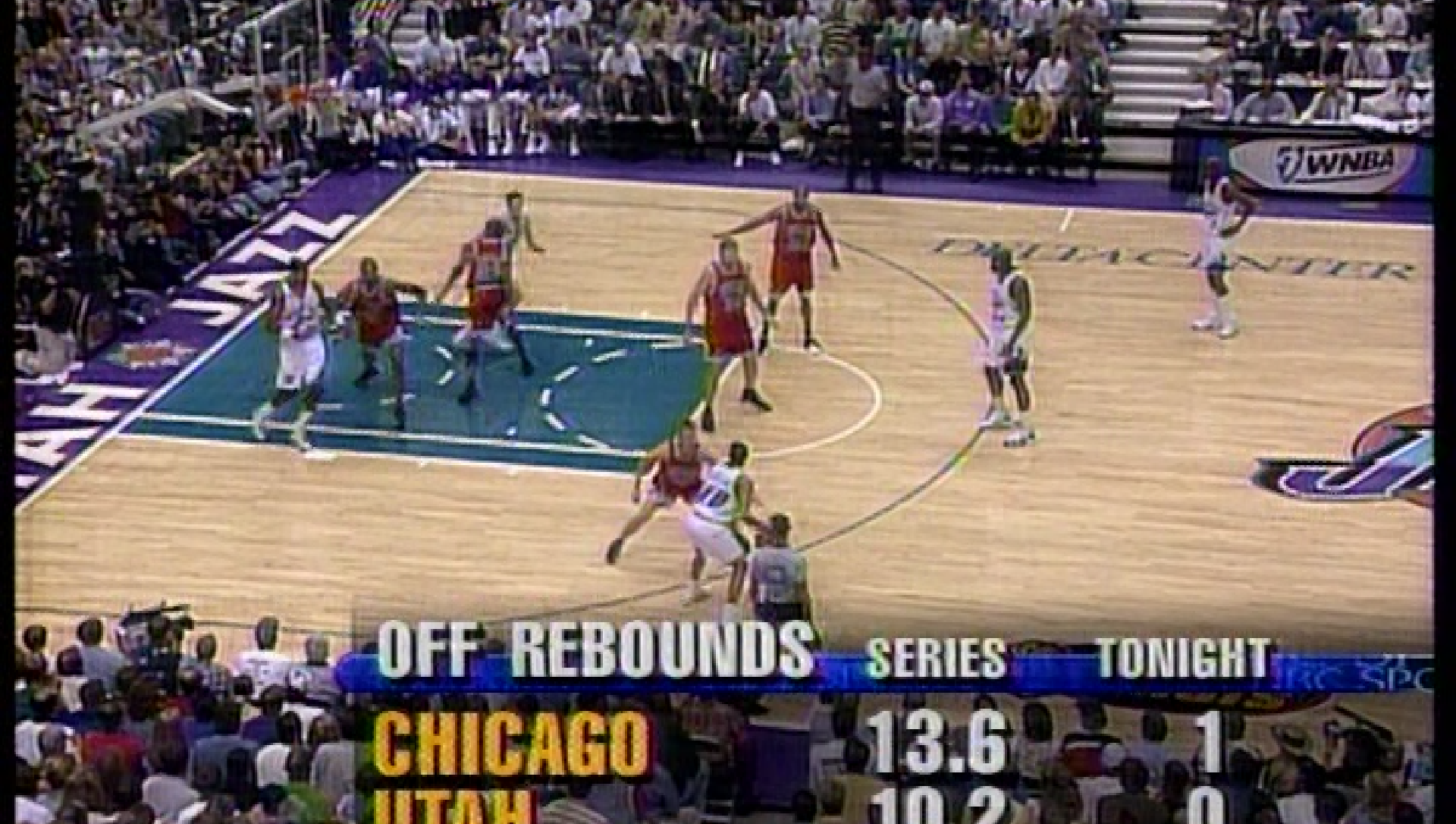

    Simple stretch of the image 16:9 - the players are wide
    [Attachment 55828 - Click to enlarge]

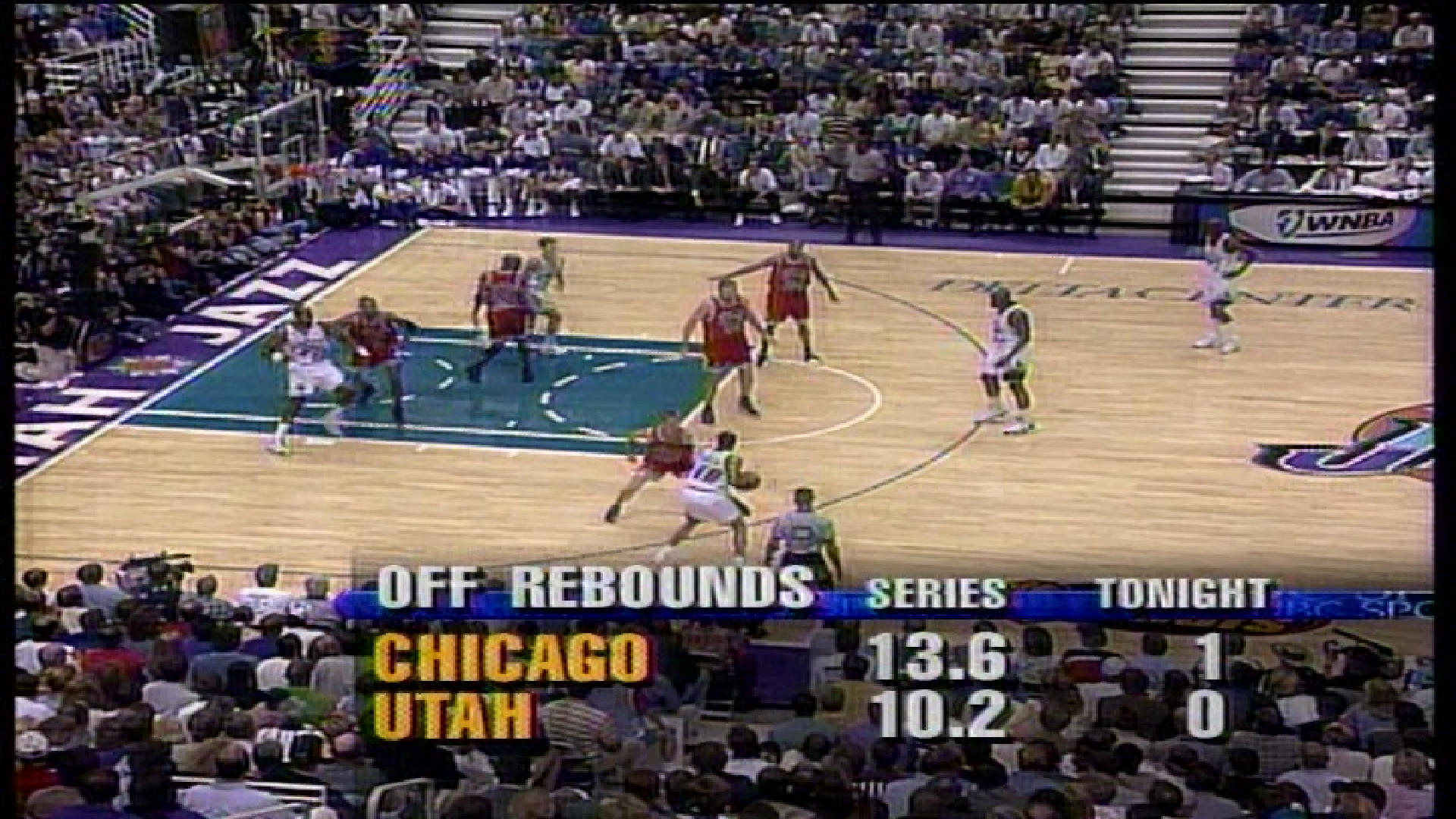

    Cut 16:9 - you can see half the captions
    [Attachment 55829 - Click to enlarge]

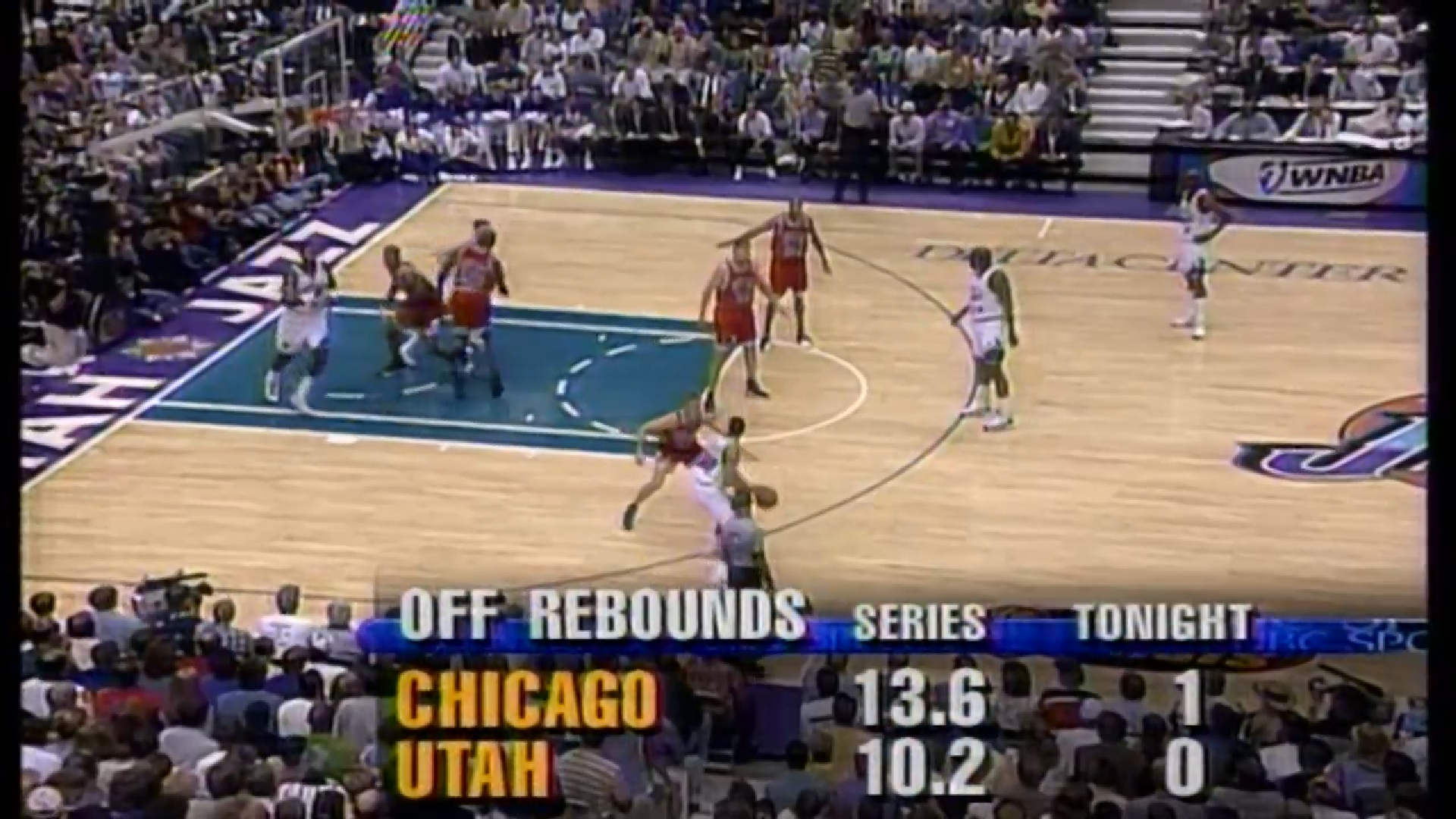

    Panoramic conversion 16:9
    [Attachment 55830 - Click to enlarge]


    When the camera zooms in, the results are even better. For film scenes also. When the camera moves horizontally, a variable scale is most noticeable. But it must be remembered that this does not happen often (in the movies) and, in my opinion, has been minimized. For example, when I watch a game, it does not get noticed at all.

    When the camera's movement is horizontal, the adjacent frames of the film (which just show a wider perspective) should be used, but this is unlikely to be achieved with an ffmpeg script.
    Quote Quote
  10. The reason commercial TV shows can be re-released in widescreen without stretching and without much cropping is that they have access to the original negative. Most TV shows prior to HD were shot on regular film cameras, and most of those were designed for theatrical films (i.e., widescreen). When the show was cut for broadcast, the sides were cropped off. The studio can go back to the negative, and this time use that material at the edges. There can still be the need to crop a little at the top and bottom, depending on the actual aspect ratio of the original negative.
    Quote Quote
  11. Originally Posted by johnmeyer View Post
    Most TV shows prior to HD were shot on regular film cameras, and most of those were designed for theatrical films (i.e., widescreen).
    Uh, while they may have been shot using film cameras and while there may have been a little less cropping than when beginning with a 1:33:1 source, these 35 mm cameras weren't 'widescreen', but Academy ratio (1.375:1).

    Film originally created in the 4:3 aspect ratio does not need to be altered for full screen release ... Full screen aspect ratios in standard television have been in use since the invention of moving picture cameras. Early computer monitors employed the same aspect ratio. The aspect ratio 4:3 was used for 35 mm films in the silent era. It is also very close to the 1.375:1 Academy ratio, defined by the Academy of Motion Picture Arts and Sciences as a standard after the advent of optical sound-on-film. By having TV match this aspect ratio, movies originally photographed on 35 mm film could be satisfactorily viewed on TV in the early days of television (i.e. the 1940s and '50s).
    https://en.wikipedia.org/wiki/Fullscreen_(aspect_ratio)
    In 1932, in refining this ratio, the Academy of Motion Picture Arts and Sciences expanded upon this 1930 standard. The camera aperture became 22 by 16 mm (0.87 by 0.63 in), and the projected image would use an aperture plate size of 0.825 by 0.600 in (21.0 by 15.2 mm), yielding an aspect ratio of 1.375:1. This became known as the "Academy" ratio, named so after them. ... The image area for "TV transmission" is slightly smaller than the full "Academy" ratio at 21 by 16 mm (0.83 by 0.63 in), an aspect ratio of 1.33:1.
    https://en.wikipedia.org/wiki/35_mm_movie_film#Widescreen
    Therefore. instead of a total of 25% of the picture being removed to create "widescreen" from "fullscreen", you might wind up cropping "only" 24%.

    I can't confirm it, but I doubt those earlier television programs were shot using 35 mm cameras with an anamorphic lens on them to create a true "widescreen" video which could be cropped for television. Why would they? They weren't thinking ahead 30 years to today's "widescreen" television sets.
    Quote Quote
  12. First of all, thank you for your hard and excelent work, about 3 weeks ago I decided to look at my dvd-collection in order to put them on my NAS but I dont like the 4x3 AR on my 65 inch tv so I dabbled with changing the AR to 16x9.
    Your solution is a very good compromise and it works for me.
    I changed a few things, not that they are any good, it's just the way I code in ffmpeg and the result is very satisfactionaly.

    ffmpeg -i "The Stand 1.mkv" -map 0 -vf "yadif=1:-1:0,hqdn3d=4,crop=720:480:y=48,scale=1152:720:flag s=bicubic,split=11[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10][v11];[v1]crop=96:720:x=0,scale=96+20:720:flags=bicubic[v1];[v2]crop=96:720:x=96,scale=96+16:720:flags=bicubic[v2];[v3]crop=96:720:x=192,scale=96+12:720:flags=bicubic[v3];[v4]crop=96:720:x=288,scale=96+8:720:flags=bicubic[v4];[v5]crop=96:720:x=384,scale=96+4:720:flags=bicubic[v5];[v6]crop=192:720:x=480[v6];[v7]crop=96:720:x=672,scale=96+4:720:flags=bicubic[v7];[v8]crop=96:720:x=768,scale=96+8:720:flags=bicubic[v8];[v9]crop=96:720:x=864,scale=96+12:720:flags=bicubic[v9];[v10]crop=96:720:x=960,scale=96+16:720:flags=bicubic[v10];[v11]crop=96:720:x=1056,scale=96+20:720:flags=bicubic[v11];[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10]
    [v11]hstack=inputs=11,pad=1280:720:x=4,setsar=1/1" -c:v libx264 -crf 20 -preset veryfast -c:a copy -sn "test.mkv"

    Source is The Stand, a miniserie 4 parts 1994, I ripped it to my computer with MakeMKV, so MPEG 2
    And after the conversion I added the subtitles (dvdsub) with MKVToolnix from the original rip.
    Last edited by Bonnevue; 14th Nov 2020 at 04:08.
    Quote Quote
  13. Originally Posted by johnmeyer View Post
    The reason commercial TV shows can be re-released in widescreen without stretching and without much cropping is that they have access to the original negative. Most TV shows prior to HD were shot on regular film cameras, and most of those were designed for theatrical films (i.e., widescreen). When the show was cut for broadcast, the sides were cropped off. The studio can go back to the negative, and this time use that material at the edges. There can still be the need to crop a little at the top and bottom, depending on the actual aspect ratio of the original negative.
    That explains it well. Having that OCN or interpositive is a goldmine for later releases or restorations if in good nick. Some film directors were well ahead of their time and realized that widescreen was the future. John Carpenter was one of those who shot in it in the early days!
    Quote Quote
  14. Originally Posted by manono View Post
    Originally Posted by johnmeyer View Post
    Most TV shows prior to HD were shot on regular film cameras, and most of those were designed for theatrical films (i.e., widescreen).
    Uh, while they may have been shot using film cameras and while there may have been a little less cropping than when beginning with a 1:33:1 source, these 35 mm cameras weren't 'widescreen', but Academy ratio (1.375:1).
    I should have not said "most." It depends on whether they were shot on 3-perf or 4-perf 35mm. 4-perf, which is what Seinfeld used, does provide some additional material at the edges that was cropped to get to 4:3. However, you don't get enough extra material at the edges to permit a full 16:9 result without cropping. The following image, which you can find on hundreds of sites, shows the crop. You can see some additional image in the blue 16:9 result that was never seen in the original release, but you also see that some material is lost at the top and bottom.

    Starting in the 90s, when most TV shows were still being shot on film, but when HD TV was beginning to be discussed, some shows had the foresight to switch to 3-perf. Those negatives are closer to 16:9 and when re-scanned, the result can be 16:9 with very little cropping.
    Image Attached Thumbnails Click image for larger version

Name:	Seinfeld-HD-vs-SD-framing-compared.jpg
Views:	104
Size:	108.5 KB
ID:	55855

    Quote Quote
  15. Originally Posted by Jaglo View Post
    The key here is not to apply too much scaling to the borders of the image. This can be a major problem when using the WarpResize function.
    WarpedResize can give almost exactly the same result (minus the stepwise motion distortions) as your technique if you crop before the resize.

    Code:
    LWLibavVideoSource("source.mkv")
    AssumeTFF()
    Yadif(mode=1)
    Crop(0,40,-0,-40)
    WarpedResize(1280, 720, 0.93, 1.0)
    I prefer to watch the original 4:3 video pillarboxed on the screen. But if I had to pick one of the 16:9 versions I prefer the WarpedResize() method to the Jaglo method because of the smoother motion.
    Image Attached Files
    Quote Quote
  16. Member
    Join Date
    Nov 2020
    Location
    Poland
    Search Comp PM
    I was wrong - WrapResize has no problem with scaling at the screen edge. However, there is a problem that can be described as a "lens". You can see that the image is curved like in a lens. By dividing the image into several fragments it is possible to reduce it.

    Motion distortion is visible in both methods (7s, 16s and 21s), although it is indeed more visible on the jaglo.mkv file. In my opinion, the reason is different video encoder and/or lower bitrate (6000 kb/s vs 3600 kb/s).
    Quote Quote
  17. Originally Posted by Jaglo View Post
    I was wrong...
    You should have stopped there, rather than try and rationalize your 'misguided' opinions and inferior filter. You object to pillarboxing on what was originally 1.33:1 material. Do you also object to letterboxing on 2.39:1 films when shown on your 1.78:1 television set? Following your logic of not liking black bars and wanting your entire television filled with active video, you should object. Maybe develop a filter to stretch video vertically. Or develop a television that stretches to adapt to the aspect ratio of what's being shown, kind of like YouTube's adaptable video player these days.

    Originally Posted by jagabo View Post
    I prefer to watch the original 4:3 video pillarboxed on the screen.
    Although that might not be the consensus of the public at large (I have friends and relatives that mess up their television aspect ratios purposely), I expect it is the consensus of the people at video sites such as this one, meaning people that actually know something about this subject.
    Quote Quote
  18. Originally Posted by manono View Post
    Originally Posted by jagabo View Post
    I prefer to watch the original 4:3 video pillarboxed on the screen.
    Although that might not be the consensus of the public at large (I have friends and relatives that mess up their television aspect ratios purposely), I expect it is the consensus of the people at video sites such as this one, meaning people that actually know something about this subject.
    Stretching 4/3 movies is out of the question, but some vintage video content (music videos, maybe sports ?) could possibly be stretched to 16/9.

    ex: for Britney fans

    or this
    Last edited by butterw; 25th Nov 2020 at 17:05.
    Quote Quote
  19. If letterbox/pillarbox bars are so offensive to you do what they do in movie theaters. Install curtains and adjust them to cover the black borders.

    The only real reason I see for eliminating the black borders is to eliminate burn-in problems with plasma TVs. And maybe OLED screens.
    Quote Quote
  20. aBigMeanie aedipuss's Avatar
    Join Date
    Oct 2005
    Location
    666th portal
    Search Comp PM
    Originally Posted by jagabo View Post
    If letterbox/pillarbox bars are so offensive to you do what they do in movie theaters. Install curtains and adjust them to cover the black borders.

    The only real reason I see for eliminating the black borders is to eliminate burn-in problems with plasma TVs. And maybe OLED screens.
    wouldn't worry about plasmas, my samsung is going on 10 years old and no sign of any burn-in.
    --
    "a lot of people are better dead" - prisoner KSC2-303
    Quote Quote
  21. Originally Posted by aedipuss View Post
    Originally Posted by jagabo View Post
    If letterbox/pillarbox bars are so offensive to you do what they do in movie theaters. Install curtains and adjust them to cover the black borders.

    The only real reason I see for eliminating the black borders is to eliminate burn-in problems with plasma TVs. And maybe OLED screens.
    wouldn't worry about plasmas, my samsung is going on 10 years old and no sign of any burn-in.
    Someone I know had a plasma and watched mostly 4:3 TV. It had noticeable burn in after only a month.
    Quote Quote
  22. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    I respect your choice but technically any form of stretch is wrong, It is less noticeable in steady scenes but when the camera is panning it is easily noticeable, Just add blurred edges to the sides if screen burn-in is a concern.
    Quote Quote
  23. Video Restorer lordsmurf's Avatar
    Join Date
    Jun 2003
    Location
    dFAQ.us/lordsmurf
    Search Comp PM
    Originally Posted by johnmeyer View Post
    and as the camera panned, the effect could be quite disconcerting.
    It reminds me of panning my head with reading glasses on. Urgh.

    Move book, not head.
    Quote Quote
  24. I was trying to resise a specific video which was being difficult.
    I tried jaglo's method but I had to modify it to make it work.
    After that it removed the side bars but not the top & bottom bars.

    I would like to be able to remove the top & bottom bars also.
    So it fits on my TV without needin to use the Zoom on my BD player.
    The Zoom works OK even on the original video.
    I would just like it to play without needing to use Zoom.

    This is the code I used in ffmpeg:

    Code:
    ffmpeg -i "input.mpg" -r 30 -vf "yadif=1:-1:0,hqdn3d=4,crop=704:464:714:474,scale=1152:720:flags=bicubic,split=11[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10][v11];[v1]crop=96:720:x=0,scale=96+20:720:flags=bicubic[v1];[v2]crop=96:720:x=96,scale=96+16:720:flags=bicubic[v2];[v3]crop=96:720:x=192,scale=96+12:720:flags=bicubic[v3];[v4]crop=96:720:x=288,scale=96+8:720:flags=bicubic[v4];[v5]crop=96:720:x=384,scale=96+4:720:flags=bicubic[v5];[v6]crop=192:720:x=480[v6];[v7]crop=96:720:x=672,scale=96+4:720:flags=bicubic[v7];[v8]crop=96:720:x=768,scale=96+8:720:flags=bicubic[v8];[v9]crop=96:720:x=864,scale=96+12:720:flags=bicubic[v9];[v10]crop=96:720:x=960,scale=96+16:720:flags=bicubic[v10];[v11]crop=96:720:x=1056,scale=96+20:720:flags=bicubic[v11];[v1][v2][v3][v4][v5][v6][v7][v8][v9][v10][v11]hstack=inputs=11,scale=1920:1080,setsar=1/1,setdar=16/9" -c:v libx264 -preset veryfast -profile:v main -level 4.0 -b:v 5794k -c:a copy -c:s copy -map_metadata -1 -map_chapters -1 output.mkv
    This does have some width stretch but it is acceptable to me.

    I would be glad to try the code jagabo for WarpedResize in avisynth but I need a guide to do this.
    I do not know how to use just this code. I usually work with ffmpeg.
    Quote Quote
  25. I'll confess I've never used ffmpeg's cropping so I haven't got my head around it, however I'm convinced people who stretch video tend to be denied admission to heaven.

    If you're happy to play with Avisynth I don't mind shamelessly promoting the CropResize function in my signature, which by design won't let you stretch, although you can get around that by changing the display aspect ratio it bases it's calculations on. For cropping 4:3 to 16:9 there's a CropDAR argument that increases the cropping as required to crop to that DAR and a TCRatio argument to adjust how much of the extra cropping is cropped from the top compared to the bottom. For set and forget cropping, I find it's better to crop more from the bottom of a 4:3 picture than the top as the important stuff is generally slightly above the center of the frame.

    Some screenshots for you.
    The first two numbers for CropResize in the examples below are the resizing width and height (a zero height means the function will calculate the height itself), and the next four are the "minimum" cropping. The CropDAR argument crops to the DAR specified, and TCRatio adjusts the top/bottom cropping ratio when CropDAR is cropping the height. The yellow lines in the screenshots below show the specified cropping and the blue lines show any extra cropping the script is applying.

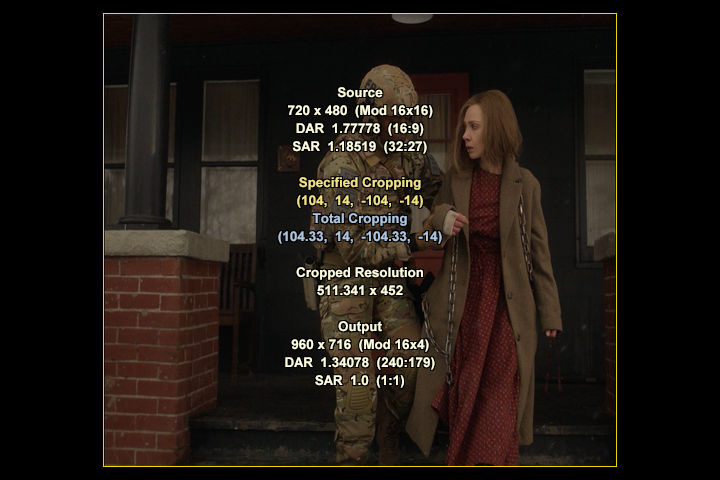

    A fake 16:9 DVD with lashings of border around a 4:3 picture to demonstrate.

    [Attachment 80223 - Click to enlarge]


    Specifying the output width, and the cropping required to remove the borders (for anamorphic sources the function also needs to know the correct input DAR).
    CropResize(960,0, 104,14,-104,-14, InDAR=16.0/9.0, CPreview=1)

    [Attachment 80224 - Click to enlarge]


    The cropping preview after adding the CropDAR and TCRatio arguments.
    CropResize(960,0, 104,14,-104,-14, InDAR=16.0/9.0, CPreview=1, CropDAR=16.0/9.0, TCRatio=0.33)

    [Attachment 80225 - Click to enlarge]


    And after disabling the cropping preview.
    CropResize(960,0, 104,14,-104,-14, InDAR=16.0/9.0, CropDAR=16.0/9.0, TCRatio=0.33)

    [Attachment 80226 - Click to enlarge]


    In case you're not aware, you can splice videos and/or frame ranges this way if they need to be cropped differently:

    A = CropResize(960,0, 104,14,-104,-14, InDAR=16.0/9.0, CropDAR=16.0/9.0, TCRatio=0.33)
    B = CropResize(960,0, 104,0,-120,-14, InDAR=16.0/9.0, CropDAR=16.0/9.0, TCRatio=0.5)

    A.Trim(0, 978) + \
    B.Trim(979, 1134) + \
    A.Trim(1135, 0)
    Last edited by hello_hello; 26th Jun 2024 at 21:38.
    Quote Quote
  26. @ hello_hello.
    Thanks for responding.
    I usually do not "stretch" a video.
    This is an older movie & it plays as a square with pillars & top & bottom bars.
    It bothers me to watch it this way.
    On an old CRT TV it would probably look OK.

    I took a look at the CropResize link.
    Its' a long thread & will take me a while to absorb it.

    So I have some learning to do.
    Quote Quote
  27. Member
    Join Date
    May 2005
    Location
    Australia-PAL Land
    Search Comp PM
    Just crop it visually and resize it with VDub2.
    Quote Quote
  28. Originally Posted by cholla View Post
    This is an older movie & it plays as a square with pillars & top & bottom bars.
    Is it an old 4:3 DVD containing a picture with a wider aspect ratio such as 16:9 or something like that? They were encoded with letterbox borders to give the picture a 4:3 display aspect ratio, but then of course when you view it on a 16:9 screen the player or TV has to add pillarbox borders to make it 16:9, so what you end up looking at is a picture surrounded by black, like this:

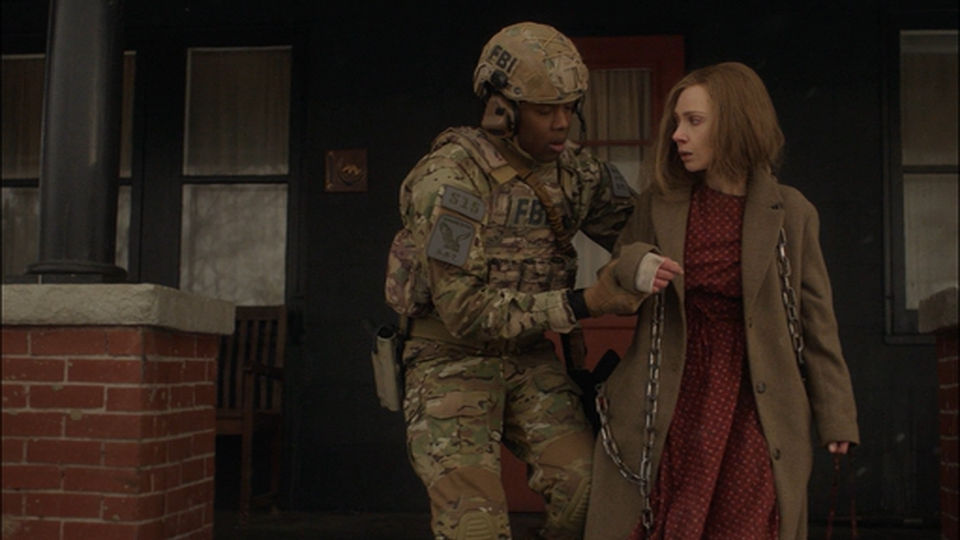

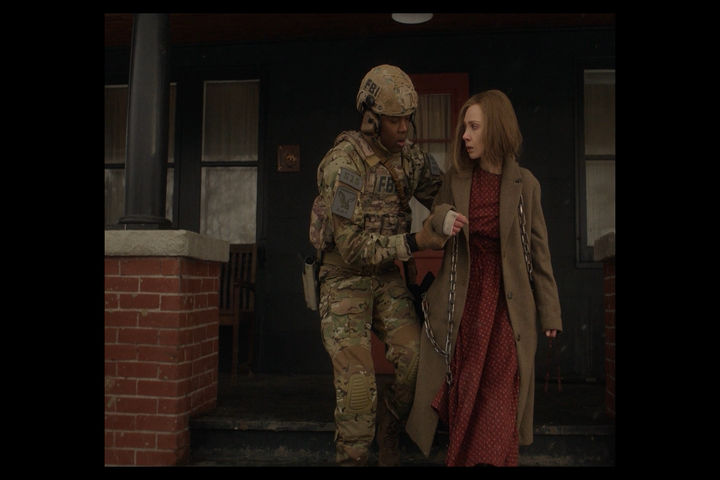

    [Attachment 80247 - Click to enlarge]


    You haven't really said what the source is and I had assumed the video you wanted to crop has 4:3 worth of actual picture, borders not included, but maybe that was my bad. Care to share a screenshot?
    If it's like the pic above though and the pillarbox borders don't really exist, aside from maybe a small amount of crud each side of the video, you'd crop whatever you need to... and it's easier to explain with an example, and sorry if I'm explaining what you already know.

    If it's a 4:3 NTSC DVD it has a pixel/sample aspect ratio of 10:11.
    If there happens to be 40 pixels of black top and bottom and you haven't cropped the sides, after cropping you'll be left with a 720x400 picture. It has a display aspect ratio of:
    720 * 10 / 11 / 400 = 1.6363
    If you want to resize to a height of 1080, which is probably mental, the width would need to be:
    1080 * 1.6363 = 1768 (1767.2727 rounded to mod2)

    However much you need to crop though,
    Cropped Width * 10 /11 / Cropped Height
    gives you the DAR to use for resizing.
    Unless it happens to be exactly 16:9 the player will still add letterbox or pillarbox borders as it would for any other video, but it'll be one or the other rather than both.

    Or don't resize at all, or use Cropped Width / Cropped height as the resizing ratio, and tell ffmpeg to set a 10:11 SAR for the encoded video.

    You'd obviously know more about cropping and resizing with ffmpeg than I do, but am on the right track at all? If I'm not, sorry about that....
    I can't tell without reading the ffmpeg docs to understand the command line you're using, but I probably will sometime soon, for future reference.
    Last edited by hello_hello; 27th Jun 2024 at 13:39.
    Quote Quote
  29. Here are the stats & images.
    I did convert to an .MPG from the DVD files.
    This is much easier than using FFMPEG's concanate or concat function.
    I used VOB2MPG v3 to do this.
    There is no difference in the video that I can see.

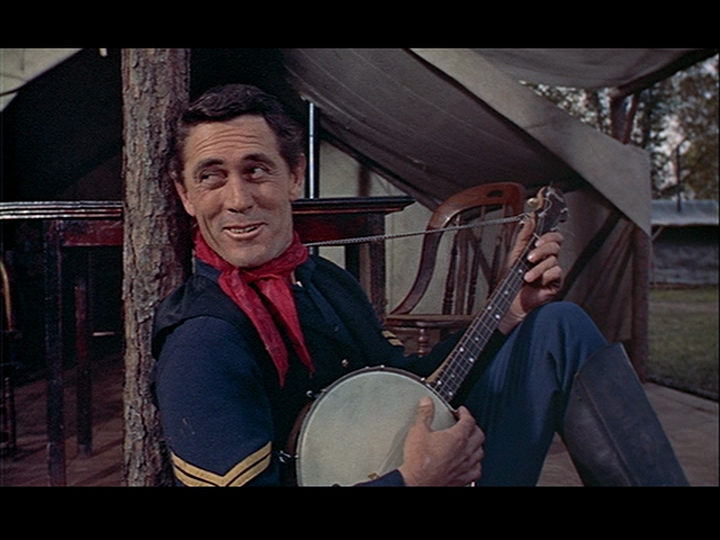

    The first is from the DVD . first .VOB
    The second is from the .MPG

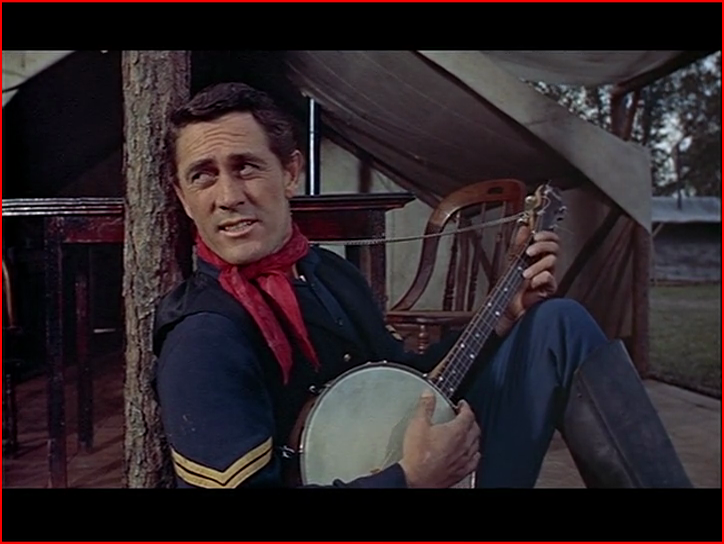

    The third I padded red to give a better look.
    I did not include MediaInfo from the cropped video.
    I used ffmpeg cropdetect to determine the crop I used in the "streched" video.

    This is the MediaInfo:
    MediaInfo
    From DVD first .vob
    Video
    ID : 224 (0xE0)
    Format : MPEG Video
    Format version : Version 2
    Format profile : Main@Main
    Format settings : CustomMatrix / BVOP
    Format settings, BVOP : Yes
    Format settings, Matrix : Custom
    Format settings, GOP : M=3, N=12
    Duration : 20 min 11 s
    Bit rate mode : Variable
    Bit rate : 6 756 kb/s
    Maximum bit rate : 9 802 kb/s
    Width : 720 pixels
    Height : 480 pixels
    Display aspect ratio : 4:3
    Frame rate : 29.970 (30000/1001) FPS
    Standard : NTSC
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Compression mode : Lossy
    Bits/(Pixel*Frame) : 0.652
    Stream size : 976 MiB (95%)

    From MPG
    Video
    ID : 224 (0xE0)
    Format : MPEG Video
    Format version : Version 2
    Format profile : Main@Main
    Format settings : CustomMatrix / BVOP
    Format settings, BVOP : Yes
    Format settings, Matrix : Custom
    Format settings, GOP : M=3, N=12
    Duration : 1 h 59 min
    Bit rate mode : Variable
    Bit rate : 6 740 kb/s
    Maximum bit rate : 9 802 kb/s
    Width : 720 pixels
    Height : 480 pixels
    Display aspect ratio : 4:3
    Frame rate : 29.970 (30000/1001) FPS
    Standard : NTSC
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Compression mode : Lossy
    Bits/(Pixel*Frame) : 0.651
    Stream size : 5.63 GiB (95%)
    Image Attached Thumbnails Click image for larger version

Name:	vob.png
Views:	19
Size:	507.2 KB
ID:	80248

    Click image for larger version

Name:	mpg.png
Views:	10
Size:	497.9 KB
ID:	80249

    Click image for larger version

Name:	Padded.png
Views:	14
Size:	444.1 KB
ID:	80250

    Last edited by cholla; 27th Jun 2024 at 14:23.
    Quote Quote
  30. @ hello_hello,
    I have not tried VDub2 suggested by Alwyn yet.
    What do you think about it ?

    I did try Handbrake but It did not do what I wanted either.

    There is a big learning curve for Avisynth.
    At least for me anyway.
    Quote Quote



Similar Threads

Visit our sponsor! Try DVDFab and backup Blu-rays!
