    So I'm capturing from a PAL VHS player (S-Video into a Magewell Pro Capture HDMI card), using VirtualDub, to a raw AVI file. What resolution should I be capturing at (assuming it's encoded onto AVI at 1:1), i.e. 720x576, or 768x576?

    I plan to re-encode these raw captures to H.264 further down the line, but what should I be using at this initial stage? I notice some other capture cards that do the encoding to H264 themselves will encode the video (according to VLC) at 720x576, but when I take a screenshot using VLC, the resolution of the PNG file is 785x576. However i've taken further screen captures at other software where the resolution of the PNG file (again snapped using VLC) is 720x576.

    So i'm baffled.

    What should I be capturing at for a raw AVI file, for a standard 4:3 PAL Video?

    I know PAL doesn't specify a horizontal resolution, but there must be some sort of standard, no?

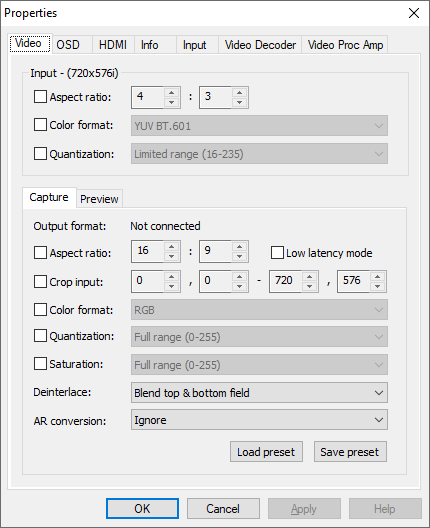

    I notice the properties in the "Capture Filter" option in VirtualDub say 720x576, yet the default resolution it wants to output is 768x576
    [Attachment 55741 - Click to enlarge]
    Last edited by bergqvistjl; 5th Nov 2020 at 12:40.
    Quote Quote
  2. Member DB83's Avatar
    Join Date
    Jul 2007
    Location
    United Kingdom
    Search Comp PM
    I do not know where that above graphic comes from but it is certainly not from vdub.


    You do appear to be confused with pixel aspect ratio and display aspect ratio. And both will vary according to what codec you capture in. For a start, most AVI containers do not support a valid DAR.


    It is my understanding that the tech spec of converting from an analog signal (VHS) to a digital format is limited to a horizontal definition of 720 pixels. PAL supports a vertical definition of 576 pixels. So the maximum spec for most capture software is 720*576.


    Now if you display 720*576 at 4:3 you will indeed get 768*576 (576/3*4 = 768). So it follows if your capture software support 768*576 then you can natively get 4:3 at 1:1. But I do not think vdub supports that.
    Quote Quote
  3. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    For 4:3 materials capture at 720 and then crop off the 16 black pixels to get to 704x576, and when encoding to the final format give the pixel an aspect ratio of 12:11 so 704/576 x 12/11 = 4/3. If you set the aspect ratio to 4:3 from 720x576 it will be wrong, not enough for the average person to notice it but the frame will be horizontally squeezed by 16 pixels. 720 became the standard after D8. DV and DVD, any other analog format that is converted to digital is 704 by standard.

    All capture cards capture the active video area at 704 pixels, I don't think you would gain anything from capturing 768 since the capture card will most likely be upconverting from 720 to 768 on the fly, But if you want square pixel you can capture at that resolution but the aspect ratio will be wrong as I explained above.
    Quote Quote
  4. Member
    Join Date
    Mar 2012
    Location
    United Kingdom
    Search PM
    Originally Posted by DB83 View Post
    It is my understanding that the tech spec of converting from an analog signal (VHS) to a digital format is limited to a horizontal definition of 720 pixels. PAL supports a vertical definition of 576 pixels. So the maximum spec for most capture software is 720*576.


    Now if you display 720*576 at 4:3 you will indeed get 768*576 (576/3*4 = 768). So it follows if your capture software support 768*576 then you can natively get 4:3 at 1:1. But I do not think vdub supports that.
    VirtualDub (or at least with my card) lets me capture at 768x576.

    Originally Posted by dellsam34 View Post
    For 4:3 materials capture at 720 and then crop off the 16 black pixels to get to 704x576, and when encoding to the final format give the pixel an aspect ratio of 12:11 so 704/576 x 12/11 = 4/3. If you set the aspect ratio to 4:3 from 720x576 it will be wrong, not enough for the average person to notice it but the frame will be horizontally squeezed by 16 pixels. 720 became the standard after D8. DV and DVD, any other analog format that is converted to digital is 704 by standard.

    All capture cards capture the active video area at 704 pixels, I don't think you would gain anything from capturing 768 since the capture card will most likely be upconverting from 720 to 768 on the fly, But if you want square pixel you can capture at that resolution but the aspect ratio will be wrong as I explained above.
    My dilemma is, I would like to upload the content to YouTube, however apparently YouTube does not honour PAR settings, i.e. it expects the video to have a DAR of 4:3 and a PAR of 1:1, so how should I go about that then? And do I still need to crop the black bars either side for this?
    Last edited by bergqvistjl; 5th Nov 2020 at 14:11.
    Quote Quote
  5. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    You should have mentioned youtube in the first post because it has it's own workflow, For youtube to not butcher your videos with a very low compression rate you would have to have at least a video at 720x1280 but since this is an obsolete resolution in terms of display panels supporting it you can go straight to 1440x1080. First capture at 720x576, then crop to 704x576 (this is a lossless process with vdub), these will be your master files. From here resize to 1440x1080 (this is a lossy process but vdub has good filters for this), the file will be huge but after uploading to youtube you can then delete the resized video.

    It should look somehow like this:
    https://www.youtube.com/watch?v=yeEsMaRB-jQ
    Last edited by dellsam34; 5th Nov 2020 at 14:18.
    Quote Quote
  6. Member
    Join Date
    Mar 2012
    Location
    United Kingdom
    Search PM
    Originally Posted by dellsam34 View Post
    You should have mentioned youtube in the first post because it has it's own workflow, For youtube to not butcher your videos with a very low compression rate you would have to have at least a video at 720x1280 but since this is an obsolete resolution in terms of display panels supporting it you can go straight to 1440x1080. First capture at 720x576, then crop to 704x576 (this is a lossless process with vdub), these will be your master files. From here resize to 1440x1080 (this is a lossy process but vdub has good filters for this), the file will be huge but after uploading to youtube you can then delete the resized video.

    It should look somehow like this:
    https://www.youtube.com/watch?v=yeEsMaRB-jQ
    OK, so capture at 720x576, but crop that to 704x576, that makes sense

    Surely though, if i'm just displaying the files locally on a computer, I can also follow this workflow as well (minus the upscaling later though)?
    Last edited by bergqvistjl; 5th Nov 2020 at 14:44.
    Quote Quote
  7. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    704x576/704x480 are standard resolutions, I haven't come across any device that doesn't support them, And it is part of the DVD standard as well. But yes in a computer environment any resolution should work because software players have their own aspect ratio and scaling functions.
    Quote Quote
  8. Member
    Join Date
    Mar 2012
    Location
    United Kingdom
    Search PM
    Originally Posted by dellsam34 View Post
    704x576/704x480 are standard resolutions, I haven't come across any device that doesn't support them, And it is part of the DVD standard as well. But yes in a computer environment any resolution should work because software players have their own aspect ratio and scaling functions.
    Hang on a minute, you mention resizing to 1440x1080 at the end. Yet 704x576 resizes to 1320x1080, not 1440x1080... Or am I supposed to horizontally stretch this image as well?
    Last edited by bergqvistjl; 5th Nov 2020 at 14:50.
    Quote Quote
  9. Member DB83's Avatar
    Join Date
    Jul 2007
    Location
    United Kingdom
    Search Comp PM
    Remember that 704*576 is NOT 4:3 that will still equate to 768*576. 1440*1080 is 4:3 but you could go lower at 960*720 without ytube causing damage.
    Quote Quote
  10. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    Yes, Neither 704x576 nor 720x576 have an aspect ratio, You will have to either set the aspect ratio by giving the pixel a shape or resize to 1440x1080 and the pixels will be square.
    Quote Quote
  11. Member
    Join Date
    Mar 2012
    Location
    United Kingdom
    Search PM
    Originally Posted by dellsam34 View Post
    Yes, Neither 704x576 nor 720x576 have an aspect ratio, You will have to either set the aspect ratio by giving the pixel a shape or resize to 1440x1080 and the pixel will be square.

    OK, so here is my workflow:
    I capture at 720x576, so my captured video has a DAR of 5:4 & PAR of 1:1
    I then crop 8 pixels off either side so the video is now 704x576 (DAR 11:9 PAR 1:1)
    I then stretch that now-cropped video horizontally to 768x576 (DAR of 4:3 PAR 1:1)
    I then upscale this to 1440x1080.
    is this right?

    I've also noticed I appear to get similar & slightly sharper results if I capture at 786x576, then crop (still in virtualdub as part of the capture 8 + 10 pixels off either side), thus giving me a 768x576 file with the correct proportions (albeit offset by a pixel on one side), thus not needing that further middle layer of stretching.
    Last edited by bergqvistjl; 5th Nov 2020 at 15:28.
    Quote Quote
  12. Just use 768x576, it gives square pixels within 4:3 aspect ratio and Virtualdub2 supports this mode. I do not crop anything.
    Quote Quote
  13. Ignore zooger.

    Originally Posted by bergqvistjl View Post
    My dilemma is, I would like to upload the content to YouTube
    Any 576p uploaded to YouTube will be downscaled to 480p. Upscaling the cropped 704x576 to 960x720 will work. 960x720 and 1440x1080 are correct for upscaled 704x576 for the same reasons 768x576 and 640x480 are correct for cropped 704x576.
    Quote Quote
  14. Member
    Join Date
    Mar 2012
    Location
    United Kingdom
    Search PM
    Originally Posted by manono View Post
    Ignore zooger.

    Originally Posted by bergqvistjl View Post
    My dilemma is, I would like to upload the content to YouTube
    Any 576p uploaded to YouTube will be downscaled to 480p. Upscaling the cropped 704x576 to 960x720 will work. 960x720 and 1440x1080 are correct for upscaled 704x576 for the same reasons 768x576 and 640x480 are correct for cropped 704x576.
    But 704x576 doesn't upscale to 960x720, only to 880x720. So are you saying that after upscaling to the vertical resolution, I would then have to strech the image horizontally to 960 pixels wide?

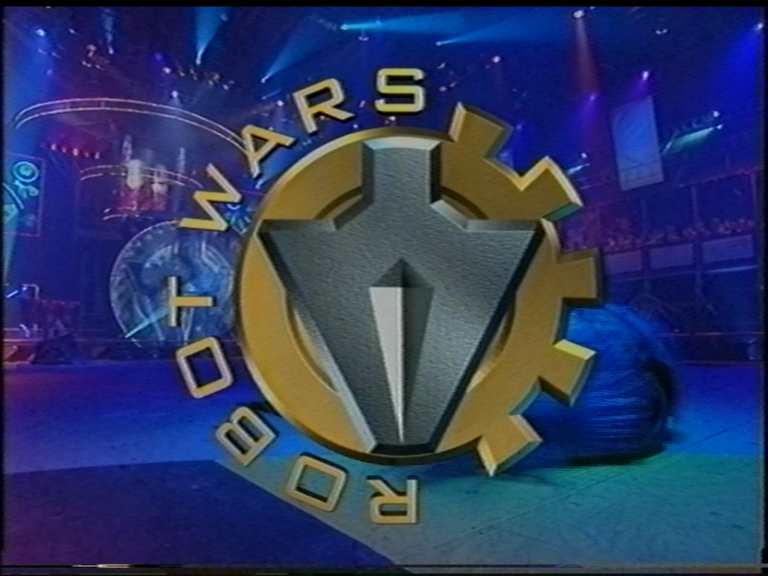

    Anyway, here is the raw image captured at 768x576, with no post-processing/cropping/resizing at all.
    [Attachment 55744 - Click to enlarge]

    and here is the same image captured 720x576, cropped to 704x576 then stretched again to 768x576
    [Attachment 55745 - Click to enlarge]

    which is the correct one?
    Last edited by bergqvistjl; 5th Nov 2020 at 16:00.
    Quote Quote
  15. Member DB83's Avatar
    Join Date
    Jul 2007
    Location
    United Kingdom
    Search Comp PM
    The 2nd one since it removes the crud (16 pixels)


    And you do not upscale. You resize. That compensates for the non 4:3 704*576. No need for the intermediate 768*576 except for your own purposes rather that the upload. Resizing from the 704 >> 768 involves two re-encodes.
    Quote Quote
  16. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    Originally Posted by bergqvistjl View Post
    Originally Posted by dellsam34 View Post
    Yes, Neither 704x576 nor 720x576 have an aspect ratio, You will have to either set the aspect ratio by giving the pixel a shape or resize to 1440x1080 and the pixel will be square.

    OK, so here is my workflow:
    I capture at 720x576, so my captured video has a DAR of 5:4 & PAR of 1:1
    I then crop 8 pixels off either side so the video is now 704x576 (DAR 11:9 PAR 1:1)
    I then stretch that now-cropped video horizontally to 768x576 (DAR of 4:3 PAR 1:1)
    I then upscale this to 1440x1080.
    is this right?

    I've also noticed I appear to get similar & slightly sharper results if I capture at 786x576, then crop (still in virtualdub as part of the capture 8 + 10 pixels off either side), thus giving me a 768x576 file with the correct proportions (albeit offset by a pixel on one side), thus not needing that further middle layer of stretching.
    No,
    Capture at 720x576 not 768, you are not gaining any resolution with 768, the card is just adding 48 black pixels.
    Then crop 16 pixels off so the video is now 704x576, It doesn't have to be 8 on each side depends on how much junk on each side.
    Then RESIZE to 1440x1080, not upscale.

    Edit: You might be using an old version of vdub that doesn't have the resize filter, try vdub2.
    Last edited by dellsam34; 5th Nov 2020 at 16:35.
    Quote Quote
  17. Member
    Join Date
    Mar 2012
    Location
    United Kingdom
    Search PM
    Originally Posted by dellsam34 View Post
    Originally Posted by bergqvistjl View Post
    Originally Posted by dellsam34 View Post
    Yes, Neither 704x576 nor 720x576 have an aspect ratio, You will have to either set the aspect ratio by giving the pixel a shape or resize to 1440x1080 and the pixel will be square.

    OK, so here is my workflow:
    I capture at 720x576, so my captured video has a DAR of 5:4 & PAR of 1:1
    I then crop 8 pixels off either side so the video is now 704x576 (DAR 11:9 PAR 1:1)
    I then stretch that now-cropped video horizontally to 768x576 (DAR of 4:3 PAR 1:1)
    I then upscale this to 1440x1080.
    is this right?

    I've also noticed I appear to get similar & slightly sharper results if I capture at 786x576, then crop (still in virtualdub as part of the capture 8 + 10 pixels off either side), thus giving me a 768x576 file with the correct proportions (albeit offset by a pixel on one side), thus not needing that further middle layer of stretching.
    No,
    Capture at 720x576
    Then crop 8 pixels off either side so the video is now 704x576, It doesn't have to be 8 on each side depends on how much junk on each side.
    Then RESIZE to 1440x1080, not upscale.

    Edit: You might be using an old version of vdub that doesn't have the resize filter, try vdub2.
    I'm not resizing all the way upto 1440x1080 btw, just 768x576 for now.

    I've just done some experimentation and I've found capturing the video at 788x576, and using VirtualDub's built-in cropper tool to crop 10 pixels off either-side gives me an identical picture, just higher quality, than capturing it at 720x576, cropping and then resizing again.
    Quote Quote
  18. Member DB83's Avatar
    Join Date
    Jul 2007
    Location
    United Kingdom
    Search Comp PM
    Just remember that you have already been told.


    Upload that 768*576 to ytube and they will resize that to 640*480.
    Quote Quote
  19. Member
    Join Date
    Mar 2012
    Location
    United Kingdom
    Search PM
    Originally Posted by DB83 View Post
    Just remember that you have already been told.


    Upload that 768*576 to ytube and they will resize that to 640*480.
    I know. But my question was about the black bars either side, not about what YouTube will resize it to.

    I just used YouTube as an example of a service that will (apparently) ignore the PAR on your video, thus neccessatating that my video should look correct when displayed with a PAR of 1:1.
    Last edited by bergqvistjl; 5th Nov 2020 at 17:02.
    Quote Quote
  20. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    I don't think capturing at 768 has any effect on the quality as clearly shown in your screen shots that 768 just adds 24 black pixels on each side, it's either a placebo effect or a software is doing something weird with 720x576 captures, We showed you the right resolution to save your masters and what to do if you want to upload to youtube, the rest is your business.
    Quote Quote
  21. Member
    Join Date
    Mar 2012
    Location
    United Kingdom
    Search PM
    Originally Posted by dellsam34 View Post
    I don't think capturing at 768 has any effect on the quality as clearly shown in your screen shots that 768 just adds 24 black pixels on each side, it's either a placebo effect or a software is doing something weird with 720x576 captures, We showed you the right resolution to save your masters and what to do if you want to upload to youtube, the rest is your business.
    No, the 720 capture also has the same black bars, albeit squeezed more along with the rest of the image.

    Anyway, I'm capturing the video at 788, and cropping 10 pixels (the black bars) off either side, still in the capture part of VirtualDub, which gives me a 768x576 AVI, with no black bars, and at the right proportions, without me needing to do any further resizing
    Last edited by bergqvistjl; 5th Nov 2020 at 17:33.
    Quote Quote
  22. Member DB83's Avatar
    Join Date
    Jul 2007
    Location
    United Kingdom
    Search Comp PM
    Well that is also your call. Again, you have been told, you do not have to take my word for it - there is plenty of info on line of the maximum effective width of SD analogue to digital. Or do you also not accept why DVD, which is also based on the same system, adopted 720 for both PAL and NTSC.
    Quote Quote
  23. Member
    Join Date
    Mar 2012
    Location
    United Kingdom
    Search PM
    Originally Posted by DB83 View Post
    Well that is also your call. Again, you have been told, you do not have to take my word for it - there is plenty of info on line of the maximum effective width of SD analogue to digital. Or do you also not accept why DVD, which is also based on the same system, adopted 720 for both PAL and NTSC.
    Maybe I'm getting the wrong end of the stick here, but can you illustrate to me how a 4:3 PAL image should look, digitised, when it has a vertical resolution of 576 pixels, and displayed on a screen using a PAR of 1:1.
    Last edited by bergqvistjl; 5th Nov 2020 at 17:56.
    Quote Quote
  24. Member DB83's Avatar
    Join Date
    Jul 2007
    Location
    United Kingdom
    Search Comp PM
    I am not writing about the actual shape of the pixels but the actual number of them.


    Capturing anything higher than 720 simply distorts the image. But it's your video so if you want to do it then go ahead.
    Quote Quote
  25. Member
    Join Date
    Mar 2012
    Location
    United Kingdom
    Search PM
    Originally Posted by DB83 View Post
    I am not writing about the actual shape of the pixels but the actual number of them.


    Capturing anything higher than 720 simply distorts the image. But it's your video so if you want to do it then go ahead.
    I still don't understand, and I'm baffled why people seem to be diverting around the topic of what I am trying to get my head around.

    As far as I know, PAL 4:3 DVD is encoded at 720x576 (which is 5:4), however the pixels are non-square, so when displayed like that, it translates to an effective resolution of 768x576, which corresponds to 4:3, is this correct?
    Quote Quote
  26. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    Originally Posted by bergqvistjl View Post
    Originally Posted by DB83 View Post
    I am not writing about the actual shape of the pixels but the actual number of them.


    Capturing anything higher than 720 simply distorts the image. But it's your video so if you want to do it then go ahead.
    I still don't understand, and I'm baffled why people seem to be diverting around the topic of what I am trying to get my head around.

    As far as I know, PAL 4:3 DVD is encoded at 720x576 (which is 5:4), however the pixels are non-square, so when displayed like that, it translates to an effective resolution of 768x576, which corresponds to 4:3, is this correct?
    regarding the two ping files you uploaded earlier; it's difficult to be sure based on the image,
    but the second image (720x480 cropped to 704 then resized to 768x480) looks like a more
    accurate A/R to me - the circular shapes look more balanced. But it's a small difference. Usually only the real sticklers notice it
    Quote Quote
  27. Member DB83's Avatar
    Join Date
    Jul 2007
    Location
    United Kingdom
    Search Comp PM
    Totally correct.


    What you do not understand is the relationship of analog to digital. The appropriate Rec stated that the horizontal width is limited to 720 pixels with 704 being the number of active video pixels. This is constant whatever codec you choose to capture in.


    As for DVD, while 704*576 is a valid part of the spec one rarely sees such a dvd these days. There is discussion about this in other topics and is not really relevant here.


    But it seems that your capture device can go beyond 720 pixels. Most devices, mine included, are locked at that. But you are still going to get crud and you would have to crop that away. Would your original capture still look ok after the crop and resize back to 768 ? There does not appear much difference in your two images but the simple maths infers that the second is the most accurate.
    Quote Quote
  28. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    Let's keep this all straightforward (keeping it predominantly as PAL, since that's what you're talking about)...
    1. There's the Analog video on you cam/vcr, etc.
    2. There's the Digital stream after conversion from analog, BUT BEFORE BEING ENCODED AND STORED on hdd.
    3. There's the Digital encoded file, AS STORED on your hdd.
    4. There's the Digital encoded file, AS SHOWN on your monitor.
    5. And there's the version you want/need to send to Youtube.
    #1 is ??? x 625 lines, 576 of which are valid video. The ??? is because it is a continuous sweep, so theoretically infinite, but in practice & constrained by bandwidth, etc is likely ~300 equivalent if taken from VHS, up to 500-600 if taken off broadcast receiver, up to 700+ if taken from a broadcast camera/switcher.

    #2 when captured by INDUSTRY STANDARD cards/devices (which follow BT.601 rules) is 720x576, or 702 or 704x576*. That's it. It is either 4:3 DAR or 16:9 DAR (much rarer). Either one of those DARs attached to any of those resolutions means the PAR is non-square (aka NOT 1:1). This is how it is coming in, REGARDLESS of what you set in your settings for capture encoding & storage. So don't waste.

    #3 is where you get to decide how it is first stored & encoded. If you are trying to MAINTAIN BEST QUALITY, you will NOT do any resizing yet, and you will encode to lossless AVI. Thus, you should have it stored as 720x576 or 704x576 (possibly 702, but that isn't mod4 so might cause problems with some encoders). If your encoded/stored format supports DAR or PAR flagging (you only need to do 1 not both), here you can put this in. But it doesn't really matter if it doesn't support it, because this is just your storage format. So AVI, which doesn't normally support flagging is still ok. Note that even when some containers, like AVI, don't support AR flagging, the codec still might.

    #4 when you VIEW it, you are now seeing how a certain player reads such a file and maps it to your monitor screen (whether in a window or in fullscreen). If you view this in a player that doesn't support flagging, and you didn't encode any AR flags in either the container nor the codec stream, this will now display on your (1:1) monitor as wrong/stretched. If you use a player that allows for adjustment of AR (e.g. VLC), you can just tell it to use that AR and it will correct your image's display on the screen, though it does nothing to the underlying file. If you use a player that supports AR flags, AND you were able to encode those flags, that player should be able to make that AR correction automatically. At this point, even though it is still stored at, say 704x576, it will show up as 768x576 (when using 4:3 DAR and being shown a 100% zoom in a window).

    #5 if you want YT to give you the best download/streaming playback quality, you have to force it by uploading a 1080-level copy. That way, it (YT) allocates much more bitrate to the down-rezzed encodes it puts out. For 4:3 DAR, you RESIZE from 720/704 x 576 straight to 1440x1080 (best to apply QTGMC or similar deinterlacing as well to make it p60 instead of p30 or Interlaced - since that's what the original was - and p60 will look much smoother on YT). You should ignore the DAR or PAR as stored and let the final encoder treat it as square pixelled and include the necessary stretch manually, or depending on the encoder, let it read the AR flag and just tell it that final res (1440x1080) and it should auto give you a 1:1 PAR output.

    Notice, you didn't need to resize AT ALL until going to #5. You didn't really need to crop at all unless you wanted to get rid of the black bars in #2->#3. You didn't need to do a lossy encode except in #5. This setup gives you the best quality sampling resolution (#2), the best quality encoding (#3 & #5), and the least destructive modifications (#2/3 or nothing when cropping, #5 when resizing, and #5 when deinterlacing).

    Also, I'm pretty confident that your "768" setting is NOT what it's capturing stream as, but what it's being encoded/stored as, thus it is resizing if you do that. Maybe it's adding sharpening as well. Both not a good idea for encoders.

    Scott


    *occasionally a card allows for 1/2 or 1/4 D1 capture options natively, but those aren't recommended for quality.
    Last edited by Cornucopia; 5th Nov 2020 at 19:24.
    Quote Quote
  29. Originally Posted by bergqvistjl View Post
    But 704x576 doesn't upscale to 960x720, only to 880x720. So are you saying that after upscaling to the vertical resolution, I would then have to strech the image horizontally to 960 pixels wide?
    Yes. You do understand, don't you, that the uncropped 720x576 and the cropped 704x576 aren't at the correct aspect ratio? That everything is too tall and too thin? That they have to be stretched horizontally to give them the correct aspect ratio? The same goes for the upscaled 880x720.

    You also seem to have a hard time understanding why 704x576 gets resized to 768x576 or 640x480 or 960x720.

    https://en.wikipedia.org/wiki/Standard-definition_television
    Image Attached Thumbnails Click image for larger version

Name:	PAR.jpg
Views:	20
Size:	51.4 KB
ID:	55749

    Quote Quote
  30. Member
    Join Date
    Mar 2012
    Location
    United Kingdom
    Search PM
    Originally Posted by manono View Post
    Originally Posted by bergqvistjl View Post
    But 704x576 doesn't upscale to 960x720, only to 880x720. So are you saying that after upscaling to the vertical resolution, I would then have to strech the image horizontally to 960 pixels wide?
    Yes. You do understand, don't you, that the uncropped 720x576 and the cropped 704x576 aren't at the correct aspect ratio? That everything is too tall and too thin? That they have to be stretched horizontally to give them the correct aspect ratio? The same goes for the upscaled 880x720.

    You also seem to have a hard time understanding why 704x576 gets resized to 768x576 or 640x480 or 960x720.

    https://en.wikipedia.org/wiki/Standard-definition_television
    Yes, it's because Ive always took the term "upscale" as meaning resizing while preserving the original display aspect ratio of the image. Sorry if that's confused things.
    Quote Quote



Similar Threads
