  1. Member
    Join Date
    Mar 2019
    Location
    Henderson, KY, USA
    Search PM
    I have this old Sound Blaster X-Fi Extreme with Toslink in and for funsies I want to try to record 5.1 audio. I know you have to record 24 bit audio but what else? Just tried Audacity and I don't know if I did it right. Is this what it's supposed to look like?


    I tried decoding an exported 24-bit wav with BeSweet but it's really hard to use the GUI. Stuff disappears and when I did get it working it errors out.

    I checked the MediaInfo on the exported wav and even though I had Audacity export a 24-bit file, it keeps exporting a 16-bit file. Don't know if that's normal or not.
    Code:
    General
    Complete name                            : D:\recordings\5.1 test 96k.wav
    Format                                   : Wave
    File size                                : 2.48 MiB
    Duration                                 : 4 s 514 ms
    Overall bit rate mode                    : Constant
    Overall bit rate                         : 4 608 kb/s

    Audio
    Format                                   : AC-3
    Format/Info                              : Audio Coding 3
    Format settings                          : Little
    Muxing mode                              : SMPTE ST 337
    Codec ID                                 : 1
    Duration                                 : 4 s 514 ms
    Bit rate mode                            : Constant
    Bit rate                                 : 4 608 kb/s
    Sampling rate                            : 96.0 kHz
    Bit depth                                : 16 bits
    Compression mode                         : Lossy
    Stream size                              : 2.48 MiB (100%)
    I would record 5.1 through HDMI through my Avermedia card but it doesn't seem detect 5.1 through my cable box's HDMI out, so I don't know if it's really outputting 5.1. I recorded this channel through firewire last year and it did have a 5.1 track though, so I'm not sure what's going on.
    Last edited by ENunn; 22nd Aug 2020 at 18:11.
    Quote Quote
  2. Member
    Join Date
    Aug 2006
    Location
    United States
    Search Comp PM
    Originally Posted by ENunn View Post
    I have this old Sound Blaster X-Fi Extreme with Toslink in and for funsies I want to try to record 5.1 audio. I know you have to record 24 bit audio but what else? Just tried Audacity and I don't know if I did it right. Is this what it's supposed to look like?


    I tried decoding an exported 24-bit wav with BeSweet but it's really hard to use the GUI. Stuff disappears and when I did get it working it errors out.

    I checked the MediaInfo on the exported wav and even though I had Audacity export a 24-bit file, it keeps exporting a 16-bit file. Don't know if that's normal or not.
    Code:
    General
    Complete name                            : D:\recordings\5.1 test 96k.wav
    Format                                   : Wave
    File size                                : 2.48 MiB
    Duration                                 : 4 s 514 ms
    Overall bit rate mode                    : Constant
    Overall bit rate                         : 4 608 kb/s

    Audio
    Format                                   : AC-3
    Format/Info                              : Audio Coding 3
    Format settings                          : Little
    Muxing mode                              : SMPTE ST 337
    Codec ID                                 : 1
    Duration                                 : 4 s 514 ms
    Bit rate mode                            : Constant
    Bit rate                                 : 4 608 kb/s
    Sampling rate                            : 96.0 kHz
    Bit depth                                : 16 bits
    Compression mode                         : Lossy
    Stream size                              : 2.48 MiB (100%)
    I would record 5.1 through HDMI through my Avermedia card but it doesn't seem detect 5.1 through my cable box's HDMI out, so I don't know if it's really outputting 5.1. I recorded this channel through firewire last year and it did have a 5.1 track though, so I'm not sure what's going on.
    I can't answer your questions about your sound card and Audacity or BeSweet.

    Most video capture devices can only capture stereo audio. Only a few video capture devices can capture 5.1 audio. A handful of older Hauppauge video capture devices could capture 5.1 channel AC3 using Toslink or HDMI with the right software.

    There was also a discontinued Korean HDMI video capture device that could capture 5,1 channel AC3 and there is a Magewell HDMI video capture device that can capture 5.1 channel AC3 audio but the process requires a fair amount of technical expertise. https://forum.videohelp.com/threads/392907-Is-there-a-lossless-video-capture-card-that...ures-5-1-audio

    Note that a cable box's HDMI or Toslink audio output is often controlled by settings in its internal menus. The older Xfinity box that I had provided a choice between 2 channel LPCM or the AC3 audio in the broadcast.
    Last edited by usually_quiet; 23rd Aug 2020 at 14:31. Reason: grammar
    Ignore list: hello_hello, tried, TechLord, Snoopy329
    Quote Quote
  3. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    Toslink (aka optical fiber-based SPDIF, which is a consumer variant of AES3) only supports a limited bitrate (~2.5Mbps). So it is not capable of carrying 5.1+ multichannel audio in uncompressed form.
    It is capable of carrying COMPRESSED (ac3 or dts) MC audio, but only when that compressed stream has been re-packetized to match the data rate of a standard stereo uncompressed stream. And then, it masquerades itself AS such a stereo stream.

    So to capture, you would need to:
    1. Record the 2 ch incomming "lpcm" stream
    2. Save the stream as a "wav"
    3. Convert the "wav" (aka repacketized compressed file) to a normal compressed file. So, dts-wav -> dts, or ac3-wav -> ac3.

    Then you will have your normal 5.1. It will be compressed, no getting around that when using toslink.
    Note that the removal of the null packets does not change the compressed data itself in any way, so no further degradation or loss.



    Scott
    Quote Quote
  4. Member
    Join Date
    Aug 2006
    Location
    United States
    Search Comp PM
    Originally Posted by Cornucopia View Post
    Toslink (aka optical fiber-based SPDIF, which is a consumer variant of AES3) only supports a limited bitrate (~2.5Mbps). So it is not capable of carrying 5.1+ multichannel audio in uncompressed form.
    It is capable of carrying COMPRESSED (ac3 or dts) MC audio, but only when that compressed stream has been re-packetized to match the data rate of a standard stereo uncompressed stream. And then, it masquerades itself AS such a stereo stream.

    So to capture, you would need to:
    1. Record the 2 ch incomming "lpcm" stream
    2. Save the stream as a "wav"
    3. Convert the "wav" (aka repacketized compressed file) to a normal compressed file. So, dts-wav -> dts, or ac3-wav -> ac3.

    Then you will have your normal 5.1. It will be compressed, no getting around that when using toslink.
    Note that the removal of the null packets does not change the compressed data itself in any way, so no further degradation or loss.



    Scott
    The 5.1 channel AC3 audio masquerading as 2 channel PCM WAV file doesn't sound like normal audio when played does it? If so, it should be possible to tell if 2 channel PCM audio is being captured by playing it.

    There is one thing about the Hauppauge HDMI capture devices that capture AC3 that I forgot to mention. If they receive 2-channel LPCM audio, it is captured in AAC format rather than WAV.
    Last edited by usually_quiet; 23rd Aug 2020 at 15:20.
    Quote Quote
  5. Member
    Join Date
    Mar 2019
    Location
    Henderson, KY, USA
    Search PM
    Originally Posted by usually_quiet View Post
    Most video capture devices can only capture stereo audio. Only a few video capture devices can capture 5.1 audio. A handful of older Hauppauge video capture devices could capture 5.1 channel AC3 using Toslink or HDMI with the right software.
    My Live Gamer 4k supports recording at 5.1 in RECentral, don't know if there's a way to unlock that through other software. The cable box doesn't seem to want to output 5.1 even though I'm on a supported channel/show/etc. It's not worth it to record in RECentral anyways because you can't record interlaced on the LG4K so :P

    Originally Posted by Cornucopia View Post
    Toslink (aka optical fiber-based SPDIF, which is a consumer variant of AES3) only supports a limited bitrate (~2.5Mbps). So it is not capable of carrying 5.1+ multichannel audio in uncompressed form.
    It is capable of carrying COMPRESSED (ac3 or dts) MC audio, but only when that compressed stream has been re-packetized to match the data rate of a standard stereo uncompressed stream. And then, it masquerades itself AS such a stereo stream.

    So to capture, you would need to:
    1. Record the 2 ch incomming "lpcm" stream
    2. Save the stream as a "wav"
    3. Convert the "wav" (aka repacketized compressed file) to a normal compressed file. So, dts-wav -> dts, or ac3-wav -> ac3.

    Then you will have your normal 5.1. It will be compressed, no getting around that when using toslink.
    Note that the removal of the null packets does not change the compressed data itself in any way, so no further degradation or loss.
    I'm not worried about it being compressed or uncompressed.
    What should I used to convert the wav though? I've been exporting as a 24-bit WAV and on some recordings just sends a 24-bit PCM file according to MediaInfo.
    Last edited by ENunn; 23rd Aug 2020 at 17:01.
    Quote Quote
  6. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    Toslink only supports up to 20bit LPCM. A compressed stream, such as ac3 or dts, is gonna be distinct from and independent of that limit. But by and large, most compressed streams (and the encoders that create them) seem to have 16bit source limitations, so am not sure you'd really be getting much more by trying to push for end to end 24bit support.
    Not only that, but you say you don't care it's compressed, but that compression could be considered to be doing more damage to signal quality than the limiting from 24 to 16bit.

    @usually_quiet, yes capture and direct, non-decoded playback would yield what would most likely be called digital "NOISE".


    Scott
    Quote Quote
  7. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    Bsconvert used to be able to do it.


    Scott
    Quote Quote
  8. Member
    Join Date
    Aug 2006
    Location
    United States
    Search Comp PM
    Originally Posted by ENunn View Post
    The cable box doesn't seem to want to output 5.1 even though I'm on a supported channel/show/etc.
    With my older Comcast Xfinity cable box, the HDMI audio settings (2-channel PCM or pass-through (for AC3)) were accessed via a hidden setup menu. I think there was a set-up menu for Toslink as well. Have you checked online to see if there is any guidance available from your provider about settings that control the cable box's audio output for its digital connections?
    Ignore list: hello_hello, tried, TechLord, Snoopy329
    Quote Quote
  9. Member
    Join Date
    Mar 2019
    Location
    Henderson, KY, USA
    Search PM
    Sorry for the months late reply

    Originally Posted by usually_quiet View Post
    With my older Comcast Xfinity cable box, the HDMI audio settings (2-channel PCM or pass-through (for AC3)) were accessed via a hidden setup menu. I think there was a set-up menu for Toslink as well. Have you checked online to see if there is any guidance available from your provider about settings that control the cable box's audio output for its digital connections?
    Yep, nothing. There's some devices option in the settings but it doesn't really show anything.

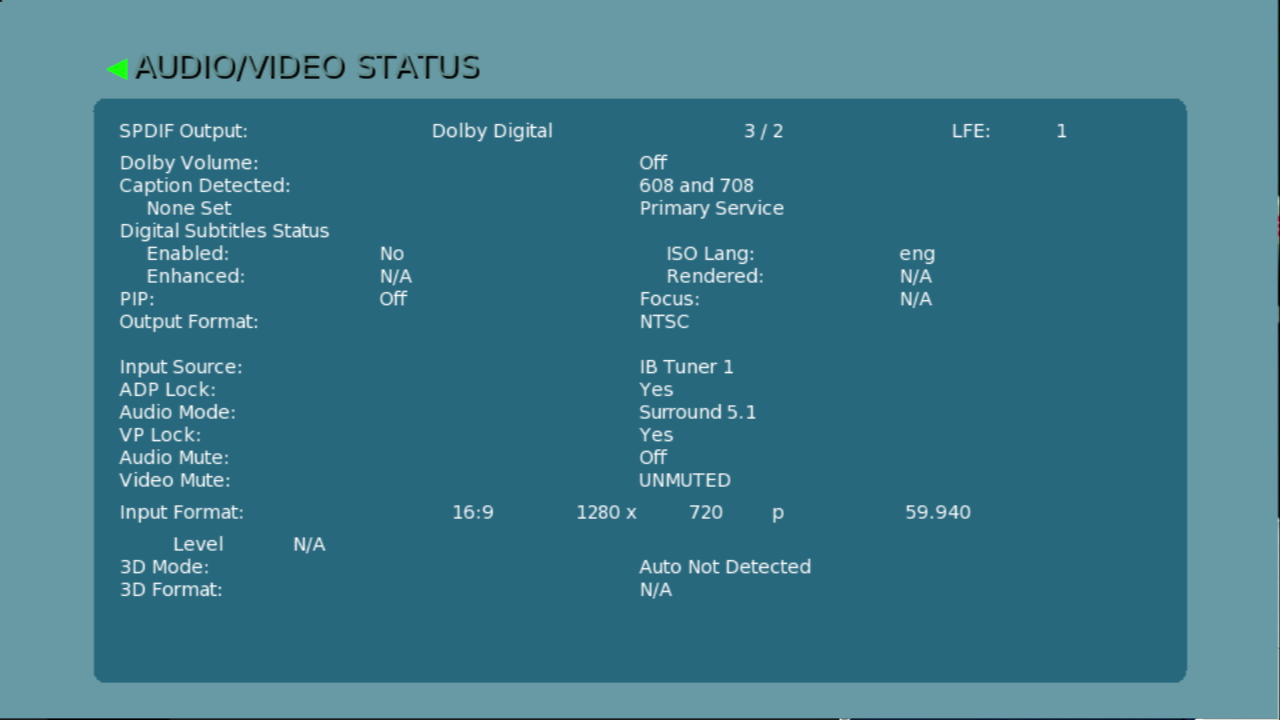

    For the TOSLINK output, if I change the audio coding format to Stereo, audio is fine but it's sped up. Everything else is just typical digital buzzing or whatever.

    Originally Posted by Cornucopia View Post
    Bsconvert used to be able to do it.
    I really don't know what I'm doing here. I dragged my WAV file onto bsconvert and nothing happened.
    Code:
    General
    Complete name                            : D:\recordings\toslinktest.wav
    Format                                   : Wave
    File size                                : 3.42 MiB
    Duration                                 : 6 s 219 ms
    Overall bit rate                         : 4 609 kb/s

    Audio
    Format                                   : PCM
    Codec ID                                 : 1
    Duration                                 : 6 s 219 ms
    Bit rate                                 : 4 608 kb/s
    Channel(s)                               : 2 channels
    Sampling rate                            : 96.0 kHz
    Bit depth                                : 24 bits
    Stream size                              : 3.42 MiB (100%)
