    My problem is a strange one
    using a laser disc that norml 4:3 format but the movie is in Letterbox ratio
    now using a usb graber with Magix the picture and sound come on the screen and look normal the setup shows 720*480 29.9 sound ( also tried 640+480 )
    but when the file is played back its way way streached width like a 16*9

    power director finds the device and shows all is correct but no picture or sound
    i sent them this but so far no joy
    https://dl-file.cyberlink.com/web/upload-file/support/cs/2020-06-06/CS002170524/CS0021...93212462-2.txt
    if someone would sort out these two problem i woyuld apreciated it
    regards to all
    Bob
    Quote Quote
  2. You have to specify the Display Aspect Ratio (DAR) to 4:3.
    If your videofile is x264 encoded, you can change this DAR setting without reencoding with MKVToolnix or clever FFmpeg-GUI or other programs.
    Quote Quote
  3. Member
    Join Date
    May 2012
    Location
    adelaide
    Search PM
    mkv tools show the ratio greyed out ?
    Quote Quote
  4. Member
    Join Date
    May 2012
    Location
    adelaide
    Search PM
    got it working but the converstion is the same after selecting 4*3

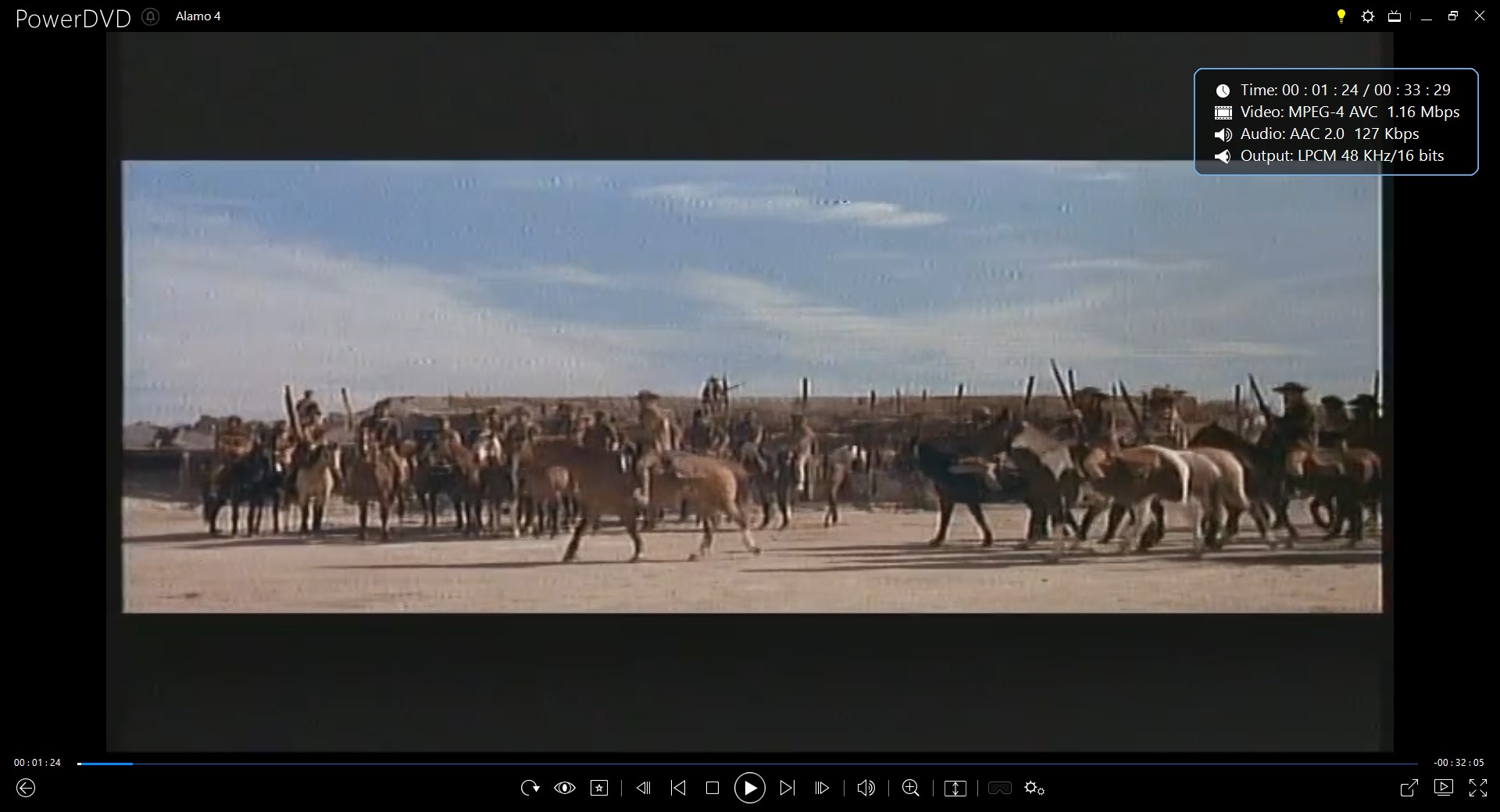

    attached is a photo of the grab notice the length of the horses
    the file shows 720*480 being 4:3
    but some how the graber progrem sees the wide screen part of the frame and cant formt the correct ratio
    Image Attached Thumbnails Click image for larger version

Name:	Annotation 2020-06-16 111726.jpg
Views:	15
Size:	188.3 KB
ID:	53822

    Quote Quote
  5. Member
    Join Date
    May 2012
    Location
    adelaide
    Search PM
    Ok using 720*576 give the correct aspect ratio or close but the sound is 25 and this has to be 29.9
    i hope that can shed a light on this one
    Quote Quote
  6. Member
    Join Date
    Feb 2006
    Location
    United States
    Search Comp PM
    Originally Posted by xenon1 View Post
    Ok using 720*576 give the correct aspect ratio or close but the sound is 25 and this has to be 29.9
    i hope that can shed a light on this one
    according to this - https://www.magix.info/us/forum/can-t-capture-vhs-to-4-3--1221061/
    720x576 is not strictly 4:3 - it is 5:4 AR
    Quote Quote
  7. Member
    Join Date
    May 2012
    Location
    adelaide
    Search PM
    that would do if the saound was good but its not
    ok if magix is not workimng then why cany i get power director to even show the picture
    Quote Quote
  8. Member
    Join Date
    May 2012
    Location
    adelaide
    Search PM
    i fould a way to clean up the picture but its 3 process , now if only i can get a correct size to start with
    any other program that will work and get me in mp4
    Quote Quote
  9. I think the video must be cropped before encoding.
    Cut a litte piece (30secs) of your video and post it here. So we can analyze it and give your the right settings.
    You can cut it with g.e. Avidemux
    Quote Quote
  10. Member
    Join Date
    May 2012
    Location
    adelaide
    Search PM
    croping the video wont help the over stretch
    Quote Quote
  11. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    post a short clip from your original capture
    Quote Quote
  12. 720x576 at 25 fps is the international standard for capturing analog PAL video, for both 4:3 and 16:9 sources. It's also used on PAL DVD and SD Blu-ray. It just needs to be flagged and played properly.
    Quote Quote
