Help getting rid of jagged/pixelated edge artifacts from DVD rip

[sebastiandm]

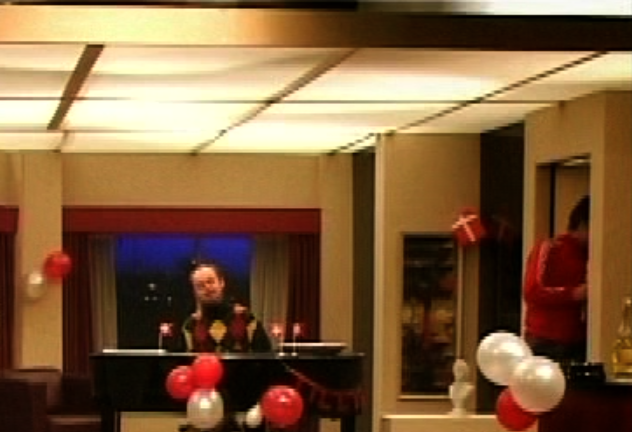

I am getting these jagged edges from a PAL DVD I ripped using DVD Decrypter and I am unable to get rid of them using any of Handbrake's deinterlace or detelecine filters. In the example image below they are most pronounced in the ceiling.

[Attachment 52804 - Click to enlarge]

I assume these are interlacing artifacts since I inspected the video in Mediainfo (data posted at the bottom), which reports it to be interlaced. The jagged edges are there on stationary as well as objects in motion though. And if I understand correctly interlacing would be most pronounced on objects in motion so I am not sure they are interlacing artifacts.

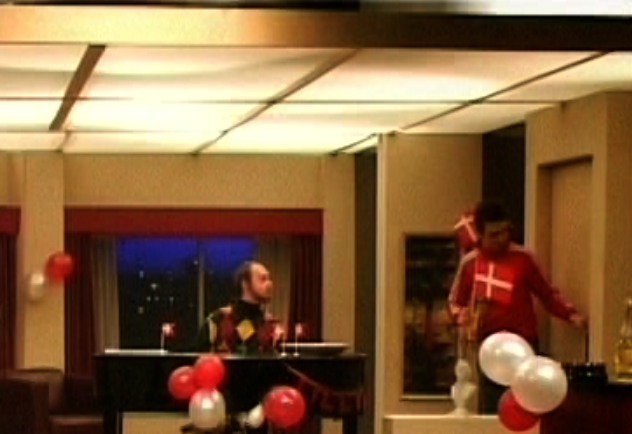

One thing I noticed is that when i play the video in VLC I can get a clear picture (see picture below) if I skip 10 seconds ahead while the video is paused, but resuming the video playback returns the jagged edges.


[Attachment 52805 - Click to enlarge]

To me this seems like a clear signal that these artifacts can be removed somehow.

Do any of you know what they are and how I would go about getting rid of them when i encode the video?

I have attached a VOB from the extra material on the DVD as this was small in size and I don't know how to cut them without encoding them:

Video
ID                                       : 224 (0xE0)
Format                                   : MPEG Video
Format version                           : Version 2
Format profile                           : Main@Main
Format settings                          : CustomMatrix / BVOP
Format settings, BVOP                    : Yes
Format settings, Matrix                  : Custom
Format settings, GOP                     : M=3, N=12
Format settings, picture structure       : Frame
Duration                                 : 1 min 43 s
Bit rate mode                            : Variable
Bit rate                                 : 4 173 kb/s
Maximum bit rate                         : 6 500 kb/s
Width                                    : 720 pixels
Height                                   : 576 pixels
Display aspect ratio                     : 4:3
Frame rate                               : 25.000 FPS
Standard                                 : PAL
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Scan type                                : Interlaced
Scan order                               : Bottom Field First
Compression mode                         : Lossy
Bits/(Pixel*Frame)                       : 0.402
Time code of first frame                 : 00:27:49:01
Time code source                         : Group of pictures header
GOP, Open/Closed                         : Closed
Stream size                              : 51.7 MiB (94%)
Color primaries                          : BT.601 PAL
Transfer characteristics                 : BT.470 System B/G
Matrix coefficients                      : BT.601

[manono]

Most PAL DVDs are encoded as interlaced, even if the content is progressive. Your video is progressive. That's not interlacing artifacts but aliasing, sometimes called jaggies. You might try the AviSynth filter Santiag on it (Santiag(3,3) or your own settings), or some other anti-aliasing filter:

http://avisynth.nl/index.php/External_filters#Anti-aliasing

Forget Handbrake.

[october262]

try this in post #6 - https://forum.videohelp.com/threads/388335-Jagged-edges-in-animated-DVD-rip

[sebastiandm]

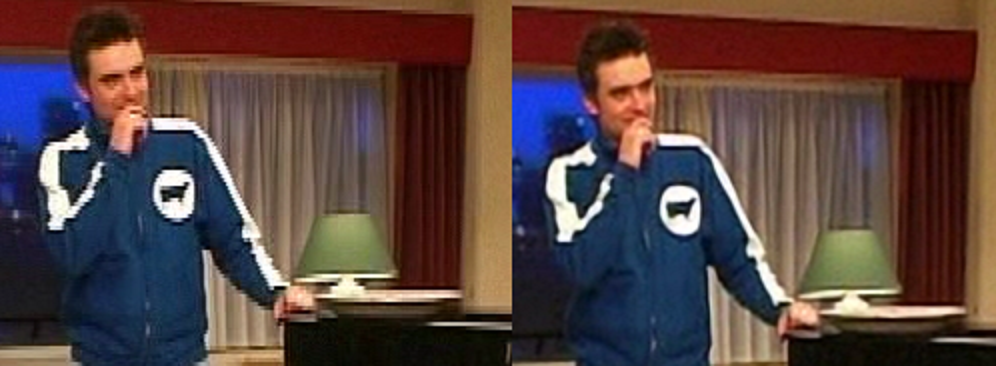

Thank you very much for your help! the santiag filter worked great.
I had never used avisynth before so I had to mess around a bit, but I am happy to have tried that as well.


[Attachment 52813 - Click to enlarge]

[manono]

Good, I'm glad the suggestion worked. And, I must say, you're a quick learner as many find AviSynth very very difficult to learn. But, since you had to "mess around a bit" to get it going, that may have meant it took many hours of work to figure it out. Even so, though, good going!

You might even dump Handbrake as a result
