clever FFmpeg-GUI, small FFmpeg UI, fully portable, no installation.

[Lexi]

Try this in a commandline into the ffmpeg bin folder:

ffmpeg.exe -i "C:\Users\user\Videos\output\DSCF0137.avi" -t 30 -c copy "C:\Users\user\Videos\output\DSCF0137_cutted.A VI"

if the source ist C:\Users\user\Videos\output\DSCF0137.avi

i had to correct something in the line but it works. cutted file is 10 sec and around 58mb

[Lexi]

here it is, please delete after download

edit:

i have updated to latest ffmpeg, same issue

[ProWo]

here it is, please delete after download

Thx, downloaded, you can delete it.

[ProWo]

I have fixed the problem.

It was that ffmpeg recognizes mjpeg as video stream and coverart equally and that the two types must be handled differently.
Download the latest beta (v3.2.4.04) here:
https://files.videohelp.com/u/292773/clever_ffmpeg_gui_newest_beta.zip
try it out and then report back here.

[ProWo]

Newest beta (v3.2.4.04), online now.

Added:
The additional audio volume is displayed (after volume detection or after manual input/change).

Fixed:
No video stream recognition with mjpeg codec (thx to Lexi).

[Lexi]

feedback

encoding audio / video works fine, multiplex works fine, joining 2 files works fine but cutting still produce useless file

[ProWo]

feedback
... but cutting still produce useless file

Found the bug.
Will be corrected in the next beta.
Thanks for the hint.

[Lexi]

feedback
... but cutting still produce useless file

Found the bug.
Will be corrected in the next beta.
Thanks for the hint.

and i will check

one question, i use for this trailcam videos allways the same settings for video, audio and multiplex because it works on all smartphones i send via threema or signal. is it possible to add a options to save this settings and to use it at the next time?

[ProWo]

I could add an automatic save set to remember the last used audio- and videocodec and mux container.

[Lexi]

I could add an automatic save set to remember the last used audio- and videocodec and mux container.

that would be very nice!

[ProWo]

I could add an automatic save set to remember the last used audio- and videocodec and mux container.

that would be very nice!

Done. The cut bug should now be fixed too.
Try the latest beta.

[ProWo]

Newest beta (v3.2.4.05), online now.

Added:
Function to remember last used audio- and videocodec and mux container.

Fixed:
Cutting function does not work with certain video codecs (thx to Lexi).

[Lexi]

Newest beta (v3.2.4.05), online now.

Added:
Function to remember last used audio- and videocodec and mux container.

Fixed:
Cutting function does not work with certain video codecs (thx to Lexi).

indexing and cutting works fine, video and audio encoding works fine and remember audio/videocodec and multiplex container is also fine but settings for codecs and container is still default.

edit:

mediainfo from test clip:

General
Complete name : C:\Users\user\Videos\output\DSCF0137_cutted_0__0_0 _x264 (avc)_muxed.mp4
Format : MPEG-4
Format profile : Base Media
Codec ID : isom (isom/iso2/avc1/mp41)
File size : 3.44 MiB
Duration : 9 s 866 ms
Overall bit rate : 2 929 kb/s
Frame rate : 30.000 FPS
Movie name : test
Writing application : clever FFmpeg-GUI

Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : High@L5.1
Format settings : CABAC / 16 Ref Frames
Format settings, CABAC : Yes
Format settings, Reference frames : 16 frames
Codec ID : avc1
Codec ID/Info : Advanced Video Coding
Duration : 9 s 866 ms
Bit rate : 2 859 kb/s
Width : 1 920 pixels
Height : 1 080 pixels
Display aspect ratio : 16:9
Original display aspect ratio : 16:9
Frame rate mode : Variable
Frame rate : 30.000 FPS
Minimum frame rate : 29.412 FPS
Maximum frame rate : 30.303 FPS
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.046
Stream size : 3.36 MiB (98%)
Writing library : x264 core 164
Encoding settings : cabac=1 / ref=16 / deblock=1:0:0 / analyse=0x3:0x133 / me=umh / subme=10 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=24 / chroma_me=1 / trellis=2 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=12 / lookahead_threads=2 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=8 / b_pyramid=2 / b_adapt=2 / b_bias=0 / direct=3 / weightb=1 / open_gop=0 / weightp=2 / keyint=250 / keyint_min=25 / scenecut=40 / intra_refresh=0 / rc_lookahead=60 / rc=crf / mbtree=1 / crf=28.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / ip_ratio=1.40 / aq=1:1.00
Color range : Full
Matrix coefficients : BT.470 System B/G
mdhd_Duration : 9866
Codec configuration box : avcC

Audio
ID : 2
Format : AAC LC
Format/Info : Advanced Audio Codec Low Complexity
Codec ID : mp4a-40-2
Duration : 9 s 864 ms
Source duration : 9 s 885 ms
Source_Duration_LastFrame : -13 ms
Bit rate mode : Constant
Bit rate : 59.3 kb/s
Channel(s) : 1 channel
Channel layout : M
Sampling rate : 48.0 kHz
Frame rate : 46.875 FPS (1024 SPF)
Compression mode : Lossy
Stream size : 71.2 KiB (2%)
Source stream size : 71.6 KiB (2%)
Language : English
Default : Yes
Alternate group : 1

[Ndidi]

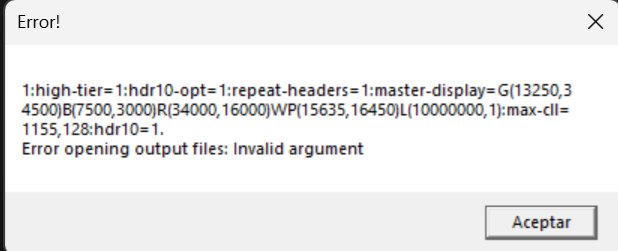

Hi , first of all , thx for your job . I´m getting this error since 3.2.4 on every hdr content files.

[ProWo]

Hi , first of all , thx for your job . I´m getting this error since 3.2.4 on every hdr content files.

I confirm the bug, will analyze it and then report back here.

[ProWo]

Newest beta (v3.2.4.06), online now.

Added:
Remember last settings for x264 and hevc and audio encoding.

Fixed:
Massive bug in HDR10 handling (thx to Ndidi).

[ProWo]

Hi , first of all , thx for your job . I´m getting this error since 3.2.4 on every hdr content files.

Thanks for the hint.
Should be fixed now.
Download the newest beta, try it and report back here.

[Lexi]

Newest beta (v3.2.4.06), online now.

Added:
Remember last settings for x264 and hevc and audio encoding.

first checks ok, should be fine now!
i will intensiv check at the weekend, if i found something, i will report.

thank you so much for your hard work!

[Ndidi]

Thank you , hdr10 contents works fine in plex , is dolby vision supported ? i can convert the file and play it in pc ok but not in plex.

[ProWo]

Thank you , hdr10 contents works fine in plex , is dolby vision supported ? i can convert the file and play it in pc ok but not in plex.

HDR10 and HLG full support (HDR10 to HDR10 and HLG to HLG recode), HDR10+ and Dolby Vision only for conversions to SDR (this is a ffmpeg limitation atm, only static HDR metadata, not dynamic HDR metadata).

[ProWo]

----------------------------------------------------------------------------------
March 19 2024 release version 3.2.5.
----------------------------------------------------------------------------------
Added:
Audio 8 channels enhanced downmix to stereo.
Security settings for Windows.
Encoded subtitles added to processed elements.
Encode text subtitles (srt, ass, ssa, mov_text, webvtt) to ttml.
Dvvideo muxing to asf, mkv, mov, wmv.
The additional audio volume is displayed (after volume detection or after manual input/change).
Function to remember last used audio- and videocodec and mux container.
Remember last settings for x264 and hevc and audio encoding.
Custom settings for any channel in audio channel remapping.
Stereo to 5.1 audio upmix.
Video encoding: you can now use any avaiable pixel format for the selected codec.
ffvhuff and huffyuv video encoding.
New audio and video codecs in mux grid.
Check for unusual video offset in cut section.

Fixed:
Bug in 8 channels to 6 channels downmix to DTS (thanks to fan for the hint).
Extract mov_text as srt (thanks to wiseant for the hint).
Avoid encoded ttml subtitles to be added to the mux grid (because they can't be muxed).
Missing buttons in cut grid.
No video stream recognition with mjpeg codec (thx to Lexi).
Cutting function does not work with certain video codecs (thx to Lexi).
Massive bug in HDR10 handling (thx to Ndidi).
Bug in pcm encoding.
Bug in video filterchain.

Improved:
Audio filter handling.
Audio channels reduction handling.
Audio channels remap handling.
HDR10/HLG handling, also with LUT's.
Audio filter handling.
Audio split to single channels pcm files.

Changed:
Picture as coverart in video handling.
----------------------------------------------------------------------------------

[apkemu]

Hi ProWo,
I may have missed something, I just don't know why the extracted audio stream is packaged in a different container than the original one. I'm trying to extract the opus and instead I get an oga. Why is this?

[ProWo]

Rename the extension to opus, if you need opus.
oga is the default extension for opus audio.

[barbaric]

Hi ProWo,

Thank you for this latest version 3.25.

I am facing some issue while multiplexing subtitles.
When you select subtitles to be Forced, they will be always default after muxing, even if you uncheck the default checkbox.
It is an issue when you have multiple forced subtitles (SRT and PGS) because the latest one in the list will become default.

[ProWo]

It can exist only one forced subtitle in a movie.

[mannequin80]

----------------------------------------------------------------------------------
March 19 2024 release version 3.2.5.
----------------------------------------------------------------------------------

just as a curiosity, can you check your 7.1 to 5.1 downmix formula? i know those can get complicated to get them right (i remember user tebasuna51 at doom9 forums had some great inputs regarding them) but i did few quick tests and it feels like the downmix conversion cuts too much from the LFE track so the overall bass becomes audibly less impactful. might be my material or the current ffmpeg implementation but perhaps few tweaks could be possible.

[ProWo]

just as a curiosity, can you check your 7.1 to 5.1 downmix formula? i know those can get complicated to get them right (i remember user tebasuna51 at doom9 forums had some great inputs regarding them) but i did few quick tests and it feels like the downmix conversion cuts too much from the LFE track so the overall bass becomes audibly less impactful. might be my material or the current ffmpeg implementation but perhaps few tweaks could be possible.

ATM there is no downmix formula for 7.1 to 5.1, just the -ac 6 switch (ffmpeg's downmix), but you can enter your own downmix formula using the remap function, entering c (custom) in the target channel.

[ingsoc]

impressive update on 3.2.5. Good job!

[ingsoc]

ProWo, several questions...

When exporting from encoder to wav, using and without the batch feature, at the end we obtain 2 txt files 'PE_something and BE_something' other than the result wav.
Also i wanted to batch that operation with 2 audio input files, and the batch grid feature showed + mouse icon but it didn't allow me to add more input audio for the operation, only one.

Also other bug i have seen is when having export container for m4a, and having pcm as format to encode, obviously the program warned about, but the buttons were all hidding and there is no way to proceed from that point, other than to close the program and start again.

By the way i have seen that we can encode input audio to AAC-LC but, i haven't seen any way to encode the wanted HE-AAC VBR. Is there a way to actually perform it ? If negative, is FFmpeg capable to do it ? surely you know about...

A possible interesting feature request will be that one to have a 100% custom part of the encoder audio part of the program were we can define an external encoder with required cmd, same as megui. For example the wanted 'qaac' encoder, and by the way having a way to use external encoders with your gui amazing features to encode from it.

[ProWo]

ProWo, several questions...
When exporting from encoder to wav, using and without the batch feature, at the end we obtain 2 txt files 'PE_something and BE_something' other than the result wav.

If you do a direct (no batch) encoding and you close clever FFmpeg-GUI after this encoding, then a PE_files.txt (processed elements) is created. This lists all the directly encoded files in the last session so that these files are available in the mux grid the next time the program is started (if they have not been deleted in the meantime).
In the same way, a BE_processed.txt is created which contains the files created in a batch.
Both files are only written if unused newly coded files are available after the program is closed.

Also i wanted to batch that operation with 2 audio input files, and the batch grid feature showed + mouse icon but it didn't allow me to add more input audio for the operation, only one.

This is correct, as this hidden function is currently only implemented for video files. I will see how you can also use multiple audio files.

Also other bug i have seen is when having export container for m4a, and having pcm as format to encode, obviously the program warned about, but the buttons were all hidding and there is no way to proceed from that point, other than to close the program and start again.

Explain the error in more detail.

By the way i have seen that we can encode input audio to AAC-LC but, i haven't seen any way to encode the wanted HE-AAC VBR. Is there a way to actually perform it ? If negative, is FFmpeg capable to do it ? surely you know about...

Read the reasons for this here:
https://trac.ffmpeg.org/wiki/Encode/AAC

A possible interesting feature request will be that one to have a 100% custom part of the encoder audio part of the program were we can define an external encoder with required cmd, same as megui. For example the wanted 'qaac' encoder, and by the way having a way to use external encoders with your gui amazing features to encode from it.

I will probably not implement something like that, because I understand clever FFmpeg-GUI as a strict frontend for ffmpeg and therefore only want to use ffmpeg features.
