    Hello everyone. First post. I really need some help here. I own a sony dcr trv 38 camcorder. I am trying to capture video footage from tapes with my laptop that is running windows 10. The computer wont recognize the camera when I plug it in with the provided usb cord. I attempted to install the driver on windows 10, but it is still not working. I am aware that the drivers are from 2002 and there may be compatibility issues. I am hoping that someone on here knows a way for me to work around this issue. I dont want to buy any new hardware. I have seen that some folks buy a analog converter. There has to be another way. I never had any problems with this when I was using my older desktop and previous laptop. Any input is helpful. Thanks
    Quote Quote
  2. aBigMeanie aedipuss's Avatar
    Join Date
    Oct 2005
    Location
    666th portal
    Search Comp PM
    sony dcr usb cables were only for transferring still shots back then and you can't install the driver from back then in win10. you never could transfer video with them anyway. the only way to properly transfer the miniDV tapes is over firewire. you need a computer with a firewire port and a firewire cable. no other way will get the job done properly.
    --
    "a lot of people are better dead" - prisoner KSC2-303
    Quote Quote
  3. Member
    Join Date
    Mar 2020
    Location
    united states
    Search PM
    Thank you. I feared that might be the case. Back in the day I custom built a desktop with a special video card that had the firewire connect. I pretty much built that system specifically for editing video. I do still have a external hard drive from that era that has the firewire connection. Idont think it will be possible to utilize that connection to capture the footage though. Really bummed that I got rid of that setup. So my only options now will be to either find a computer with a firewire port or use one of those video converters, which dont look like they would retain the video quality ?
    Quote Quote
  4. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    There is a way using one of the Pinnacle capture devices such as the 500-USB, This device takes DV data pockets and send them over a USB port, Not only you get 1:1 transfer of your tapes over USB but you can control the camcorder functions within the application like WinDV or ScenalyzerLive, The same device can capture analog sources as well according to the following diagram:

    Last edited by dellsam34; 23rd Apr 2020 at 11:49. Reason: Added app
    Quote Quote
  5. aBigMeanie aedipuss's Avatar
    Join Date
    Oct 2005
    Location
    666th portal
    Search Comp PM
    if you only have one tape that needs capturing it might be worth the 20 bucks or so to have it done by a video service. or if you have more to buy a firewire card to install in your computer.
    --
    "a lot of people are better dead" - prisoner KSC2-303
    Quote Quote
  6. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    I don't see how it's possible to install a firewire card on Windows 10 laptop.
    Quote Quote
  7. aBigMeanie aedipuss's Avatar
    Join Date
    Oct 2005
    Location
    666th portal
    Search Comp PM
    lol i didn't notice it was a laptop. not any worse than recommending a 15 year old usb device that was designed for windows XP. doubtful it would work with w10...
    --
    "a lot of people are better dead" - prisoner KSC2-303
    Quote Quote
  8. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM

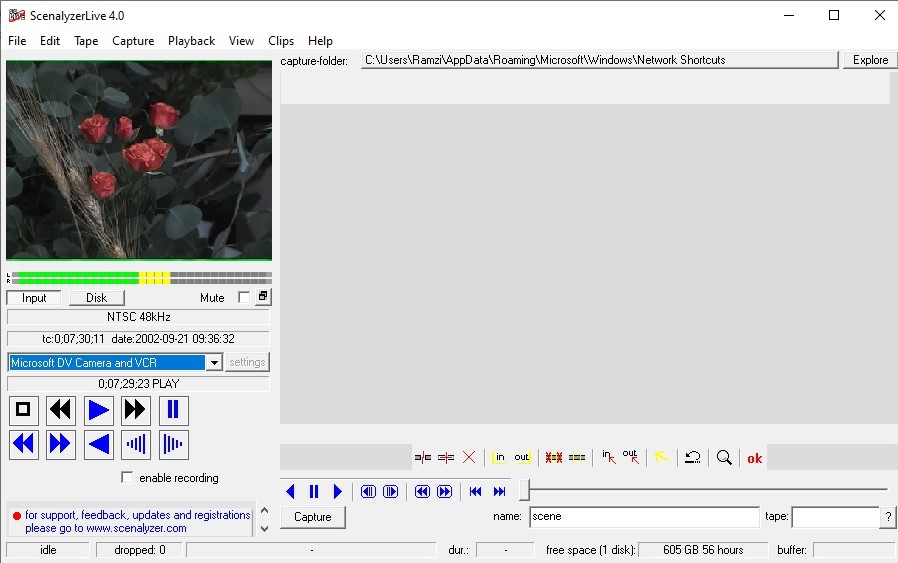

    Nope, It works perfectly in Windows 10 using ScenalyzerLive, I have the 500-USB device and I'm transferring a Digital8 tape via firewire right now to the device then from the device to a Win10 laptop using a regular USB cable, I can even control the camcorder functions from the application, See the screen shot:

    Image Attached Thumbnails Click image for larger version

Name:	Untitled.jpg
Views:	7446
Size:	108.8 KB
ID:	52533

    Quote Quote
  9. Member
    Join Date
    Sep 2021
    Location
    germany
    Search Comp PM
    thanks, to your all,
    this was really helpful.
    especially the pinnacle 500 solution.
    pci-card an older pc was as wel an good option.
    found a pinnacle 500 for around 60 pound in the US.
    delivery middle of oktober.
    by the way; saw, there was one more item for sale left on the ebay US site.
    wonderful, it made my day.
    greetings:
    wim.
    Quote Quote
  10. I know this thread is kind of old but was wondering if anyone knows whether the Pinnacle Systems Liquid Edition Pro Movie Breakout Box would work in place of the Pinnacle 500-usb in the setup using the ScenalyzerLive software?
    Quote Quote
  11. Member
    Join Date
    Aug 2023
    Location
    Berkshire, United Kingdom
    Search Comp PM
    Will the pinnacle 500 USB work with windows 10. I have tried to download the ScenalyzerLive software but my pc is telling me there is malware on the link? Can anyone confirm it is safe to download?

    thanks for any replies @dellsam34
    Quote Quote
  12. Capturing Memories dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Member Since 2005, Re-joined in 2016
    Search PM
    No Sclive is not a malware, Anything you download from this forum is safe unless you are using external links.
    Quote Quote
  13. Member
    Join Date
    Aug 2023
    Location
    Berkshire, United Kingdom
    Search Comp PM
    Thank you, finally managed to download it a got hold of a brand new pinnacle studio for 10.00. On the Scenalyser it says that I have downloaded a trial copy and will need a key, I have found it, now to try it all out tomorrow, wish me luck
    Quote Quote
  14. Member
    Join Date
    Nov 2012
    Location
    North East
    Search Comp PM
    I got one of these Pinnacle Movie Boxes off ebay. I find that I didn't even really need it since I have a Panasonic GS-PV500 mini dv camcorder which will allow transfer of dv footage by usb. The movie box also works fine! For all of you out there needing to still work with mini dv tapes, I recommend getting the Movie Box but make sure it is an older one that actually has the firewire port. I got lucky as even though mine came in an "open box" as used, I don't think it had ever been used before at all, as the cords were in sealed bags and it had film over parts of it.
    It worked fine with my Windows 10 desktop after installing the software (which all came with mine, like I said, looked like new) but curiosity gets the better of me so I wanted to see if it would work with my Windows 11 Laptop. The answer is not that easily! You can disable Core Isolation Memory Integrity to get it to work. If you REALLY need this to work with a Windows 11 laptop/pc, what I would do (and did do) is create a restore point before installing the software/drivers. Then go ahead and disable Core Isolation Memory Integrity. You could also disconnect from the Internet if you are worried about this. Do what you need to with capturing the tapes, and when done, use the restore point to put everything back to normal.
