  1. I am trying to set up a video wall with 2x2 LG 47" flat screens, each with 2K resolution, in order to have one 4K display distributed on all four screens. I am using the AMD Radeon RX570 graphics adapter with support for up to 5 screens. All screens are connected properly (one with native HDMI the other three with Display port-HDMI adapters). All screens are working properly and shows parts of the windows image. Eyefinity is activated, but for some reason I may only arrange the screens as four screens side by side, but not as a 2x2 matrix. I am running Windows 10 and the standard dialog for screen rearrangement does not allow me to move the screen symbols to a 2x2 matrix, ¨neither the interface of the graphic card settings (Eyefinity). What do I need to change?
    Quote Quote
  2. aBigMeanie aedipuss's Avatar
    Join Date
    Oct 2005
    Location
    666th portal
    Search Comp PM

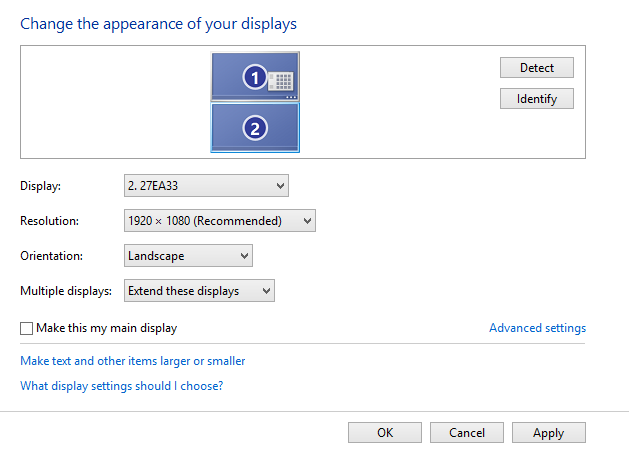

    have you tried dragging the monitor icons to the positions you want?

    [Attachment 52194 - Click to enlarge]
    --
    "a lot of people are better dead" - prisoner KSC2-303
    Quote Quote
  3. Yes, but they are not possible to move for some reason.
    Quote Quote

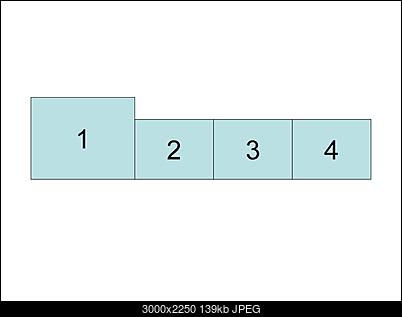

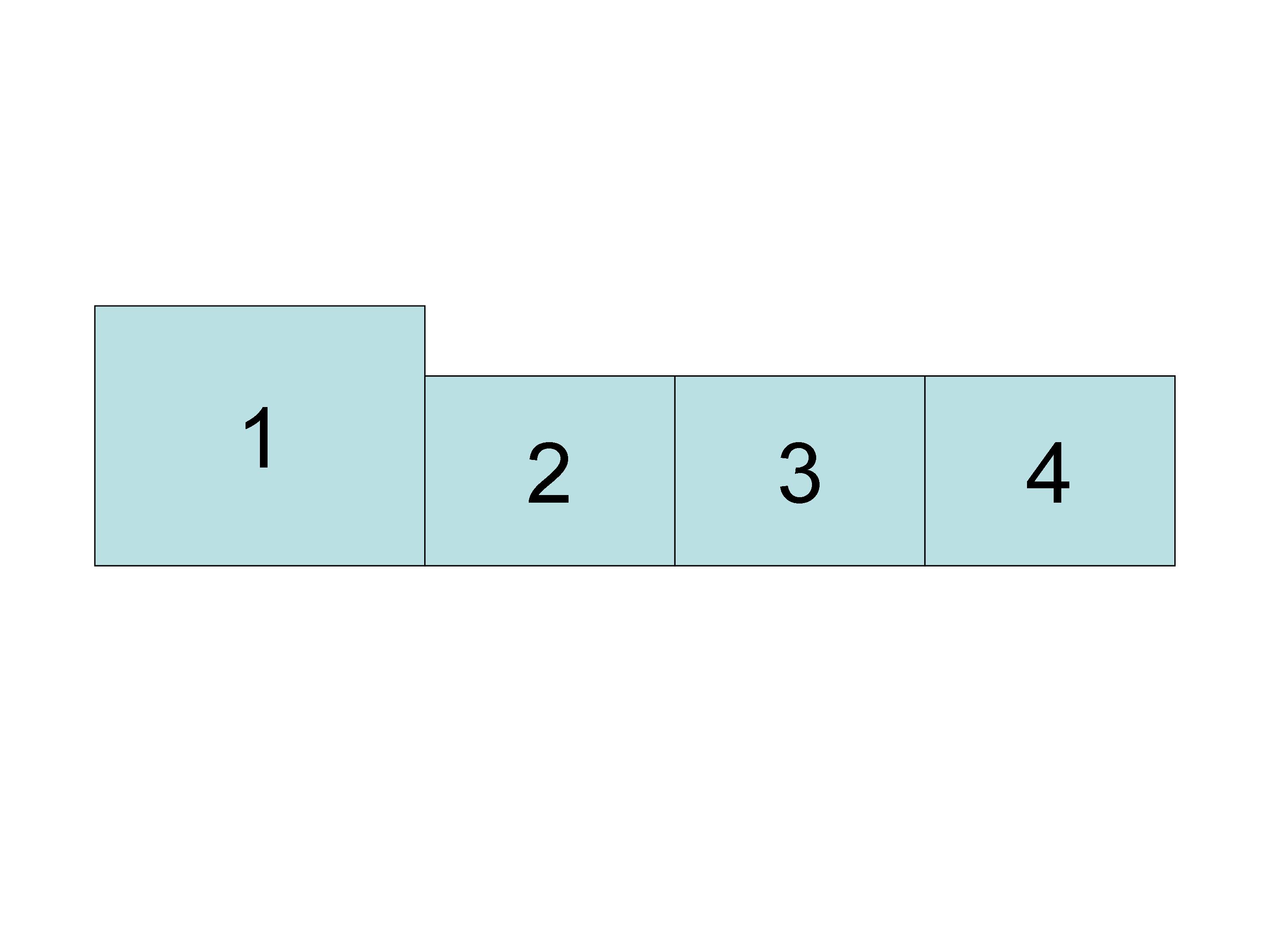

  4. Here is how it looks in the Eyefinity settings as well as in Windows native settings (see attachment). It is not possible to drag the objects!

    Click image for larger version

Name:	Screens.jpg
Views:	7
Size:	139.0 KB
ID:	52201
    Quote Quote
  5. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    All monitors must be set to the same resolution to have a proper 2x2. Perhaps this is part of what's impeding the change.

    Scott
    Quote Quote
  6. Member
    Join Date
    Aug 2006
    Location
    United States
    Search Comp PM
    If all the TVs have the same native resolution then maybe this problem is related to a bug in the drivers. See https://community.amd.com/thread/243803
    Ignore list: hello_hello, tried, TechLord
    Quote Quote
  7. The resolution of all monitors is 2K. The symbols are now also the same size, but are still not possible to drag around. I haven't changed anything that I am aware about. Don't know why monitor 1 symbol was bigger before.
    Quote Quote
