I'm having trouble capturing a image from my VHS/DVD combo player: Philips DVP3055V.
Capture Card: PEXHDCAP60L
When I plug it directly into a TV it works fine in both modes but when I connect it into my capture card problems start.

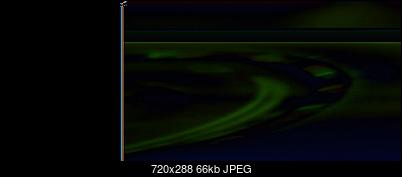

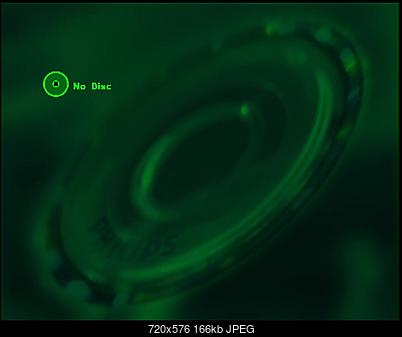

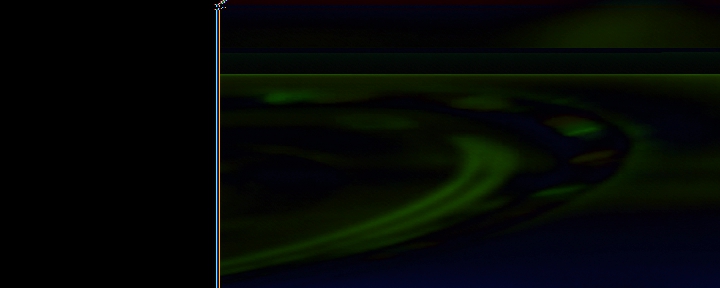

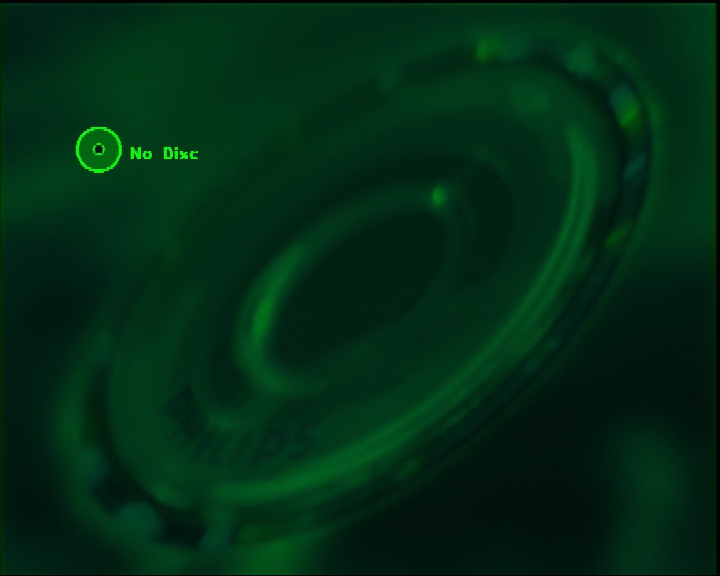

The screen is tinted green and when I put it into VHS mode it is still showing the DVD screen but the resolution becomes super wide and it keeps loosing sync.
When on DVD:
When on VHS:
Anyone have this problem before? And knows of a possible solution?
+ Reply to Thread
Results 1 to 30 of 30
Is this what it shows while actually playing a tape?
I don't know about your combo, but VCR menus typically output non-standard signals that many capture devices can't decode (progressive 15kHz aka "288p" for PAL regions).
EDIT: Somehow I skipped over the whole "tinted green DVD output" thing. SCART can output RGB, S-Video, or composite, so we need to know what mode you have the machine in and how it's hooked up, as aedipuss asks below.
Last edited by Brad; 8th Feb 2020 at 10:06.
what output from the combo are you using and which cable into the card?--
"a lot of people are better dead" - prisoner KSC2-303
What is the capture device ?. Those letters/numbers mean nothing.
But, generally, vcrs will output, irrelevant of the scart, over composite so you set your device to receive that. Even if this is a vhs/dvd-combi it will still be composite since s-video is typically only for dvd output.
And has been said it has zilch to do with any menu. Only the live vhs feed matters.
How are you connecting it up? It looks like you are capturing part of the RGB signal or something, component/RGB outputs on combo units are only for DVDs (other than certain models with DVD-recording capability.) You will need to hook the capture card up to a composite output, either with a scart adapter or from the yellow RCA/Phono connector on the VCR (in addition to the red/white audio cables)
I use the Startech PEXHDCAP60L HDMI®/DVI/VGA/Component PCIe Capture Card.
I hook up Scart with a Sync Strike. That goes to my capture card with a VGA to DVI cable.
It works great for my Game consoles but those all output RGB so maybe that's the problem.
In the Startech capture software "Steam Cather" I need to select VGA for me to see anything. Again I've had no problem recording scart game footage using this method.
The Philips DVP3055V only has Scart output for VHS footage.
Not 'maybe'. It is the issue.
VHS is not transmitted over VGA. It is over compostite (or s-video for a S-VHS player).
You require a basic capture device. Not a game capture device if that does not allow for composite.
The Sync strike won't work on composite video. You need to hook the composite out on the VCR to the capture card.
That capture device has an adapter for standard composite and s-video input. You should use that. Get a SCART to s-video/composite adapter.
Last edited by jagabo; 8th Feb 2020 at 20:12.
But why would that screw up the DVD playback as well?
Also when I set the Sync Strike to use the scart power instead of the PSU power the VHS mode is just like the first picture. the DVD screen in green.
The EURO AV1 AUDIO/VIDEO (VCR IN+OUT/DVD OUT).
Again this works just fine directly into TV.
You are capturing VHS?
Where is the tape from?
This is all PAL.
Tv's do not generally have receive VGA (unless it has a PC display mode). A EURO/Scart cable sends either composite or s-video for VHS.
You can't use the sync strike, it's only for RGB signals, not composite video. The VCR does not output RGB signals for VHS tapes. A TV will auto-switch between RGB and composite when connected via scart, so it will look fine there.
You want to connect the yellow phono output and red and white audio outputs on the VCR to the same inputs on the dongle that comes with the capture card.
My vcr+dvd combi only has scart output for the vcr portion at least. It does have component out but it clearly states that is for DVD only.
I do have a cheap scart to composite converter. (https://tinyurl.com/to5fbl5) And that does work directly into my TV still.
Here's the thing though. I don't have the AV breakout cable that came with the capture card.
Are there any cheap alternatives to this cable that go into the port next to the DVI port?
Also can the reason be everything is green tinted on the DVD screen is because it's expecting a component color space? Is there a way you can change that in a video capture software?
Take a look on Ebay and check if you can get another breakout cable.
It has already been explained to you why you are not getting a picture. Nothing to do with component. Everything to do the RGB and Sync Strike (whatever that is)
Well I looked everywhere for those cables but I can't find them without buying the expensive capture card with it. However I am able to plug in s-video directly into that port. Is it possible to get composite through a S-video cable?
Might I also suggest to go to the official Startech.com site. I looked for a spare breakout cable - the card apparently comes with more than one - but could not find it (not to say that there is not one there)
But you could always contact them and see what they have to say about a replacement cable (just tell 'em the dog chewed the original )
I own a Funai combo and that has a separate s-video output connector. And that is for the dvd side only. But as jagabo states it is still worth trying with a simple adapter and cable.
Startech did still have cables and I'm waiting for them to be delivered. In the mean time I bought a S-video cable. I Plugged the S-video cable directly into the capture card and I am getting a signal.

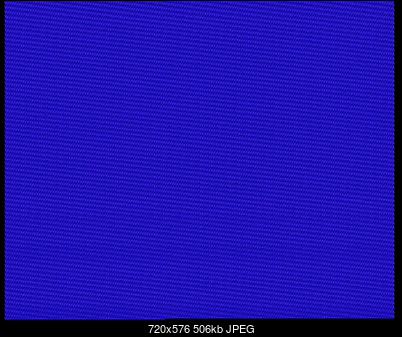

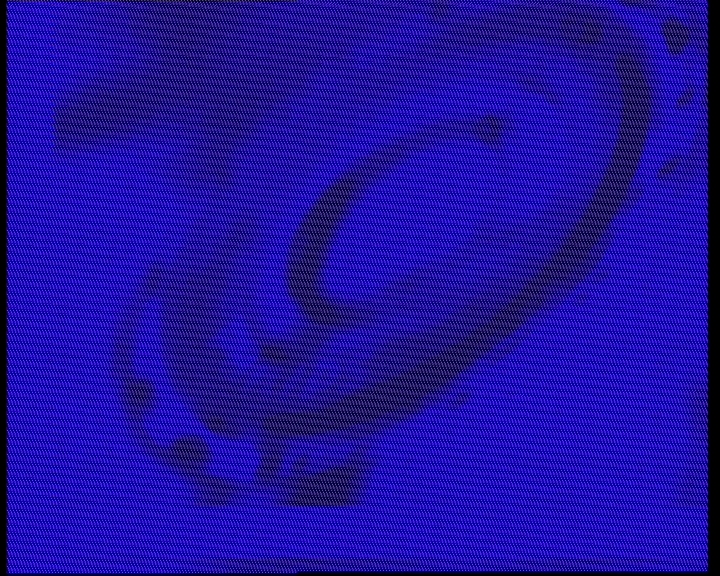

The only problem is this weird pixel noise that goes across the entire screen.
This screen is entirely blue when connected straight into a TV via the s-video cable.

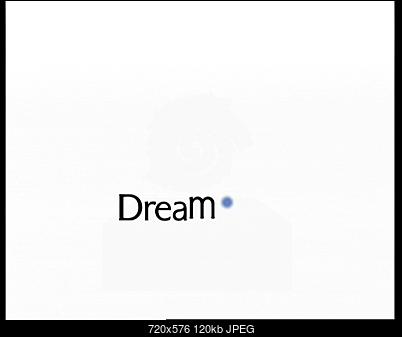

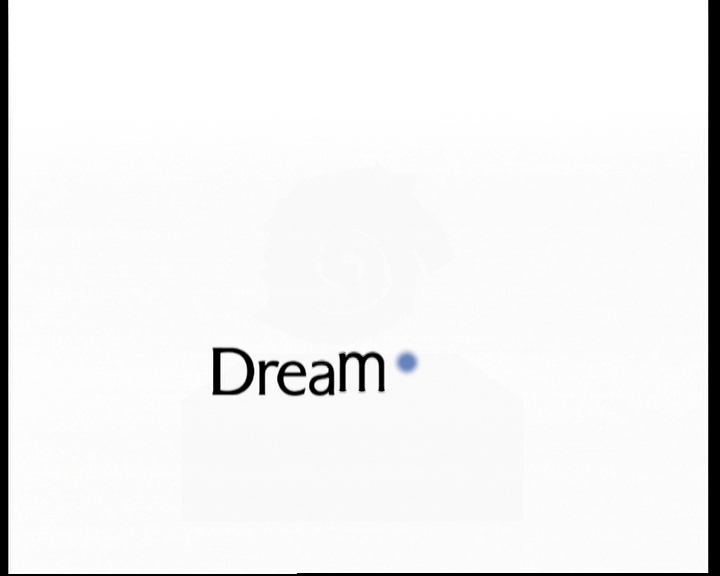

It also does not appear when connecting a dreamcast via S-video.
Any idea on why I'm getting this noise only on the capture card?
Could be the adapter at the combo end, a bad pin on the cable. Maybe a bad connection on the capture device. Or the combo is not really sending s_video hence the blue screen.
Make sure the VCR is set to output s-video, not composite.
I think you're the 4th user over the past month who has posted about this exact error. It's what happens when you capture composite as S-Video.
Okay what I'm getting from looking at your posts that the problem is that my capture card doesn't really get what to do when he gets a composite signal from S-video. And my TV does know that to do. So I guess I'm waiting for the Startech cables. Or get a VHS player that can output S-video.

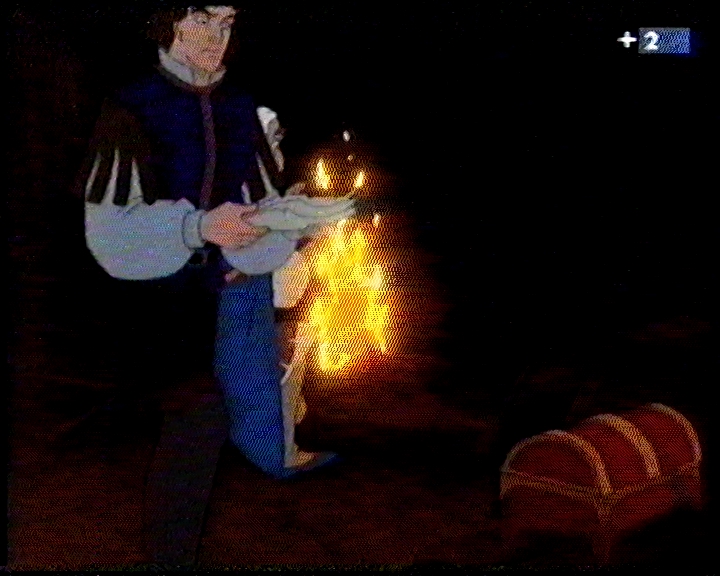

Also I'm still getting that DVD splash screen scrolling diagonally across the screen in VHS mode on the capture card display when I haven't press play yet. Expect now when I press play It shows the VHS playing instead of the DVD. I'm guessing this also has something to do with the capture card incorrectly processing composite over S-video?
Whatever the case, capturing VHS has turned to be much more of a hassle than I thought It would be. Video game consoles are a lot easier.
Okay, the cable's arrived and using a composite cable solved the weird pixel pattern.
I was originally going to use the default program that came with my capture card but than I saw a video that recommended virtualdub for capuring vhs.
This video focuses on NTSC video and says you should capture at 29.97 fps instead of 30 frames. and than de-interlace to 60.
Is this also necessary for PAL video? Should I record at 24.97 instead of 25 frames for instance?
Last edited by jagabo; 19th Feb 2020 at 07:50.
