I dug my old DV camera out of the loft today, and was surprised it still works, my camera is a Panasonic NV-DA1, it uses digital video tapes
I want to download the tapes to my PC (I have Win7 and Win 10 ) I don't have a MAC or any apple device, apart from my phone
I connect my camera to my PC, but it comes up with USB device not recognised
I only have usb sockets on my PC's

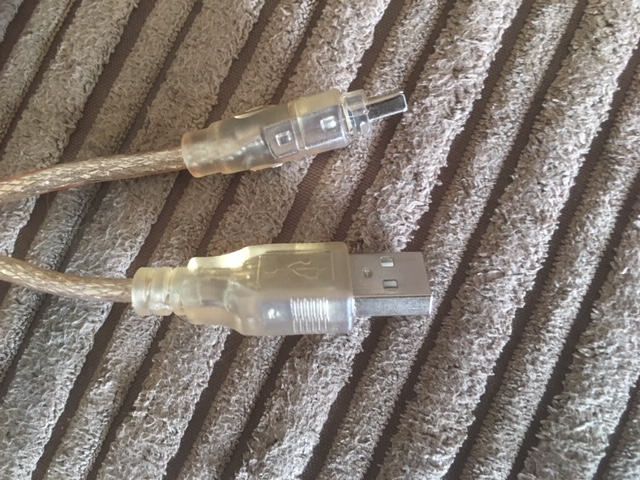

I am using the socket at the front of my camera, I think its a firewire socket with a usb plug at the end
I don't know if there are any plugs or cables I can get to connect the camera to my PC's
Can anyone help or give me any advice ?
I have tried to upload pictures of the camera, the cable I am using and the socket/plug on my camera to how what I am up against
+ Reply to Thread
Results 1 to 23 of 23
Last edited by Pepsi666; 15th Aug 2019 at 04:12. Reason: additional info
If the camcorder supports USB it is only for low res video or still pictures. You won't get full DV resolution video. You need a firewire card for your PC. Be sure to get one with a Texas Instruments (TI) chip.

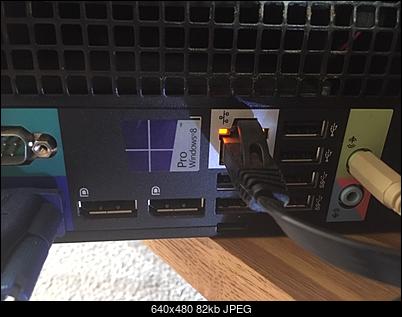

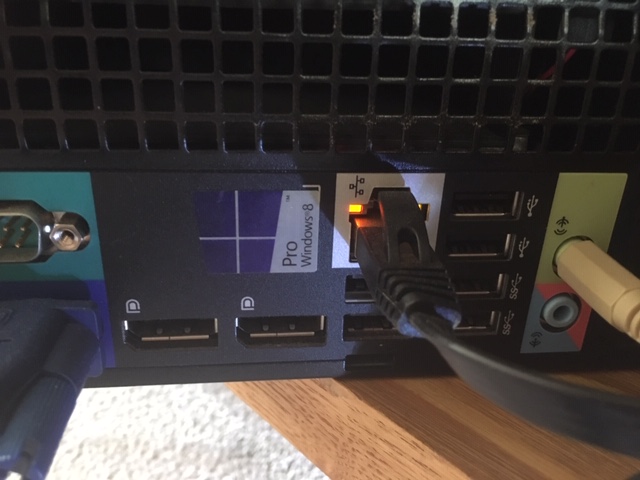

These two, I think are the right plugs
Look at the logos -- a P inside a D. Those are Displayports.
I don't know what they are supposed to me, I haven't got any plugs like that to connect a monitor
They are clearly labeled with the Displayport logo. Your computer (like most these days) can be connected to two or three monitors. You're probably only using one. Those ports have nothing to do with Firewire.
Displayport has a diagonal bevel on one corner. Firewire has bevels on two corners.
Okay, I have to ask this, why would I need 2 or 3 monitors on one PC ?
I have just looked at the ports on my Win10 pc, I have this one, what is this ?
What kind of plug would I need to connect my camera to this port ?
This any good ?
Firewire 400 IEEE1394 6 Pin to 4 Pin Male Cable
Last edited by Pepsi666; 15th Aug 2019 at 08:45.
Many people us multiple monitors. Sometimes one is connected to a big screen TV for watching movies. Stock traders like to have several monitors to watch more stocks. Developers like to have one monitor to run the Develpement software, another to run the program they're building/debugging. Sometimes just to have more Desktop space (more programs running and visible at once).
Even if you only use one monitor several types of connectors have been used over the years: VGA (oldest), DVI, HDMI, Displayport (newest).
That's an HDMI port on the other computer. Another monitor port. You cannot connect your firewire camcorder to that.
Firewire ports were never common on Windows PCs. And they have pretty much disappeared from them in the last 10+ years.
I donít work for any of those organisations, so only use the one monitor
I connect my tv and pc by they blue plug and a hdmi to my sky box, it works fine
So the socket on my pc in the picture is just out, not in ?

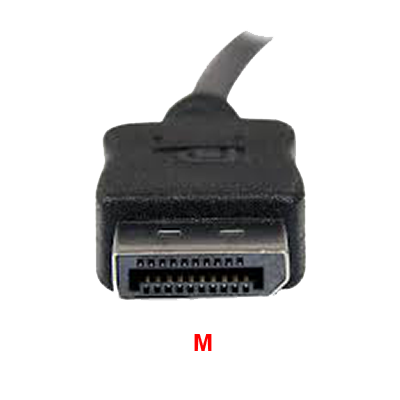

Displayport: for monitors
looks like this -
[Attachment 49805 - Click to enlarge]
(there is a mini-size, but I didn't show it in this photo)

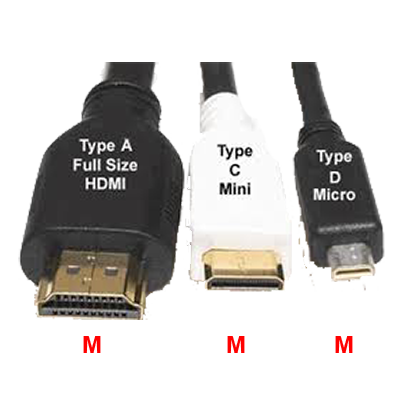

HDMI: for monitors, TVs, projectors, amps, etc.
looks like this -
[Attachment 49806 - Click to enlarge]
(computer would almost ALWAYS have the full size)
Firewire: for cameras/camcorders, and older pro-audio equipment, also for harddrives/storage
looks like this -
[Attachment 49807 - Click to enlarge]
(computer usually has full size 6pin, but some, including laptops, have the mini 4pin version, almost ALL cameras that use it have the mini 4pin. they ARE compatible - the extra 2 pins are supposed to be for distributing power)
Again, you need to get an add-on Firewire card. Easy to find, used or new. Just make sure it has TxInstruments chipset, as mentioned.
note: the "M" in the pictures is Male end.
Have you got a picture of this Texas instruments thing?
Iíve had a browse and donít know what I am looking for (or even where it would go)
You're looking for something like this: https://www.amazon.com/Syba-SY-PEX30016-Firewire-XIO2213B-Requires/dp/B006DQ0KD2/ref=l...5908563&sr=1-6
Note: you'd need LEGACY drivers if you are currently on Win10 (this may be true of any current model FW card you get). We can help you with those drivers, I'd think. Win7 should be ok as is (though you may want to find XP or Vista era drivers to be sure - I've heard recent stories of compatibility issues).
You, of course, would also need an open PCI-e card slot on your (desktop) computer to put the card into. Without that, you may be SOL when it comes to firewire (unless you consider replacement pc).
You have to figure out what type of slots are available in your PC, if any. Probably PCIe if it's less than 5 years old:
I think it might just be easier to take a trip down to a shop and let them do the copying of the tapes
4 tapes with about 30 minutes on each
Sort out the stuff another time or take it to a PC shop and let them do it, so if it goes wrong I can blame them
I just want them as an MPEG, then I can edit them, put titles, dates on them, it will be for windows
I donít have a MAC
No, you want them as DV AVI. That is an exact copy of the digital data on the tape. It's higher quality than converting to MPEG and more easily edited (and without further degradation). Once you're done editing you can convert to MPEG if necessary (for DVD, for example).
I have now downloaded them, thanks to everyone that posted a reply
Heathrow now want them for their archives but in a DVD format
Any suggestions as to how to write these to a DVD ?
I think they are just using a cheap, home DVD player
No, is there someone else trying to make dvds?
I am trying to make 20 year old videos into a dvd
Personally I would be happy with MPEGS but Heathrow canít use them
try avstodvd is a decent avi to dvd converter.
but i'd bet the house this is you on another forum.
[Attachment 50222 - Click to enlarge]
Raking around in my loft the other day I found my old video camera, it still works the batteries are still good, found 2 video tapes with stuff on from 1999 (Panasonic NV-DA1 video Camera)
I did what I did when I had my XP PC, plugged the lead into the front of the camera, then into a USB port, set the camera to play, (I have to plug the camera into the charger, then the camera, the plugs aren't accessible when the battery is on)
The PC tried to update the drivers, but failed, so the PC cant see the camera (It is playing the footage on the camera)
I tried to plug it into the TV, using the video lead ad red and white sound leads, it worked I could see and hear the video
I tried again on the PC, but cant use the S video lead or the red and white plugs, they aren't on the PC, there is a small plug on the front of the camera, (I think its called a firewire) then there is a USB plug on the end of that
I just want to copy the tapes to my PC (in any format)
I know PC's have moved on since Win 95 and XP, but the USB plugs are the same on my Win 7 and Win 10 PC's
Anyone any have any suggestions on what I can do next ?
What other leads do I need to buy ? (if any )
I have uploaded pictures of my camera, sockets, and the leads
