How to extract audio track of .avi file to include it in a .mkv file?

[nickiman]

Hi all,

I´m newbie in this kind of things and don´t know where to post my question so, here we go...

I would like to extract the audio of a .avi file to be included in a .mkv file where the video has more quality... . I´m using a PC with Windows 10 by the way.

I´ve been playing with AVI-MUX extracting the audio track of the avi file in .mka extension and later I´ve included in the .mkv file using MKV Toolnix...

But when I´ve finish to multiplex it... the audio is phased out with the image. OK. That problem (I think) comes from the fact that audio is sincronized with the avi file at 30 FPS and the video of the .mkv file is at 23,9... FPS.

So my question is... how could solve this problem to include the audio that I want in the video of that .mkv?

Keep waiting your comments/suggestions...

Thanks a lot!

[nickiman]

OK... I´ve made some research in this forum and I´ve found this thread about that.

I would like to be more specific now:

I have two sources:
1. mkv file from a DVD source with the audio in my language (spanish)
2. mkv file from a Bluray source where I want to include it

This is the Media Info of the DVD source:

General
Unique ID                                : 61817178999111384784210726115873031491 (0x2E818E3C89011D0DBE55FC986AC28543)
Complete name                            : C:\Mis Videos\Batman Beyond The Movie (1999) MPEG-480p AC3-6ch.mkv
Format                                   : Matroska
Format version                           : Version 4
File size                                : 2,79 GiB
Duration                                 : 1 h 13 min
Overall bit rate mode                    : Variable
Overall bit rate                         : 5 402 kb/s
Encoded date                             : UTC 2019-05-23 18:39:04
Writing application                      : mkvmerge v30.1.0 ('Forever And More') 64-bit
Writing library                          : libebml v1.3.6 + libmatroska v1.4.9

Vídeo
ID                                       : 1
Format                                   : MPEG Video
Format version                           : Version 2
Format profile                           : Main@Main
Format settings                          : CustomMatrix / BVOP
Format settings, BVOP                    : Sí
Format settings, Matrix                  : Personlizado
Format settings, GOP                     : M=3, N=12
Codec ID                                 : V_MPEG2
Codec ID/Info                            : MPEG 1 or 2 Video
Duration                                 : 1 h 13 min
Bit rate mode                            : Variable
Bit rate                                 : 4 627 kb/s
Maximum bit rate                         : 7 500 kb/s
Width                                    : 720 píxeles
Height                                   : 480 píxeles
Display aspect ratio                     : 4:3
Frame rate mode                          : Variable
Frame rate                               : 24,216 FPS
Original frame rate                      : 23,976 (24000/1001) FPS
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Scan type                                : Progresivo
Scan order                               : 2:3 Pulldown
Compression mode                         : Con pérdida
Bits/(Pixel*Frame)                       : 0.553
Time code of first frame                 : 00:59:58:00
Time code source                         : Group of pictures header
GOP, Open/Closed                         : Abierto
GOP, Open/Closed of first frame          : Cerrado
Stream size                              : 2,39 GiB (86%)
Language                                 : Inglés
Default                                  : No
Forced                                   : No

Audio #1
ID                                       : 2
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Commercial name                          : Dolby Digital
Codec ID                                 : A_AC3
Duration                                 : 1 h 13 min
Bit rate mode                            : Constante
Bit rate                                 : 192 kb/s
Channel(s)                               : 2 canales
Channel layout                           : L R
Sampling rate                            : 48,0 kHz
Frame rate                               : 31,250 FPS (1536 SPF)
Bit depth                                : 16 bits
Compression mode                         : Con pérdida
Delay relative to video                  : 33 ms
Stream size                              : 102 MiB (4%)
Title                                    : Español AC-3 Stereo
Language                                 : Español
Service kind                             : Complete Main
Default                                  : Sí
Forced                                   : No

Audio #2
ID                                       : 3
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Commercial name                          : Dolby Digital
Codec ID                                 : A_AC3
Duration                                 : 1 h 13 min
Bit rate mode                            : Constante
Bit rate                                 : 384 kb/s
Channel(s)                               : 6 canales
Channel layout                           : L R C LFE Ls Rs
Sampling rate                            : 48,0 kHz
Frame rate                               : 31,250 FPS (1536 SPF)
Bit depth                                : 16 bits
Compression mode                         : Con pérdida
Delay relative to video                  : 1 ms
Stream size                              : 203 MiB (7%)
Title                                    : Inglés AC-3 5.1
Language                                 : Inglés
Service kind                             : Complete Main
Default                                  : No
Forced                                   : No

Audio #3
ID                                       : 4
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Commercial name                          : Dolby Digital
Codec ID                                 : A_AC3
Duration                                 : 1 h 13 min
Bit rate mode                            : Constante
Bit rate                                 : 192 kb/s
Channel(s)                               : 2 canales
Channel layout                           : L R
Sampling rate                            : 48,0 kHz
Frame rate                               : 31,250 FPS (1536 SPF)
Bit depth                                : 16 bits
Compression mode                         : Con pérdida
Delay relative to video                  : 1 ms
Stream size                              : 102 MiB (4%)
Title                                    : Comentarios del director
Language                                 : Inglés
Service kind                             : Complete Main
Default                                  : No
Forced                                   : No

And this the Media Info of the Bluray source:

General
Unique ID                                : 193797947706420513961095446527791928984 (0x91CC208752948BA4BFD77A97B1191698)
Complete name                            : C:\Mis Videos\untouchables-batman.beyond.return.of.the.joker.2000.1080p.mkv
Format                                   : Matroska
Format version                           : Version 2
File size                                : 6.56 GiB
Duration                                 : 1 h 16 min
Overall bit rate                         : 12.2 Mb/s
Encoded date                             : UTC 2011-04-22 12:53:05
Writing application                      : mkvmerge v4.5.0 ('Speed of Light') built on Feb  1 2011 02:10:32
Writing library                          : libebml v1.2.0 + libmatroska v1.1.0

Video
ID                                       : 1
Format                                   : AVC
Format/Info                              : Advanced Video Codec
Format profile                           : High@L4.1
Format settings                          : CABAC / 4 Ref Frames
Format settings, CABAC                   : Yes
Format settings, Reference frames        : 4 frames
Codec ID                                 : V_MPEG4/ISO/AVC
Duration                                 : 1 h 16 min
Bit rate                                 : 10.7 Mb/s
Width                                    : 1 440 pixels
Height                                   : 1 080 pixels
Display aspect ratio                     : 4:3
Frame rate mode                          : Constant
Frame rate                               : 23.976 (24000/1001) FPS
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Scan type                                : Progressive
Bits/(Pixel*Frame)                       : 0.288
Stream size                              : 5.62 GiB (86%)
Writing library                          : x264 core 115 r1936 7a9e08d
Encoding settings                        : cabac=1 / ref=4 / deblock=1:-1:-1 / analyse=0x3:0x112 / me=umh / subme=7 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=1 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=12 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=3 / b_pyramid=2 / b_adapt=2 / b_bias=0 / direct=1 / weightb=1 / open_gop=0 / weightp=2 / keyint=250 / keyint_min=23 / scenecut=40 / intra_refresh=0 / rc_lookahead=40 / rc=2pass / mbtree=1 / bitrate=10725 / ratetol=1.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / cplxblur=20.0 / qblur=0.5 / ip_ratio=1.40 / aq=1:1.00
Language                                 : English
Default                                  : Yes
Forced                                   : No

Audio
ID                                       : 2
Format                                   : DTS
Format/Info                              : Digital Theater Systems
Codec ID                                 : A_DTS
Duration                                 : 1 h 16 min
Bit rate mode                            : Constant
Bit rate                                 : 1 509 kb/s
Channel(s)                               : 6 channels
Channel layout                           : C L R Ls Rs LFE
Sampling rate                            : 48.0 kHz
Frame rate                               : 93.750 FPS (512 SPF)
Bit depth                                : 24 bits
Compression mode                         : Lossy
Stream size                              : 829 MiB (12%)
Language                                 : English
Default                                  : Yes
Forced                                   : No

I suposed that since the FPS are different... are different also the duration of both movies:

DVD:

Duration : 1 h 13 min
Frame rate mode : Variable
Frame rate : 24,216 FPS
Original frame rate : 23,976 (24000/1001) FPS

BR:

Duration : 1 h 16 min
Frame rate mode : Constant
Frame rate : 23.976 (24000/1001) FPS

Having this, I´ve read from the thread that I linked before that I have to demux the audio from the DVD source with Eac3to.

Convert the dvd audio from 25fps to 23,976 fps. You can use eac3to to convert the audio. Eac3to -slowdown (convert 25.000 and 24.000 content to 23.976 fps)

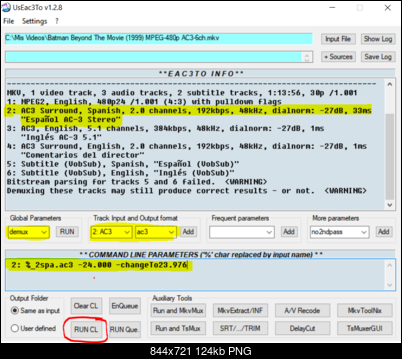

OK, I´ve installed Eac3to and the GUI to do that. This is the configuration entered:

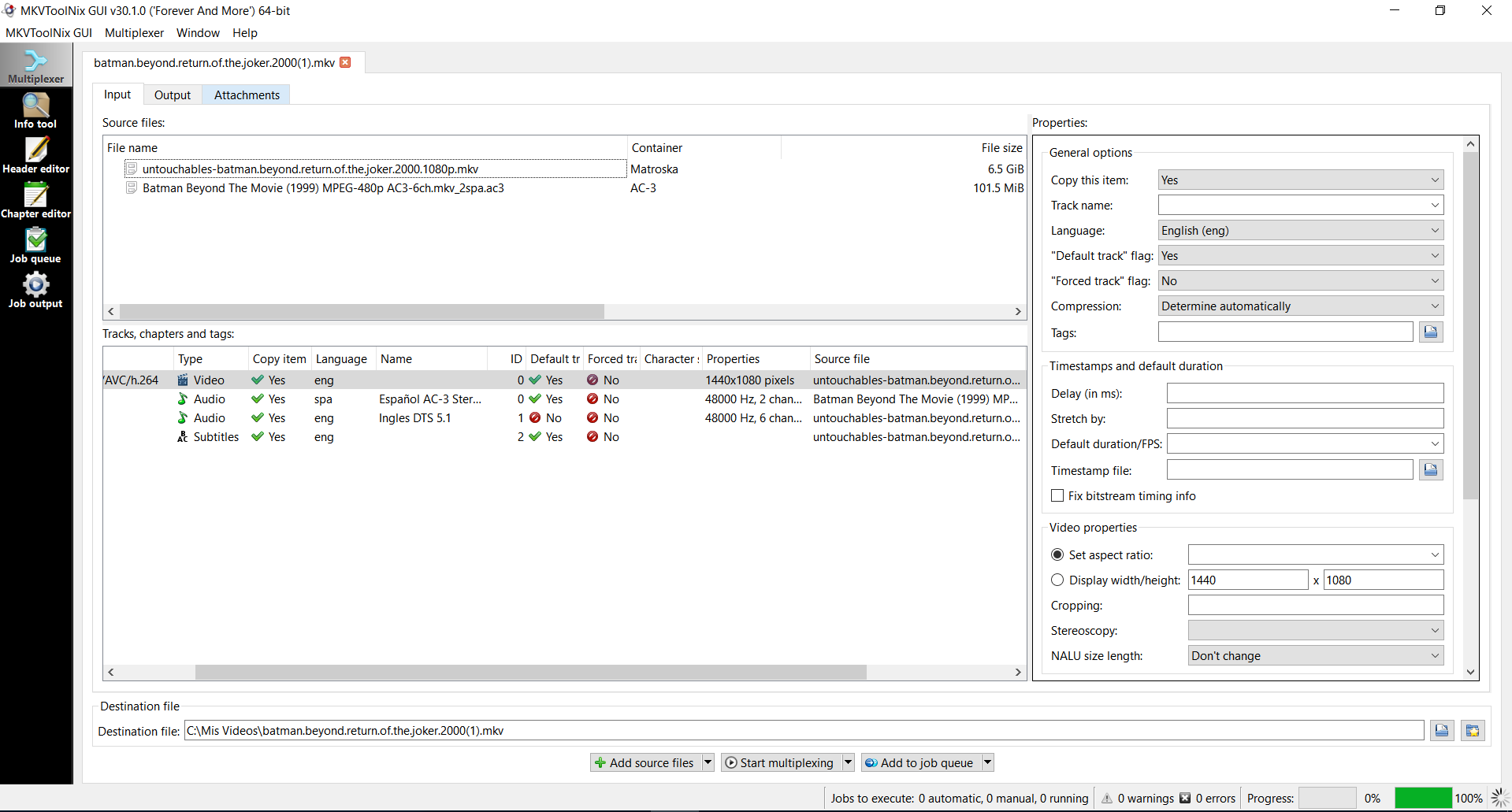

After that, I multiplexed both files .mkv (HD version) and audio file in MKVToolnix in this way:



But, when I play the file I´m still having sync issues and I´m not able to synchornize it with the video using VLC (Tools -> Track Synchronization) and adjusting it.

I´m missing something?

[sneaker]

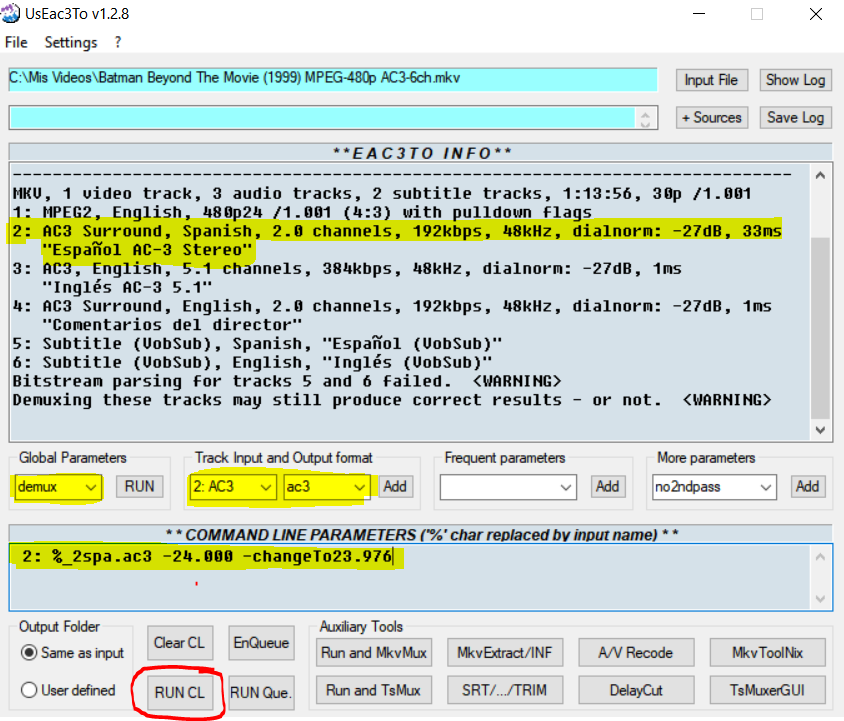

The screenshot shows: -24.000 -changeTo23.976
Try to set it so that it shows: -25.000 -changeTo23.976

Either way it's not guaranteed the movies are the same cut (cinema version, director's cut, state censorship etc.).


Did you try to mux them together without the eac3to step? Maybe they don't need any audio conversion at all or only some constant delay. We cannot be sure from the MediaInfo.

[nickiman]

The screenshot shows: -24.000 -changeTo23.976

Either way it's not guaranteed the movies are the same cut (cinema version, director's cut, state censorship etc.).

@sneaker you are totally right...

I´ve started to watch both movies at the same time and I´ve found some fight scene at minute 8 in the HD version that I haven´t in the DVD version. After that, I´ve searched in Internet and I´ve found that exist an UNCUT version of this movie which is the source of the HD version.

My most honestly apologize for don´t check it out this before. Thanks a lot for your time and help... Appreciate it.

Best regards
