VirtualDub deadlock error x264 ac3

[Tarnum]

--input-depth 16 only tells x264 that the input is 16 bit. If the input isn't actually 16 bit you will only produce garbage.

How does the picture look in the VirtualDub preview? Are you using AviSynth? Show "File"->"File Information" and MediaInfo ("View"->"Text").

General
Unique ID : 118598960476052780755530409267285164455 (0x593954351C4DA86B1446E9D4298781A7)
Complete name : C:\Users\Vladimir\Desktop\01_Album_1_Svadba.mkv
Format : Matroska
Format version : Version 4 / Version 2
File size : 3.91 GiB
Duration : 2 h 59 min
Overall bit rate : 3 115 kb/s
Encoded date : UTC 2018-01-23 15:55:01
Writing application : mkvmerge v20.0.0 ('I Am The Sun') 64-bit
Writing library : libebml v1.3.5 + libmatroska v1.4.8

Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : High@L3
Format settings : CABAC / 4 Ref Frames
Format settings, CABAC : Yes
Format settings, RefFrames : 4 frames
Codec ID : V_MPEG4/ISO/AVC
Duration : 1 h 29 min
Bit rate : 5 715 kb/s
Width : 720 pixels
Height : 540 pixels
Display aspect ratio : 4:3
Frame rate mode : Constant
Frame rate : 25.000 FPS
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.588
Stream size : 3.59 GiB (92%)
Writing library : x264 core 155 r2901 7d0ff22
Encoding settings : cabac=1 / ref=3 / deblock=1:0:0 / analyse=0x3:0x113 / me=hex / subme=7 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=1 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=17 / lookahead_threads=2 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=3 / b_pyramid=2 / b_adapt=1 / b_bias=0 / direct=1 / weightb=1 / open_gop=0 / weightp=2 / keyint=250 / keyint_min=25 / scenecut=40 / intra_refresh=0 / rc_lookahead=40 / rc=crf / mbtree=1 / crf=19.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / ip_ratio=1.40 / aq=1:1.00
Default : Yes
Forced : No

Audio
ID : 2
Format : AC-3
Format/Info : Audio Coding 3
Codec ID : A_AC3
Duration : 2 h 59 min
Bit rate mode : Constant
Bit rate : 256 kb/s
Channel(s) : 2 channels
Channel positions : Front: L R
Sampling rate : 48.0 kHz
Frame rate : 31.250 FPS (1536 SPF)
Bit depth : 16 bits
Compression mode : Lossy
Delay relative to video : 40 ms
Stream size : 329 MiB (8%)
Service kind : Complete Main
Default : Yes
Forced : No

[sneaker]

I'm talking about MediaInfo of the source file.

[Tarnum]

I'm talking about MediaInfo of the source file.

Let's see

General
Complete name : D:\MarinaVid\VHS\01_Album_1_Svadba.mkv
Format : Matroska
Format version : Version 1
File size : 68.4 GiB
Duration : 2 h 59 min
Overall bit rate : 54.5 Mb/s
Encoded date : UTC 2018-01-11 14:52:43
Writing library : DirectShow Matroska Muxer
IsTruncated : Yes

Video
ID : 1
Format : HuffYUV
Format version : Version 2
Codec ID : V_MS/VFW/FOURCC / HFYU
Duration : 2 h 59 min
Width : 720 pixels
Height : 576 pixels
Display aspect ratio : 5:4
Frame rate mode : Constant
Frame rate : 25.000 FPS
Standard : PAL
Color space : YUV
Chroma subsampling : 4:2:2
Bit depth : 8 bits
Language : English
Default : Yes
Forced : No

Audio
ID : 2
Format : PCM
Codec ID : A_PCM/INT/LIT
Duration : 2 h 59 min
Bit rate mode : Constant
Channel(s) : 2 channels
Sampling rate : 48.0 kHz
Bit depth : 16 bits
Delay relative to video : -41 ms
Language : English
Default : Yes
Forced : No[

[Tarnum]

Greetings!
Faced with another issue while converting.

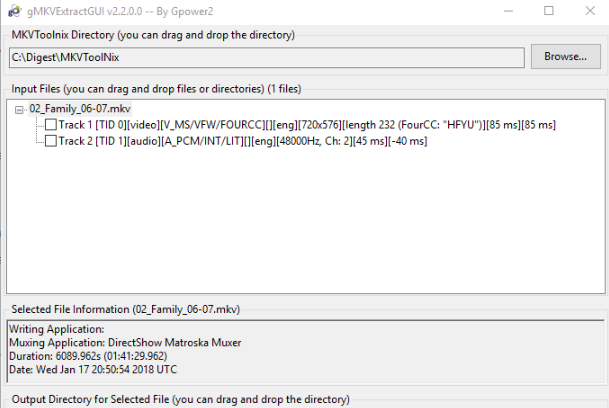

I attached pics. In first I see delay(?) in video track 85 ms. And audio delay in 40 and 40. I can't understand what does it mean, why two times? as in video track also 2 times.
In secoon unexplored values are 0 and 0. And audio 40 ms, as i set in properties of x264. Noticed desync. What am i doing wrong?
Thanks in advance.


[Attachment 44492 - Click to enlarge]

[Attachment 44493 - Click to enlarge]

p.s. How is it possible to capture video from VHS in command line, and it is possible?

[sneaker]

I assume first is delay from composition time 0. Second is delay relative to video delay. So audio is delayed 45ms. But because video is delayed 85ms audio actually starts 40ms before the video.

[Tarnum]

Thanks!
But i'm using setting of mkmerge -y 0:40
Full noticable delay...
Please explain me what formula tu use. I have input video delay in 85 ms, and audio -40 ms.
If two values of video is X1 and X2, audio Y1 and Y2. So what actions should I do?

[sneaker]

VirtualDub/AviSynth may have already gotten rid of the delay. At least that's what I would aim for when re-encoding. Can't answer without more info as requested in post #29.

[Tarnum]

Thanks a lot. But can't understand how to work witn AvySynth. In Virtual Dub no oppotunities to synchronise... Work stopped
