  1. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    I got about a couple of dozens of VHS-C in EP (1H30min) to be captured, The owner requested MPEG2 SD files so I have to use an MPEG2 capture software, The problem I'm having is I get about 1 second of lip sync delay in every 10min of video even when no dropped frames, Capturing video every 10min will take forever. Is there a stable way/software that I can use to accomplish this as fast as I can? Gosh I missed DV capture, The most stable way of capturing analog tapes ever.

    My hardware is:
    Dual core 2.93Ghz, 5GB memory, Windows 7
    Pinnacle 500-USB Capture Device
    Pinnacle Studio 19

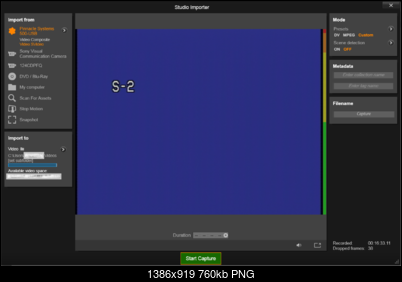

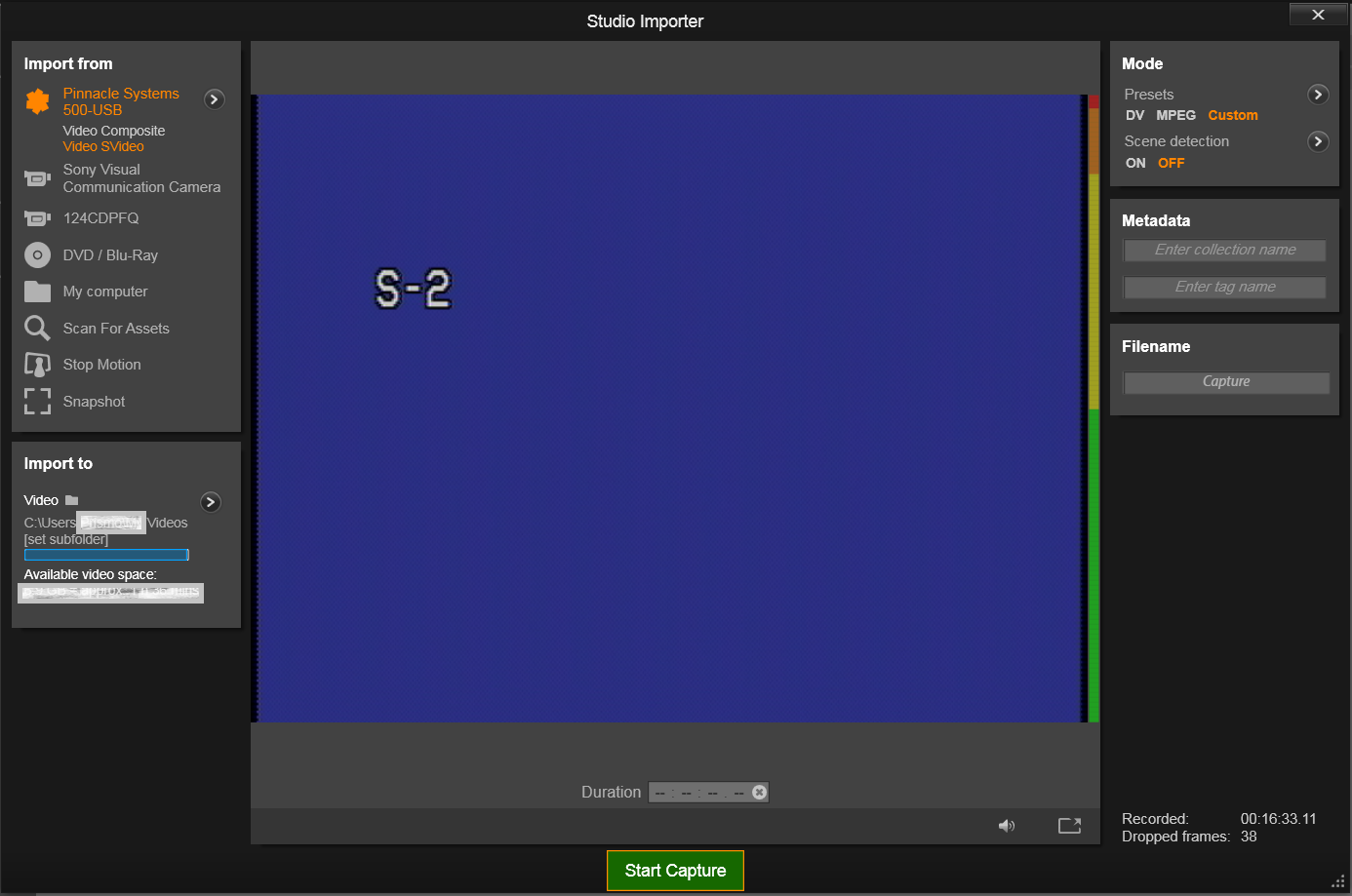

    Click image for larger version

Name:	Untitled.png
Views:	46
Size:	759.9 KB
ID:	44123
    Quote Quote
  2. Member Bernix's Avatar
    Join Date
    Apr 2016
    Location
    Europe
    Search Comp PM
    Hi,
    you can try Virtualdubfiltermod. There is some improvement in capturing video recently. And I don't think you must capture to customer format directly. You can convert to mpeg2 in last step, can't you?
    I didn't try Virtualdubfiltermod itself, but changes made seems very promising.

    Bernix
    Quote Quote
  3. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    Originally Posted by Bernix View Post
    Hi,
    you can try Virtualdubfiltermod. There is some improvement in capturing video recently. And I don't think you must capture to customer format directly. You can convert to mpeg2 in last step, can't you?
    I didn't try Virtualdubfiltermod itself, but changes made seems very promising.

    Bernix
    I'm trying to save time on cutting down on steps, But if I can capture the whole tape with no issues then I don't mind doing a 2 step process rather than capturing every few minutes.
    I know hardware capturing MPEG2 devices don't have this issue but I don't feel like buying another capture device.
    Quote Quote
  4. Member Bernix's Avatar
    Join Date
    Apr 2016
    Location
    Europe
    Search Comp PM
    Hi,
    just to clarify Virtualdubfiltermod is software
    I have feeling you think it is HW.

    Bernix
    Quote Quote
  5. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    Yes I'm aware VirtualDub is just a software however I don't see a difference between VirtualDub and Virtualdubfiltermod it still captures AVI only.
    Quote Quote
  6. Member Bernix's Avatar
    Join Date
    Apr 2016
    Location
    Europe
    Search Comp PM
    Hi,
    even it is avi, you can capture to x265 or what compression you have listed. Best is uncompressed of course. Then in handbrake you can do 2pass encoding to mpeg2. I think the quality will be better than directly capture to mpeg2. Actually the size of final video can be reasonable.
    But of course it is your decision. I just think it is worth to try it.

    Bernix
    Quote Quote
  7. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    Best to capture to a fast lossless format such as HuffyUV or UT video codec using avi if the device is able to do so..
    Quote Quote
  8. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    Originally Posted by davexnet View Post
    Best to capture to a fast lossless format such as HuffyUV or UT video codec using avi if the device is able to do so..
    As I mentioned the customer wants MPEG2.
    Quote Quote
  9. Member Bernix's Avatar
    Join Date
    Apr 2016
    Location
    Europe
    Search Comp PM
    But you have to capture in very high bitrate. Isn't better to lossless and then two pass to Mpeg2? Or he wants 10GB file for cassette?

    Bernix
    Quote Quote
  10. Originally Posted by dellsam34 View Post
    As I mentioned the customer wants MPEG2.
    And as already mentioned, after capping as lossless AVI (I use Lagarith), then, if you don't want to make any improvements just reencode for MPEG-2 and DVD or whatever you want.

    Gosh I missed DV capture...
    What's to stop you? You no longer have a Canopus box? I use mine for capping, at least partly because it doesn't have the issues you're asking about. And my final format is DVD.
    Quote Quote
  11. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    Originally Posted by Bernix View Post
    Hi,
    even it is avi, you can capture to x265 or what compression you have listed. Best is uncompressed of course. Then in handbrake you can do 2pass encoding to mpeg2. I think the quality will be better than directly capture to mpeg2. Actually the size of final video can be reasonable.
    But of course it is your decision. I just think it is worth to try it.

    Bernix
    Can you be more specific on how to capture to MPEG2 in VertualDubFilterMod ?
    Quote Quote
  12. Member Bernix's Avatar
    Join Date
    Apr 2016
    Location
    Europe
    Search Comp PM
    In citation you quoted, there is nothing about mpeg2, just noticed format that are listed. I also said that "then in handbrake you can 2pass encoding to mpeg2.
    I think the quality will be better than directly capture to mpeg2.
    by this I meant any program that capture directly to mpeg2, not virtualdubmod.
    To retain quality of source, with compression directly to mpeg2 with no additionally compression the file size will be huge. That is all.

    Bernix
    Quote Quote
  13. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    Originally Posted by manono View Post
    Originally Posted by dellsam34 View Post
    As I mentioned the customer wants MPEG2.
    And as already mentioned, after capping as lossless AVI (I use Lagarith), then, if you don't want to make any improvements just reencode for MPEG-2 and DVD or whatever you want.

    Gosh I missed DV capture...
    What's to stop you? You no longer have a Canopus box? I use mine for capping, at least partly because it doesn't have the issues you're asking about. And my final format is DVD.
    When you have 25 tapes you want the fastest option possible or you will be working a rate of a minimum wage. As of DV part again the customer wants MPEG2 therefore I can't capture DV.
    By the look of it I think I'm going to turn down this offer.
    Quote Quote
  14. Member Bernix's Avatar
    Join Date
    Apr 2016
    Location
    Europe
    Search Comp PM
    All you need are two computers. One for capturing, and second for compression. 25 tapes to capture take 37,5 hours, compression to mpeg2 take less time on average computer.
    howgh
    Last edited by Bernix; 24th Dec 2017 at 18:49.
    Quote Quote
  15. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    I captured one tape as lossless HuffYUV and trying to figure out how to convert to MPEG2 using VrtualDub but no luck, I know the MPEG2 filter is installed in the pluggins folder I checked it but it doesn't show up in the options list, Tried handbrake but there is no support for MPEG2 480i which what the customer wants.
    Quote Quote
  16. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    Give AVStoDVD a try, it can create DVD-spec mpg or the DVD structure if you prefer. Plenty of support on this forum for this product, including the autho
    Quote Quote
  17. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    Originally Posted by davexnet View Post
    Give AVStoDVD a try, it can create DVD-spec mpg or the DVD structure if you prefer. Plenty of support on this forum for this product, including the autho
    Thanks I will give it a try.
    Quote Quote
  18. Member
    Join Date
    May 2014
    Location
    Tennessee, US
    Search Comp PM
    It;'s a shame you have to degrade analog tape by capping to DV and further degrade by re-encoding. I'm sure your customer is probably the typical viewer who will watch anything no matter how much ugly schmutz and artifacts are in it (blame the tape, of course). But this business of audio drift with VirtualDub just says you're using inappropriate settings with your capture device (which you haven't described), and it always happens with VDub's default settings no matter what you use. You haven't described your capture setup at all, so who can start blaming VirtualDub first off? I'd blame the user first because I'm such a meanie, but millions of users for decades have been using VDub for capture since Day One and never had a problem, probably because they did more than just click a couple of icons.

    DV is easy. Pretty ugly, too. Good luck. Thank god they're not my tapes.
    - My sister Ann's brother
    Quote Quote
  19. Member dellsam34's Avatar
    Join Date
    Jan 2016
    Location
    Paris Ca, 92345 Mexico
    Search PM
    Originally Posted by LMotlow View Post
    It;'s a shame you have to degrade analog tape by capping to DV and further degrade by re-encoding. I'm sure your customer is probably the typical viewer who will watch anything no matter how much ugly schmutz and artifacts are in it (blame the tape, of course). But this business of audio drift with VirtualDub just says you're using inappropriate settings with your capture device (which you haven't described), and it always happens with VDub's default settings no matter what you use. You haven't described your capture setup at all, so who can start blaming VirtualDub first off? I'd blame the user first because I'm such a meanie, but millions of users for decades have been using VDub for capture since Day One and never had a problem, probably because they did more than just click a couple of icons.

    DV is easy. Pretty ugly, too. Good luck. Thank god they're not my tapes.
    No, DV is not involved here at all, We are discussing whether to capture lossless and encode to the customer's choice or capture to the customers choice directly, As for the capture card which is the Pinnacle 500-USB as I mentioned above, What setting are you talking about? I don't have the option to change any setting, I'm capturing NTSC 4/3 720x480 interlaced in MPEG2 in Pinnacle application, VDub detects the setting automatically, It's pretty much cut and dry, I don't know what setting you are referring to? I just mentioned DV for its stability and locked audio feature which no one can deny that Vdub can't even come close to that level of audio sync precision even for 8 hrs LP VHS tape, Try to do that with VDub and see how many minutes of audio drift you will get.
