i have lot of movies in 1080p x265 and want to play in 4k led tv via USB in future, because currently i have 1080p HD LED TV of Sony.
i am interested in buying Soy KD 43x7000e model.
i think this model is 4k and supports HEVC.
http://www.sony-mea.com/en/electronics/televisions/x7000e-series
i want to play this type of movies :

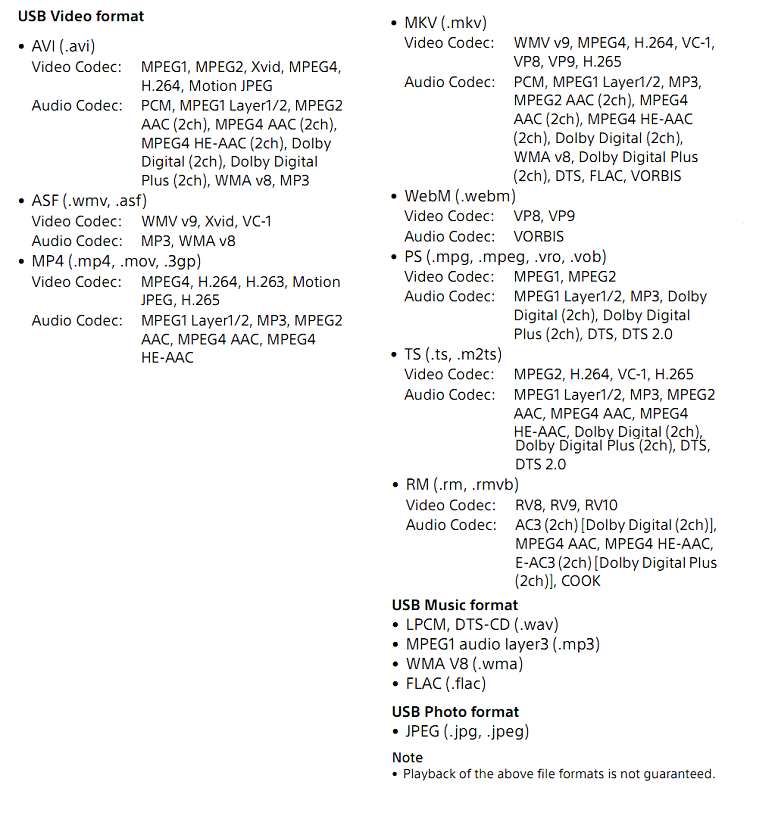

i checked manual of the tv available online for download, showing this:Code:General Unique ID : 192818495740983208961193099993286618141 (0x910F7DD17F53D9409B84DF01915EAC1D) Complete name : ********* 200* 10th Anniv (1080p x265 10bit Tigole).mkv Format : Matroska Format version : Version 4 / Version 2 File size : 3.51 GiB Duration : 2 h 34 min Overall bit rate : 3 240 kb/s Movie name : Gladiator Encoded date : UTC 2016-09-15 02:27:28 Writing application : mkvmerge v9.4.0 ('Knurl') 64bit Writing library : libebml v1.3.4 + libmatroska v1.4.5 Video ID : 1 Format : HEVC Format/Info : High Efficiency Video Coding Format profile : Main 10@L4@Main Codec ID : V_MPEGH/ISO/HEVC Duration : 2 h 34 min Bit rate : 2 726 kb/s Width : 1 920 pixels Height : 816 pixels Display aspect ratio : 2.35:1 Frame rate mode : Constant Frame rate : 23.976 (24000/1001) FPS Color space : YUV Chroma subsampling : 4:2:0 Bit depth : 10 bits Bits/(Pixel*Frame) : 0.073 Stream size : 2.95 GiB (84%) Writing library : x265 2.0+16-215eedc9ecc0:[Windows][GCC 6.1.0][64 bit] 10bit Encoding settings : wpp / ctu=64 / min-cu-size=8 / max-tu-size=32 / tu-intra-depth=1 / tu-inter-depth=1 / me=1 / subme=2 / merange=57 / no-rect / no-amp / max-merge=2 / temporal-mvp / no-early-skip / rskip / rdpenalty=0 / no-tskip / no-tskip-fast / strong-intra-smoothing / no-lossless / no-cu-lossless / no-constrained-intra / no-fast-intra / open-gop / no-temporal-layers / interlace=0 / keyint=250 / min-keyint=23 / scenecut=40 / rc-lookahead=20 / lookahead-slices=5 / bframes=4 / bframe-bias=0 / b-adapt=2 / ref=3 / limit-refs=3 / no-limit-modes / weightp / no-weightb / aq-mode=1 / qg-size=32 / aq-strength=1.00 / cbqpoffs=0 / crqpoffs=0 / rd=3 / psy-rd=2.00 / rdoq-level=0 / psy-rdoq=0.00 / log2-max-poc-lsb=8 / no-rd-refine / signhide / deblock=0:0 / sao / no-sao-non-deblock / b-pyramid / cutree / no-intra-refresh / rc=2 / pass / bitrate=2725 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / cplxblur=20.0 / qblur=0.5 / ipratio=1.40 / pbratio=1.30 Default : Yes Forced : No Audio #1 ID : 2 Format : AAC Format/Info : Advanced Audio Codec Format profile : LC Codec ID : A_AAC-2 Duration : 2 h 34 min Bit rate : 353 kb/s Channel(s) : 6 channels Channel positions : Front: L C R, Side: L R, LFE Sampling rate : 48.0 kHz Frame rate : 46.875 FPS (1024 SPF) Compression mode : Lossy Delay relative to video : 20 ms Stream size : 391 MiB (11%) Language : English Default : Yes Forced : No Audio #2 ID : 3 Format : AAC Format/Info : Advanced Audio Codec Format profile : HE-AAC / LC Format settings : Explicit Codec ID : A_AAC-2 Duration : 2 h 34 min Bit rate : 54.3 kb/s Channel(s) : 2 channels Channel positions : Front: L R Sampling rate : 48.0 kHz / 24.0 kHz Frame rate : 23.438 FPS (1024 SPF) Compression mode : Lossy Delay relative to video : 31 ms Stream size : 60.2 MiB (2%) Title : Commentary - Ridley Scott & Pietro Scalia Language : English Default : No Forced : No Text #1 ID : 4 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 25 min Bit rate : 4 444 b/s Count of elements : 1491 Stream size : 4.62 MiB (0%) Language : English Default : No Forced : No Text #2 ID : 5 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 11.5 kb/s Count of elements : 2279 Stream size : 12.3 MiB (0%) Title : Commentary Language : English Default : No Forced : No Text #3 ID : 6 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 3 841 b/s Count of elements : 1225 Stream size : 4.10 MiB (0%) Language : French Default : No Forced : No Text #4 ID : 7 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 9 992 b/s Count of elements : 2280 Stream size : 10.7 MiB (0%) Title : Commentary Language : French Default : No Forced : No Text #5 ID : 8 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 3 563 b/s Count of elements : 1226 Stream size : 3.81 MiB (0%) Language : Italian Default : No Forced : No Text #6 ID : 9 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 9 614 b/s Count of elements : 2280 Stream size : 10.3 MiB (0%) Title : Commentary Language : Italian Default : No Forced : No Text #7 ID : 10 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 4 106 b/s Count of elements : 1224 Stream size : 4.39 MiB (0%) Language : German Default : No Forced : No Text #8 ID : 11 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 11.3 kb/s Count of elements : 2279 Stream size : 12.0 MiB (0%) Title : Commentary Language : German Default : No Forced : No Text #9 ID : 12 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 60 b/s Count of elements : 12 Stream size : 66.1 KiB (0%) Title : Forced Language : German Default : No Forced : No Text #10 ID : 13 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 3 813 b/s Count of elements : 1221 Stream size : 4.07 MiB (0%) Language : Spanish Default : No Forced : No Text #11 ID : 14 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 10.6 kb/s Count of elements : 2279 Stream size : 11.3 MiB (0%) Title : Commentary Language : Spanish Default : No Forced : No Text #12 ID : 15 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 3 562 b/s Count of elements : 1228 Stream size : 3.80 MiB (0%) Language : Portuguese Default : No Forced : No Text #13 ID : 16 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 9 975 b/s Count of elements : 2279 Stream size : 10.6 MiB (0%) Title : Commentary Language : Portuguese Default : No Forced : No Text #14 ID : 17 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 3 374 b/s Count of elements : 1225 Stream size : 3.60 MiB (0%) Language : Dutch Default : No Forced : No Text #15 ID : 18 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 3 715 b/s Count of elements : 1224 Stream size : 3.97 MiB (0%) Language : Danish Default : No Forced : No Text #16 ID : 19 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 3 436 b/s Count of elements : 1225 Stream size : 3.67 MiB (0%) Language : Finnish Default : No Forced : No Text #17 ID : 20 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 3 601 b/s Count of elements : 1227 Stream size : 3.85 MiB (0%) Language : Norwegian Bokmal Default : No Forced : No Text #18 ID : 21 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 3 583 b/s Count of elements : 1222 Stream size : 3.83 MiB (0%) Language : Swedish Default : No Forced : No Text #19 ID : 22 Format : VobSub Muxing mode : zlib Codec ID : S_VOBSUB Codec ID/Info : Picture based subtitle format used on DVDs Duration : 2 h 29 min Bit rate : 3 500 b/s Count of elements : 1227 Stream size : 3.74 MiB (0%) Language : Chinese Default : No Forced : No Menu 00:00:00.000 : en:Chapter 01 00:07:13.307 : en:Chapter 02 00:12:50.102 : en:Chapter 03 00:17:29.006 : en:Chapter 04 00:22:20.339 : en:Chapter 05 00:31:49.407 : en:Chapter 06 00:36:04.537 : en:Chapter 07 00:39:20.399 : en:Chapter 08 00:46:02.384 : en:Chapter 09 00:50:05.502 : en:Chapter 10 00:53:15.984 : en:Chapter 11 00:58:31.382 : en:Chapter 12 01:06:07.088 : en:Chapter 13 01:15:04.041 : en:Chapter 14 01:21:23.461 : en:Chapter 15 01:29:13.598 : en:Chapter 16 01:34:03.929 : en:Chapter 17 01:39:33.759 : en:Chapter 18 01:44:11.203 : en:Chapter 19 01:48:18.408 : en:Chapter 20 01:52:17.147 : en:Chapter 21 01:58:17.340 : en:Chapter 22 01:59:30.913 : en:Chapter 23 02:09:19.209 : en:Chapter 24 02:13:33.714 : en:Chapter 25 02:18:36.099 : en:Chapter 26 02:22:58.903 : en:Chapter 27 02:27:13.074 : en:Chapter 28
[Attachment 43983 - Click to enlarge]
[Attachment 43984 - Click to enlarge]
+ Reply to Thread
Results 1 to 5 of 5
-
Last edited by tiger; 30th Jan 2019 at 03:22.
-
There are a few things to look at when checking compatibility.
You want to make sure the container, the video, and the audio are all supported.
Your file is an MKV container, HEVC video, and 6-Channel AAC audio.
According to the manual you posted, the TV supports the MKV container.
It also says it supports H.265 video in an MKV, which is the same as HEVC.
So you're good for video, but the audio may be an issue.
The manual explicitly says 2 Channel, and your file is 6-Channel.
So we don't know how the TV will handle this.
Maybe it will downmix the 6 Channels to 2 Channels, which would be acceptable if you're using the TV's speakers.
Or maybe it will just play the left and right audio channels, and throw away the other 4. This is bad, because it would throw out the centre channel, which is where basically all the actors' voices are.
Or maybe it will just have no audio.
So the answer to your question is, unfortunately, "Maybe".
You might have to convert the file to get the audio working.
Your file also has subtitles, and the manual doesn't say anything about those, and if they are supported. -
I think also a maybe for that.So you're good for video
Format profile : Main 10@L4@Main
10 bit encoding may be a problem. -
In general, ensure that the USB stick has a sufficient read speed for the scenes with the highest bitrates in the movie.
-
This is very important, so video shouldn't be problem, also fat16, fat32 and NTFS are supported.Digital: MPEG-2 MP@ML/HL, H.264/MPEG-4 AVC
MP/HP@L4, H.265/HEVC MP/Main10@L5.1 (Full
HD 60fps)
PDF
Bernix
