  1. I am trying to archive some family vhs tapes that we have and I recorded the video file with a Hauppauge HD PVR2 in Ts format since MP4 didn't allow me to go over 4 gigs. There is a spot halfway into the movie that the camcorder stopped and restarted and it captured this section this just fine. When I play the source file in VLC the audio is in sync. When I take the same file and burn it onto a dvd, as soon as the movie gets to that halfway point the audio becomes out of sync. What could cause the source file to be ok but the authored dvd to have this issue? I have tried to use AVStoDVD and Cyberlink PowerDirector and both have the same issue.
    Quote Quote
  2. Member
    Join Date
    Mar 2008
    Location
    United States
    Search Comp PM
    In the AVStoDVD preferences, at the Avisynth tab, set video and audio source filters to FFMpegSource.
    Save the preferences and create a new project with your troublesome file.

    If it still glitches you may have to cut it in two and convert them separately
    Quote Quote
  3. Originally Posted by davexnet View Post
    In the AVStoDVD preferences, at the Avisynth tab, set video and audio source filters to FFMpegSource.
    Save the preferences and create a new project with your troublesome file.

    If it still glitches you may have to cut it in two and convert them separately
    So I just tried this and the dvd took 3 days to encode non stop for some reason. I just tried the dvd and it does the same thing. What else could I try?
    Quote Quote
  4. Member DB83's Avatar
    Join Date
    Jul 2007
    Location
    United Kingdom
    Search Comp PM
    A few suggestions.

    1. Post a mediainfo (text mode) report of the original Ts capture.
    2. There is a log file from avstodvd in the highest level folder from your encode. Post that here as well.
    3. Do a new capture - 30 seconds before the camera issue and 30 seconds after. Upload that here so that we can hopefully also see the problem.

    I do not see the 4 gig issue unless you are capturing in HD. Hence the reason for the above.
    Quote Quote
  5. Originally Posted by DB83 View Post
    A few suggestions.

    1. Post a mediainfo (text mode) report of the original Ts capture.
    2. There is a log file from avstodvd in the highest level folder from your encode. Post that here as well.
    3. Do a new capture - 30 seconds before the camera issue and 30 seconds after. Upload that here so that we can hopefully also see the problem.

    I do not see the 4 gig issue unless you are capturing in HD. Hence the reason for the above.
    1. Mediainfo

    Code:
    General
    ID                                       : 0 (0x0)
    Complete name                            : H:\Hauppauge\HDPVR2_20171106_2124.ts
    Format                                   : MPEG-TS
    File size                                : 7.46 GiB
    Duration                                 : 1 h 32 min
    Overall bit rate mode                    : Variable
    Overall bit rate                         : 11.6 Mb/s
    Maximum Overall bit rate                 : 5 000 kb/s

    Video
    ID                                       : 4113 (0x1011)
    Menu ID                                  : 1 (0x1)
    Format                                   : AVC
    Format/Info                              : Advanced Video Codec
    Format profile                           : High@L4
    Format settings                          : CABAC / 3 Ref Frames
    Format settings, CABAC                   : Yes
    Format settings, RefFrames               : 3 frames
    Codec ID                                 : 27
    Duration                                 : 1 h 32 min
    Bit rate                                 : 10.8 Mb/s
    Width                                    : 720 pixels
    Height                                   : 480 pixels
    Display aspect ratio                     : 4:3
    Frame rate                               : 29.970 (30000/1001) FPS
    Standard                                 : NTSC
    Color space                              : YUV
    Chroma subsampling                       : 4:2:0
    Bit depth                                : 8 bits
    Scan type                                : Interlaced
    Scan type, store method                  : Separated fields
    Scan order                               : Top Field First
    Bits/(Pixel*Frame)                       : 1.042
    Stream size                              : 6.97 GiB (93%)
    Color range                              : Limited
    Color primaries                          : BT.601 NTSC
    Transfer characteristics                 : BT.601
    Matrix coefficients                      : BT.601

    Audio
    ID                                       : 4352 (0x1100)
    Menu ID                                  : 1 (0x1)
    Format                                   : MPEG Audio
    Format version                           : Version 1
    Format profile                           : Layer 2
    Codec ID                                 : 3
    Duration                                 : 1 h 32 min
    Bit rate mode                            : Constant
    Bit rate                                 : 192 kb/s
    Channel(s)                               : 2 channels
    Sampling rate                            : 48.0 kHz
    Frame rate                               : 41.667 FPS (1152 SPF)
    Compression mode                         : Lossy
    Delay relative to video                  : -36 ms
    Stream size                              : 127 MiB (2%)

    2. Log

    Code:
    <11/16/2017 3:36:14 PM>
    START PROCESS
    <>

    <11/16/2017 3:36:14 PM>
    PROJECT SETTINGS

    DVD Video Standard: NTSC
    DVD Titles number: 1
    DVD Size: 4449/4450 MB (100%)
    DVD Output Setup: Burn DVD
    DVD Label: DVD
    DVD Menu: Static Menu
    Output Folder: C:\Users\Jean\Videos
    Delete Temp Assets Files: Yes
    Delete Temp Working Files: Yes
    Edit Command Parameters: No
    Post Process Task: Show Progress Status window

    PREFERENCES

    MultiThread: 1
    AVS Video Source Filter: FFMpegSource
    AVS Audio Source Filter: FFMpegSource
    AVS UpSize/DownSize Filter: Lanczos4Resize/Spline16Resize
    Frame Adjust Strategy: 0
    FPS Hard Conversion: 0
    PAL SpeedUp: 0
    NTSC SlowDown: 0
    Video Resolution: 0
    Video Encoder: 0
    Video BitRate Min: 2500
    Video BitRate Max: 8500
    Keep DVD Compliant Video: 1
    AC3 Audio Encoder: 0
    Force FFmpeg for Long Audio: 1
    DVD Audio Format: 0
    DVD Audio BitRate: 192
    Keep DVD Compliant Audio: 1
    Normalize Audio: 0

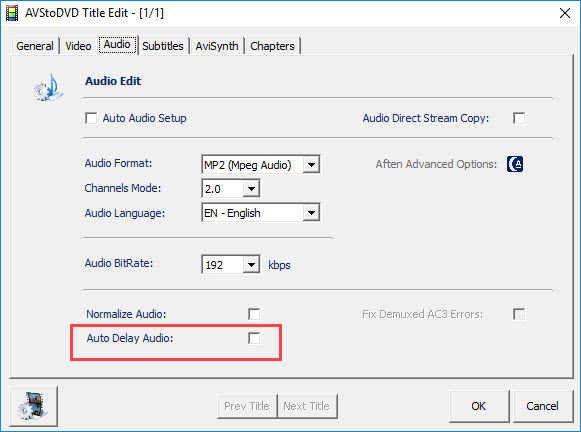

    Auto Delay Audio: 1
    DVD Audio Language (Primary): EN - English
    DVD Audio Language (Secondary): EN - English
    DVD Subs Language (Primary): EN - English
    DVD Subs Language (Secondary): EN - English
    DVD Subs Font: Tahoma 16pt (255,255,255)
    Chapters Interval: 5
    Use Source Chapters: 1
    DVD Burning Drive: F: HL-DT-ST DVDRAM GH24LS50 YP02
    DVD Burning Speed: 4x
    Auto Erase DVD RW: 1
    Execute with Elevated Privileges: 0
    Unload ActiveMovie Library: 1
    Adjust DirectShow Filters at runtime: 1
    Save General Settings: 0

    SYSTEM INFO

    Processor Name: Intel(R) Core(TM) i5-6600K CPU @ 3.50GHz
    Operating System: Windows 10 (10.0.14393) 64 bit
    User has Admin Rights: YES
    Running with Elevated Privileges: NO (3)
    Available Output Disc Space: 75 GB
    AviSynth is installed: YES (release 2.6.0)
    LAV Filters is installed: YES (release 0.69.0)
    ffdshow is installed: NO

    CODECS REPORT

    H.264/AVC: Microsoft DTV-DVD Video Decoder {212690FB-83E5-4526-8FD7-74478B7939CD}
    Xvid: Mpeg4s Decoder DMO {2A11BAE2-FE6E-4249-864B-9E9ED6E8DBC2}
    DivX 4/5/6: Mpeg4s Decoder DMO {2A11BAE2-FE6E-4249-864B-9E9ED6E8DBC2}
    Other MPG4: Mpeg4s Decoder DMO {2A11BAE2-FE6E-4249-864B-9E9ED6E8DBC2}
    DV: DV Video Decoder {B1B77C00-C3E4-11cf-AF79-00AA00B67A42}
    MPEG1: MPEG Video Codec {feb50740-7bef-11ce-9bd9-0000e202599c}
    MPEG2: Microsoft DTV-DVD Video Decoder {212690FB-83E5-4526-8FD7-74478B7939CD}
    MP2: Microsoft DTV-DVD Audio Decoder {E1F1A0B8-BEEE-490D-BA7C-066C40B5E2B9}
    MP3: MP3 Decoder DMO {BBEEA841-0A63-4F52-A7AB-A9B3A84ED38A}
    AAC: Microsoft DTV-DVD Audio Decoder {E1F1A0B8-BEEE-490D-BA7C-066C40B5E2B9}
    AC3: No Preferred Filter set

    <>

    <11/16/2017 3:36:14 PM>
    TITLE 1 SOURCE FILES
    Video: H:\Hauppauge\HDPVR2_20171106_2124.ts
    Info: AVC - 10790 kbps - 720x480 - DAR 1.364 - 29.97 fps - Interlaced (TFF) - 1:32:26 hours - 166191 frames
    Audio 1: H:\Hauppauge\HDPVR2_20171106_2124.ts
    Info: MPEG-1 Audio layer 2 - 192 kbps - CBR - 2 ch - 48000 Hz - 1:32:26 hours (-36 ms delay)
    [MediaInfoLib - v0.7.77]
    <>

    <11/16/2017 3:36:14 PM>
    AVISYNTH SCRIPT
    LoadCPlugin("C:\Program Files (x86)\AVStoDVD\Lib\ffms2.dll")
    LoadPlugin("C:\Program Files (x86)\AVStoDVD\Lib\LeakKernelDeint.dll")

    # Audio is frameserved by AviSynth just for Preview and Edit purposes.
    Audio = FFAudioSource("H:\Hauppauge\HDPVR2_20171106_2124.ts", track=-1)
    Video = FFVideoSource("H:\Hauppauge\HDPVR2_20171106_2124.ts", track=-1, fpsnum=2997, fpsden=100, seekmode=0)

    Video = Video.ConvertToYV12(interlaced=true)
    Video = Video.LeakKernelBob(1,7,false,false)
    Video = Video.AddBorders(0,4,0,6)
    Video = Video.Spline16Resize(720,480)
    Video = Video.SeparateFields().SelectEvery(4,1,2).Weave()

    AudioDub(Video, Audio)
    <>

    <11/16/2017 3:36:14 PM>
    START VIDEO ENCODING OPERATIONS
    Video Encoding Profile: HCenc VBR 1-pass
    Target Video FileSize: 4224 MB
    Encoding Parameters: -ini "C:\Users\Jean\AppData\Local\Temp\DVD_2_HDPVR2_20171106_2124.HCenc.ini"
    HCenc ini file:
    *INFILE C:\Users\Jean\AppData\Local\Temp\DVD_2_HDPVR2_20171106_2124_1.avs
    *AVSRELOAD
    *OUTFILE C:\Users\Jean\Videos\DVD_2_HDPVR2_20171106_2124.m2v
    *LOGFILE C:\Users\Jean\AppData\Local\Temp\DVD_2_HDPVR2_20171106_2124.HCenc.log
    *MAXBITRATE 9000
    *1PASS
    *BITRATE 6389
    *PROFILE BEST
    *ASPECT 4:3
    *INTERLACED
    *TFF
    *BIAS 60
    *DC_PREC 10
    *MATRIX MPEG
    *AQ 1
    *LUMGAIN 1
    *SMP
    *PRIORITY IDLE
    *DBPATH  C:\Users\Jean\AppData\Local\Temp
    *WAIT 2
    <>

    <11/19/2017 3:35:13 AM>
    END VIDEO ENCODING OPERATIONS
    Created File: C:\Users\Jean\Videos\DVD_2_HDPVR2_20171106_2124.m2v (4227.5 MB)
    OUTPUT VIDEO INFO: MPEG-2 Video - 6393 kbps - 720x480 - DAR 4:3 - 29.97 fps - Interlaced (TFF) - 1:32:27 hours - 166230 frames
    <>

    <11/19/2017 3:35:14 AM>
    START AUDIO DEMUXING OPERATIONS (Track 1)
    FFmpeg Parameters: -i "H:\Hauppauge\HDPVR2_20171106_2124.ts" -c:a copy -vn -sn -y "C:\Users\Jean\Videos\DVD_2_HDPVR2_20171106_2124_1.ToFix.mp2"
    <>

    <11/19/2017 3:35:18 AM>
    END AUDIO DEMUXING OPERATIONS (Track 1)
    Created File: C:\Users\Jean\Videos\DVD_2_HDPVR2_20171106_2124_1.mp2 (126.9 MB)
    OUTPUT AUDIO INFO: MPEG-1 Audio layer 2 - 192 kbps - CBR - 2 ch - 48000 Hz - 1:32:23 hours (0 ms delay)
    <>

    <11/19/2017 3:35:18 AM>
    DVD CHAPTERS CREATION OPERATIONS
    Title 1 Input Chapters List: 8991 17982 26973 35964 44955 53946 62937 71928 80919 89910 98901 107892 116883 125874 134865 143856 152847 161838
    Title 1 Output Chapters List: 8991 17982 26973 35964 44955 53946 62937 71928 80919 89910 98901 107892 116883 125874 134865 143856 152847 161838
    Created File: C:\Users\Jean\Videos\DVD_2_HDPVR2_20171106_2124_Chapters.txt (134 Byte)
    <>

    <11/19/2017 3:35:18 AM>
    START DVD MENU BUILDING OPERATIONS
    DVD Menu settings:
    Style: 0
    Aspect Ratio: 1
    Titles Format: 1
    Template: X-Mas
    Max Titles Page: 12
    Enable Play All: 1
    Force Play All: 0
    Background Audio: 0
    Max Thumbs Row: 4
    Thumb Image Source: 0
    Thumb Frame Position: 10%
    HL Frame Format: 0
    HL Selection Color: 5
    HL Play Color: 0
    Menu Video BitRate: 6000 kbps
    Motion Menu Duration: 15 seconds
    Thumb Drop Shadow: 2
    Play All Shadow: 2
    Arrows Shadow: 0
    <>

    <11/19/2017 3:36:36 AM>
    END DVD MENU BUILDING OPERATIONS
    Created File (Menu Page 1): C:\Users\Jean\Videos\DVD_2_MenuPage1.bmp (1 MB)
    <>

    <11/19/2017 3:36:36 AM>
    START DVD AUTHORING OPERATIONS
    BatchMux Parameters: -arglist "C:\Users\Jean\AppData\Local\Temp\DVD_2_BatchMux.ini"
    BatchMux ini file:
    -bmlog "C:\Users\Jean\AppData\Local\Temp\DVD_2_BatchMux.log"
    -d "C:\Users\Jean\Videos\DVD_2\VIDEO_TS"
    -mxp "C:\Users\Jean\AppData\Local\Temp\DVD_2_MuxMan.mxp"
    -l "C:\Users\Jean\AppData\Local\Temp\DVD_2_MuxMan.log"
    -muxman "C:\Program Files (x86)\AVStoDVD\MuxMan"
    -prio LOW
    -palette "C:\Users\Jean\AppData\Local\Temp\DVD_2_Palette.txt"
    -v "C:\Users\Jean\Videos\DVD_2_HDPVR2_20171106_2124.m2v"
    -vidmode 4:3
    -a1 "C:\Users\Jean\Videos\DVD_2_HDPVR2_20171106_2124_1.mp2"
    -a1lang en
    -cellfr "C:\Users\Jean\Videos\DVD_2_HDPVR2_20171106_2124_Chapters.txt"
    -progfr "C:\Users\Jean\Videos\DVD_2_HDPVR2_20171106_2124_Chapters.txt"
    -chapfr "C:\Users\Jean\Videos\DVD_2_HDPVR2_20171106_2124_Chapters.txt"
    -SEG2v "C:\Users\Jean\Videos\DVD_2_MenuPage1.bmp"
    -SEG2vidmode LB
    -SEG2s1 "C:\Users\Jean\Videos\DVD_2_Menu.sst"
    -SEG2s1dmode WIDE_LB
    -SEG2hlmnu "C:\Users\Jean\AppData\Local\Temp\DVD_2_MenuPage1_Buttons.mnu"
    -SEG2hlcsm "C:\Users\Jean\AppData\Local\Temp\DVD_2_HighlightScheme.csm
    -hcn "C:\Users\Jean\AppData\Local\Temp\DVD_2_BatchMux.hcn"
    <>

    <11/19/2017 3:37:12 AM>
    END DVD AUTHORING OPERATIONS
    Created Folder: C:\Users\Jean\Videos\DVD_2 (4437.2 MB)

    CHECK DVD SIZE
    DVD Folder (actual) Size: 4437.2 MB
    vs Assets Size: 4355.4 MB -> OK
    vs Estimated Size: 4449 MB -> 0.3% undersize
    <>

    <11/19/2017 3:37:13 AM>
    START DVD BURNING OPERATIONS
    ImgBurn (DVD) Parameters: /mode isobuild /buildmode device /src "C:\Users\Jean\Videos\DVD_2\VIDEO_TS" /dest F: /volumelabel "DVD" /speed 4x /erase /filesystem "ISO9660 + UDF" /udfrevision "1.02" /testmode no /verify no /noimagedetails /start /waitformedia /close /log "C:\Users\Jean\AppData\Local\Temp\DVD_2_ImgBurn.log"
    <>

    <11/19/2017 3:52:05 AM>
    END DVD BURNING OPERATIONS
    Created DVD: 'DVD' in drive F: HL-DT-ST DVDRAM GH24LS50 YP02
    Average Write Rate: 5,416 KiB/s (4.0x) - Maximum Write Rate: 5,444 KiB/s (4.0x)
    <>

    <11/19/2017 3:52:05 AM>
    AVStoDVD Project ended successfully.
    <>

    <11/19/2017 3:52:05 AM>
    Log file created by AVStoDVD Release 2.8.6
    <>
    Will create the new capture tomorrow.
    Quote Quote
  6. Member DB83's Avatar
    Join Date
    Jul 2007
    Location
    United Kingdom
    Search Comp PM
    Thnx.

    Will await the new capture. At present I do see a slight variation between the original run time and the encoded one. Albeit a few fractions of a second.

    I am more concerned with the capture inasmuch that both video and audio are highly compressed >> the video is now recomprseed to some 50% of original whereas the audio is left alone. There was a time when mp2 audio was not compatable for ntsc dvd. Pls confirm that you are in ntsc land.

    Might I also suggest you do another short capture as originally requested but using a different audio codec which forces re-encoding. Upload both captures.
    Quote Quote
  7. So I encoded the TS file to mpeg with CyberLink Power Director and now when I add the file to AVS2DVD there is 0MS audio delay so I think this would fix my problem but the file is 5.6GB so it doesn't fit on a DVD5. There must be way to fit 1.5h hours of VHS footage on a DVD5?
    Quote Quote
  8. aBigMeanie aedipuss's Avatar
    Join Date
    Oct 2005
    Location
    666th portal
    Search Comp PM
    video file size has always equaled bitrate x time. so you need to encode to the proper bitrate to fit on a dvd5. use a calculator like - http://dvd-hq.info/bitrate_calculator.php#Calculator to make sure everything fits.
    --
    "a lot of people are better dead" - prisoner KSC2-303
    Quote Quote
  9. Member
    Join Date
    Jan 2007
    Location
    United States
    Search Comp PM
    there are a lot more experinced people on here than me
    BUT
    6389 bit rate from a VHS tape ?
    I would try a new capture at 4000 bit rate ( i really think there will be NO visual difference ) this will fit 2 hrs with NO problem
    i would also do (2) captures stopping then restarting at your break point
    when converted to DVD, they will play straight through non stop, depending on the settings used in the authoring software
    in most cases titles/files play continuously

    of course you can use the existing file, author a dvd for double layer 8.5gig disc
    then use DVDshrink, to create a 4.7g single layer dvd
    Last edited by theewizard; 13th Dec 2017 at 20:30.
    Quote Quote
  10. Originally Posted by theewizard View Post
    there are a lot more experinced people on here than me
    BUT
    6389 bit rate from a VHS tape ?
    I would try a new capture at 4000 bit rate ( i really think there will be NO visual difference ) this will fit 2 hrs with NO problem
    i would also do (2) captures stopping then restarting at your break point
    when converted to DVD, they will play straight through non stop, depending on the settings used in the authoring software
    in most cases titles/files play continuously

    of course you can use the existing file, author a dvd for double layer 8.5gig disc
    then use DVDshrink, to create a 4.7g single layer dvd
    I don't think I can specify the bitrate when capturing with my Hauppauge HD PVR2 and their software. I will try to create 2 captures but what I notice when I view the VHS tape on the tv, the sound comes on and then video follows shortly after but it seems to be in sync, well if its out of sync on the VHS, you can hardly tell. But I never thought of adding two video files when authoring the DVD, I am pretty sure this would make them play straight through like you mentionned.
    Quote Quote
  11. Originally Posted by johnnyh55 View Post
    When I play the source file in VLC the audio is in sync. When I take the same file and burn it onto a dvd, as soon as the movie gets to that halfway point the audio becomes out of sync. What could cause the source file to be ok but the authored dvd to have this issue? I have tried to use AVStoDVD
    In AVStoDVD, see Help/FAQ/General/Q1.5



    Bye
    MrC

    AVStoDVD Homepage
    Quote Quote



Similar Threads
