  1. would anyone know what program can blur subtitles, as like in snapshot below


  2. Originally Posted by videobruger View Post
    ok will give that a try thanks

  3. Originally Posted by videobruger View Post
    I have tried this program, but it took ages to do and file was very large when finished. I believe I need something else to be loaded into program

    also when finished there was no audio on movie, yet there was before

    also where is this box it refers to 3. Enable Imas Uncaption by checking the box in the top right corner.
    Last edited by natty; 10th Oct 2017 at 04:51.


  4. Im sorry but I wont have a clue how to use any of those too hard and complicated for me but thanks anyway

  5. Originally Posted by natty View Post
    Im sorry but I wont have a clue how to use any of those too hard and complicated for me but thanks anyway
    It is up to you - you can use professional video editor if you can buy it - cheapest alternative is VirtualDub or one of it's clones for example VirtualDub-FilterMod.

  6. Originally Posted by pandy View Post
    Originally Posted by natty View Post
    Im sorry but I wont have a clue how to use any of those too hard and complicated for me but thanks anyway
    It is up to you - you can use professional video editor if you can buy it - cheapest alternative is VirtualDub or one of it's clones for example VirtualDub-FilterMod.
    wish i knew what the person who blurred subtitles in 1st post used

  7. would anyone know how my 1st post was done, what program, as I have tried AviUtil Imas Uncaption but cant get same results.

    Also tried msu_subtitle_remover but dont understand about 1st pass etc and 2nd pass, do that mean you must play video all way through, then again on 2nd pass as thats a long process

  8. I don't know how the one in your post was done but Pandy already pointed to using delogo filter with ffmpeg. This code in a CMD window

    Code:
    ffmpeg -i "Before.mkv"  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k "After.mkv"

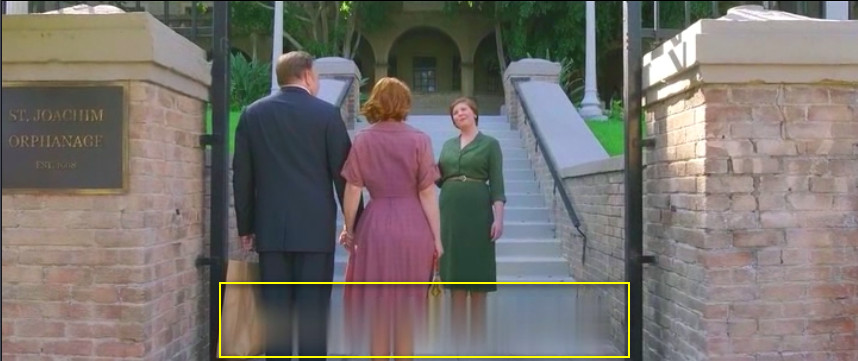

    gives the attached before/after so you can see if you find that satisfactory.
    Image Attached Files

  9. Originally Posted by videobruger View Post
    I don't know how the one in your post was done but Pandy already pointed to using delogo filter with ffmpeg. This code in a CMD window

    Code:
    ffmpeg -i "Before.mkv"  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k "After.mkv"
    gives the attached before/after so you can see if you find that satisfactory.
    wow thats very impressive so when I have downloaded ffmpeg how do i run it do i place my video to be blurred subtitles in same folder as ffmpeg say like C drive then just open a cmd window and put in that text

    ffmpeg -i "Before.mkv" -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k "After.mkv"


    Im not very good at doing this stuff can you help please
    Last edited by natty; 13th Oct 2017 at 08:57.

  10. You can put ffmpeg anywhere you want if you use the full path to ffmpeg.exe in the command line. If you do the same for the before and after files you can put the command line or batch file anywhere you want:

    Code:
    "C:\program files\ffmpeg\bin\ffmpeg" -i "C:\videos\Before.mkv"  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k "C:\videos\After.mkv"
    Or with a slight modification you can drag/drop files onto the batch file:

    Code:
    "C:\program files\ffmpeg\bin\ffmpeg" -i %1  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k %1.delogo.mkv
    Of course, you have to modify the subtitle/logo coordinates for each video.

    But personally, I find the blurred mess more distracting than the subtitles.

  11. Originally Posted by jagabo View Post
    You can put ffmpeg anywhere you want if you use the full path to ffmpeg.exe in the command line. If you do the same for the before and after files you can put the command line or batch file anywhere you want:

    Code:
    "C:\program files\ffmpeg\bin\ffmpeg" -i "C:\videos\Before.mkv"  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k "C:\videos\After.mkv"
    Or with a slight modification you can drag/drop files onto the batch file:

    Code:
    "C:\program files\ffmpeg\bin\ffmpeg" -i %1  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k %1.delogo.mkv
    Of course, you have to modify the subtitle/logo coordinates for each video.

    But personally, I find the blurred mess more distracting than the subtitles.

    sorry but im really clueless on all this can you explain in more detail like where does ffmpeg folder go where do movie go etc etc, as I am getting into a right mess up now dont have a clue

  12. Like I said, ffmpeg.exe can be anywhere. Just change the path in the command line to indicate its location. Using the second command line I gave, and drag/dropping a video to the batch file (which can also be anywhere, say, on your desktop), the input file can be anywhere. The delogo'd output video will be created in the same folder as the input video.

  13. Originally Posted by jagabo View Post
    Like I said, ffmpeg.exe can be anywhere. Just change the path in the command line to indicate its location. Using the second command line I gave, and drag/dropping a video to the batch file (which can also be anywhere, say, on your desktop), the input file can be anywhere. The delogo'd output video will be created in the same folder as the input video.
    what do you mean by drag/dropping a video to the batch file what is a batch file I am totally clueless how to do all this

    sorry to be a pain but its all clueless to me

    please can you explain step by step
    Last edited by natty; 13th Oct 2017 at 10:22.

  14. I have added this line to notepad "C:\program files\ffmpeg\bin\ffmpeg" -i %1 -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k %1.delogo.mkv

    saved it as logo.bat dropped my movie onto it but nothing happens


    I really need help on all this as I am no good at doing cmd things etc
    Last edited by natty; 13th Oct 2017 at 10:45.

  15. "C:\program files\ffmpeg\bin\ffmpeg" was just an example. Find ffmpeg.exe on your computer and change the path to match.

    And add a second line with just "pause" (without the quotes) so the CMD window stays open until you close it. That way will be able to read any error messages.

    Code:
    "C:\program files\ffmpeg\bin\ffmpeg" -i %1  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k %1.delogo.mkv
    pause
    Last edited by jagabo; 13th Oct 2017 at 11:02.

  16. Originally Posted by jagabo View Post
    "C:\program files\ffmpeg\bin\ffmpeg" was just an example. Find ffmpeg.exe on your computer and change the path to match.

    And add a second line with just "pause" (without the quotes) so the CMD window stays open until you close it. That way will be able to read any error messages.

    Code:
    "C:\program files\ffmpeg\bin\ffmpeg" -i %1  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k %1.delogo.mkv
    pause

    I have now chnaged path to where ffmpeg.exe is dropped video on batch file and all I get is this now

    C:\Program Files\ffmpeg-3.3.3-win64-static\bin>"c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i "C:\Program Files\ffmpeg-3.3.3-win64-static\bin\Annabelle Creation 2017 .mkv" -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k "C:\Program Files\ffmpeg-3.3.3-win64-static\bin\Annabelle Creation 2017 .mkv".delogo.mkv
    ffmpeg version 3.3.3 Copyright (c) 2000-2017 the FFmpeg developers
    built with gcc 7.1.0 (GCC)
    configuration: --enable-gpl --enable-version3 --enable-cuda --enable-cuvid --enable-d3d11va --enable-dxva2 --enable-libmfx --enable-nvenc --enable-avisynth --enable-bzlib --enable-fontconfig --enable-frei0r --enable-gnutls --enable-iconv --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfreetype --enable-libgme --enable-libgsm --enable-libilbc --enable-libmodplug --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenh264 --enable-libopenjpeg --enable-libopus --enable-librtmp --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvo-amrwbenc --enable-libvorbis --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxavs --enable-libxvid --enable-libzimg --enable-lzma --enable-zlib
    libavutil 55. 58.100 / 55. 58.100
    libavcodec 57. 89.100 / 57. 89.100
    libavformat 57. 71.100 / 57. 71.100
    libavdevice 57. 6.100 / 57. 6.100
    libavfilter 6. 82.100 / 6. 82.100
    libswscale 4. 6.100 / 4. 6.100
    libswresample 2. 7.100 / 2. 7.100
    libpostproc 54. 5.100 / 54. 5.100
    Input #0, matroska,webm, from 'C:\Program Files\ffmpeg-3.3.3-win64-static\bin\Annabelle Creation 2017 .mkv':
    Metadata:
    title : Annabelle Creation 2017 720p HC HDRip-x264-AC3 5.1-Zi$t-WWRG
    encoder : libebml v1.3.4 + libmatroska v1.4.5
    creation_time : 2017-09-14T12:17:08.000000Z
    Duration: 01:49:28.10, start: 0.000000, bitrate: 802 kb/s
    Stream #0:0: Video: h264 (Main), yuv420p(tv, bt709, progressive), 1280x536 [SAR 402:403 DAR 960:403], SAR 254:255 DAR 8128:3417, 23.98 fps, 23.98 tbr, 1k tbn, 180k tbc (default)
    Metadata:
    BPS : 417026
    BPS-eng : 417026
    DURATION : 01:49:28.102000000
    DURATION-eng : 01:49:28.102000000
    NUMBER_OF_FRAMES: 157469
    NUMBER_OF_FRAMES-eng: 157469
    NUMBER_OF_BYTES : 342384348
    NUMBER_OF_BYTES-eng: 342384348
    _STATISTICS_WRITING_APP: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_APP-eng: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_DATE_UTC: 2017-09-14 12:17:08
    _STATISTICS_WRITING_DATE_UTC-eng: 2017-09-14 12:17:08
    _STATISTICS_TAGS: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    _STATISTICS_TAGS-eng: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    Stream #0:1(eng): Audio: ac3, 48000 Hz, 5.1(side), fltp, 384 kb/s (default)
    Metadata:
    BPS : 384000
    BPS-eng : 384000
    DURATION : 01:49:28.032000000
    DURATION-eng : 01:49:28.032000000
    NUMBER_OF_FRAMES: 205251
    NUMBER_OF_FRAMES-eng: 205251
    NUMBER_OF_BYTES : 315265536
    NUMBER_OF_BYTES-eng: 315265536
    _STATISTICS_WRITING_APP: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_APP-eng: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_DATE_UTC: 2017-09-14 12:17:08
    _STATISTICS_WRITING_DATE_UTC-eng: 2017-09-14 12:17:08
    _STATISTICS_TAGS: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    _STATISTICS_TAGS-eng: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    C:\Program Files\ffmpeg-3.3.3-win64-static\bin\Annabelle Creation 2017 .mkv.delogo.mkv: Permission denied

    C:\Program Files\ffmpeg-3.3.3-win64-static\bin>pause
    Press any key to continue . . .
    this is where i have path c:\Program Files\ffmpeg-3.3.3-win64-static\bin\


    I just am no good at all this wish I was


    could someone here make this batch file and send it me
    Last edited by natty; 13th Oct 2017 at 11:25.

  17. The problem is that the folder has a space in the name so the output file spec isn't working right. Try changing the batch file to:

    Code:
    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i %1  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause

  18. Originally Posted by jagabo View Post
    The problem is that the folder has a space in the name so the output file spec isn't working right. Try changing the batch file to:

    Code:
    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i %1  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause
    Hi its still not working I tried what you said and got this

    Code:

    D:\downloads_D\movies>"c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i D:\downloads_D\movies\Annabelle.Creation.2017.avi  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k "D:\downloads_D\movies\Annabelle.Creation.2017.delogo.mkv"
    ffmpeg version 3.3.3 Copyright (c) 2000-2017 the FFmpeg developers
      built with gcc 7.1.0 (GCC)
      configuration: --enable-gpl --enable-version3 --enable-cuda --enable-cuvid --enable-d3d11va --enable-dxva2 --enable-libmfx --enable-nvenc --enable-avisynth --enable-bzlib --enable-fontconfig --enable-frei0r --enable-gnutls --enable-iconv --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfreetype --enable-libgme --enable-libgsm --enable-libilbc --enable-libmodplug --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenh264 --enable-libopenjpeg --enable-libopus --enable-librtmp --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvo-amrwbenc --enable-libvorbis --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxavs --enable-libxvid --enable-libzimg --enable-lzma --enable-zlib
      libavutil      55. 58.100 / 55. 58.100
      libavcodec     57. 89.100 / 57. 89.100
      libavformat    57. 71.100 / 57. 71.100
      libavdevice    57.  6.100 / 57.  6.100
      libavfilter     6. 82.100 /  6. 82.100
      libswscale      4.  6.100 /  4.  6.100
      libswresample   2.  7.100 /  2.  7.100
      libpostproc    54.  5.100 / 54.  5.100
    Input #0, avi, from 'D:\downloads_D\movies\Annabelle.Creation.2017.avi':
      Metadata:
        encoder         : VirtualDubMod 1.5.10.2 (build 2542/release)
      Duration: 01:46:58.33, start: 0.000000, bitrate: 1852 kb/s
        Stream #0:0: Video: mpeg4 (Advanced Simple Profile) (XVID / 0x44495658), yuv420p, 720x304 [SAR 1:1 DAR 45:19], 1648 kb/s, 30 fps, 30 tbr, 30 tbn, 30 tbc
        Stream #0:1: Audio: ac3 ([0] [0][0] / 0x2000), 48000 Hz, stereo, fltp, 192 kb/s
    Stream mapping:
      Stream #0:0 -> #0:0 (mpeg4 (native) -> h264 (libx264))
      Stream #0:1 -> #0:1 (ac3 (native) -> aac (native))
    Press [q] to stop, [?] for help
    [ac3 @ 000000000018de40] frame sync error
    Error while decoding stream #0:1: Invalid data found when processing input
    [mpeg4 @ 00000000026f3000] Video uses a non-standard and wasteful way to store B-frames ('packed B-frames'). Consider using the mpeg4_unpack_bframes bitstream filter without encoding but stream copy to fix it.
    [Parsed_delogo_0 @ 000000000270cf20] Note: default band value was changed from 4 to 1.
    [delogo @ 0000000002701c80] Logo area is outside of the frame.
    [Parsed_delogo_0 @ 000000000270cf20] Failed to configure input pad on Parsed_delogo_0
    Error reinitializing filters!
    Failed to inject frame into filter network: Invalid argument
    Error while processing the decoded data for stream #0:0
    [aac @ 000000000018aea0] Qavg: 186.744
    [aac @ 000000000018aea0] 2 frames left in the queue on closing
    Conversion failed!

    D:\downloads_D\movies>pause
    Press any key to continue . . .

  19. Originally Posted by jagabo View Post
    The problem is that the folder has a space in the name so the output file spec isn't working right. Try changing the batch file to:

    Code:
    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i %1  -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause
    Hi its still not working I tried what you said and got this

    D:\downloads_D\movies>"c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i D:\downloads_D\movies\Annabelle.Creation.2017.avi -vf delogo=x=250:y=650:w=800:h=50 -c:a aac -b:a 192k "D:\downloads_D\movies\Annabelle.Creation.2017.del ogo.mkv"
    ffmpeg version 3.3.3 Copyright (c) 2000-2017 the FFmpeg developers
    built with gcc 7.1.0 (GCC)
    configuration: --enable-gpl --enable-version3 --enable-cuda --enable-cuvid --enable-d3d11va --enable-dxva2 --enable-libmfx --enable-nvenc --enable-avisynth --enable-bzlib --enable-fontconfig --enable-frei0r --enable-gnutls --enable-iconv --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfreetype --enable-libgme --enable-libgsm --enable-libilbc --enable-libmodplug --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenh264 --enable-libopenjpeg --enable-libopus --enable-librtmp --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvo-amrwbenc --enable-libvorbis --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxavs --enable-libxvid --enable-libzimg --enable-lzma --enable-zlib
    libavutil 55. 58.100 / 55. 58.100
    libavcodec 57. 89.100 / 57. 89.100
    libavformat 57. 71.100 / 57. 71.100
    libavdevice 57. 6.100 / 57. 6.100
    libavfilter 6. 82.100 / 6. 82.100
    libswscale 4. 6.100 / 4. 6.100
    libswresample 2. 7.100 / 2. 7.100
    libpostproc 54. 5.100 / 54. 5.100
    Input #0, avi, from 'D:\downloads_D\movies\Annabelle.Creation.2017.avi ':
    Metadata:
    encoder : VirtualDubMod 1.5.10.2 (build 2542/release)
    Duration: 01:46:58.33, start: 0.000000, bitrate: 1852 kb/s
    Stream #0:0: Video: mpeg4 (Advanced Simple Profile) (XVID / 0x44495658), yuv420p, 720x304 [SAR 1:1 DAR 45:19], 1648 kb/s, 30 fps, 30 tbr, 30 tbn, 30 tbc
    Stream #0:1: Audio: ac3 ([0] [0][0] / 0x2000), 48000 Hz, stereo, fltp, 192 kb/s
    Stream mapping:
    Stream #0:0 -> #0:0 (mpeg4 (native) -> h264 (libx264))
    Stream #0:1 -> #0:1 (ac3 (native) -> aac (native))
    Press [q] to stop, [?] for help
    [ac3 @ 000000000018de40] frame sync error
    Error while decoding stream #0:1: Invalid data found when processing input
    [mpeg4 @ 00000000026f3000] Video uses a non-standard and wasteful way to store B-frames ('packed B-frames'). Consider using the mpeg4_unpack_bframes bitstream filter without encoding but stream copy to fix it.
    [Parsed_delogo_0 @ 000000000270cf20] Note: default band value was changed from 4 to 1.
    [delogo @ 0000000002701c80] Logo area is outside of the frame.
    [Parsed_delogo_0 @ 000000000270cf20] Failed to configure input pad on Parsed_delogo_0
    Error reinitializing filters!
    Failed to inject frame into filter network: Invalid argument
    Error while processing the decoded data for stream #0:0
    [aac @ 000000000018aea0] Qavg: 186.744
    [aac @ 000000000018aea0] 2 frames left in the queue on closing
    Conversion failed!

    D:\downloads_D\movies>pause
    Press any key to continue . . .

  20. Your problem is that the coordinates used (x=250:y=650:w=800:h=50) doesn't fit your video. Those coordinate was for a 1280x720 frame. Yours is 720x304.

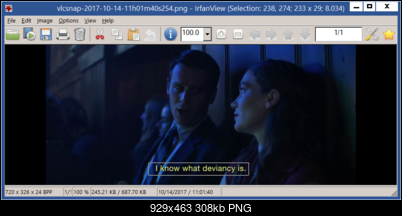

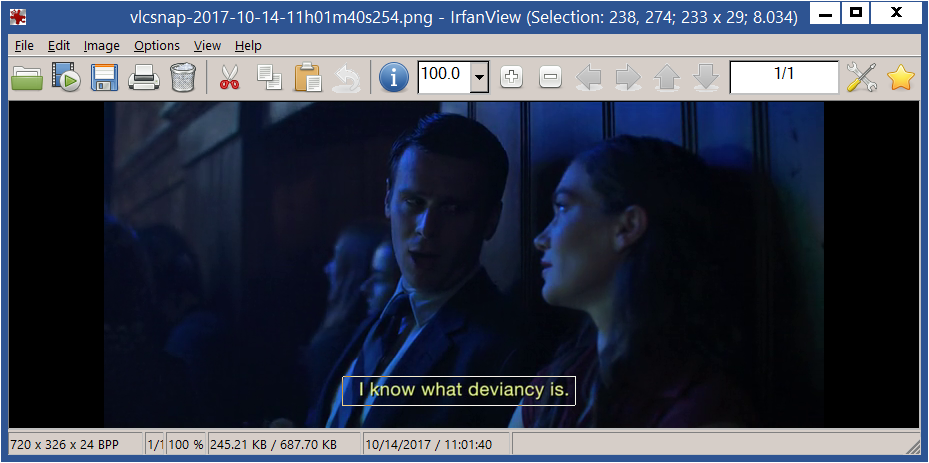

    You can use Irfan View to get the coordinate. First make a screen dump from the video. In VLC you could use Video -> Take Snapshot. Open the snapshot in IrFan View and hold down your mouse button and draw a rectangle around your subtitle. In the window caption at the top it'll say something like Selection 238,274 ;233x29. These are your X, Y, W, h
    so you use

    Code:
    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i %1  -vf delogo=x=238:y=274:w=233:h=29 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause
    Click image for larger version

Name:	Coordinates.png
Views:	102
Size:	308.2 KB
ID:	43378

  21. Originally Posted by videobruger View Post
    Your problem is that the coordinates used (x=250:y=650:w=800:h=50) doesn't fit your video. Those coordinate was for a 1280x720 frame. Yours is 720x304.

    You can use Irfan View to get the coordinate. First make a screen dump from the video. In VLC you could use Video -> Take Snapshot. Open the snapshot in IrFan View and hold down your mouse button and draw a rectangle around your subtitle. In the window caption at the top it'll say something like Selection 238,274 ;233x29. These are your X, Y, W, h
    so you use

    Code:
    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i %1  -vf delogo=x=238:y=274:w=233:h=29 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause
    [Attachment 43378 - Click to enlarge]


    Hi many thanks for helping me its most appreciated but it still dont work

    D:\downloads_D\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis>"c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i "D:\downloads_D\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis.mkv" -vf delogo=x=495:y=428:w=303:h=109,2.780 -c:a aac -b:a 192k "D:\downloads_D\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis.delogo.mkv"
    ffmpeg version 3.3.3 Copyright (c) 2000-2017 the FFmpeg developers
    built with gcc 7.1.0 (GCC)
    configuration: --enable-gpl --enable-version3 --enable-cuda --enable-cuvid --enable-d3d11va --enable-dxva2 --enable-libmfx --enable-nvenc --enable-avisynth --enable-bzlib --enable-fontconfig --enable-frei0r --enable-gnutls --enable-iconv --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfreetype --enable-libgme --enable-libgsm --enable-libilbc --enable-libmodplug --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenh264 --enable-libopenjpeg --enable-libopus --enable-librtmp --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvo-amrwbenc --enable-libvorbis --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxavs --enable-libxvid --enable-libzimg --enable-lzma --enable-zlib
    libavutil 55. 58.100 / 55. 58.100
    libavcodec 57. 89.100 / 57. 89.100
    libavformat 57. 71.100 / 57. 71.100
    libavdevice 57. 6.100 / 57. 6.100
    libavfilter 6. 82.100 / 6. 82.100
    libswscale 4. 6.100 / 4. 6.100
    libswresample 2. 7.100 / 2. 7.100
    libpostproc 54. 5.100 / 54. 5.100
    Input #0, matroska,webm, from 'D:\downloads_D\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis.mkv':
    Metadata:
    title : Annabelle Creation 2017 720p HC HDRip-x264-AC3 5.1-Zi$t-WWRG
    encoder : libebml v1.3.4 + libmatroska v1.4.5
    creation_time : 2017-09-14T12:17:08.000000Z
    Duration: 01:49:28.10, start: 0.000000, bitrate: 802 kb/s
    Stream #0:0: Video: h264 (Main), yuv420p(tv, bt709, progressive), 1280x536 [SAR 402:403 DAR 960:403], SAR 254:255 DAR 8128:3417, 23.98 fps, 23.98 tbr, 1k tbn, 180k tbc (default)
    Metadata:
    BPS : 417026
    BPS-eng : 417026
    DURATION : 01:49:28.102000000
    DURATION-eng : 01:49:28.102000000
    NUMBER_OF_FRAMES: 157469
    NUMBER_OF_FRAMES-eng: 157469
    NUMBER_OF_BYTES : 342384348
    NUMBER_OF_BYTES-eng: 342384348
    _STATISTICS_WRITING_APP: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_APP-eng: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_DATE_UTC: 2017-09-14 12:17:08
    _STATISTICS_WRITING_DATE_UTC-eng: 2017-09-14 12:17:08
    _STATISTICS_TAGS: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    _STATISTICS_TAGS-eng: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    Stream #0:1(eng): Audio: ac3, 48000 Hz, 5.1(side), fltp, 384 kb/s (default)
    Metadata:
    BPS : 384000
    BPS-eng : 384000
    DURATION : 01:49:28.032000000
    DURATION-eng : 01:49:28.032000000
    NUMBER_OF_FRAMES: 205251
    NUMBER_OF_FRAMES-eng: 205251
    NUMBER_OF_BYTES : 315265536
    NUMBER_OF_BYTES-eng: 315265536
    _STATISTICS_WRITING_APP: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_APP-eng: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_DATE_UTC: 2017-09-14 12:17:08
    _STATISTICS_WRITING_DATE_UTC-eng: 2017-09-14 12:17:08
    _STATISTICS_TAGS: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    _STATISTICS_TAGS-eng: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    Stream mapping:
    Stream #0:0 -> #0:0 (h264 (native) -> h264 (libx264))
    Stream #0:1 -> #0:1 (ac3 (native) -> aac (native))
    Press [q] to stop, [?] for help
    [Parsed_delogo_0 @ 00000000025602a0] Note: default band value was changed from 4 to 1.
    [AVFilterGraph @ 000000000289a3c0] No such filter: '2.780'
    Error reinitializing filters!
    Failed to inject frame into filter network: Invalid argument
    Error while processing the decoded data for stream #0:0
    [aac @ 000000000255d260] Qavg: 127.027
    [aac @ 000000000255d260] 2 frames left in the queue on closing
    Conversion failed!

    D:\downloads_D\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis>pause
    Press any key to continue . . .

    here is the .bat file

    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i %1 -vf delogo=x=495:y=428:w=303:h=109,2.780 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause

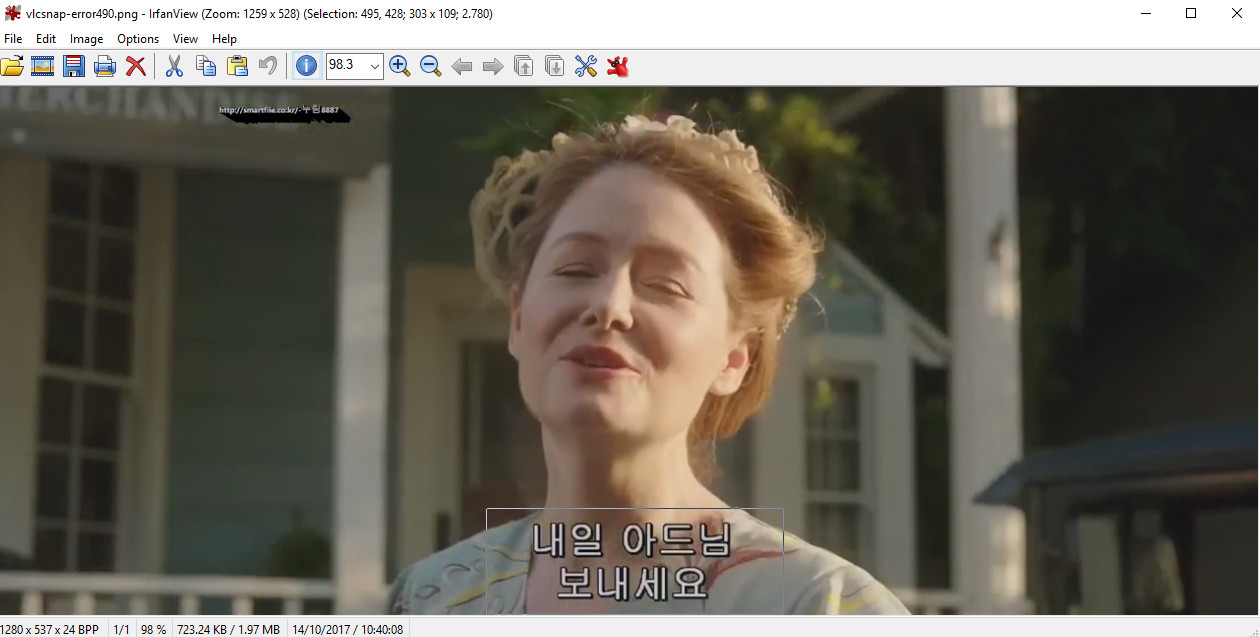

    here is below the snap i took of subtitle on movie in vlc, and placed it in Irfanview


  22. Delete this ,2.780


    Code:
    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i %1 -vf delogo=x=495:y=428:w=303:h=109 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause

  23. Originally Posted by videobruger View Post
    Delete this ,2.780


    Code:
    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i %1 -vf delogo=x=495:y=428:w=303:h=109 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause

    Hi I just tried that before i read your reply and now its doing something, so it must be working, does ffmpeg have delogo filter already in it, as I cant see where, filters are

    dam i give up here as it was working I tried a short part of video it was great blurred subtitles great so now I try again and its not working again


    D:\downloads_D\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis>"c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i "D:\downloads_D\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis.mkv" -vf delogo=x=425:y=415:w=449:h=122 -c:a aac -b:a 192k "D:\downloads_D\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis.delogo.mkv"
    ffmpeg version 3.3.3 Copyright (c) 2000-2017 the FFmpeg developers
    built with gcc 7.1.0 (GCC)
    configuration: --enable-gpl --enable-version3 --enable-cuda --enable-cuvid --enable-d3d11va --enable-dxva2 --enable-libmfx --enable-nvenc --enable-avisynth --enable-bzlib --enable-fontconfig --enable-frei0r --enable-gnutls --enable-iconv --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfreetype --enable-libgme --enable-libgsm --enable-libilbc --enable-libmodplug --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenh264 --enable-libopenjpeg --enable-libopus --enable-librtmp --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvo-amrwbenc --enable-libvorbis --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxavs --enable-libxvid --enable-libzimg --enable-lzma --enable-zlib
    libavutil 55. 58.100 / 55. 58.100
    libavcodec 57. 89.100 / 57. 89.100
    libavformat 57. 71.100 / 57. 71.100
    libavdevice 57. 6.100 / 57. 6.100
    libavfilter 6. 82.100 / 6. 82.100
    libswscale 4. 6.100 / 4. 6.100
    libswresample 2. 7.100 / 2. 7.100
    libpostproc 54. 5.100 / 54. 5.100
    Input #0, matroska,webm, from 'D:\downloads_D\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis.mkv':
    Metadata:
    title : Annabelle Creation 2017 720p HC HDRip-x264-AC3 5.1-Zi$t-WWRG
    encoder : libebml v1.3.4 + libmatroska v1.4.5
    creation_time : 2017-09-14T12:17:08.000000Z
    Duration: 01:49:28.10, start: 0.000000, bitrate: 802 kb/s
    Stream #0:0: Video: h264 (Main), yuv420p(tv, bt709, progressive), 1280x536 [SAR 402:403 DAR 960:403], SAR 254:255 DAR 8128:3417, 23.98 fps, 23.98 tbr, 1k tbn, 180k tbc (default)
    Metadata:
    BPS : 417026
    BPS-eng : 417026
    DURATION : 01:49:28.102000000
    DURATION-eng : 01:49:28.102000000
    NUMBER_OF_FRAMES: 157469
    NUMBER_OF_FRAMES-eng: 157469
    NUMBER_OF_BYTES : 342384348
    NUMBER_OF_BYTES-eng: 342384348
    _STATISTICS_WRITING_APP: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_APP-eng: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_DATE_UTC: 2017-09-14 12:17:08
    _STATISTICS_WRITING_DATE_UTC-eng: 2017-09-14 12:17:08
    _STATISTICS_TAGS: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    _STATISTICS_TAGS-eng: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    Stream #0:1(eng): Audio: ac3, 48000 Hz, 5.1(side), fltp, 384 kb/s (default)
    Metadata:
    BPS : 384000
    BPS-eng : 384000
    DURATION : 01:49:28.032000000
    DURATION-eng : 01:49:28.032000000
    NUMBER_OF_FRAMES: 205251
    NUMBER_OF_FRAMES-eng: 205251
    NUMBER_OF_BYTES : 315265536
    NUMBER_OF_BYTES-eng: 315265536
    _STATISTICS_WRITING_APP: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_APP-eng: mkvmerge v13.0.0 ('The Juggler') 64bit
    _STATISTICS_WRITING_DATE_UTC: 2017-09-14 12:17:08
    _STATISTICS_WRITING_DATE_UTC-eng: 2017-09-14 12:17:08
    _STATISTICS_TAGS: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    _STATISTICS_TAGS-eng: BPS DURATION NUMBER_OF_FRAMES NUMBER_OF_BYTES
    Stream mapping:
    Stream #0:0 -> #0:0 (h264 (native) -> h264 (libx264))
    Stream #0:1 -> #0:1 (ac3 (native) -> aac (native))
    Press [q] to stop, [?] for help
    [Parsed_delogo_0 @ 00000000027e0860] Note: default band value was changed from 4 to 1.
    [delogo @ 000000000256fac0] Logo area is outside of the frame.
    [Parsed_delogo_0 @ 00000000027e0860] Failed to configure input pad on Parsed_delogo_0
    Error reinitializing filters!
    Failed to inject frame into filter network: Invalid argument
    Error while processing the decoded data for stream #0:0
    [aac @ 00000000027ad540] Qavg: 127.027
    [aac @ 00000000027ad540] 2 frames left in the queue on closing
    Conversion failed!

    D:\downloads_D\Annabelle Creation 2017 720p HDRip-x264-AC3 5.1-Jarvis>pause
    Press any key to continue . . .

    here is bat file

    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i %1 -vf delogo=x=425:y=415:w=449:h=122 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause

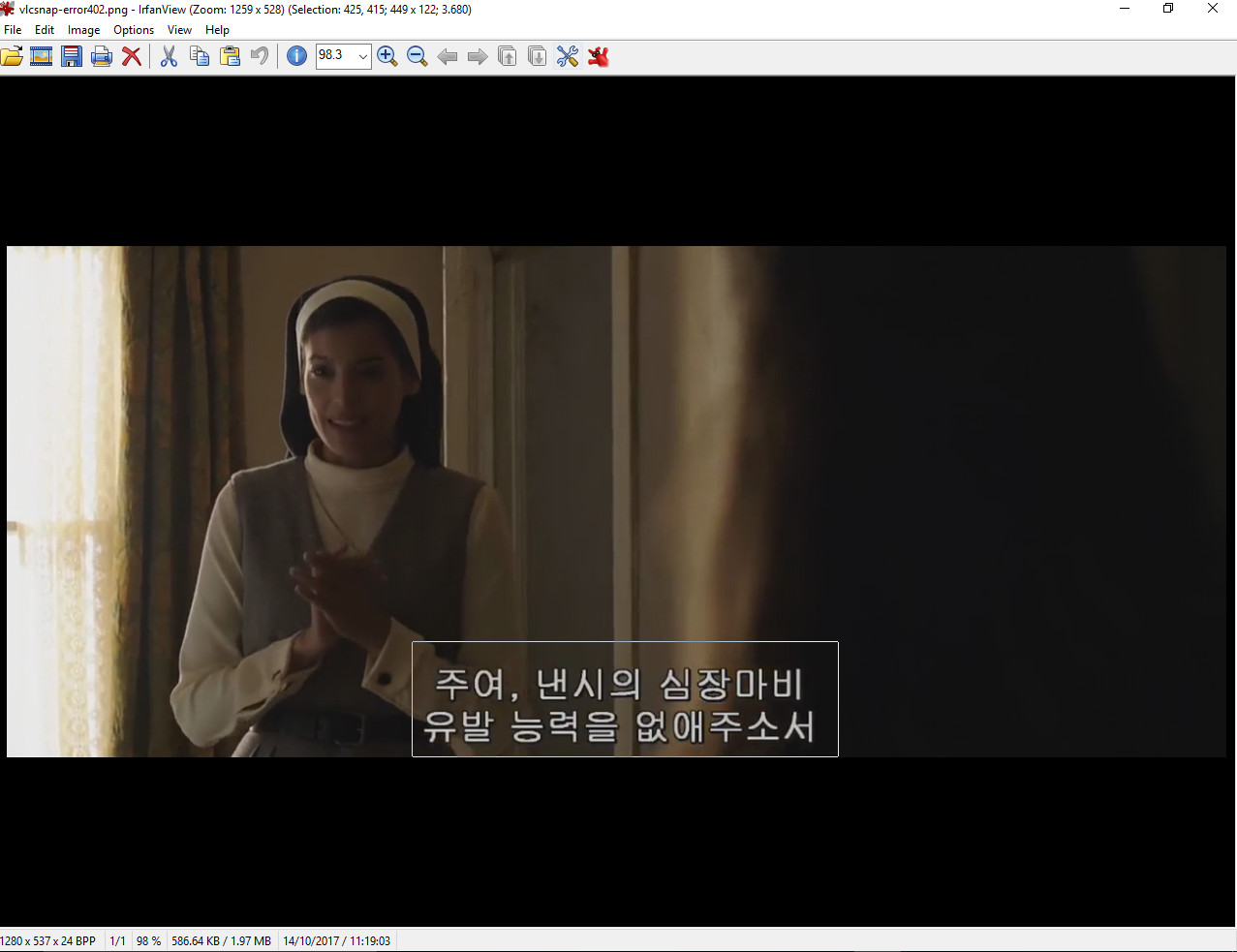

    here is snapshot

    Last edited by natty; 14th Oct 2017 at 05:36.

  24. You have a video with a frame size of 1280x536.

    You're using the coordinates of x=425:y=415:w=449:h=122. This brings your y-coordinate to 415+122=537, ie outside the frame with the error Logo area is outside of the frame.

    Try with

    Code:
    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i "%1" -vf delogo=x=425:y=415:w=449:h=120 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause

  25. Originally Posted by videobruger View Post
    You have a video with a frame size of 1280x536.

    You're using the coordinates of x=425:y=415:w=449:h=122. This brings your y-coordinate to 415+122=537, ie outside the frame with the error Logo area is outside of the frame.

    Try with

    Code:
    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i "%1" -vf delogo=x=425:y=415:w=449:h=120 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause
    I give up as I changed bat file to what you said now i get this


    D:\downloads_D\Annabelle Creation 2017>"c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i ""D:\downloads_D\Annabelle Creation 2017\Annabelle Creation 2017.mkv"" -vf delogo=x=425:y=415:w=449:h=120 -c:a aac -b:a 192k "D:\downloads_D\Annabelle Creation 2017\Annabelle Creation 2017.delogo.mkv"
    ffmpeg version 3.3.3 Copyright (c) 2000-2017 the FFmpeg developers
    built with gcc 7.1.0 (GCC)
    configuration: --enable-gpl --enable-version3 --enable-cuda --enable-cuvid --enable-d3d11va --enable-dxva2 --enable-libmfx --enable-nvenc --enable-avisynth --enable-bzlib --enable-fontconfig --enable-frei0r --enable-gnutls --enable-iconv --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfreetype --enable-libgme --enable-libgsm --enable-libilbc --enable-libmodplug --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenh264 --enable-libopenjpeg --enable-libopus --enable-librtmp --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvo-amrwbenc --enable-libvorbis --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxavs --enable-libxvid --enable-libzimg --enable-lzma --enable-zlib
    libavutil 55. 58.100 / 55. 58.100
    libavcodec 57. 89.100 / 57. 89.100
    libavformat 57. 71.100 / 57. 71.100
    libavdevice 57. 6.100 / 57. 6.100
    libavfilter 6. 82.100 / 6. 82.100
    libswscale 4. 6.100 / 4. 6.100
    libswresample 2. 7.100 / 2. 7.100
    libpostproc 54. 5.100 / 54. 5.100
    D:\downloads_D\Annabelle: No such file or directory

    D:\downloads_D\Annabelle Creation 2017>pause
    Press any key to continue . . .

    "c:\Program Files\ffmpeg-3.3.3-win64-static\bin\ffmpeg" -i "%1" -vf delogo=x=425:y=415:w=449:h=120 -c:a aac -b:a 192k "%~dpn1.delogo.mkv"
    pause

    how would I know all this in future about delogo and the size it covers subtitles

  26. you dont.. you have to measure the screen and find the area to blur. it varies from movie to movie.

  27. imho. just wait for the bluray to come out and refrain from downloading r5 and r6 copies from the net.




Similar Threads
