Cleaning trash, fps, and some other issues, help.

[jagabo]

Hue is a rotation around the center of the U/V color wheel. So just as many colors move "away" from red as move "toward" it. See this standalone example script:

function RotateHue(clip c, float angle)
{
    Tweak(c, angle)
    Subtitle("Tweak(hue="+String(angle)+")")
}

ColorBars(pixel_type="YV12")
Histogram(mode="color")
Crop(width-256,0, 256,256)
ColorYUV(cont_y=-256, cont_u=-128, cont_v=-128)
Trim(0,360)

Animate(0,360, "RotateHue", last,-180.0, last,+180.0)

[Caiosouza]

FINAL CASE: SOLVED With Sucess

Thank You Seniors Masters Professors:

Jagabo
LMotlow



Extramarital Case

One question please:

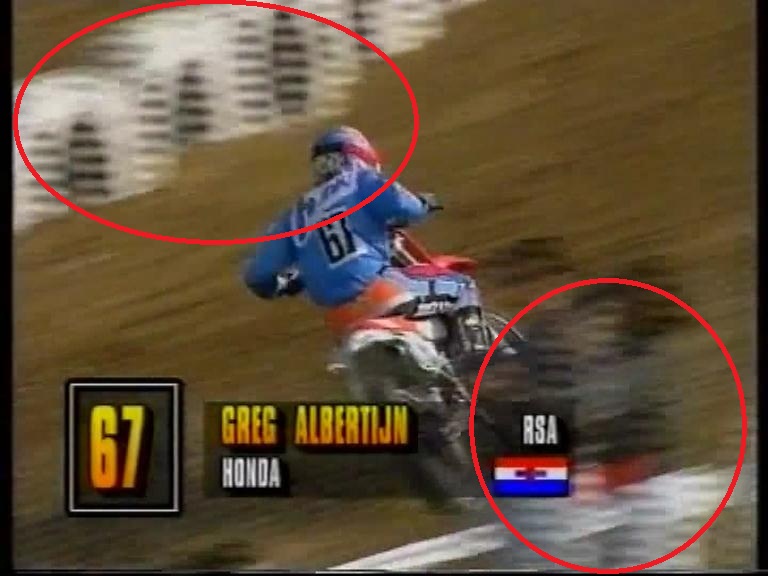

Why I getting this trashes lines on DVD compilation, on movment scenes?

[jagabo]

The video was once interlaced and has been mishandled.

[johnmeyer]

You really should start a new thread for each of your videos because they each are quite different.

The problem in this one is caused by someone (you?) re-sizing an interlaced video without first deinterlacing it. This is an extremely common problem. It cannot be undone, although I did work with some other people to come up with a "solution" that can make the video look a little better:

repair bad video

The OP in that thread thought it was caused by deinterlacing, but he was wrong.

[Caiosouza]

The video was once interlaced and has been mishandled.

You really should start a new thread for each of your videos because they each are quite different.

The problem in this one is caused by someone (you?) re-sizing an interlaced video without first deinterlacing it. This is an extremely common problem. It cannot be undone, although I did work with some other people to come up with a "solution" that can make the video look a little better:

repair bad video

The OP in that thread thought it was caused by deinterlacing, but he was wrong.

Ok,

The source is MKV Progrressive but with interlaced lines , I Saving The video on Avi Lagarith codec to encode to DVD



General
Complete name : C:\Users\User\Downloads\1993 World MX 250 MKV\1993 250 World Motocross Review.mkv
Format : Matroska
Format version : Version 1
File size : 1.88 GiB
Duration : 1h 42mn
Overall bit rate : 2 612 Kbps
Encoded date : UTC 2016-09-11 12:18:23
Writing library : WonderShare Matroska Muxer

Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : Baseline@L3.0
Format settings, CABAC : No
Format settings, ReFrames : 6 frames
Format settings, GOP : N=1
Codec ID : V_MPEG4/ISO/AVC
Duration : 1h 42mn
Width : 720 pixels
Height : 540 pixels
Display aspect ratio : 4:3
Frame rate mode : Constant
Frame rate : 25.000 fps
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Default : Yes
Forced : No

Audio
ID : 2
Format : AAC
Format/Info : Advanced Audio Codec
Format profile : LC
Codec ID : A_AAC
Duration : 1h 42mn
Channel count : 2 channels
Channel positions : Front: L R
Sampling rate : 44.1 KHz
Compression mode : Lossy
Default : Yes
Forced : No

Source:

[jagabo]

Many of the videos you've uploaded have the same problem. It's just that some of them were otherwise so badly mangled it was hard to see. They started life as 720x576 interlaced frames. Someone resized them to 720x540 and encoded them as progressive without taking into account they were interlaced. That has caused the two fields to partially blur together. They can no longer be separated. That is why I suggested you forget trying to smart bob them and just use vInverse() to blend the two fields together.

https://forum.videohelp.com/threads/381174-Best-Code-to-Improve-this-Garbage?p=2465717&...=1#post2465717

QTGMC on the left vInverse on the right:

[Attachment 39705 - Click to enlarge]

[Caiosouza]

The video was once interlaced and has been mishandled.

You really should start a new thread for each of your videos because they each are quite different.

The problem in this one is caused by someone (you?) re-sizing an interlaced video without first deinterlacing it. This is an extremely common problem. It cannot be undone, although I did work with some other people to come up with a "solution" that can make the video look a little better:

repair bad video

The OP in that thread thought it was caused by deinterlacing, but he was wrong.

Ok,

The source is MKV Progrressive but with interlaced lines , I Saving The video on Avi Lagarith codec to encode to DVD

Source:

Try progressive DVD.

[Caiosouza]

The video was once interlaced and has been mishandled.

You really should start a new thread for each of your videos because they each are quite different.

The problem in this one is caused by someone (you?) re-sizing an interlaced video without first deinterlacing it. This is an extremely common problem. It cannot be undone, although I did work with some other people to come up with a "solution" that can make the video look a little better:

repair bad video

The OP in that thread thought it was caused by deinterlacing, but he was wrong.

Ok,

The source is MKV Progrressive but with interlaced lines , I Saving The video on Avi Lagarith codec to encode to DVD

Source:

Try progressive DVD.

Ok, I try it...

[Caiosouza]

Extramarital Case:SOLVED!

Worked !

Thank you Newbie:

Caiosouza

[Caiosouza]

Many of the videos you've uploaded have the same problem. It's just that some of them were otherwise so badly mangled it was hard to see. They started life as 720x576 interlaced frames. Someone resized them to 720x540 and encoded them as progressive without taking into account they were interlaced. That has caused the two fields to partially blur together. They can no longer be separated. That is why I suggested you forget trying to smart bob them and just use vInverse() to blend the two fields together.

https://forum.videohelp.com/threads/381174-Best-Code-to-Improve-this-Garbage?p=2465717&...=1#post2465717

QTGMC on the left vInverse on the right:

[Attachment 39705 - Click to enlarge]

Thank you master!

I do apply all this?

LSMASHVideoSource("1999_AMA_250_SX_PAL.mp4")
vinverse() # blend comb artifacts
BilinearResize(width/2, height) # downsize, clean edges, upsize, sharpen
Sharpen(0.3, 0.0)
Santiag()
Spline36Resize(width*2, height)
Sharpen(0.2, 0.0)

[jagabo]

Apply whatever is necessary to get the look you want. Everything after vinverse() in that script was to smooth out some artifacts and sharpen the picture a bit.

[Caiosouza]

Apply whatever is necessary to get the look you want. Everything after vinverse() in that script was to smooth out some artifacts and sharpen the picture a bit.

Muito obrigado! Funcionou muito bem, melhor que fazendo o video progressivo!
E você como sempre brilhante !

[Caiosouza]

Would there be some other efficient antialiasing filter to replace santiag ()? I can not make this work

vinverse() # blend comb artifacts
BilinearResize(width/2, height) # downsize, clean edges, upsize, sharpen
Sharpen(0.3, 0.0)
Santiag()
Spline36Resize(width*2, height)
Sharpen(0.2, 0.0)

[jagabo]

You can try AAA() instead of Santiag(). Or: http://avisynth.nl/index.php/External_filters#Anti-aliasing

[LMotlow]

Would there be some other efficient antialiasing filter to replace santiag ()? I can not make this work

vinverse() # blend comb artifacts
BilinearResize(width/2, height) # downsize, clean edges, upsize, sharpen
Sharpen(0.3, 0.0)
Santiag()
Spline36Resize(width*2, height)
Sharpen(0.2, 0.0)

By "more efficient" do you mean stronger? If stronger, You can increase the vertical strength (strv) and/or horizontal strength (strh). Generally not a good idea to sharpen before anti-aliasing -- you're sharpening the sawtooth effect before smoothing it. Sharpen after.

vinverse() # blend comb artifacts
BilinearResize(width/2, height) # downsize, clean edges, upsize, sharpen
Santiag(strv=4, strh=4)
Spline36Resize(width*2, height)
Sharpen(0.3, 0.0)

Or use AAA().

[Caiosouza]

Would there be some other efficient antialiasing filter to replace santiag ()? I can not make this work

vinverse() # blend comb artifacts
BilinearResize(width/2, height) # downsize, clean edges, upsize, sharpen
Sharpen(0.3, 0.0)
Santiag()
Spline36Resize(width*2, height)
Sharpen(0.2, 0.0)

By "more efficient" do you mean stronger? If stronger, You can increase the vertical strength (strv) and/or horizontal strength (strh). Generally not a good idea to sharpen before anti-aliasing -- you're sharpening the sawtooth effect before smoothing it. Sharpen after.

vinverse() # blend comb artifacts
BilinearResize(width/2, height) # downsize, clean edges, upsize, sharpen
Santiag(strv=4, strh=4)
Spline36Resize(width*2, height)
Sharpen(0.3, 0.0)

Or use AAA().

You can try AAA() instead of Santiag(). Or: http://avisynth.nl/index.php/External_filters#Anti-aliasing

"efficient" I'm referring to the same performance, equivalent.
Santiag () accuses error in my avisynth
The code sequence (above) is correct, atialiazing and then sharpening.
Right?
I will try AAA()

[LMotlow]

If a plugin like Santiag or any other filter gives you an error, you should tell us exactly what the error message is. To say only that you have "an error" doesn't tell us anything.

[Caiosouza]

If a plugin like Santiag or any other filter gives you an error, you should tell us exactly what the error message is. To say only that you have "an error" doesn't tell us anything.

"No named function"

I put all required.

[jagabo]

Copy and paste the entire contents of Santiag.avs into you script.

[LMotlow]

Santiagh is usually supplied as an ".avs" file, which is a scripted plugin that doesn't load automatically like the .dll plugins in Avisynth. A sc ripted plugin like that one should be imported with the Import() function. Like so:

Import("path\to\Avisynth\plugins\santiag.avs")

Change the path statement to the location of the Avisynth plugins in your computer.

Or a shorter way is to find your santiag.avs file and rename it to "santiag.avsi". An .avsi file loads automatically with other auto plugins, so there is no need to Import.

[jagabo]

We've been through all of that before (in another thread).

[LMotlow]

Yep, I saw that. I just couldn't find it.

[Caiosouza]

Solved by rename santiag.avs to santiag.avsi on plugins folder

[Caiosouza]

I tried one thing that helped with the high motion shots but looked terrible on the still shots. Basically, it just blurring away a lot of the noise and a giant MCTD so you lose fine detail.

LWLibavVideoSource("1996 MX 125.h264")
BilinearResize(352,288)
RemoveDirtMC(120)
McTemporalDenoise(settings="very high")
aWarpSharp(depth=5)
nnedi3_rpow2(4, cshift="Spline36Resize", fwidth=720, fheight=576)
aWarpSharp(depth=5)
Sharpen(0.3)

I've been thinking about what you said about high settings to high motion shots (FINAL CASE;page 2), and I decided to do some tests,I got a great result with QTGMC instead of MCtemporal,the difference is that it did not look plastic, mannequins:

SetMTMode(3)
DirectShowSource("C:\Users\User\Desktop\Sample 1996 250 World MX.mkv")
SetMTMode(2)
vinverse() # blend comb artifacts
QTGMC(preset="slower")
BilinearResize(width/2, height) # downsize, clean edges, upsize, sharpen
Santiag(strv=4, strh=4)
Spline36Resize(width*2, height)
Sharpen(0.7, 0.0)
AssumeTFF().SeparateFields().SelectEvery(4,0,3).We ave()
