avidemux video color changes

[yukukuhi]

when i load an uncompressed avi in avidemux the video color changes
how to fix it

[Bernix]

when I load an uncompressed avi in it it is upside down and cant be corrected by opengl filter rotate . Even in latest night builds. But DV files works well...

[jagabo]

when i load an uncompressed avi in avidemux the video color changes

In what way? Slightly brighter/darker overall? Slightly different reds and greens? Completely wrong colors? Upload some screen caps.

when I load an uncompressed avi in it it is upside down and cant be corrected by opengl filter rotate

Some AVI files store the video right side up, some upside down. Use the Vertical Flip filter in avidemux if the video is upside down.

[Bernix]

Some AVI files store the video right side up, some upside down. Use the Vertical Flip filter in avidemux if the video is upside down.

Thank you jagabo
it works.

Bernix

[yukukuhi]

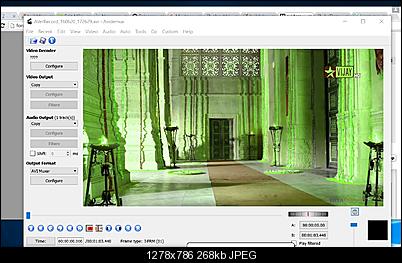

here it is


it is greenish

[Bernix]

Try edit - preference - display and here try to change if it helps. Best is opengl in both menus. But maybe other will work for you better.

Bernix

[yukukuhi]

i tried it not working

[jagabo]

I'm going to guess that the video is mod 2 and the decoder isn't decompressing it right. In that case you'll need to use another codec to decompress it. Can you post a MediaInfo report of the video? Is the whole video like that or just the first few frames?

[yukukuhi]

General
Complete name : M:\New folder\AVerRecord_160518_170702a.avi
Format : AVI
Format/Info : Audio Video Interleave
Format profile : OpenDML
File size : 6.12 GiB
Duration : 1mn 3s
Overall bit rate : 831 Mbps
Writing library : VirtualDub build 35491/release

Video
ID : 0
Format : YUV
Codec ID : YUY2
Codec ID/Info : YUV 4:2:2 as for UYVY but with different component ordering within the u_int32 macropixel
Duration : 1mn 3s
Bit rate : 829 Mbps
Width : 1 920 pixels
Height : 1 080 pixels
Display aspect ratio : 16:9
Frame rate : 25.000 fps
Color space : YUV
Chroma subsampling : 4:2:2
Compression mode : Lossless
Bits/(Pixel*Frame) : 16.000
Stream size : 6.11 GiB (100%)

Audio
ID : 1
Format : PCM
Format settings, Endianness : Little
Format settings, Sign : Signed
Codec ID : 1
Duration : 1mn 3s
Bit rate mode : Constant
Bit rate : 1 536 Kbps
Channel(s) : 2 channels
Sampling rate : 48.0 KHz
Bit depth : 16 bits
Stream size : 11.6 MiB (0%)
Alignment : Aligned on interleaves
Interleave, duration : 40 ms (1.01 video frame)
Interleave, preload duration : 500 ms


the whole video is like that

[hech54]

File size : 6.12 GiB
Duration : 1mn 3s

1 minute, 6 gigabytes?

Complete name : M:\New folder\AVerRecord_160518_170702a.avi

This is not the same as the screenshot?

Is this a video game?
Is this being recorded with software/hardware designed for video game capture?

[shekh]

Can anything display it properly (VirtualDub, ffplay)? I tried once to save with "709" format (or something like that) and it was broken. Wild guess though.

[jagabo]

It's uncompressed YUY2 video. Either the capture messed up or you have a playback problem. A capture device would have problems (dropped frames) writing data that quickly unless you're capturing to an SSD drive or RAID array. Can you upload a few frames? I opened a 1920x1080 24 fps YUY2 video here with an old version of AviDemux and it had no problems.

[yukukuhi]

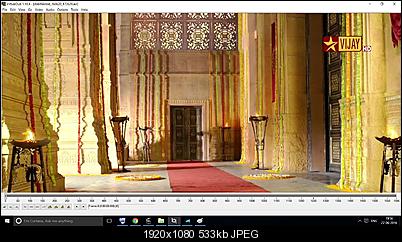

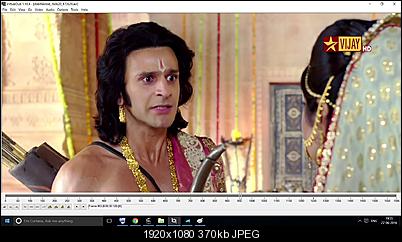

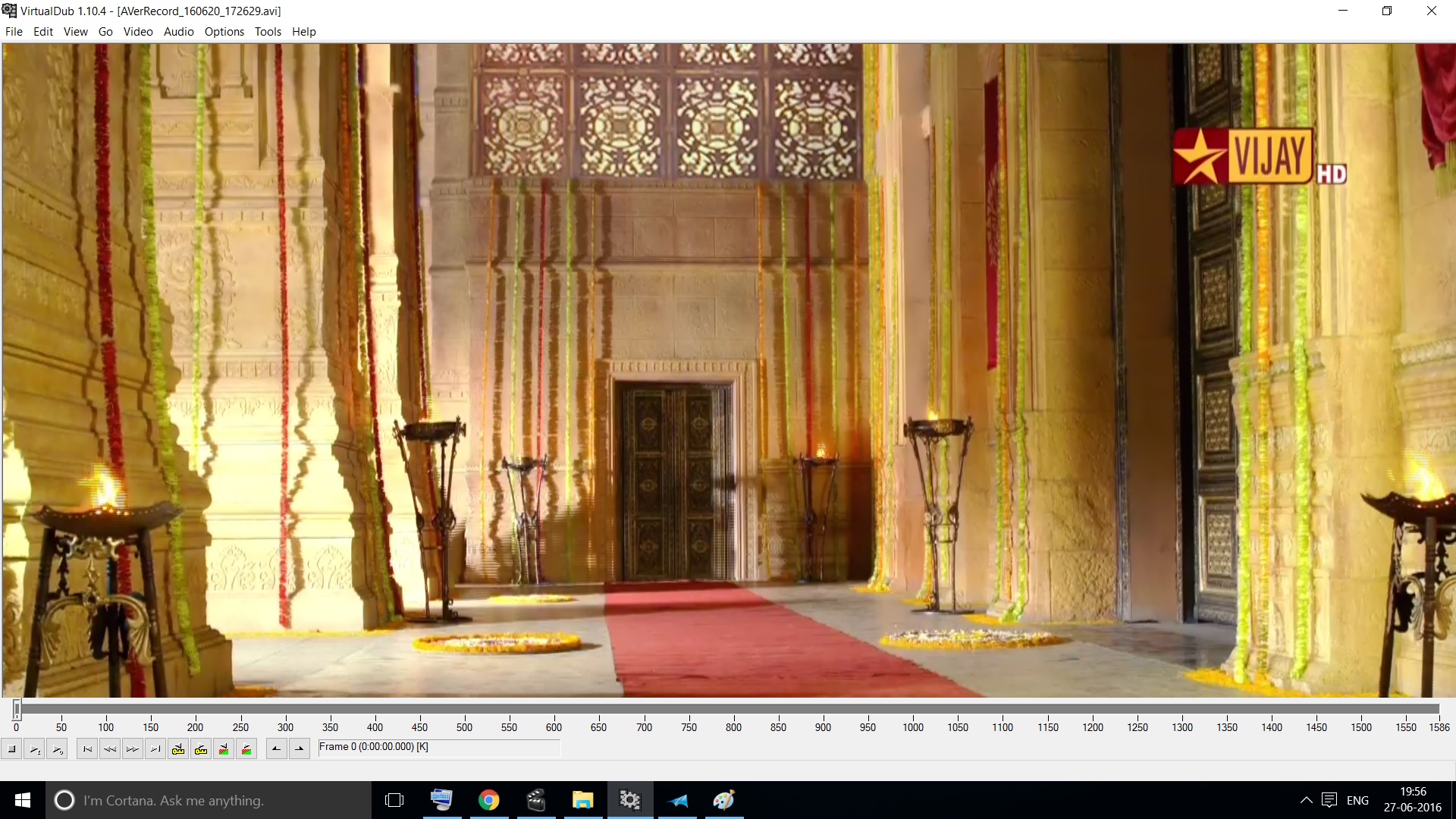

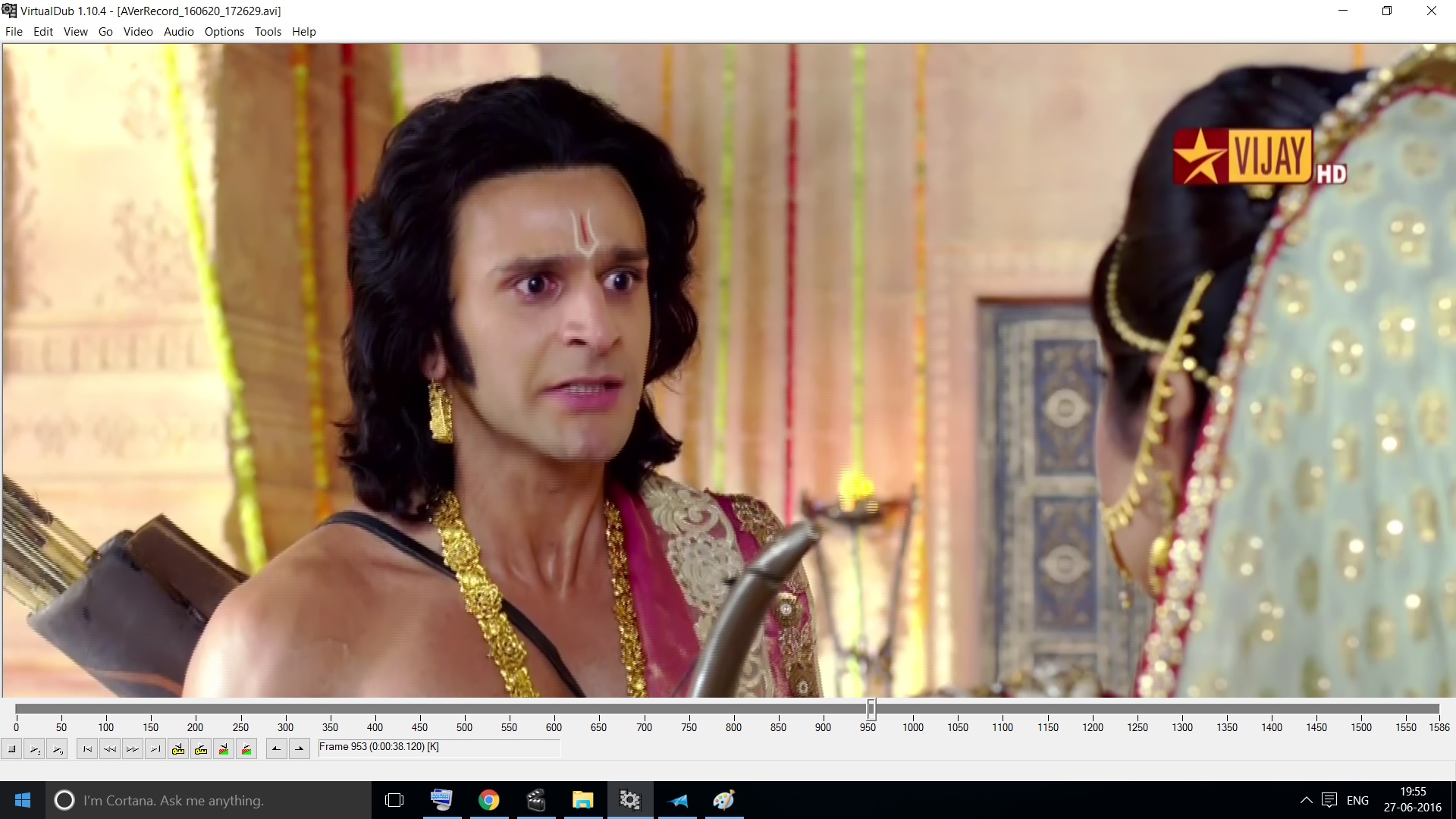

here is some screenshot from virtual dub

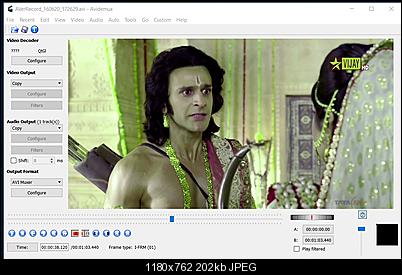

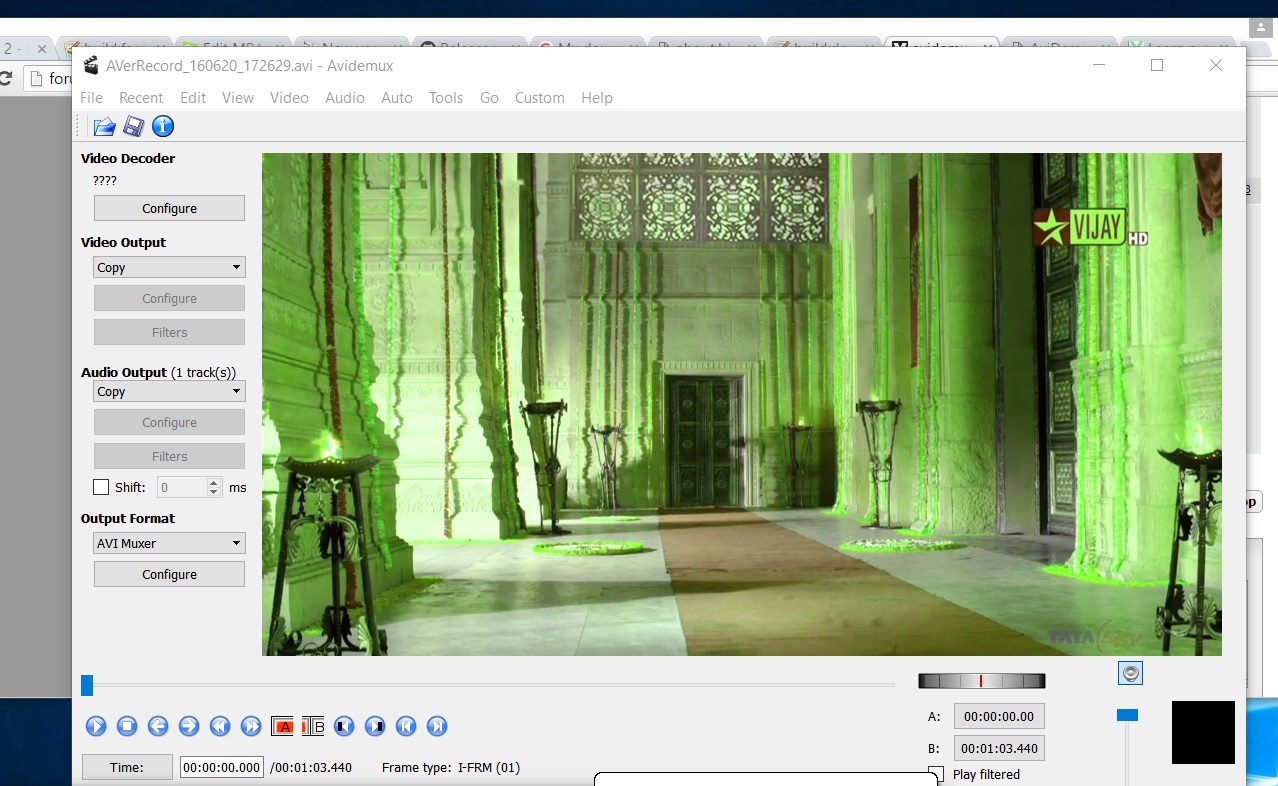

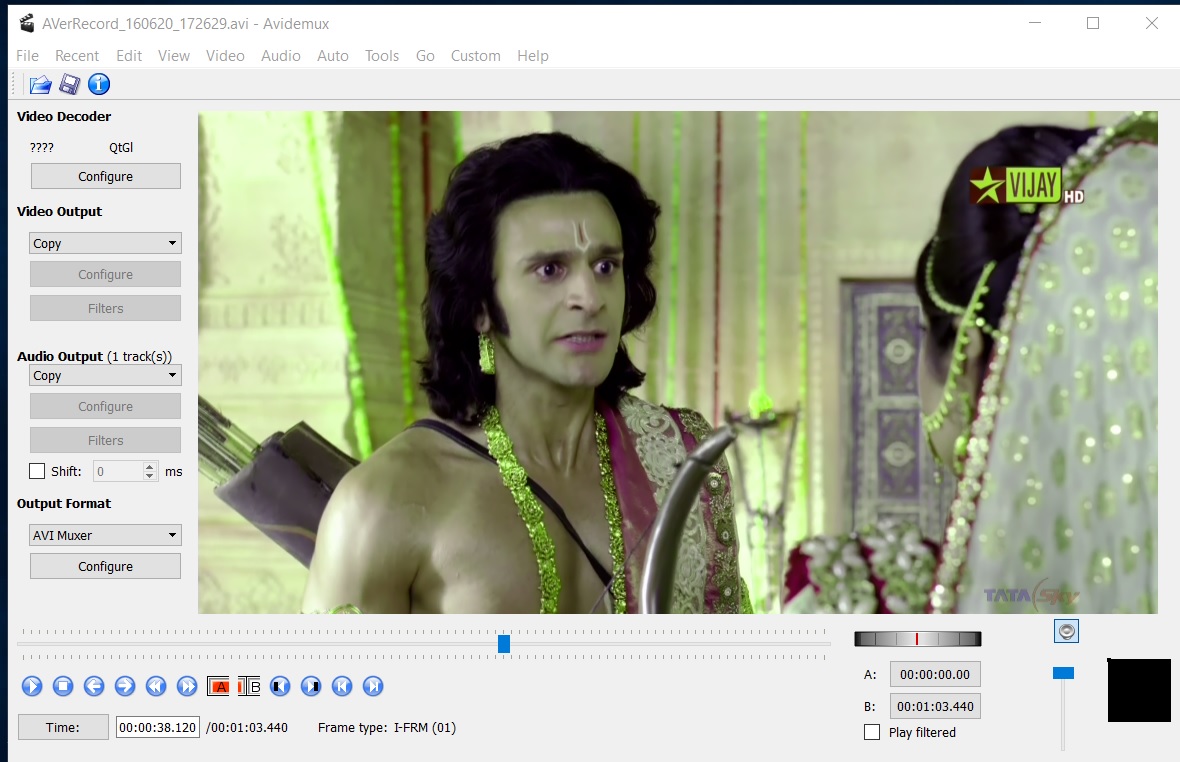

here is some screenshot from avidemux

[KarMa]

Why not just stick with Virtualdub?

[jagabo]

I didn't see any obvious way of duplicating the problem. I tried swapping U and V channels, inverting them, combinations of those but nothing gave the same colors. I'd dump AviDemux, it's full of bugs anyway, and use another editor.
