  1. I'm new to the world of encoding and H.264, so please go easy on me.
    I've decided to encode my blu-ray library into MKV containers for portability purposes, however, I'm getting far too many artifacts on the encode as you can see below:

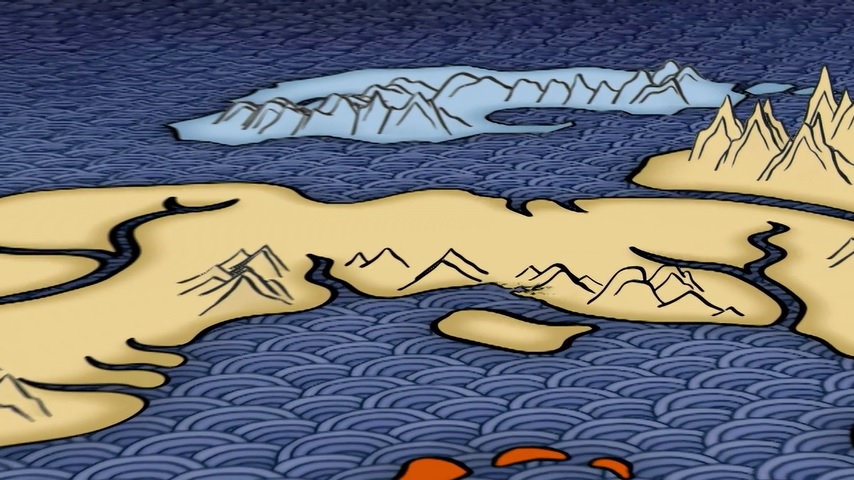

    Original

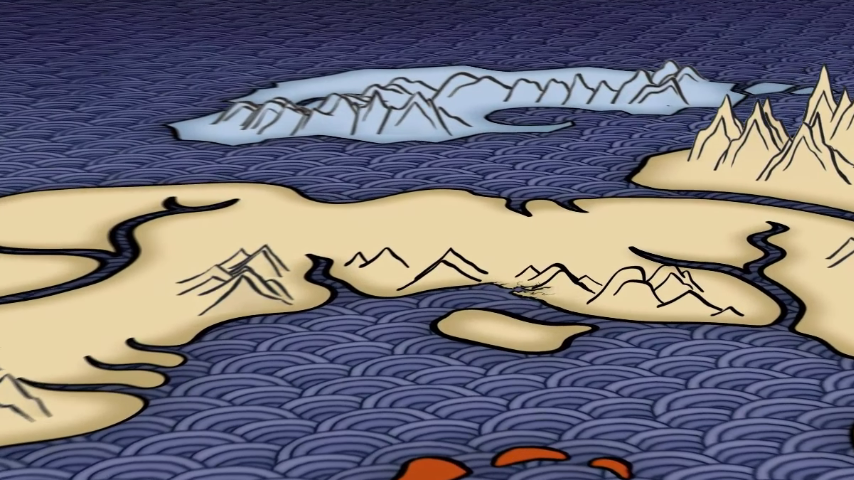

    Encode (x264 - Handbrake & MeGUI - both 10 bit & 8 bit):



    The blue pattern a the top is totally jagged with the encode. Any tips to fix this problem? I've tried both Handbrake and MeGUI, 8 bit x264 and 10 bit x264, but cannot seem to get a good encode.

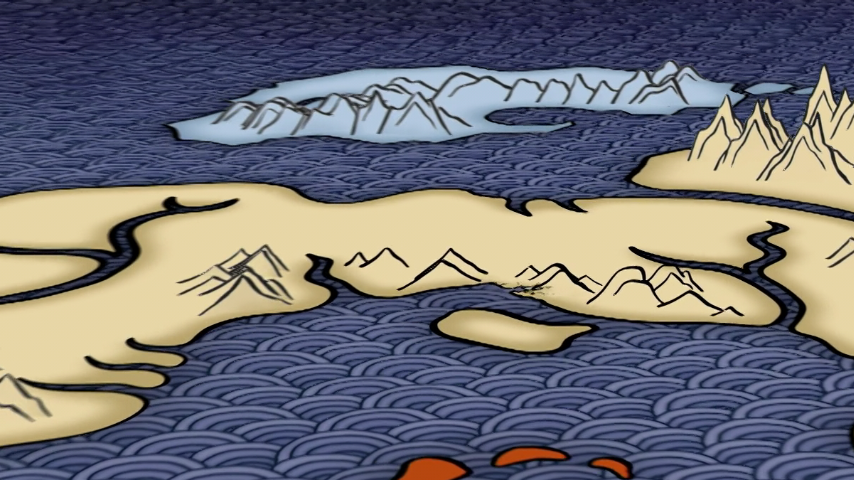

    By comparison, here's an encode that I found online of the above scene by another group:



    What am I doing wrong? How do I achieve a similar encode quality (with no artifacts)? Both encodes are at CRF = 18.0

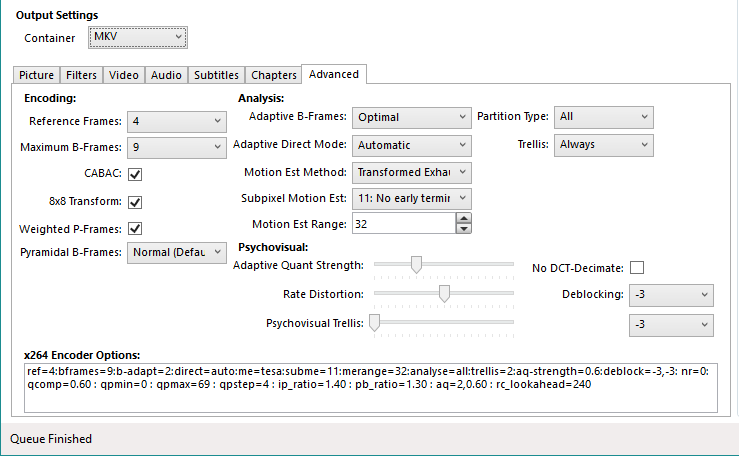

    Further information:

    Legend of Korra: Book 1 - Air (Blu-ray)

    My encode's media information

    Code:
    Format                                   : Matroska
    Format version                           : Version 2
    File size                                : 105 MiB
    Duration                                 : 1mn 0s
    Overall bit rate                         : 14.6 Mbps
    Writing application                      : HandBrake 20160508174001-d61a9be-master 2016051101
    Writing library                          : Lavf56.1.0 / Lavf56.1.0

    Video
    ID                                       : 1
    Format                                   : AVC
    Format/Info                              : Advanced Video Codec
    Format profile                           : High 10@L4
    Format settings, CABAC                   : Yes
    Format settings, ReFrames                : 4 frames
    Codec ID                                 : V_MPEG4/ISO/AVC
    Duration                                 : 1mn 0s
    Bit rate                                 : 14.3 Mbps
    Width                                    : 1 920 pixels
    Height                                   : 1 080 pixels
    Display aspect ratio                     : 16:9
    Frame rate mode                          : Constant
    Frame rate                               : 23.976 (24000/1001) fps
    Color space                              : YUV
    Chroma subsampling                       : 4:2:0
    Bit depth                                : 10 bits
    Scan type                                : Progressive
    Bits/(Pixel*Frame)                       : 0.288
    Stream size                              : 103 MiB (98%)
    Writing library                          : x264 core 144
    Encoding settings                        : cabac=1 / ref=4 / deblock=1:-3:-3 / analyse=0x3:0x133 / me=tesa / subme=11 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=32 / chroma_me=1 / trellis=2 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=0 / chroma_qp_offset=-2 / threads=6 / lookahead_threads=1 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=16 / b_pyramid=2 / b_adapt=2 / b_bias=0 / direct=3 / weightb=1 / open_gop=0 / weightp=1 / keyint=240 / keyint_min=24 / scenecut=40 / intra_refresh=0 / rc_lookahead=240 / rc=crf / mbtree=1 / crf=18.0 / qcomp=0.70 / qpmin=0 / qpmax=81 / qpstep=4 / ip_ratio=1.40 / aq=2:1.00
    Default                                  : Yes
    Forced                                   : No
    Color range                              : Limited
    Color primaries                          : BT.709
    Transfer characteristics                 : BT.709
    Matrix coefficients                      : BT.709
    Online group's media information

    Code:
    General
    Format                                   : Matroska
    Format version                           : Version 4 / Version 2
    File size                                : 726 MiB
    Duration                                 : 24mn 4s
    Overall bit rate                         : 4 216 Kbps
    Encoded date                             : UTC 2013-07-10 17:12:11
    Writing application                      : mkvmerge v6.3.0 ('You can't stop me!') built on Jun 28 2013 20:09:41
    Writing library                          : libebml v1.3.0 + libmatroska v1.4.0

    Video
    ID                                       : 1
    Format                                   : AVC
    Format/Info                              : Advanced Video Codec
    Format profile                           : High@L4.1
    Format settings, CABAC                   : Yes
    Format settings, ReFrames                : 4 frames
    Codec ID                                 : V_MPEG4/ISO/AVC
    Duration                                 : 24mn 4s
    Width                                    : 1 920 pixels
    Height                                   : 1 080 pixels
    Display aspect ratio                     : 16:9
    Frame rate mode                          : Constant
    Frame rate                               : 23.976 (24000/1001) fps
    Color space                              : YUV
    Chroma subsampling                       : 4:2:0
    Bit depth                                : 8 bits
    Scan type                                : Progressive
    Writing library                          : x264 core 133 r2334 a3ac64b
    Encoding settings                        : cabac=1 / ref=4 / deblock=1:-3:-3 / analyse=0x3:0x133 / me=tesa / subme=10 / psy=0 / mixed_ref=1 / me_range=24 / chroma_me=1 / trellis=2 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=0 / chroma_qp_offset=0 / threads=12 / lookahead_threads=2 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=9 / b_pyramid=2 / b_adapt=2 / b_bias=0 / direct=2 / weightb=1 / open_gop=0 / weightp=2 / keyint=240 / keyint_min=23 / scenecut=40 / intra_refresh=0 / rc=crf / mbtree=0 / crf=18.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / ip_ratio=1.40 / pb_ratio=1.30 / aq=2:0.60
    Language                                 : English
    Default                                  : Yes
    Forced                                   : No

    Audio #1
    ID                                       : 2
    Format                                   : AC-3
    Format/Info                              : Audio Coding 3
    Mode extension                           : CM (complete main)
    Format settings, Endianness              : Big
    Codec ID                                 : A_AC3
    Duration                                 : 24mn 4s
    Bit rate mode                            : Constant
    Bit rate                                 : 640 Kbps
    Channel(s)                               : 6 channels
    Channel positions                        : Front: L C R, Side: L R, LFE
    Sampling rate                            : 48.0 KHz
    Frame rate                               : 31.250 fps (1536 spf)
    Compression mode                         : Lossy
    Stream size                              : 110 MiB (15%)
    Title                                    : DD5.1
    Language                                 : English
    Default                                  : Yes
    Forced                                   : No
    Quote Quote
  2. Your problem has nothing to do with h.264 encoding. It's a deinterlacing issue. Try using decomb instead of deinterlace in HandBrake.
    Quote Quote
  3. Originally Posted by jagabo View Post
    Your problem has nothing to do with h.264 encoding. It's a deinterlacing issue. Try using decomb instead of deinterlace in HandBrake.
    Thanks. How do I use decomb, which settings do I input? This is my first ever encode. Here's a screenshot of Handbrake:



    Edit:

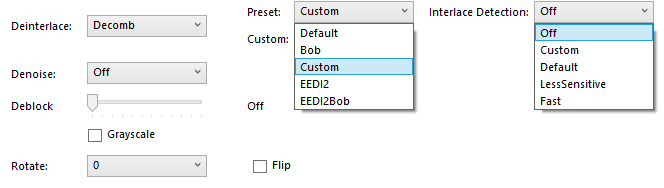

    I'm still getting the weird distortions at the top with Decomb (Default) & Interlace Detection: Default.



    Any help please?
    Last edited by Aurora001; 13th May 2016 at 17:18.
    Quote Quote
  4. It might pay to upload a small sample of the problem video. I'm not certain as to when/if you're resizing either, given the screenshots aren't 1080p. It probably wouldn't hurt to keep them at their original size.

    If the source video is 23.976fps or 24fps progressive, try disabling Handbrake's Decomb and De-interlacing filters completely.

    I assume you have the Bluray ripped to your hard drive? You can use programs such a MKVToolNixGUI or TSMuxer to remux the source file (just the video would be fine). Both have a splitting function. You only need to upload a small section from the original video where you're having problems.
    Quote Quote
  5. Member Bernix's Avatar
    Join Date
    Apr 2016
    Location
    Europe
    Search Comp PM
    Hi,
    have you any good reason to convert it to 10bit Bit depth instead of 8bit? And you can try to lower AQ strenght to 0.5-0.6. .
    And 16 bframes is too much. I usually used max 5.

    Bernix
    Last edited by Bernix; 13th May 2016 at 19:12.
    Quote Quote
  6. We'll have to see a sample of your source to give further advice.
    Quote Quote
  7. Thank you for your feedback everyone.

    Here's a short sample of the original video - I re-muxed it into an MKV and split a short ~10 sec relevant portion. Link (Download through your browser)

    I cannot get my encode to look clean as the original - always get jagged/distortions as indicated in the OP. Any help is appreciated.

    P.S: I tried both 8 bit and 10 bit encodes with no luck. I tried MeGUI with no luck. Tried different decomb settings, etc.
    Quote Quote
  8. Why are you doing anything to it? It's already progressive. It doesn't need 'decombing', 'detelecining', 'deinterlacing' or anything else.
    Quote Quote
  9. Member Bernix's Avatar
    Join Date
    Apr 2016
    Location
    Europe
    Search Comp PM
    Just try, I have very slow computer
    Last edited by Bernix; 14th May 2016 at 03:17.
    Quote Quote
  10. Originally Posted by manono View Post
    Why are you doing anything to it? It's already progressive. It doesn't need 'decombing', 'detelecining', 'deinterlacing' or anything else.
    I did not use any filters but ended up with this:
    http://screenshotcomparison.com/comparison/172870

    Any ideas?

    Originally Posted by Bernix View Post
    Just try, I have very slow computer
    Wow. Your version is a lot cleaner (and dare I say almost identical to the source). Which settings did you use or how did you fix the issue?
    Last edited by Aurora001; 13th May 2016 at 21:51.
    Quote Quote
  11. Member Bernix's Avatar
    Join Date
    Apr 2016
    Location
    Europe
    Search Comp PM
    Video
    ID : 1
    Format : AVC
    Format/Info : Advanced Video Codec
    Format profile : High@L5.1
    Format settings, CABAC : Yes
    Format settings, ReFrames : 16 frames
    Codec ID : V_MPEG4/ISO/AVC
    Duration : 9s 301ms
    Bit rate : 25.5 Mbps
    Width : 1 920 pixels
    Height : 1 080 pixels
    Display aspect ratio : 16:9
    Frame rate mode : Constant
    Frame rate : 23.976 (23976/1000) fps
    Color space : YUV
    Chroma subsampling : 4:2:0
    Bit depth : 8 bits
    Scan type : Progressive
    Bits/(Pixel*Frame) : 0.512
    Stream size : 28.2 MiB (98%)
    Writing library : x264 core 148 r2665kMod a01e339
    Encoding settings : opencl=1 / cabac=1 / ref=16 / deblock=1:0:0 / analyse=0x3:0x133 / me=umh / subme=9 / psy=0 / mixed_ref=1 / me_range=32 / chroma_me=1 / trellis=1 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=0 / threads=2 / lookahead_threads=1 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / fgo=0 / bframes=3 / b_pyramid=2 / b_adapt=2 / b_bias=0 / direct=3 / weightb=1 / open_gop=0 / weightp=2 / keyint=250 / keyint_min=25 / scenecut=40 / intra_refresh=0 / rc=cqp / mbtree=0 / qp=18 / ip_ratio=1.40 / pb_ratio=1.30 / aq=0
    Language : English
    Default : Yes
    Forced : No
    Quote Quote
  12. Dinosaur Supervisor KarMa's Avatar
    Join Date
    Jul 2015
    Location
    US
    Search Comp PM
    Originally Posted by Aurora001 View Post
    Originally Posted by manono View Post
    Why are you doing anything to it? It's already progressive. It doesn't need 'decombing', 'detelecining', 'deinterlacing' or anything else.
    I did not use any filters but ended up with this:
    http://screenshotcomparison.com/comparison/172870

    Any ideas?
    Deinterlace drop down menu was set to off?
    Quote Quote

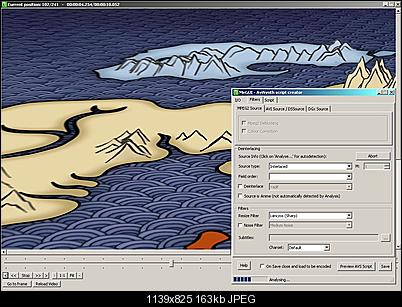

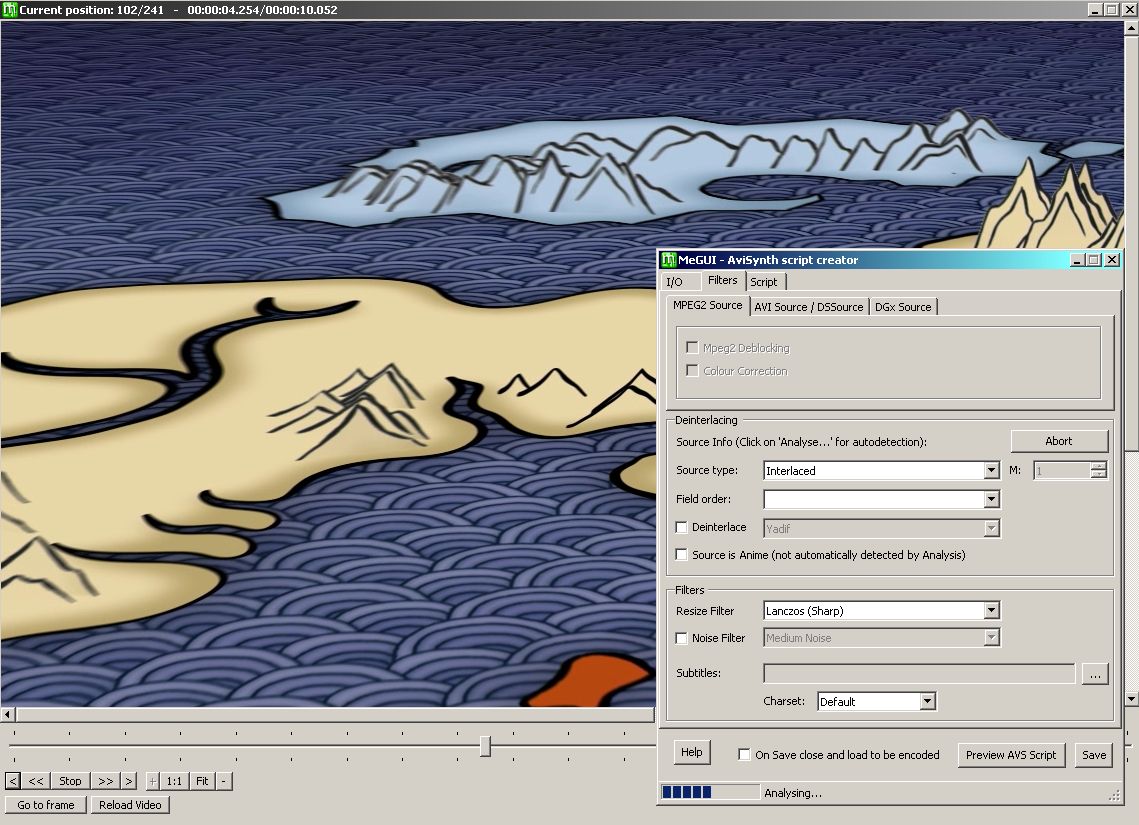

  13. Here's your sample opened in MeGUI's preview via Avisynth (open the images in new tabs or save them to view full size):

    Click image for larger version

Name:	1.jpg
Views:	144
Size:	163.1 KB
ID:	37010

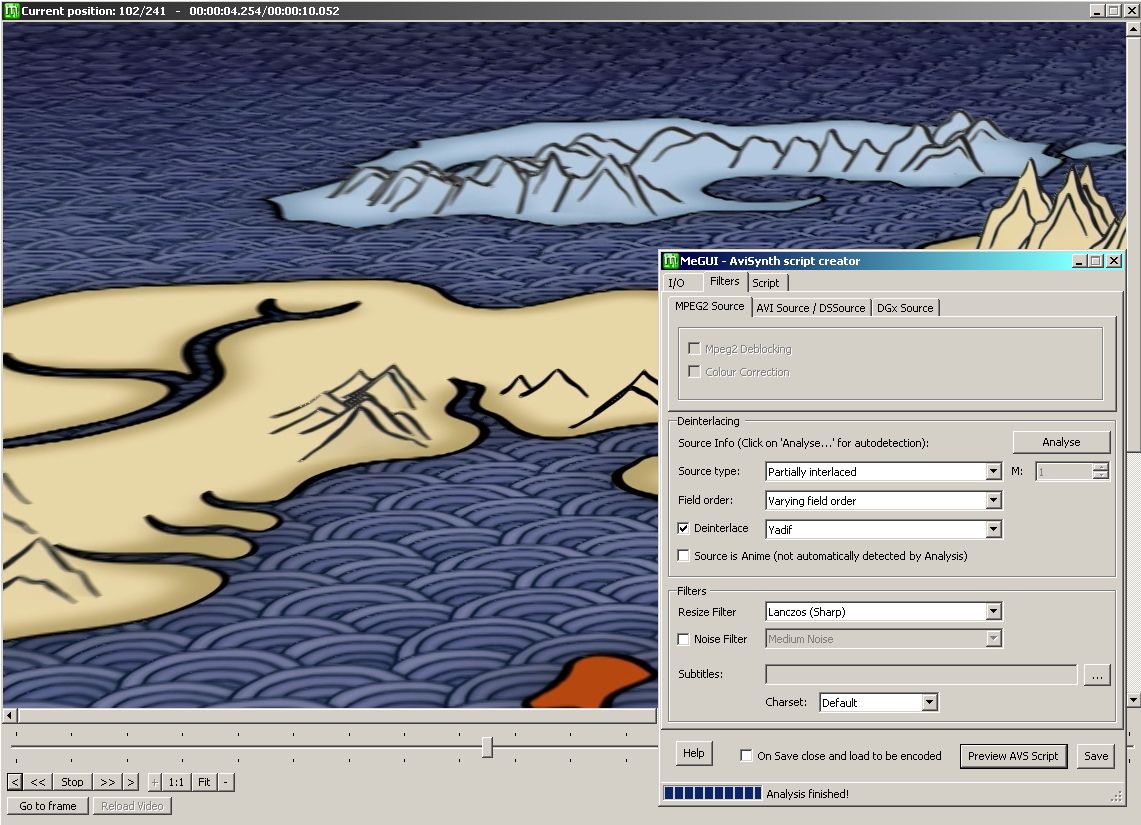

    Here it is again opened in MeGUI's preview after MeGUI analysed it and incorrectly decided it was interlaced. Nothing encoded. Just decoded and with de-interlacing enabled:

    Click image for larger version

Name:	2.jpg
Views:	160
Size:	161.1 KB
ID:	37011

    If you're using MeGUI's script creator make sure there's no de-interlacing enabled.
    If you're using the OneClick encoder, open it, select "show advanced settings" and make sure "automatic de-interlacing" is unchecked, due to the "getting it wrong" problem (I don't know for sure if that'd be the cause as I never use the OneClick encoder myself).
    If you happen to be using DirectShowSource for opening the video, probably better not to, but if you are, make sure your DirectShow decoder isn't doing any de-interlacing. That's out of MeGUI's control.

    I don't know what Handbrake is doing but logically there must still be some sort of de-interlacing enabled.

    Edit: I opened the sample with MeGUI's File Indexer and indexed it with L-Smash.
    Last edited by hello_hello; 13th May 2016 at 22:37.
    Quote Quote
  14. Yes, the source is progressive so no deinterlacing or decombing should be performed. Disable all such filters in Handbrake. Try the x264 slow or slower preset at about CRF 18.
    Quote Quote
  15. Originally Posted by Aurora001 View Post

    I did not use any filters.
    I don't believe you. Not that you're lying, but that you filtered it accidentally. Check the MeGUI AviSynth script it used.
    Quote Quote
  16. Thank you everyone!

    Managed to resolve the issue. Both Handbrake/MeGUI had deinterlacing/decombing enabled by default. Once I turned it off, the encode appears acceptable now:

    http://screenshotcomparison.com/comparison/172872

    Settings used:

    x264 10 bit
    CRF = 18.0
    Constant Frame Rate (same as source)



    Encode (57% size reduction)
    Quote Quote
  17. Member Bernix's Avatar
    Join Date
    Apr 2016
    Location
    Europe
    Search Comp PM
    I think it is not good idea to convert it to 10 bit depth.
    But it is only my opinion.
    You can try MakeMkv maybe you will find it useful.
    Quote Quote
  18. Yes, 10 bit and 9 b-frames will kill compatibility with most hardware, like blu-ray players.
    Quote Quote
  19. Yes, you definitely should be aware if you use 10 bit encoding you're pretty much going to be limited to PC playback. There's almost no hardware player support.

    10 bit decoding will be more likely to become mainstream as h265 does, as 10 bit has been part of the HEVC standard from the beginning. There's no guarantee it'll ever become mainstream for AVC. I suspect it won't.
    Quote Quote
  20. Originally Posted by Bernix View Post
    I think it is not good idea to convert it to 10 bit depth.
    But it is only my opinion.
    You can try MakeMkv maybe you will find it useful.
    Originally Posted by jagabo View Post
    Yes, 10 bit and 9 b-frames will kill compatibility with most hardware, like blu-ray players.
    Originally Posted by hello_hello View Post
    Yes, you definitely should be aware if you use 10 bit encoding you're pretty much going to be limited to PC playback. There's almost no hardware player support.

    10 bit decoding will be more likely to become mainstream as h265 does, as 10 bit has been part of the HEVC standard from the beginning. There's no guarantee it'll ever become mainstream for AVC. I suspect it won't.
    I read that 10bit has better compression efficiency and mitigates banding issues.
    Compatibility issues are a valid concern. I'll be primary viewing/using these encodes on an iPad Air with VLC. It's more portable than a PC.

    Whether or not it can playback 1080p x264 10bit video with 24bit 5.1 FLAC audio, I'll find out tomorrow.
    Quote Quote
  21. As a test I encoded the sample using the 8 bit encoder, Tune Film, Preset Very Slow and High Profile level 4.1.
    The file size was exactly the same as the your sample 10 bit encode and they're very, very similar in quality. Comparing them frame by frame I could see small differences in the way some frames were encoded but neither was "better". Sometimes the frame from the 8 bit encode matched the source frame more closely, sometimes it was the 10 bit frame, but that's always going to happen when you use different settings whether the encoder is 8 bit or 10 bit.

    Personally, I'd keep "anything can play it" as a higher priority the banding (which is an issue) but that's just me.

    These days, I stick gradfin3() at the end of most scripts (from the dither package) and always when using noise removal, and colour banding isn't much of an issue.
    Quote Quote
  22. Originally Posted by hello_hello View Post
    As a test I encoded the sample using the 8 bit encoder, Tune Film, Preset Very Slow and High Profile level 4.1.
    The file size was exactly the same as the your sample 10 bit encode and they're very, very similar in quality. Comparing them frame by frame I could see small differences in the way some frames were encoded but neither was "better". Sometimes the frame from the 8 bit encode matched the source frame more closely, sometimes it was the 10 bit frame, but that's always going to happen when you use different settings whether the encoder is 8 bit or 10 bit.

    Personally, I'd keep "anything can play it" as a higher priority the banding (which is an issue) but that's just me.

    These days, I stick gradfin3() at the end of most scripts (from the dither package) and always when using noise removal, and colour banding isn't much of an issue.
    Thanks for sharing your experience. Appreciate it.

    I'm re-encoding via 8bit x264 now. My 10bit encode crashed overnight (ran out of memory). 10bit and rc-lookahead = 240 may not have been a good idea with only 8 GB of memory. The program was using 7 GB of RAM before it crashed.

    Handbrake's encoding fine now, with 1123 MB memory usage.
    Quote Quote



Similar Threads
