Problems with RTMPDumpHelper (password protected site?)

[julesh]

I'm trying to download videos from a password protected site (bobnational.net) using RTMPDumpHelper. I don't know if this is supported or not, but I figured that because its a proxy server any authentication information ought to be passed on, so if anything's going to work this should. But I get an error when the video starts to play:

RTMP Proxy Server v2.4
(c) 2010 Andrej Stepanchuk, Howard Chu; license: GPL

Streaming on rtmp://0.0.0.0:1935
WARNING: Trying different position for client digest!
Processing connect
app: vod2
flashVer: WIN 21,0,0,213
swfUrl: http://bobnational.net/assets/7208e68/ImagenPlayer.swf
tcUrl: rtmp://swinstream.bobnational.net:1935/vod2
pageUrl: http://bobnational.net/record/_2wIeIBIe7A5hDILIkIlJOy
ERROR: RTMP_ReadPacket, failed to read RTMP packet header
Closing connection... done!

Any suggestions how to get the video downloaded?

[julesh]

Hmm. Never mind, RTMPExplorer was able to get it working. No idea what it did differently...

[julesh]

Looks like I spoke too soon.

RTMP Server 2.4 git-6230845 2011-9-25
(c) 2010 Andrej Stepanchuk, Howard Chu; license: GPL

Streaming on rtmp://0.0.0.0:1935
WARNING: Trying different position for client digest!

rtmpdump -r "rtmp://swinstream.bobnational.net:1935/vod2" -a "vod2" -f "WIN 21,0
,0,213" -W "http://bobnational.net/assets/7208e68/ImagenPlayer.swf" -p "http://b
obnational.net/record/_2wIeIBIe7A5hDILIkIlJOy" -y "flv:flv/1CC1DEF481F4/2012/040
3/1144/000/000000/000000" -o 000000.flv

Closing connection... done!

RTMPDump 2.4 git-6230845 2011-9-25
(c) 2010 Andrej Stepanchuk, Howard Chu, The Flvstreamer Team; license: GPL
Connecting ...
INFO: Connected...
Starting download at: 0.000 kB
INFO: Metadata:
INFO:   creator               Cambridge Imaging Systems Ltd
INFO:   metadatacreator       Cambridge Imaging Systems Ltd
INFO:   hasKeyframes          TRUE
INFO:   hasVideo              TRUE
INFO:   hasAudio              TRUE
INFO:   hasMetadata           TRUE
INFO:   canSeekToEnd          FALSE
INFO:   duration              3959.77
INFO:   datasize              577326053.00
INFO:   videosize             511147949.00
INFO:   framerate             25.00
INFO:   videodatarate         1006.33
INFO:   videocodecid          7.00
INFO:   width                 512.00
INFO:   height                288.00
INFO:   audiosize             65175792.00
INFO:   audiodatarate         125.30
INFO:   audiocodecid          2.00
INFO:   audiosamplerate       3.00
INFO:   audiosamplesize       1.00
INFO:   stereo                TRUE
INFO:   filesize              577475221.00
INFO:   lasttimestamp         3959.77
INFO:   lastkeyframetimestamp 3959.52
INFO:   lastkeyframelocation  577460637.00
INFO: keyframes:
INFO: filepositions:
INFO: times:
563940.633 kB / 3959.77 sec (99.9%)
Download complete

admin@tmp ~/Desktop/rtmpdump/explore
$ ffmpeg -i 000000.flv
ffmpeg version N-79630-g9ac154d Copyright (c) 2000-2016 the FFmpeg developers
  built with gcc 5.3.0 (GCC)
  configuration: --enable-gpl --enable-version3 --disable-w32threads --enable-avisynth --enable-bzlib --enable-fontconfig --enable-frei0r --enable-gnutls --enable-iconv --enable-libass --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfreetype --enable-libgme --enable-libgsm --enable-libilbc --enable-libmodplug --enable-libmfx --enable-libmp3lame --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --enable-libopus --enable-librtmp --enable-libschroedinger --enable-libsnappy --enable-libsoxr --enable-libspeex --enable-libtheora --enable-libtwolame --enable-libvidstab --enable-libvo-amrwbenc --enable-libvorbis --enable-libvpx --enable-libwavpack --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxavs --enable-libxvid --enable-libzimg --enable-lzma --enable-decklink --enable-zlib
  libavutil      55. 22.101 / 55. 22.101
  libavcodec     57. 38.100 / 57. 38.100
  libavformat    57. 34.103 / 57. 34.103
  libavdevice    57.  0.101 / 57.  0.101
  libavfilter     6. 44.100 /  6. 44.100
  libswscale      4.  1.100 /  4.  1.100
  libswresample   2.  0.101 /  2.  0.101
  libpostproc    54.  0.100 / 54.  0.100
000000.flv: Invalid data found when processing input

Any ideas why I'd be getting a(n apparently) corrupt output file from rtmpdump?

Edit:
Huh. Even *file* doesn't understand it...

admin@tmp ~/Desktop/rtmpdump/explore
$ file 000000.flv
000000.flv: data

Suspect it's missing its headers or something.

[ponens]

Suspect it's missing its headers or something.

Yes, that is right. For whatever reason, rtmpdump is not writing the first 13 bytes of the header. I'd have to investigate further to figure out why.

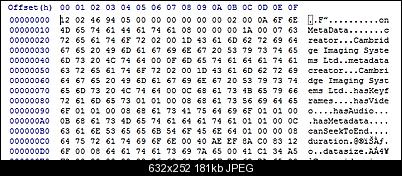

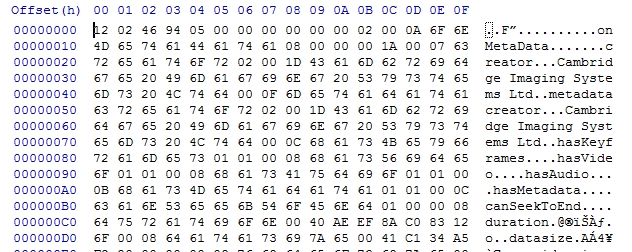

rtmpdump is writing this:

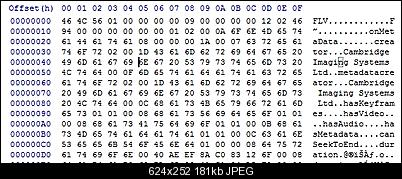

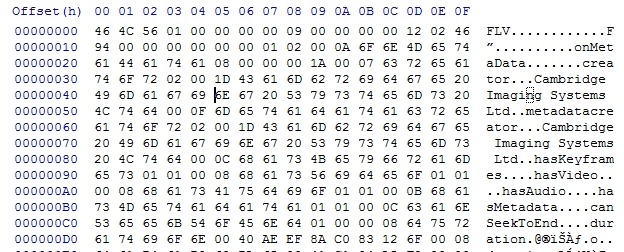

Should be this:



Once the 13 bytes are inserted, the video will play ok.

[julesh]

Thanks, fired up xvi32 and it works great!
