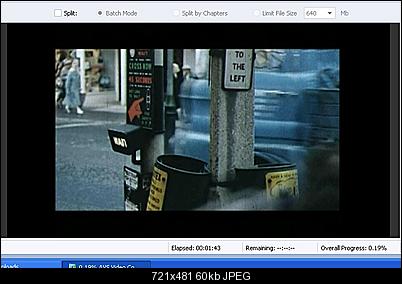

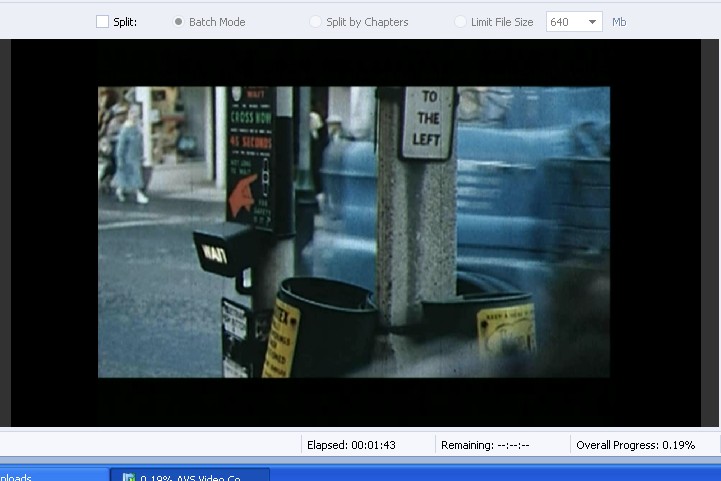

    Im trying to extract a DVD onto my network hard drive, so that I can stream it to my TV whenever I choose. I am slowly doing the same to others in my collection, but there are one or two that however I try they end up having huge black borders around them. this is the preview in AVS Video Converter and this is how it shows up on my 16:9 TV.

    Click image for larger version

Name:	untitled2.jpg
Views:	210
Size:	59.5 KB
ID:	33973

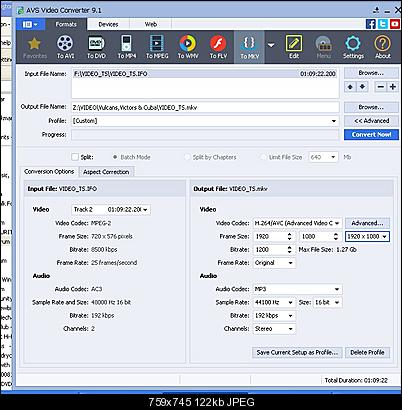

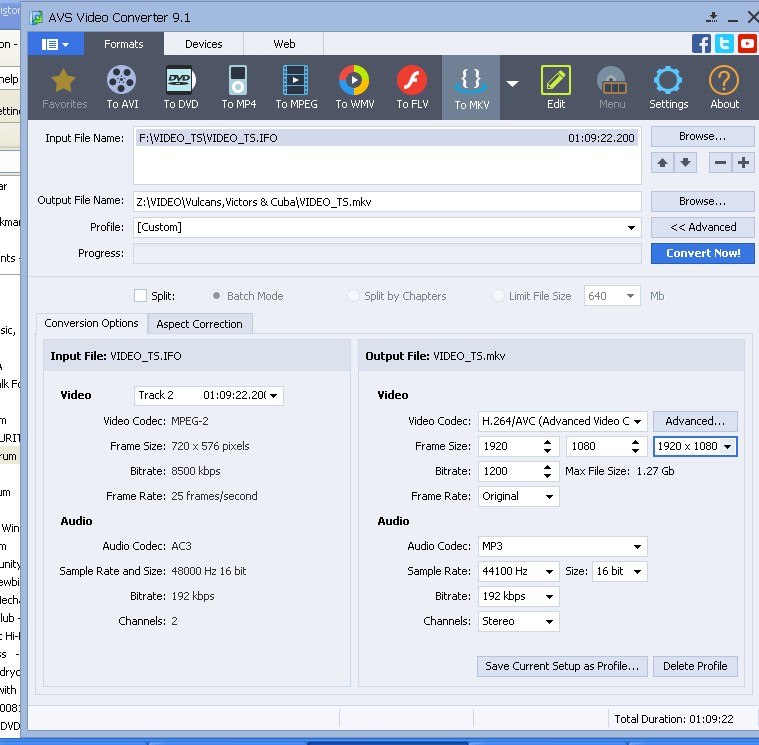

    I had changed the output FRAME SIZE settings accordingly as per picture below but it still shows the output as being the same.

    Click image for larger version

Name:	untitled3.jpg
Views:	217
Size:	121.6 KB
ID:	33974

    Im quite confused as to why it does this, as when I play the DVD on my PC it does not have these borders....
    Am I doing things correctly in altering the frame size settings or have I totally missed the point. apologies for my lack of knowledge....
    Quote Quote
  2. Member
    Join Date
    May 2014
    Location
    Down the road, last house on the right
    Search Comp PM
    I don't use AVS Video Converter myself but I would be curious to see whats in the "Aspect Correction" tab I see
    on your screen-shot.
    Quote Quote
  3. aBigMeanie aedipuss's Avatar
    Join Date
    Oct 2005
    Location
    666th portal
    Search Comp PM
    click on the aspect correction tab and show us a screenshot of what the options are.
    --
    "a lot of people are better dead" - prisoner KSC2-303
    Quote Quote
  4. Member
    Join Date
    Dec 2002
    Location
    United Kingdom
    Search Comp PM

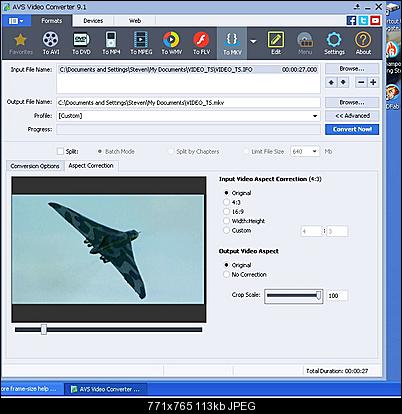

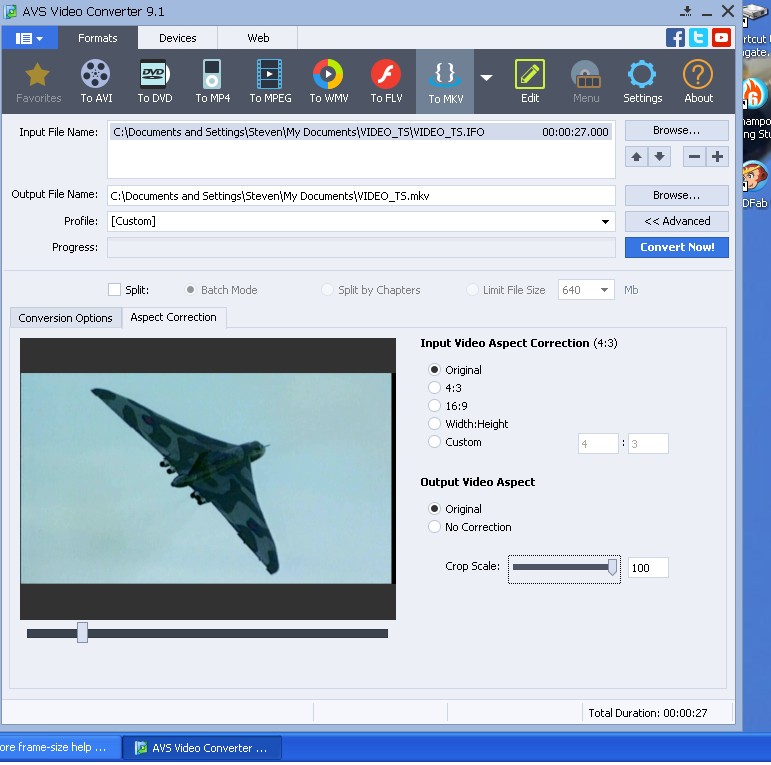

    Yet again you chaps come to the rescue!! , it was staring me in the face all the time, THE ASPECT CORRECTION option......Thanks for pointing it out to me!! very much appreciated.

    Click image for larger version

Name:	TEst 2.jpg
Views:	134
Size:	113.3 KB
ID:	33975
    Quote Quote
  5. Member Cornucopia's Avatar
    Join Date
    Oct 2001
    Location
    Deep in the Heart of Texas
    Search PM
    You do realize that by doing that conversion you are losing quality (both Video & Audio) in the re-encoding, and possibly enlarging the filesize (or conversely, NOT enlarging the filesize because of lower bitrate, but even further losing quality).

    A good player & display system ought to correctly scale that for your TV anyway, without conversion & re-encoding.

    Scott
    Quote Quote
  6. Member Budman1's Avatar
    Join Date
    Jul 2012
    Location
    NORTHWEST ILLINOIS, USA
    Search Comp PM

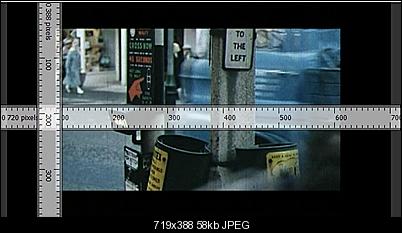

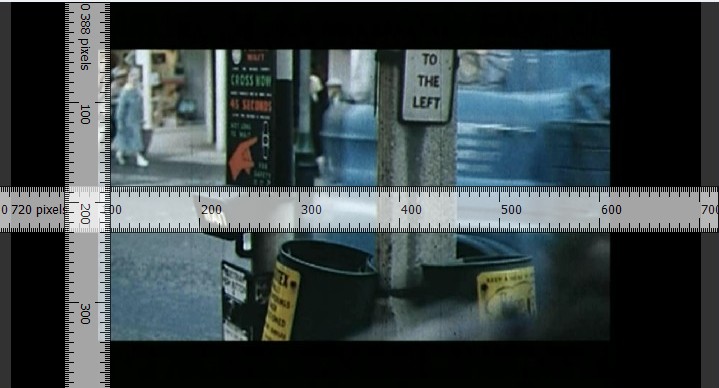

    Yes it lookslike it is the aspect. it looks like you don't have a 720x576 as your input shows. You actually have a 720x388 that someone has altered the aspects (DAR,PAR,SAR, etc.) and the black is actually part of the picture not bars like you'd expect.
    Click image for larger version

Name:	ScreenHunter_167 Oct. 09 23.10.jpg
Views:	126
Size:	57.8 KB
ID:	33993

    You need to crop off the borders and resize it to what you want (shown is 16/9 but actually would be the 1.85)
    Click image for larger version

Name:	ScreenHunter_169 Oct. 09 23.19.jpg
Views:	113
Size:	107.6 KB
ID:	33994

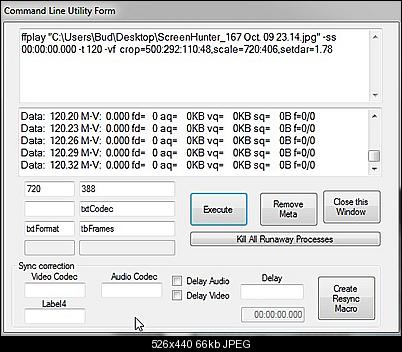

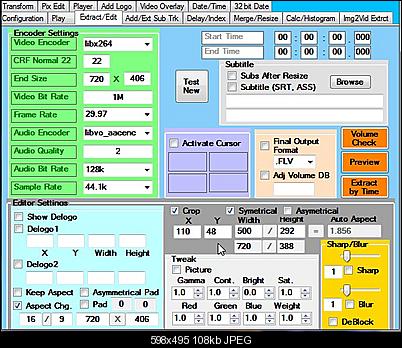

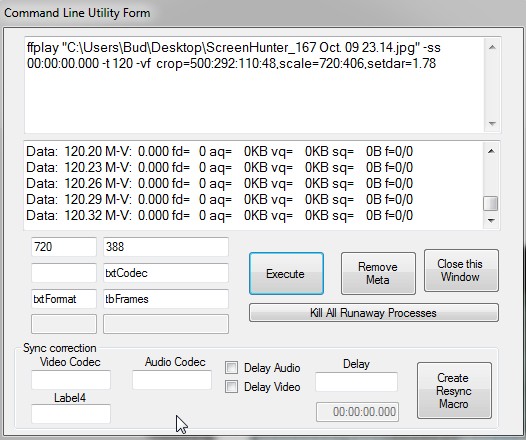

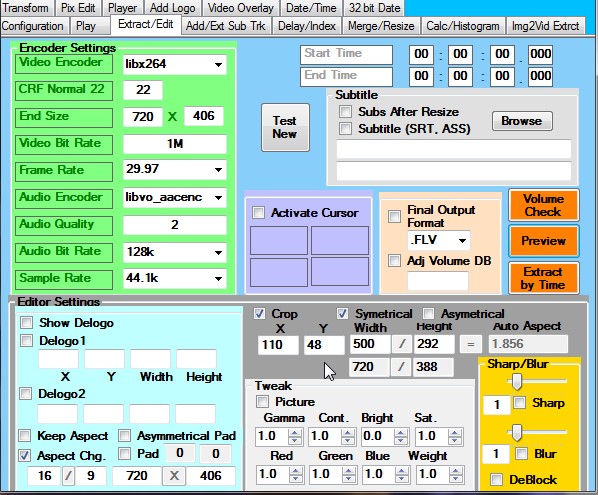

    The crop and resize settings and aspect I used are below.
    Click image for larger version

Name:	ScreenHunter_169 Oct. 09 23.18.jpg
Views:	121
Size:	66.5 KB
ID:	33995

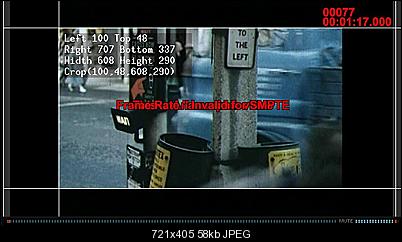

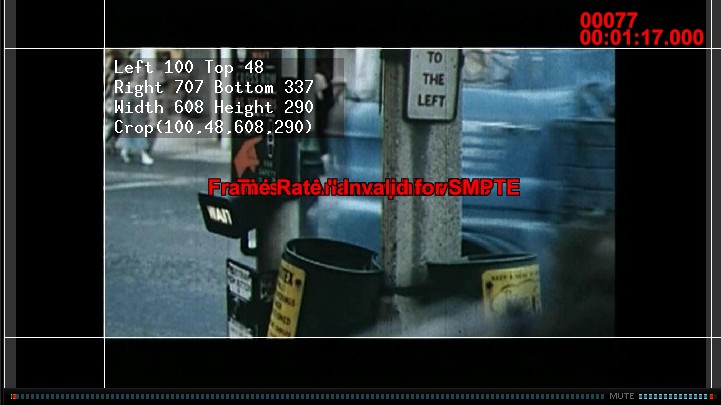

    The correct (for 1.78) would actually be crop 100x 48Y:
    Click image for larger version

Name:	ScreenHunter_169 Oct. 09 23.36.jpg
Views:	119
Size:	58.2 KB
ID:	33996

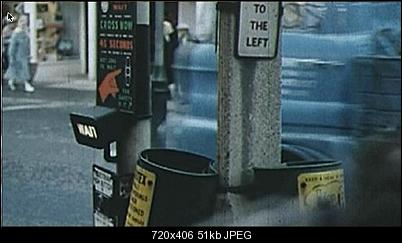

    Yielding:
    Click image for larger version

Name:	ScreenHunter_168 Oct. 09 23.18.jpg
Views:	122
Size:	50.7 KB
ID:	33997
