I was given some video that was shot using a Canon P&S camera, no idea the model number. The Mediainfo is kind of strange. Is this really exactly 30.000 fps? Would that make it Drop Frame video? I thought that frame rate didn't really exist for NTSC, iow everything is really 29.97 fps Non Drop frame. On another note, given that it is SD with square pixels in a MPEG-4 format, is blu-ray the best optical destination or DVD? Since DVD only supports 29.97 fps and non-square pixels, it seems that I would have to do too much to it to burn it to DVD. But the more I think about it, the more it seems this video is already perfectly encoded for web or PC playback with the exception of maybe the audio which is 44.1 vs 48. Please feel free to straighten me out on any of these points. Thanks.
Code:General Complete name : D:\MVI_1024.MOV Format : MPEG-4 Format profile : QuickTime Codec ID : qt File size : 156 MiB Duration : 2mn 2s Overall bit rate : 10.6 Mbps Encoded date : UTC 2015-06-18 20:38:39 Tagged date : UTC 2015-06-18 20:38:39 Video ID : 1 Format : AVC Format/Info : Advanced Video Codec Format profile : Baseline@L3.1 Format settings, CABAC : No Format settings, ReFrames : 1 frame Format settings, GOP : M=1, N=15 Codec ID : avc1 Codec ID/Info : Advanced Video Coding Duration : 2mn 2s Bit rate : 9 901 Kbps Width : 640 pixels Height : 480 pixels Display aspect ratio : 4:3 Frame rate mode : Constant Frame rate : 30.000 fps Color space : YUV Chroma subsampling : 4:2:0 Bit depth : 8 bits Scan type : Progressive Bits/(Pixel*Frame) : 1.074 Stream size : 145 MiB (93%) Language : English Encoded date : UTC 2015-06-18 20:38:39 Tagged date : UTC 2015-06-18 20:38:39 Color primaries : BT.709 Transfer characteristics : BT.709 Matrix coefficients : BT.601 Audio ID : 2 Format : PCM Format settings, Endianness : Little Format settings, Sign : Signed Codec ID : sowt Duration : 2mn 2s Bit rate mode : Constant Bit rate : 705.6 Kbps Channel(s) : 1 channel Channel positions : Front: C Sampling rate : 44.1 KHz Bit depth : 16 bits Stream size : 10.3 MiB (7%) Language : English Encoded date : UTC 2015-06-18 20:38:39 Tagged date : UTC 2015-06-18 20:38:39
+ Reply to Thread
Results 1 to 30 of 32
Many P&S cams create SD video which is not "industry standard broadcast-compatible" but more "IT compatible". They know their market. This is likely how it is presented to the audience: "post it directly onto Youtube...". Low end, throwaway type.
However, you are mistaken, it would NOT take much to "rehabilitate" this into something workable for a DVD (here, I am going to assume you mean the "DVD-Video" authored spec for CE playback).
It's AVC, so it's not supported anyway and will need to be re-encoded. As will the audio (because it isn't 48kHz).
Use ffmpeg to demux/remux the Audio stream into a WAV file.
For the video:
Decode into AVISynth.
Use "AssumeFPS(ntsc_video)" - slows down by 0.0999%, not noticeable now just need to slow down audio.
Use "BicubicResize(clip, 704, 480)" and then "AddBorders(clip,8,0,8,0)" - stretches the horiz correctly, then pads to full 720 expected for most DVDs.
Then, load this into HCEnc and encode to fit your DVD, using 4:3 DAR and NTSC DVD-compliant settings (except the Progressive encoding + Progressive Sequence header flag).
Then, add audio (see below), author & burn
For the audio:
Open in Audacity
Use "Change Tempo" and use that percentage change from above. This will stretch the audio very slightly to maintain synch.
Use "Resample" to resample it to 48kHz.
Export to mono 48kHz WAV. (this is 768kbps, so easy enough to leave as-is for bitrate budgeting and not re-compress to AC-3, etc)
Thanks, Scott! I appreciate the workflow tips. I will probably be posting back here as I dig deeper into this process. I tend to prefer using After Effects cuz I like to process my video with denoising, sharpening, color correction and grading, and filmic blending before bringing into PPro. So quick follow up question.
Do you recommend decoding and processing the video in AVISynth before bringing into AE? I want to minimize the generation loss of course. Or, can most of that be done in AE (I need to dig into the effects). I will frameserve out of PPro to HCenc, so thanks for those workflow tips.
OK, after spending some time thinking through Scott's recommendations, I have tried the following workflow:
1. Keep everything in its 640x480p30.000 square pixel format as I render from AE for PP import
2. Set up a PP project matching the video exactly and build timeline
3. Frameserve out of PP via DMFS to AVISynth and apply the resize and border adjustment as outlined above
4. Encode using HCenc
However, I am having trouble with HCenc recognizing the AVS file. Here is my AVISynth script:
AVISource("E:\signpost.avi", audio=false).AssumeFPS(30000,1001) BicubicResize(704,480) AddBorders(8,0,8,0)
In one extreme you will get an answer that HD as we know would be a complete disaster without Rec.709 while in other cases you will get 'a bit of gamma difference or primary mismatch will not break the bank'. It's mostly a job security thing in my opinion. Wait till you get smpte170m and bt470m in the mix. The soup concocted by brilliant engineers, after all NTSC = Never Twice the Same Color.
Of course some engineers can explain it all and will tell you this whole zoo is one stroke of brilliance and that the critics are just trolls!
Needless to say that converting with the wrong coefficients will give noticeable differences.
However I remain to be intrigued by your filmic blending comment. If that means you are going to blend your 480p30 into 24p then please don't, you will butcher the video.
Last edited by newpball; 21st Jun 2015 at 12:31.
sRGB uses the ITU-R BT.709 primaries, the same as are used in studio monitors and HDTV, and a transfer function (gamma curve) typical of CRTs.
Much software is now designed with the assumption that an 8-bit-per-channel image file placed unchanged onto an 8-bit-per-channel display will appear much as the sRGB specification recommends. LCDs, digital cameras, printers, and scanners all follow the sRGB standard.
I'm not sure I've quite got my head around it, but I think it's basically showing the video should be converted to RGB on playback using BT.601 (matrix coefficients) I assume because it's standard definition, and the resulting RGB will display most accurately on a BT.709/sRGB calibrated monitor (colour primaries)..... or something to that effect. Maybe someone who understands it properly will come along, but I'm not sure there's necessarily any mess involved.
The way I interpret the Transfer Characteristics shown in the pdf here, BT.709 and BT.601 are exactly the same so that doesn't seem very messy either.
I'm pretty sure Handbrake always writes the Transfer Characteristics as BT.709. Maybe that's why? It doesn't matter.
I've not sure I've ever seen MediaInfo display smpte170m or bt470m. It just displays BT.601.
Using x264’s color coefficient flagging properly.
Last edited by hello_hello; 22nd Jun 2015 at 10:38.
DMFS, HCenc will go through the motions but doesn't output anything. After choosing RGB24 and adding ConvertToYV12(), it was encoded fine and Encore accepted the clip without triggering the transcode flag. So success?
The only question I have now is, Scott said:
Here is the log file:
----------------------------------------- | HCenc - MPEG2 encoder - rel. 0.27.0.1 | ----------------------------------------- MPEG profile@level: MP@ML input: d:\signpost.avs output: D:\Test.m2v ----------------- | Avisynth file | ----------------- file: d:\signpost.avs AVISource("D:\signpost.avi", audio=false).AssumeFPS(30000,1001) BicubicResize(704,480) AddBorders(8,0,8,0) ConvertToYV12() -------------------- | encoder settings | -------------------- profile: BEST frames: 0 - 463 framerate: 29.970 aspect ratio: 4:3 chroma format: 4:2:0 bitrate: NA max. bitrate Kb/s: 9000 pass: 1 (Constant Quant) constant Q: 7.000 pulldown: no closed gops: no VBV check: yes VBV size (bits): 1835008 scene change det: yes interlaced: no, BFF goplen,B-pic: 15 2 dc_precision: 10 intraVLC: auto scan method: zigzag bias: 0 chapter frames: 1 time code: 0 0 0 0 CPU: MMX,SSE2,SSE3,SSSE3,SSE4.1,SSE4.2,AVX priority: high SMP active: yes matrix: MPEG luminance gain: no adaptive quantization: yes, strength 2 deadzone quantization: auto ------------------ | source stats | ------------------ nr. of frames in source: 464 width*height: 720x480 color space: 4:2:0 (YV12) fps: 29.970 nr. of frames to encode: 464 frames to encode: 0 - 463 --------------------- | encoding - pass 1 | --------------------- pass 1 encoding time: 0:00:05 (5.27 s) fps: 88.0 ------------------ | encoding stats | ------------------ intra matrix used 8 16 19 22 26 27 29 34 16 16 22 24 27 29 34 37 19 22 26 27 29 34 34 38 22 22 26 27 29 34 37 40 22 26 27 29 32 35 40 48 26 27 29 32 35 40 48 58 26 27 29 34 38 46 56 69 27 29 35 38 46 56 69 83 non-intra matrix used 16 17 18 19 20 21 22 23 17 18 19 20 21 22 23 24 18 19 20 21 22 23 24 25 19 20 21 22 23 24 26 27 20 21 22 23 25 26 27 28 21 22 23 24 26 27 28 30 22 23 24 26 27 28 30 31 23 24 25 27 28 30 31 33 nr. of gops: 32 nr. of frames: 464 nr. of I-frames: 32 nr. of P-frames: 125 nr. of B-frames: 307 average bitrate: 2459 minimum bitrate: 1997 maximum bitrate: 8239 bytes in bitstream: 4762009 bits in bitstream: 38096072 average Quantizer: 12.580 total CPU time: 0:00:05 (5.23 s) total elapsed time: 0:00:05 (5.39 s)
Oops, wrong thread.
Last edited by jagabo; 21st Jun 2015 at 18:12.
If I resize as you suggest than that leaves part of my picture out of the active picture area.
Also, I am puzzled by your ITU rec.601 comment. My knowledge of colorspaces is very rudimentary at best. Can you please elaborate how this relates to the aspect ratio?
Anyone care to clarify? Thank you.
EDIT: I missed your edit as I was typing my response.
Good news, I have sorted out the video portion of the stream unless anyone has some further clarifications. There has been some chatter about the colorspace, but someone with more expertise needs to weigh in. I am just not qualified to understand where I might be messing things up.
As for the audio, what a mess! Not only is it 44.1 kHz, but it is also mono! So I gotta stretch it, resample it to 48 kHz, as Scott suggests, and also simulate some stereo imaging.
Last edited by SameSelf; 21st Jun 2015 at 19:12.
Generally, you should use rec.709 for HD, rec.601 for SD. MediaInfo is showing rec.601 for the conversion matrix, the same as DVD so you shouldn't need to change that. If you camera shot rec.709 you would need to use ColorMatrix(mode="rec.709->rec.601") to get proper colors.
Beyond that there are two different ranges for the luma channel (Y) with both systems. DVD uses the limited range of 16-235. Some cameras use the full range of 0-255 to get better granularity. If your camera uses the latter you need to reduce the range with ColorYUV(levels="PC->TV") or you will get crushed blacks and blown out brights when you watch the DVD.
You won't get BACK to stereo from mono (at least not satisfactorily). But DVDs work with mono streams just fine, so just author/mux it that way. And your cam probably only has a mono mic, so that really is as good as it could get anyway.
Since the cam was originally a digital cam, it probably DOES make more sense to go the direct 640->720 route (rather than the 640->704, pad->720 preferred for analog sources), but the difference is 2% and not really enough to worry or quibble over.
On the other hand if the sound source is relatively anechoic and phase coherent, impulse response convolution could place him in any virtual building he wants, he then could capture a full 'living stereo' image.
Last edited by newpball; 21st Jun 2015 at 20:15.
Last edited by newpball; 21st Jun 2015 at 20:47.
What jagabo & I were discussing has NOTHING to do with overscan. Has to do with digital sampling from analog vs. creation from digital, and reconciling the 2 keeping in mind MOD16 math (very important at the time, less so now).
Overscan is just another of newpball's hotbuttons, and an inaccurate & derogatory red herring (as usual).
There are still a few new (as well as millions of existing) monitors & TVs that have some sort of bezels, but 95% of newer models have negligable to no overscanning (and this is sometimes dependent upon which input & res settings chosen). Regardless, any decently professionally produced visual would have taken overscan into consideration and avoided placing important static visual items outside of title-safe, let alone action-safe. Even without the overriding need to account for possible overscan, it is still a good design practice so I don't think that is going to change any time soon (nor should it IMO). For a non-pro show from a consumer cam, this may not have been followed, however, so YMMV.
Last edited by Cornucopia; 21st Jun 2015 at 22:37.
Many thanks to everyone who has helped me think through this. I have come to the conclusion that the only way to be entirely certain about these details is to start testing various options. I am a huge newbie in this realm, but I guess everyone has to learn at some point. Fortunately, I have some DVD-RWs to avoid making a bunch of coasters because ultimately it comes down to how the picture looks on a television. I have learned the hard way numerous times that WYSINWYG in terms of PC to TV. I will try to post back here with what I find.
I am wondering if there is a way to avoid resizing the image and just mapping the 640x480 square pixel image into a 720x480 non-square pixel image? I tried a couple of different resizing BicubicResize(704,480) and LanczosResize(704,480) and tried to compare them to the original image. Here are some ~400% zoomed in crops. As you can see, the difference between Bicubic and Lanczos is minimal, and there are some strange artifacts in both. Is this an example of ringing?

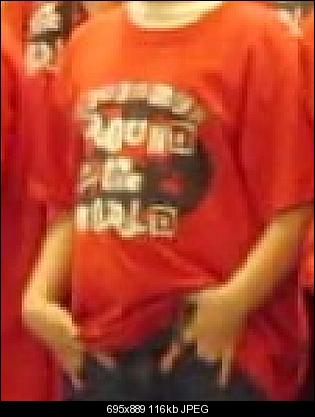

Original Image 640x480p30.000 square pixels

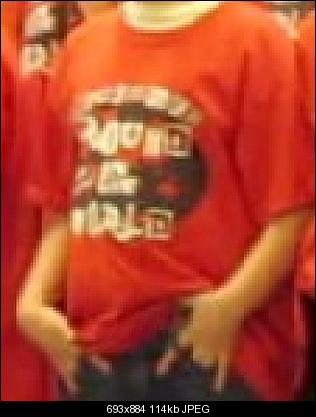

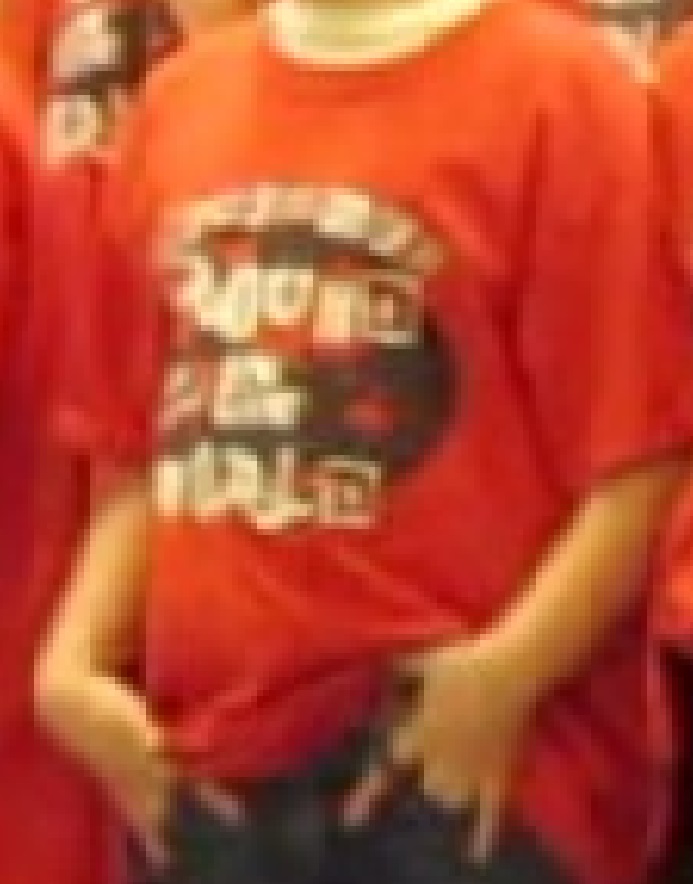

Resized Image 720x480p29.97 non-square pixels BicubicResize

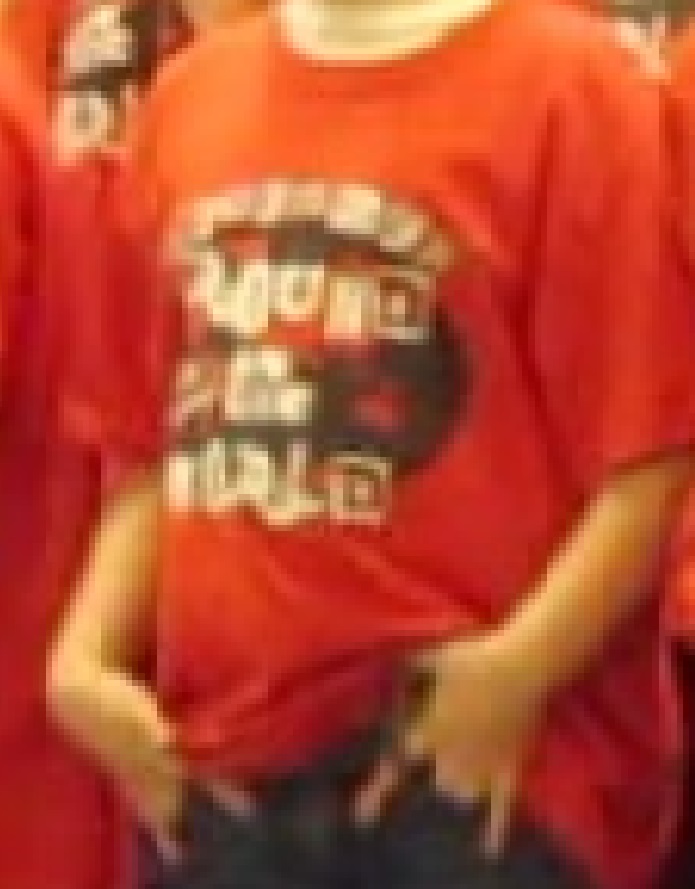

Resized Image 720x480p29.97 non-square pixels LanczosResize

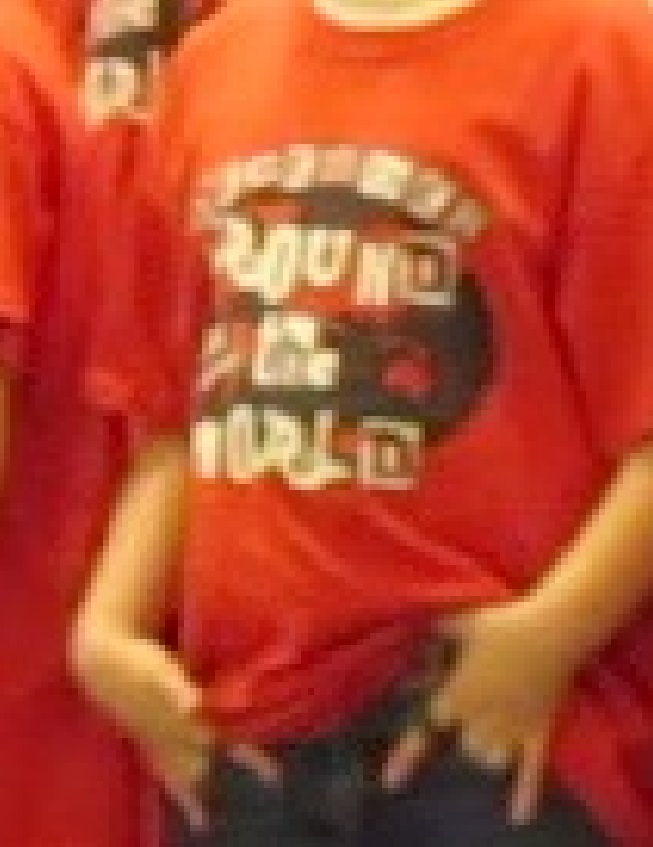

Those look like MPEG blocking artifacts, not resizing artifacts.
I wonder, is what we see the original 9901 Kbps 640x480 or some processed 'improved' version?
